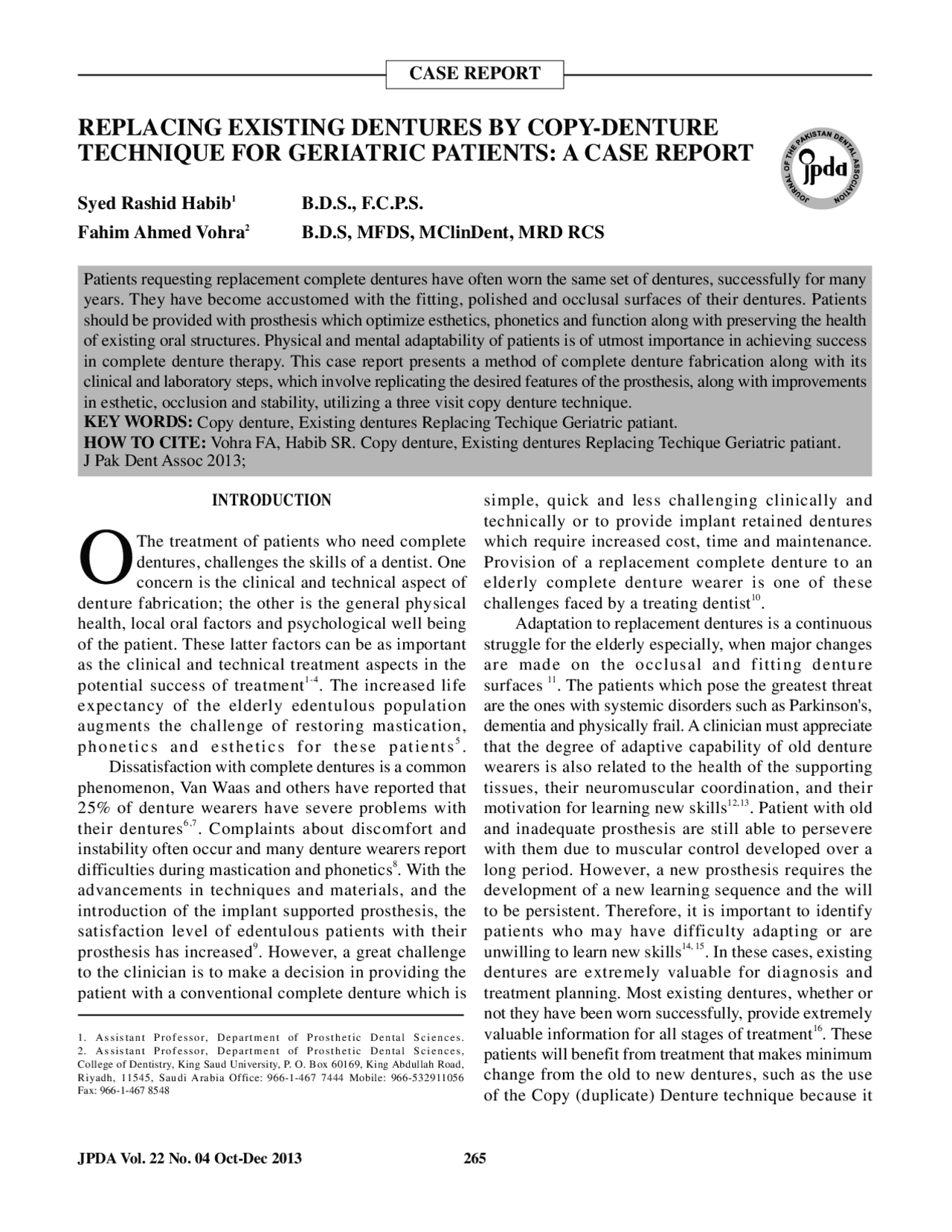

JPDA Vol. 22 No. 04 Oct-Dec 2013 265
REPLACING EXISTING DENTURES BY COPY-DENTURE
TECHNIQUE FOR GERIATRIC PATIENTS: A CASE REPORT
Syed Rashid Habib1B.D.S., F.C.P.S.
Fahim Ahmed Vohra2B.D.S, MFDS, MClinDent, MRD RCS
Patients requesting replacement complete dentures have often worn the same set of dentures, successfully for many
years. They have become accustomed with the fitting, polished and occlusal surfaces of their dentures. Patients
should be provided with prosthesis which optimize esthetics, phonetics and function along with preserving the health
of existing oral structures. Physical and mental adaptability of patients is of utmost importance in achieving success
in complete denture therapy. This case report presents a method of complete denture fabrication along with its
clinical and laboratory steps, which involve replicating the desired features of the prosthesis, along with improvements
in esthetic, occlusion and stability, utilizing a three visit copy denture technique.
KEY WORDS: Copy denture, Existing dentures Replacing Techique Geriatric patiant.
HOW TO CITE: Vohra FA, Habib SR. Copy denture, Existing dentures Replacing Techique Geriatric patiant.
J Pak Dent Assoc 2013;
INT RO DU CT IO N
The treatment of patients who need complete
dentures, challenges the skills of a dentist. One
concern is the clinical and technical aspect of
denture fabrication; the other is the general physical
health, local oral factors and psychological well being
of the patient. These latter factors can be as important
as the clinical and technical treatment aspects in the
potential success of treatment1-4 . The increased life
expectancy of the elderly edentulous population
augments the challenge of restoring mastication,
phonetics and e s t heti c s for th e s e pati e n t s5.
Dissatisfaction with complete dentures is a common
phenomenon, Van Waas and others have reported that
25% of denture wearers have severe problems with
their dentures6,7. Complaints about discomfort and
instability often occur and many denture wearers report
difficulties during mastication and phonetics8. With the
advancements in techniques and materials, and the
introduction of the implant supported prosthesis, the
satisfaction level of edentulous patients with their
prosthesis has increased9. However, a great challenge
to the clinician is to make a decision in providing the
patient with a conventional complete denture which is
simple, quick and less challenging clinically and
technically or to provide implant retained dentures
which require increased cost, time and maintenance.
Provision of a replacement complete denture to an
elderly complete denture wearer is one of these
challenges faced by a treating dentist10.
Adaptation to replacement dentures is a continuous
struggle for the elderly especially, when major changes
are made on the occl usal and fitti ng denture
surfaces 11. The patients which pose the greatest threat
are the ones with systemic disorders such as Parkinson's,
dementia and physically frail. A clinician mustappreciate
that the degree of adaptive capability of old denture
wearers is also related to the health of the supporting
tissues, their neuromuscular coordination, and their
motivation for learning new skills12,13. Patient with old
and inadequate prosthesis are still able to persevere
with them due to muscular control developed over a
long period. However, a new prosthesis requires the
development of a new learning sequence and the will
to be persistent. Therefore, it is important to identify
patients who may have difficulty adapting or are
unwilling to learn new skills14, 15. In these cases, existing
dentures are extremely valuable for diagnosis and
treatment planning. Most existing dentures, whether or
not they have been worn successfully, provide extremely
valuable information for all stages of treatment16. These
patients will benefit from treatment that makes minimum
change from the old to new dentures, such as the use
of the Copy (duplicate) Denture technique because it
O
1. A ssi s t an t P r of e s sor , D ep a r tme n t o f Pro s the t ic Den t al Sc i enc e s .
2. A ssi s t an t P r of e s sor , D ep a r tme n t o f Pro s the t ic Den t al Sc i enc e s ,
College of Dentistry, Kin g Saud Univers ity, P. O. Box 6016 9, King Abdullah Road,
Riyadh, 11 545, Saud i Ara bi a Office: 966-1-467 7 444 Mo bile : 966- 53291105 6
Fax: 966-1-467 8548
CASE REPORT
pf3
pf4
pf5

Partial preview of the text

Download Replacing Dentures for Geriatric Patients: A Case Report on Copy-Denture Technique and more Exercises Esthetics in PDF only on Docsity!

REPLACING EXISTING DENTURES BY COPY-DENTURE

TECHNIQUE FOR GERIATRIC PATIENTS: A CASE REPORT

Syed Rashid Habib^1 B.D.S., F.C.P.S.

Fahim Ahmed Vohra^2 B.D.S, MFDS, MClinDent, MRD RCS

Patients requesting replacement complete dentures have often worn the same set of dentures, successfully for many years. They have become accustomed with the fitting, polished and occlusal surfaces of their dentures. Patients should be provided with prosthesis which optimize esthetics, phonetics and function along with preserving the health of existing oral structures. Physical and mental adaptability of patients is of utmost importance in achieving success in complete denture therapy. This case report presents a method of complete denture fabrication along with its clinical and laboratory steps, which involve replicating the desired features of the prosthesis, along with improvements in esthetic, occlusion and stability, utilizing a three visit copy denture technique. KEY WORDS: Copy denture, Existing dentures Replacing Techique Geriatric patiant. HOW TO CITE: Vohra FA, Habib SR. Copy denture, Existing dentures Replacing Techique Geriatric patiant. J Pak Dent Assoc 2013;

INTRODUCTION

The treatment of patients who need complete dentures, challenges the skills of a dentist. One concern is the clinical and technical aspect of denture fabrication; the other is the general physical health, local oral factors and psychological well being of the patient. These latter factors can be as important as the clinical and technical treatment aspects in the potential success of treatment1-4. The increased life expectancy of the elderly edentulous population augments the challenge of restoring mastication, phonet i cs and est heti cs for t hese pat i ent s^5. Dissatisfaction with complete dentures is a common phenomenon, Van Waas and others have reported that 25% of denture wearers have severe problems with their dentures6,7. Complaints about discomfort and instability often occur and many denture wearers report difficulties during mastication and phonetics^8. With the advancements in techniques and materials, and the introduction of the implant supported prosthesis, the satisfaction level of edentulous patients with their prosthesis has increased^9. However, a great challenge to the clinician is to make a decision in providing the patient with a conventional complete denture which is

simple, quick and less challenging clinically and technically or to provide implant retained dentures which require increased cost, time and maintenance. Provision of a replacement complete denture to an elderly complete denture wearer is one of these challenges faced by a treating dentist^10. Adaptation to replacement dentures is a continuous struggle for the elderly especially, when major changes are made on the occlusal and fitting denture surfaces 11. The patients which pose the greatest threat are the ones with systemic disorders such as Parkinson's, dementia and physically frail. A clinician must appreciate that the degree of adaptive capability of old denture wearers is also related to the health of the supporting tissues, their neuromuscular coordination, and their motivation for learning new skills12,13. Patient with old and inadequate prosthesis are still able to persevere with them due to muscular control developed over a long period. However, a new prosthesis requires the development of a new learning sequence and the will to be persistent. Therefore, it is important to identify patients who may have difficulty adapting or are unwilling to learn new skills14, 15. In these cases, existing dentures are extremely valuable for diagnosis and treatment planning. Most existing dentures, whether or not they have been worn successfully, provide extremely valuable information for all stages of treatment^16. These patients will benefit from treatment that makes minimum change from the old to new dentures, such as the use of the Copy (duplicate) Denture technique because it

O

  1. A s s is t a n t P r o f e s s o r, D e p a r tm e n t o f P r o s t h e t ic D e n t a l S c ie n c e s.
  2. A s s is t a n t P r o f e s s o r, D e p a r tm e n t o f P r o s t h e t ic D e n t a l S c ie n c e s , College of Dentistry, King Saud University, P. O. Box 60169, King Abdullah Road, Riyadh, 11545, Saudi Arabia Office: 966-1-467 7444 Mobile: 966- Fax: 966-1-467 8548

CASE REPORT

makes an easier transition to the new prosthesis15-17. Copy dentures enhance neuromuscular adaptation to new dentures, reduce patient-clinician chair side time, reduce laboratory steps, require fewer patient visits, make jaw relation registration simple, provide technical staff with more guidance to tooth position and moulds, allows for copying esthetics and are cost effective18,19. Since the desirability of copying was recognized by Fenn et al in 1953, several methods have been evolved, most of which are based upon the production of replica dentures from impressions of the existing appliances to form the basis of the new appliances4,15-18, 20-21, 23-24. There is evidence to suggest that both the dentist and the dental technician have a clear understanding of the rationale behind the copy technique and why the technique is being used for a particular patient; it is likely that the prescription will not be followed accurately by the dental laboratory^21. This case report presents a method of complete denture fabrication along with its clinical and laboratory steps, which involves replicating the desired features of the prosthesis along with improvements in esthetic, occlusion and stability utilizing a three visit copy denture technique.

CASE REPORT

An 83 yr old male, reported to the Department of Prosthodontics, (Study setting removed). The patient was a complete denture wearer, using the existing dentures for the last 14 yrs. He complained of loose, discolored dentures and had difficulty in mastication. The patient was medically fit and well. Extra oral examination showed decrease in occlusal vertical dimension (OVD). In the intraoral examination the oral and denture hygiene was found to be satisfactory. The upper arch was U shaped while the lower arch was highly resorbed and depressed (Figure1). Due to

resorption in the lower arch the bellies of mentalis muscle were very prominent. There was no intraoral

pathology and adequate salivary flow was present. Inspection of the previous dentures exhibited discoloration and worn occlusal surfaces (Figure2). Denture examination exhibited lack of retention and stability, non-balanced occlusal contacts, worn teeth resulting in reduced occlusal-vertical dimension (OVD). A diagnosis of ill-fitting, discolored complete dentures with occlusal wear, decreased OVD and occlusal disharmony was made. The treatment options available were: Provision of new complete dentures fabricated by conventional denture fabrication technique. Provision of new complete dentures fabricated by copy denture technique. Implant supported over-dentures. The objective was to provide new retentive and stable complete maxillary and mandibular dentures with acceptable function and esthetics with limited patient visits. The age of the patient and the relatively better evidence of the adaptation to the existing complete dentures was a clear indication for the use of copy denture technique. All options including their risks, benefits etc were explained to the patient and the patient opted for new complete dentures by the copy denture technique. The treatment was planned in three stages. At the first visit, impressions of the existing dentures were recorded using stock impression trays and irreversible hydro-colloid (alginate) for fabrication of the template

Habib SR / Vohra FA geriatric patients: a case report

Figure 1. (^) Intraoral views of the maxillary and mandibular arches.

Figure 2. Existing (old) dentures of the patient.

At the second clinical visit, the trial of the dentures was done and functional reline impressions were recorded in the trial dentures using zinc oxide paste (Figure7). Investing of the denture in flasks, de-waxing,

packing the mould with resin and curing of the dentures was then completed in the laboratory. After finishing and polishing the dentures were ready for insertion (Figures 8 & 9). In the third and final visit the dentures were fitted intra-orally after minor adjustments. The patient was

called for review and follow up visit at 24 hours post- operative and after 1 week. During the follow up visits the patient was found to be satisfied with the function,

esthetics, occlusion and phonetics of the new dentures. This method is simple and utilizes materials and

geriatric patients: a case report

Patient Visit

Stage Clinical Steps Suggestions

1. Clinical

Lab

Diagnosis and treatment plan If the pt. is suitable for copy dentures then;Invest/Impression of dentures to be copied.

List those aspects of the existing dentures that will be modified and those aspects that will be copied.

Clinical

Lab

Construct copy templates with self cure acrylic resin.

Record Maxillo-mandibular relation using replica denture

Mounting of the Copy Templates. Arrangement of teeth for trial dentures.

It is important to remove/grind only one or two teeth from the templates at a time so that the remainder acts as effective guides to accurate positioning of the new teeth.

2. Clinical

Lab

Denture trial for the patient. Take reline impressions within the templates in wash-viscosity elastomeric / zinc oxide eugenol impression material.

Record the wash impression with close- mouth impression method. Final wax up, Flasking, Dewaxing, Packing of acrylic, Curing, Finishing and Polishing of dentures.

If it is required wax can be added to the acrylic palate and wax up is finalized before flasking. During the Flasking, Dewaxing and Packing, the remaining cold curing resin and impression material are discarded and the flask is packed with heat cure acrylic resin.

3. Clinical Denture insertion Selective spot grinding of the new teeth intraorally. Patient put on review / recall

Table 1: Clinical and Laboratory procedures at each Visit.

Figure 7. Reline impressions recorded at the trial dentures stage.

Figure 9. Impression surfaces of new dentures.

Figure 8. Finished and polished dentures.

Vohra FA / Habib SRHabib SR / Vohra FA

equipment commonly available in almost all dental surgeries^20. The various clinical and technical stages of a copy denture technique are summarized in Table-I. It is possible to undertake more than one clinical stage at the same appointment.

DISCUSSION

Provision of replacement complete dentures for an increasingly elderly population presents problems for the prosthodontist. This is due to reduced adaptability to new prosthesis because of decreased neuromuscular skills in geriatric patients^22. The existing denture that needs to be replaced due to wear, tooth loss, discoloration, chipped and cracked bases provides the dentist with many useful information in planning new dentures. It is therefore helpful to reproduce familiar features of a patient's old prosthesis, especially if these have been used successfully for some years23-26. With replacement dentures, copying of suitable features using a copy denture technique is indicated^24. The existing denture provides superior trays and registration of maxilla-mandibular relations are easy and more predicable in terms of accuracy. With copy dentures information available in the patients existing dentures is used to simplify and quicken the procedure of making new dentures23-24. A local publication of a case report has described the benefits of the copy dentures and a technique of using copy denture flask specifically designed for duplicating existing dentures^24. This techniques of obtaining replica dentures from the moulds of existing denture obtained in laboratory alginate or laboratory silicone as a duplicating material in copy denture flasks as described by Basker and Davenport^20 and Ghani^24 is widely employed all over the world. However, in case, these denture duplicating flasks are not available, then the trays technique and method may be used for obtaining the replicas of the existing denture as is the case in the present study. The current case presented is a classical example of fabrication of the replacement dentures by the copy denture technique. Also, at the treatment option discussion, the patient wanted minor modifications within the existing dentures for improved comfort and function. Implant retained over-denture was not feasible for the patient due to high cost and surgical morbidity (advanced resorption). Relining was not suitable due

to history of previous failed attempts and existing denture problems like, discoloration, flat occlusal surfaces and unstable dentures. All of these issues led to the indication of new replacement complete dentures with copy technique. This technique helped to reduce the patient's clinical chair-side time as well as the reduction in appointments. With the new teeth there was improvement in the esthetics as well as chewing efficiency, and reduced OVD was improved with the new jaw relation record. Finally, well fitting new complete dentures was a direct result of the new impression surfaces. The clinical value of a copy denture method enabling reproduction of selected features of old dentures compared to fabrication of new complete dentures in replacements is no longer in doubt^26. The success of the present and earlier methods using copy technique in overcoming problems arising from disparities between new and old dentures constitutes a powerful argument for more widespread application of such a method as first line of treatment for appropriate indications22-26.

CONCLUSION

For elderly and frail patients who have used their old dentures successfully for a significant period of time, provision of replacement complete dentures by copy denture technique is a simple and cost effective procedure. The replacement dentures will have better adaptability with reduced chair-side and laboratory time. REFERENCES

  1. Laird WR, McLaughlin EA. Management and treatment planning for the elderly edentulous patient. Int J Prosthodont 1989; 2: 347-351.
  2. Vervoorn JM, Duinkerke AS, Luteijn F, van de Poel AC. Relative importance of psychologic factors in denture satisfaction. Community Dent Oral Epidemiol 1991; 19: 45-47.
  3. Moltzer G, Van der Meulen MJ, Verheij H. Psychological characteristics of dissatisfied denture patients. Community Dent Oral Epidemiol 1996; 24: 52-55.
  4. Lindquist T J, Ettinger R L. Patient management and decision making in complete denture fabrication using a duplicate denture procedure: A clinical report. J Prosthet Dent 1999; 82: 499-503.
  5. Paranhos HFO, Panzeri H, Lara EHG, Candido RC, Ito IY. Capacity of denture plaque/ biofilm removal and

Habib SR / Vohra FA geriatric patients: a case report
