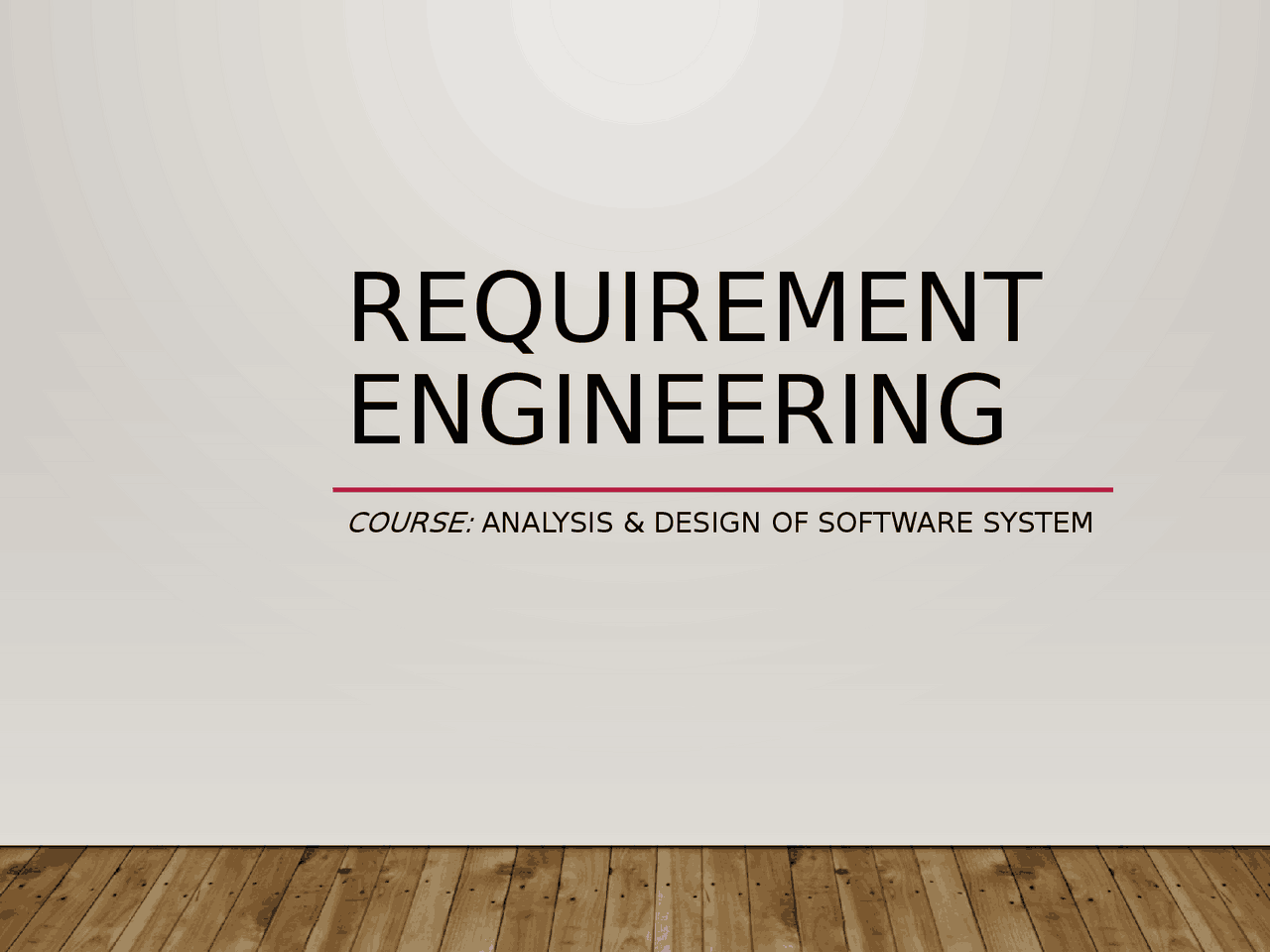

REQUIREMENT
ENGINEERING
COURSE: ANALYSIS & DESIGN OF SOFTWARE SYSTEM
REQUIREMENT ENGINEERING
- (^) The broad spectrum of tasks and techniques that lead to an understanding of requirements is called requirements engineering.
- (^) From a software process perspective, requirements engineering is a major software engineering action that begins during the communication activity and continues into the modeling activity.
- (^) It must be adapted to the needs of the process, the project, the product, and the people doing the work.
- (^) Requirements engineering builds a bridge to design and construction.
RE TASKS
- (^) It encompasses seven distinct tasks:
- (^) Inception,
- (^) Elicitation,
- (^) Elaboration,
- (^) Negotiation,
- (^) Specification,
- (^) Validation,
- (^) Management.
- (^) It is important to note that some of these tasks occur in parallel and all are adapted to the needs of the project.
RE TASKS
- (^) Inception —ask a set of questions that establish …
- (^) basic understanding of the problem
- (^) the people who want a solution
- (^) the nature of the solution that is desired, and
- (^) the effectiveness of preliminary communication and collaboration between the customer and the developer
- (^) Elicitation —elicit requirements from all stakeholders
- (^) Elaboration —create an analysis model that identifies data, function and behavioral requirements
- (^) Negotiation —agree on a deliverable system that is realistic for developers and customers
ELICITATION & ITS PROBLEMS
- (^) It certainly seems simple enough—
- (^) ask the customer,
- (^) the users,
- (^) & others what the objectives for the system or product are,
- (^) what is to be accomplished,
- (^) how the system or product fits into the needs of the business,
- (^) and finally, how the sys-tem or product is to be used on a day-to-day basis.
- (^) Christel and Kang [Cri92] identify a number of problems that are encountered as elicitation occurs.
- (^) Problems of scope.
- (^) The boundary of the system is ill-defined or the customers/users specify unnecessary technical detail that may confuse, rather than clarify, overall system objectives.
ELICITATION & ITS PROBLEMS
- (^) Problems of understanding.
- (^) The customers/users are not completely sure of what is needed,
- (^) have a poor understanding of the capabilities and limitations of their computing environment,
- (^) don’t have a full understanding of the problem domain,
- (^) have trouble communicating needs to the system engineer,
- (^) omit information that is believed to be “obvious,”
- (^) specify requirements that conflict with the needs of other customers/users, or specify requirements that are ambiguous or untestable.
- (^) Problems of volatility.
- (^) The requirements change over time.
- (^) To help overcome these problems, you must approach requirements gathering in an organized manner.
NEGOTIATION
- (^) To reconcile these conflicts through a process of negotiation.
- (^) Customers, users, and other stakeholders are asked to rank requirements and then discuss conflicts in priority.
- (^) Using an iterative approach that
- (^) Prioritize requirements,
- (^) Assesses their cost and risk,
- (^) Addresses internal conflicts,
- (^) Requirements are eliminated,
- (^) Combined, and/or modified so that each party achieves some measure of satisfaction.
SPECIFICATION
- (^) In the context of computer-based systems (and software), the term specification means different things to different people.
- (^) A specification can be
- (^) a written document,
- (^) a set of graphical models,
- (^) a formal mathematical model,
- (^) a collection of usage scenarios,
- (^) a prototype,
- (^) or any combination of these.
REQUIREMENTS MANAGEMENT
- (^) Requirements for computer-based systems change, and the desire to change requirements persists throughout the life of the system.
- (^) Requirements management is a set of activities that help the project team - (^) identify, - (^) control, - (^) track requirements - (^) changes to requirements at any time as the project proceeds.
ESTABLISHING THE GROUNDWORK
STEPS TO ESTABLISH GROUNDWORK
- Identifying Stakeholders
- Recognizing Multiple Viewpoints
- Working toward Collaboration
- Asking the First Questions
1.IDENTIFYING STAKEHOLDERS
- (^) Sommerville and Sawyer [Som97] define a stakeholder as “anyone who benefits in a direct or indirect way from the system which is being developed.”
- (^) Some of the stakeholders are
- (^) Business operations managers,
- (^) Product managers,
- (^) Marketing people,
- (^) Internal and external customers,
- (^) End users,
- (^) Consultants,
- (^) Product engineers,
- (^) Software engineers,
- (^) Support and maintenance engineers, and others.
2.RECOGNIZING MULTIPLE VIEWPOINTS
- (^) There may be different stakeholders exist, the requirements of the system will be explored from many different points of view.
- (^) For example,
- (^) the marketing group is interested in functions and features that will excite the potential market, making the new system easy to sell.
- (^) Business managers are interested in a feature set that can be built within budget and that will be ready to meet defined market windows.
- (^) End users may want features that are familiar to them and that are easy to learn and use.
- (^) Software engineers may be concerned with functions that are invisible to nontechnical stakeholders but that enable an infrastructure that supports more marketable functions and features.
- (^) Support engineers may focus on the maintainability of the software.
2.RECOGNIZING MULTIPLE VIEWPOINTS
- (^) Each of these communities (and others) will contribute information to the requirements engineering process.
- (^) As information from multiple viewpoints is collected, emerging (rising) requirements may be inconsistent or may conflict with one another.
- (^) You should categorize all stakeholder information (including inconsistent and conflicting requirements) in a way that will allow decision makers to choose an internally consistent set of requirements for the system.
