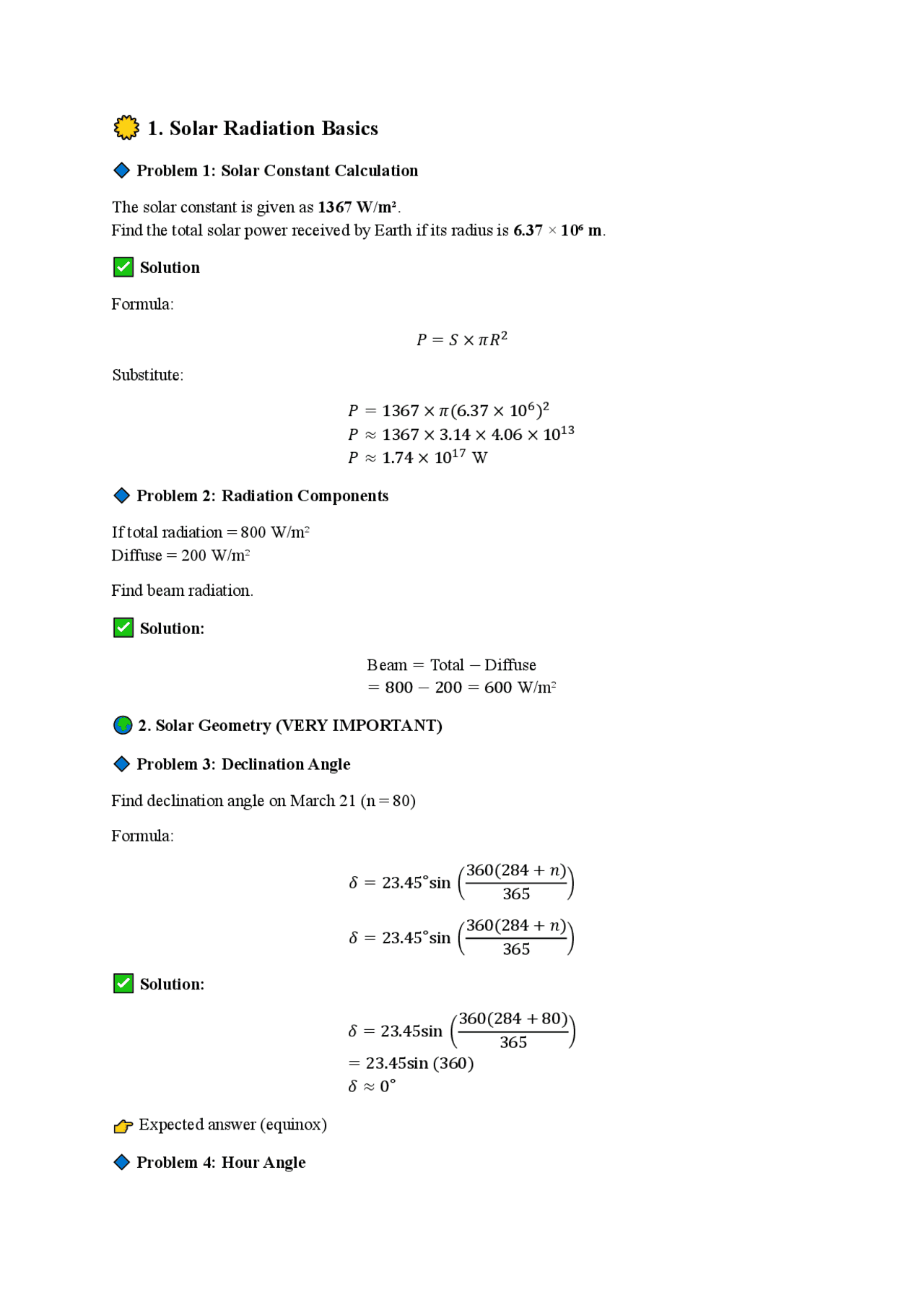

1. Solar Radiation Basics
Problem 1: Solar Constant Calculation The solar constant is given as 1367 W/mยฒ. Find the total solar power received by Earth if its radius is 6.37 ร 10โถ m. Solution Formula: ๐ = ๐ ร ๐๐
^2 Substitute: ๐ = 1367 ร ๐( 6. 37 ร 106 )^2 ๐ โ 1367 ร 3. 14 ร 4. 06 ร 1013 ๐ โ 1. 74 ร 1017 W Problem 2: Radiation Components If total radiation = 800 W/mยฒ Diffuse = 200 W/mยฒ Find beam radiation. Solution: Beam = Total โ Diffuse = 800 โ 200 = 600 W/mยฒ
2. Solar Geometry (VERY IMPORTANT) Problem 3: Declination Angle Find declination angle on March 21 (n = 80) Formula: ๐ฟ = 23. 45 โsin ( 360 ( 284 + ๐) 365 ) ๐ฟ = 23. 45 โsin ( 360 ( 284 + ๐) 365 ) Solution: ๐ฟ = 23. 45 sin ( 360 ( 284 + 80 ) 365 ) = 23. 45 sin ( 360 ) ๐ฟ โ 0 โ Expected answer (equinox) Problem 4: Hour Angle
Find hour angle at 3 PM. Formula: ๐ = 15 โ^ ร (time โ 12 ) ๐ = 15 โ(๐ก โ 12 ) Solution: ๐ = 15 ( 15 โ 12 ) = 45 โ Problem 5: Zenith Angle Latitude = 20ยฐ Declination = 0ยฐ Hour angle = 0ยฐ Formula: cos ๐๐ง = sin ๐sin ๐ฟ + cos ๐cos ๐ฟcos ๐ cos ๐๐ง = sin ๐sin ๐ฟ + cos ๐cos ๐ฟcos ๐ Solution: cos ๐๐ง = cos 20 โ ๐๐ง = 20 โ
3. Solar Time Calculation Problem 6: Local Solar Time Standard time = 2 PM Longitude difference = 15ยฐ Each degree = 4 minutes Solution: 15 ร 4 = 60 min Solar time = 2 PM ยฑ 1 hr = **1 PM or 3 PM (depending on direction)
- Solar Radiation Measurement Problem 7: Pyranometer Reading** If a pyranometer records 700 W/mยฒ , what does it measure? Solution: Measures global solar radiation Includes:
Problem 11 A house needs 5 kWh/day. Solar panel produces 250 W for 5 hrs/day. Find number of panels. Solution: Energy per panel: 250 ร 5 = 1250 Wh = 1. 25 kWh Panels required: 5
- 25 = 4 Answer: 4 panels
1. Declination Angle Problems
Problem 1 Find the declination angle on April 15 (n = 105). ๐ฟ = 23. 45 โsin ( 360 ( 284 + ๐) 365 ) Solution: ๐ฟ = 23. 45 sin ( 360 ( 284 + 105 ) 365 ) = 23. 45 sin ( 384 โ) = 23. 45 sin ( 24 โ) ๐ฟ โ 23. 45 ร 0. 407 ๐ฟ โ 9. 55 โ Problem 2 Find declination angle on December 21 (n = 355). Solution: ๐ฟ = 23. 45 sin ( 360 ( 284 + 355 ) 365 ) = 23. 45 sin ( 630 โ) = 23. 45 sin ( 270 โ) ๐ฟ โ โ 23. 45 โ
2. Hour Angle Problems Problem 3 Find hour angle at 10 AM.
๐ = 15 โ(๐ก โ 12 ) Solution: ๐ = 15 ( 10 โ 12 ) ๐ = โ 30 โ Negative = morning Problem 4 Find hour angle at 5 PM. Solution: ๐ = 15 ( 17 โ 12 ) ๐ = 75 โ Positive = afternoon
3. Zenith Angle Problems Problem 5 Latitude = 25ยฐ Declination = 10ยฐ Hour angle = 0ยฐ cos ๐๐ง = sin ๐sin ๐ฟ + cos ๐cos ๐ฟcos ๐ Solution: cos ๐๐ง = sin 25 sin 10 + cos 25 cos 10 cos 0 = ( 0. 422 ร 0. 173 ) + ( 0. 906 ร 0. 985 ร 1 ) = 0. 073 + 0. 892 = 0. 965 ๐๐ง = cos โ^1 ( 0. 965 ) ๐๐ง โ 15 โ Problem 6 Latitude = 20ยฐ Declination = 0ยฐ Hour angle = 60ยฐ Solution: cos ๐๐ง = cos 20 cos 60 = 0. 94 ร 0. 5 = 0. 47 ๐๐ง โ 62 โ 4. Efficiency Problems Problem 7
Longitude difference = 10ยฐ Find time correction. Solution: 1 โ^ = 4 min 10 ร 4 = 40 min Time difference = 40 minutes Problem 12 Standard time = 2:00 PM Longitude difference = +15ยฐ Solution: 15 ร 4 = 60 min Solar time = 2 : 00 + 1โ๐ = 3 : 00 ๐๐ INTRODUCTION TO ENERGY SOURCES
1. Definition (2โ3 lines) Energy sources are the natural or artificial resources from which energy can be obtained and utilized to perform work. These sources provide the power required for various human activities such as transportation, electricity generation, industrial processes, and domestic applications. Energy sources can be broadly classified into renewable and non-renewable categories based on their availability and sustainability. 2. Working Principle (Conceptual Understanding in Paragraphs) The working principle of energy sources is based on the conversion of energy from one form to another , as energy in nature is not directly usable in its raw form for most applications. According to the law of conservation of energy, energy cannot be created or destroyed but can only be transformed. Energy sources act as the primary input from which usable forms of energy such as mechanical, electrical, or thermal energy are derived. For instance, in conventional energy systems, chemical energy stored in fossil fuels such as coal, oil, and natural gas is released through combustion. This heat energy is then used to produce steam, which drives turbines connected to generators, ultimately producing electricity. In renewable energy systems, solar radiation is converted into thermal or electrical energy using solar collectors or photovoltaic cells, while wind energy is converted into mechanical energy through turbines. Thus, the fundamental principle behind all energy sources is energy transformation , where natural energy is harnessed, converted, and utilized efficiently to meet human needs. 3. Working Operation (General Flow of Energy Systems)
The operation of energy sources involves a sequence of processes that begin with the extraction or capture of energy from nature , followed by conversion, transmission, and utilization. Initially, energy is obtained from a source such as sunlight, wind, water, or fossil fuels. This energy is then processed or converted into a usable form using appropriate technologies. In conventional systems, fuel is burned in a boiler to produce heat, which generates steam. This steam rotates a turbine, and the turbine drives a generator to produce electricity. The generated electricity is then transmitted through power lines to consumers. In renewable systems, the operation may vary depending on the source. For example, solar panels directly convert sunlight into electricity, while wind turbines convert wind energy into mechanical and then electrical energy. In hydropower systems, flowing water rotates turbines to generate electricity. After conversion, the energy is distributed to end-users, where it is utilized for various applications such as lighting, heating, and industrial operations. Thus, the operation of energy sources involves capture โ conversion โ transmission โ utilization.
4. Types of Energy Sources (VERY IMPORTANT SECTION) Energy sources are broadly classified into two main categories: A. Conventional (Non-Renewable) Energy Sources These are energy sources that are limited in supply and cannot be replenished within a short period. They have been traditionally used for energy generation. Examples include: - Coal - Petroleum - Natural gas - Nuclear energy These sources are widely used due to their high energy content but cause environmental pollution and depletion of natural resources. B. Non-Conventional (Renewable) Energy Sources These are energy sources that are naturally replenished and available in abundance. They are environmentally friendly and sustainable. Examples include: - Solar energy - Wind energy - Hydropower
Renewable energy sources are also used in agriculture , for irrigation and processing, and in remote areas , where they provide decentralized power solutions.
8. Importance of Energy Sources in Modern Society Energy sources are the backbone of modern civilization, as they support all aspects of human life, from basic needs to advanced technologies. They are essential for economic growth, industrial development, and technological progress. The availability and efficient use of energy sources determine the development level of a country. Countries with abundant and well-managed energy resources tend to have stronger economies and better living standards. Energy sources also play a crucial role in addressing global challenges such as climate change and energy security , making the transition to renewable energy systems increasingly important. 9. Future Trends in Energy Sources The future of energy lies in the transition from conventional to renewable energy sources. With advancements in technology, renewable energy systems are becoming more efficient and cost-effective. There is increasing emphasis on: - Solar and wind energy - Energy storage systems - Smart grids - Hybrid energy systems Governments and organizations worldwide are investing in renewable energy to achieve sustainable development and reduce carbon emissions. Conclusion Energy sources are fundamental to human development and play a crucial role in powering modern society. They provide the energy required for various activities, from basic household needs to complex industrial processes. While conventional energy sources have supported development for many years, their limitations and environmental impact have led to a growing focus on renewable energy. Understanding the principles, types, advantages, and limitations of energy sources is essential for making informed decisions and promoting sustainable energy use. As the world moves towards cleaner and more efficient energy systems, the role of renewable energy sources will become increasingly significant.
Aspect Conventional Energy Sources Non-Conventional Energy Sources Definition Traditional sources used for many years Modern, renewable sources of energy Nature Non-renewable (limited) Renewable (infinite supply) Examples Coal, petroleum, natural gas Solar, wind, hydro, biomass Availability Limited and exhaustible Abundant and continuously available Environmental Impact Causes pollution and greenhouse gases Eco-friendly, minimal pollution Cost (Initial) Lower initial cost High initial installation cost Running Cost High (fuel required) Low (free natural source) Reliability Reliable and continuous Depends on weather conditions Technology Well-developed and established Developing and improving Energy Efficiency Generally high Improving with advancements Maintenance Moderate to high Generally low Transportation Requires transport of fuel No fuel transport needed Sustainability Not sustainable long-term Sustainable and future-oriented Energy Security Depends on imports Locally available, increases security Examples of Use Thermal power plants Solar panels, wind turbines
SOLAR RADIATION BASICS
1. Definition (2โ3 lines) Solar radiation is the electromagnetic energy emitted by the sun and transmitted through space to the Earth. It is the primary source of energy for all natural processes and renewable energy systems. This radiation includes visible light, infrared, and ultraviolet components. 2. Nature of Solar Radiation
Due to these processes, only a portion of the solar radiation actually reaches the Earthโs surface.
6. Factors Affecting Solar Radiation The amount of solar radiation received at a location depends on several factors: - Latitude : Regions near the equator receive more radiation. - Time of day : Maximum at noon, minimum in morning/evening. - Season : Varies due to Earthโs tilt. - Atmospheric conditions : Clouds, dust, pollution reduce radiation. - Altitude : Higher altitudes receive more radiation. 7. Measurement of Solar Radiation Solar radiation is measured using instruments such as: - Pyranometer โ measures global radiation - Pyrheliometer โ measures direct beam radiation These instruments are essential for designing solar energy systems. 8. Importance of Solar Radiation Solar radiation is extremely important because: - It is the primary source of all renewable energy systems - Drives natural processes like photosynthesis and weather cycles - Used in solar power generation (thermal and photovoltaic) - Helps in **heating and drying applications
- Applications** Solar radiation is used in:
- Solar water heating systems
- Solar power plants
- Solar cookers
- Solar dryers
- Space heating Conclusion Solar radiation forms the foundation of solar energy systems and plays a crucial role in sustaining life on Earth. Understanding its nature, components, and influencing factors is
essential for designing efficient solar technologies. As the world moves toward renewable energy, solar radiation remains one of the most abundant and reliable sources of clean energy.
SOLAR GEOMETRY (Angles, Declination, etc.)
1. Definition (2โ3 lines) Solar geometry is the study of the position of the sun relative to a specific location on Earth at a given time. It involves various angles that describe the apparent motion of the sun in the sky. These angles are essential for analyzing solar radiation and designing efficient solar energy systems. 2. Concept of Solar Geometry (Understanding in Paragraphs) The Earth rotates on its axis and revolves around the sun, which causes the apparent movement of the sun across the sky. Because of this motion, the position of the sun changes continuously throughout the day and across seasons. Solar geometry helps in mathematically describing this position using specific angles. These angles are crucial because the amount of solar radiation received by a surface depends on the orientation and position of the sun. By understanding solar geometry, engineers can design solar collectors and panels to capture maximum energy **3. Important Solar Angles (VERY IMPORTANT)
- Declination Angle (ฮด)** The declination angle is the angle between the line joining the centers of the Earth and the Sun and the Earthโs equatorial plane. It varies throughout the year due to the tilt of the Earthโs axis.
- Range: +23.45ยฐ to - 23.45ยฐ
- Positive in summer (Northern Hemisphere)
- Negative in winter Formula: ๐ฟ = 23. 45 โsin (
Where:
- ๐= day number of the year Example:
- March 21 โ ฮด โ 0ยฐ
- June 21 โ ฮด โ +23.45ยฐ
5. Azimuth Angle (ฮณ) The solar azimuth angle is the angle between the projection of the sunโs rays on the horizontal plane and a reference direction (usually south). It indicates the direction of the sun in the sky. 6. Latitude Angle (ฯ) Latitude is the angular position of a location north or south of the equator. - Equator โ 0ยฐ - North โ positive - South โ negative It plays a major role in determining solar radiation. 4. Working Principle of Solar Geometry The working principle of solar geometry is based on Earthโs rotation and revolution , which determine the apparent position of the sun. By using mathematical relationships between different angles, the exact position of the sun can be calculated at any time and location. This helps in determining: - Solar radiation intensity - Best orientation of solar panels - Optimal tilt angle 5. Working Operation (How It Is Used Practically) In practical applications, solar geometry is used to calculate the position of the sun for a given day and time. Engineers use this information to design solar systems with the correct orientation and tilt. For example, by calculating the declination and hour angle, the zenith angle can be determined, which helps in estimating the solar radiation falling on a surface. This information is used in designing solar collectors, photovoltaic panels, and solar heating systems. 6. Advantages Solar geometry provides accurate information about the sunโs position, which helps in maximizing solar energy utilization. It improves the efficiency of solar systems and reduces energy losses. It also helps in designing cost-effective systems by optimizing orientation and tilt. 7. Disadvantages / Limitations
Solar geometry involves complex calculations and requires accurate data. Errors in angle calculation can lead to incorrect system design. It also assumes ideal conditions and may not account for atmospheric variations.
8. Applications Solar geometry is used in:
- Design of solar panels and collectors
- Solar power plant planning
- Building orientation and architecture
- Solar radiation estimation
- Agricultural planning 9. Importance Understanding solar geometry is essential because it directly affects the amount of solar energy received. Proper use of these concepts ensures maximum efficiency in solar systems. Conclusion Solar geometry is a fundamental concept in solar energy systems that helps in understanding the position and movement of the sun relative to the Earth. By analyzing angles such as declination, hour angle, and zenith angle, it becomes possible to design efficient solar systems and maximize energy utilization. Despite its complexity, it plays a crucial role in renewable energy engineering and sustainable development.
Solar Radiation vs Solar Radiation on Tilted Surfaces
1. Solar Radiation (General / Horizontal Surface) This usually means the solar radiation received on a horizontal surface (like flat ground). It includes:
- Direct (beam) radiation
- Diffuse radiation
- Reflected radiation It is simpler and commonly measured using instruments. 2. Solar Radiation on Tilted Surface This refers to the solar radiation received on a surface that is inclined (tilted) at some angle , like solar panels. This is more realistic because:
Aspect Solar Radiation (Horizontal) Tilted Surface Radiation Surface Flat Inclined Complexity Simple More complex Efficiency Lower Higher (if optimized) Usage Measurement Practical solar systems Dependence Sun position only Sun + tilt + orientation Final Answer (Write in Exam) Solar radiation refers to the energy received on a horizontal surface, whereas solar radiation on a tilted surface refers to the energy received on an inclined surface such as a solar panel. The tilted surface radiation depends on additional factors like tilt angle and orientation, and it is generally higher when optimized. Therefore, both are related but not the same.
