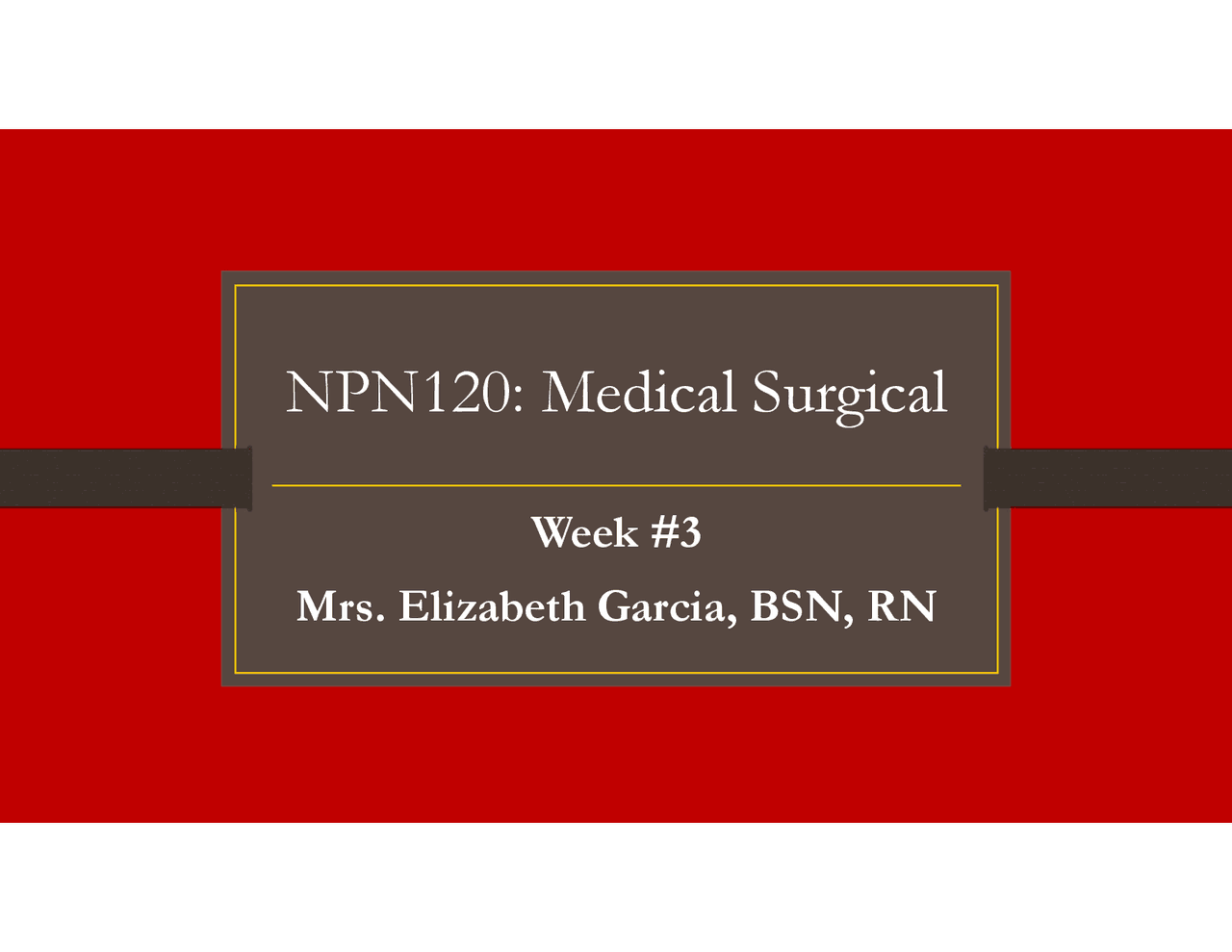

NPN120: Medical Surgical
Week #3
Mrs. Elizabeth Garcia, BSN, RN
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d

Partial preview of the text

Download Respiratory PowerPoint and more Quizzes Medicine in PDF only on Docsity!

NPN120: Medical Surgical

Week

Mrs. Elizabeth Garcia, BSN, RN

Oxygen Delivery - recap

  • Nasal Cannula โ€“ 24% to 47% = 1 to 6L/min
  • Simple mask 40%-60% = 5-8 L/min
  • Partial Rebreather 40%-60% = 6-10 L/min (always keep it from deflating)
  • Non-rebreather 80%-95% = 10-15 L/min (2/3 full during inspiration/exhalation
  • Venturi Mask 24%-50% = 4-10L/min

Pulmonary Circulation

  • Functions:
    • Gas exchange
    • Nutrients to lung tissue
    • Reservoir for left ventricle
    • Filtering system (clots, air, and debris)
  • Lower pressure than the systemic circulation
  • One third of pulmonary vessels are filled with blood at any given time

Bronchial Circulation

  • Part of systemic circulation
  • Functions:
    • Moistens inspired air
    • Nutrients to airways, large pulmonary vessels, lymph nodes, and membranes around lung
  • Does not participate in gas exchange

Ventilation

  • Mechanical movement of gas or air into and out of the lungs
  • Minute volume
    • Ventilatory rate multiplied by the volume of air per breath
  • Alveolar ventilation

Signs and Symptoms of

Pulmonary Disease

  • Dyspnea
    • Subjective sensation of uncomfortable breathing
    • Orthopnea
      • Dyspnea when a person is lying down
    • Paroxysmal nocturnal dyspnea (PND)
      • Awaken at night gasping for air

Signs and Symptoms of Pulmonary Disease

  • Hypoventilation
    • Hypercapnia
  • Hyperventilation
  • Hypocapnia
    • Cyanosis
  • Clubbing
  • Pain

Conditions

Caused by

Pulmonary

Disease or

Injury

  • Hypercapnia
    • Increased carbon dioxide concentration in arterial blood
  • Hypoxemia
    • Reduced oxygenation of arterial blood
  • Hypoxia
    • Insufficient oxygen delivery to the tissues
  • Acute respiratory failure
    • When your lungs can't efficiently exchange gases, leading to a buildup of carbon dioxide and low oxygen levels in the blood.

Pneumonia

  • Inflammatory process in the lungs that produces excess fluid
    • Triggered by infectious organisms or by aspiration of an irritant resulting in edema and exudate that filles the alveoli.
  • Types of Pneumonia
    • Community Acquired (CAP)โ€“ common usually result from Influenza
    • Hospital Acquired (HAP) 24-48 hrs after admission
    • Ventilator Acquired (VAP) 48 hrs after ventilation

Pneumonia โ€“ Expected Findings

  • Anxiety
  • Fatigue
  • Weakness
  • Chest discomfort due to coughing
  • Confusion from hypoxia

ASTHMA

  • Chronic inflammation of the airways
  • Risk factors: IgE mediated response to allergens; family

hx; allergies; environmental exposure

  • Causes bronchial hyperresponsiveness, constriction of

airways, and reversible airflow obstruction

Asthma โ€“ Excepted Finding

  • Dyspnea
  • Chest tightness
  • Anxiety or stress
  • Wheezing
  • Mucus production
  • Prolonged exhalation
  • Low oxygen saturation (Low SAO2)
  • Treat with: Corticosteroids, beta-adrenergic agonists, anticholinergics, and anti- inflammatories

Chronic Obstructive Pulmonary Disease

COPD

  • COPD encompasses two diseases Emphysema &

Chronic Bronchitis

Obstructive Lung Diseases

  • Chronic bronchitis
    • Inflammation of the bronchi and bronchioles due to chronic exposure to irritants
    • Hypersecretion of mucus and chronic productive cough that lasts for at least 3 months of the year and for at least 2 consecutive years
    • Inspired irritants increase mucus production and the size and number of mucous glands
    • The mucus is thicker than normal
    • Bronchodilators, expectorants, and chest physical therapy used to treat
