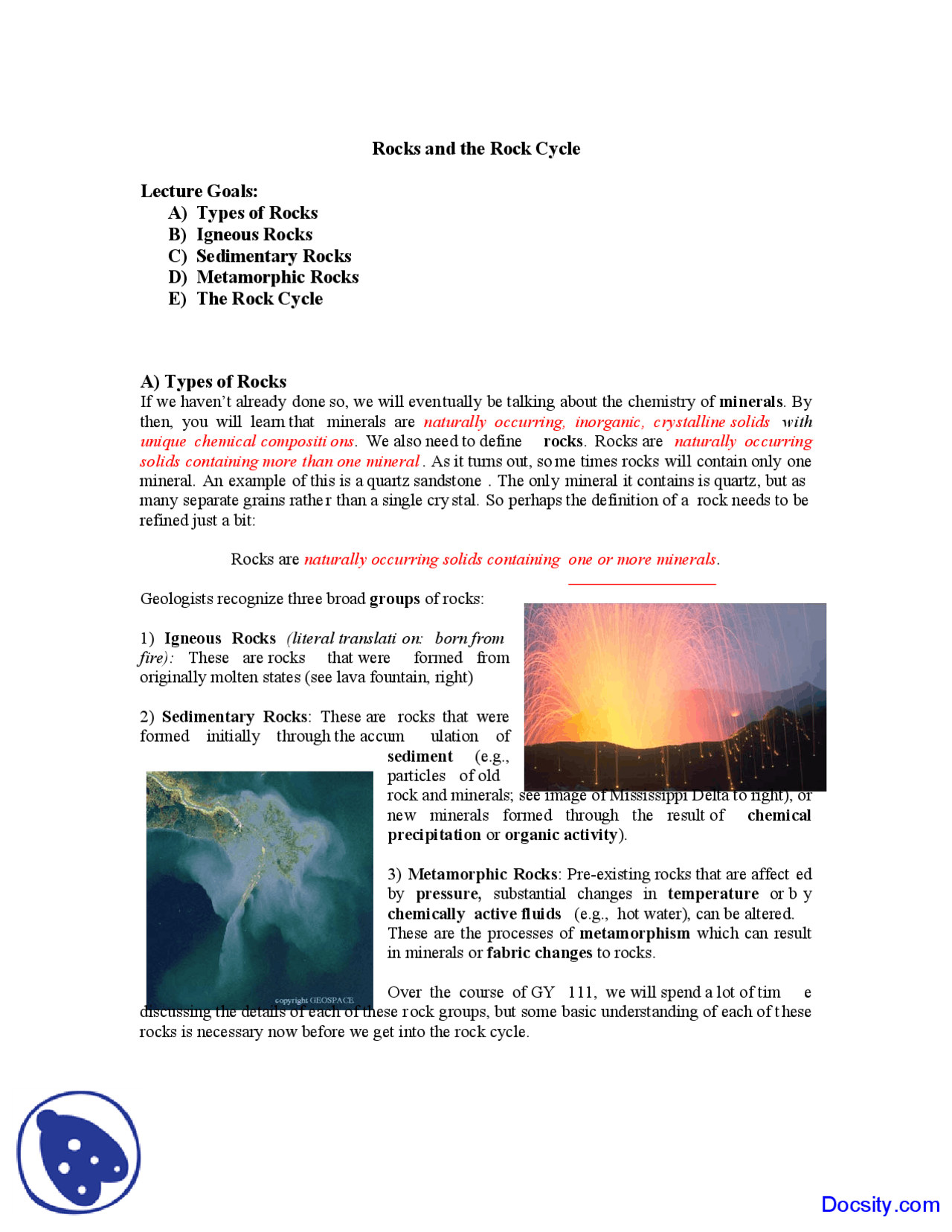

Rocks and the Rock Cycle
Lecture Goals:
A) Types of Rocks
B) Igneous Rocks
C) Sedimentary Rocks
D) Metamorphic Rocks
E) The Rock Cycle
A) Types of Rocks
If we haven’t already done so, we will even tually be talking about the chemistry of minerals. By
then, you will learn that minerals are naturally occurring, inorganic, crystalline solids with
unique chemical compositi ons. We also need to define rocks. Rocks are naturally occurring
solids containing more than one mineral. As it turns out, some times rocks will contain only one
mineral. An example of this is a quartz sandstone . The only mineral it contains is quartz, but as
many separate grains rathe r than a single cry stal. So perhaps the definition of a rock needs to be
refined just a bit:
Rocks are naturally occurring solids containing one or more minerals.
Geologists recognize three broad groups of rocks:
1) Igneous Rocks (literal translati on: born from
fire): These are rocks that were formed from
originally molten states (see lava fountain, right)
2) Sedimentary Rocks: These are rocks that were
formed initially through the accum ulation of
sediment (e.g.,
particles of old
rock and minerals; see image of Mississippi Delta to right), or
new minerals formed through the result of chemical
precipitation or organic activity).
3) Metamorphic Rocks: Pre-existing rocks that are affect ed
by pressure, substantial changes in temperature or b y
chemically active fluids (e.g., hot water), can be altered.
These are the processes of metamorphism which can result
in minerals or fabric changes to rocks.
Over the course of GY 111, we will spend a lot of tim e
discussing the details of each of these rock groups, but some basic understanding of each of these
rocks is necessary now before we get into the rock cycle.
Docsity.com
pf3
pf4
pf5

Partial preview of the text

Download Rocks - General Geology - Lecture Notes and more Study notes Geology in PDF only on Docsity!

Rocks and the Rock Cycle

Lecture Goals:

A) Types of Rocks

B) Igneous Rocks

C) Sedimentary Rocks

D) Metamorphic Rocks

E) The Rock Cycle

A) Types of Rocks

If we haven’t already done so, we will eventually be talking about the chemistry of minerals. By then, you will learn that minerals are naturally occurring, inorganic, crystalline solidswith unique chemical compositi ons. We also need to define rocks. Rocks are naturally occurring solids containing more than one mineral. As it turns out, so me times rocks will contain only one mineral. An example of this is a quartz sandstone. The only mineral it contains is quartz, but as many separate grains rathe r than a single cry stal.So perhaps the definition of a rock needs to be refined just a bit:

Rocks are naturally occurring solids containing one or more minerals.

Geologists recognize three broad groups of rocks:

  1. Igneous Rocks (literal translati on: born from fire): These are rocks that were formed from originally molten states (see lava fountain, right)

  2. Sedimentary Rocks : These are rocks that were formed initially through the accum ulation of sediment (e.g., particles of old rock and minerals; see image of Mississippi Delta to right), or new minerals formed through the result chemical of precipitation or organic activity ).

  3. Metamorphic Rocks : Pre-existing rocks that are affect ed by pressure, substantial changes in temperature or b y chemically active fluids (e.g., hot water), can be altered. These are the processes of metamorphism which can result in minerals or fabric changes to rocks.

Over the course of GY 111, we will spend a lot of tim e discussing the details of each of these r ock groups, but some basic understanding of each of these rocks is necessary now before we get into the rock cycle.

B) Igneous Rocks Igneous rocks come in 3 main ty pes classes or. Those formed as molten rock that flows fro m a volcano are said to be extrusive igneous rocks or volcanic igneous rocks. Like an iceb erg, a lot of the “bulk” of a volcano is actually below the Earth’s surface. Molten rock resides within chambers beneath volcanoes. It is from these chambers that molten rock makes it to the surface. Molten rock on the surface of the Earth is known as lava. Molten rock below the surfa ce of the Earth is called magma****. A significant prop ortion of igneous rock form s directly within magma chambers and these rocks are known as intrusive igneous rocks or plutonic igneous rocks.

The last ty pe of igneous rock results from explosive volcanic eruptions. Most of you recall the eruption of Mt. St. Helens. While some lava was produced, the majority of the eruption was in the form of volcanic ash. The magma that will eventually produce ash remains molten below the surface of the Earth, but once it gets near the volcanic vent, it is blasted out of the volcano at high velocity (See i mage of Mt. Ruape hu, New Zealand to right http://203.86.194.7/Imagesfrom /craigPotton/243.jpg). Rather than becom ing lava, the molten rock is broken up into various sized particles that cools to solid almost instantly (only the finest stuff is called ash). The ash then falls back to earth as s mall igneous rock frag ments. This type of extrusive igneous rock is called pyroclastic ( literal translation: fire particles).

C) Sedimentary Rocks The sedimentary rocks come in 4 main classes depending upon the origin of the particles that comprise them:

  1. Siliciclastic sedimentary rocks: particles came from eroded pre-existing rocks
  2. Biochemical sedimentary rocks: particles came from the remains of organism s that left behind mineralized shells, tests or skeletons (see sat ellite image of reefs off of NW Australia).
  3. Chemical sedimentary rocks: particles came fro m minerals precipitated from water.
  4. Organic sedimentary rocks: particles came from the remains of plants.

The version above is really quite good for highlighting how each t ype of rock can be “altered ” into other rocks, but it ofte n leads students intobelieving that the rock cy cle is a one way road. This is not the case at all. The real rock cy cle contains many loops. For example, the sedimentary loop may see sediment/sedimentary rock recycled hundreds of time before metamorphism occurs. Some sedimentary rocks are melted rather thanbeing metamorphosed. So I prefer the follo wing rock cycle. It looks a lot more complex (downright nasty!) but is a bit better for giving all of the options available in the rock cycle:

Important terms/concepts from today’s lecture

(Google any terms that you are not familiar with)

Rocks Minerals Igneous, Sedimentary and Metamorphic Rocks sediment
