Room Distribution Basics, Diffusers, Supply and Return Duct Sizing | ARE 346N, Study notes of Architecture

The University of Texas at AustinArchitecture
Prof. Jeffrey A. Siegel

Material Type: Notes; Professor: Siegel; Class: BUILDING ENVIRONMENTAL SYSTEMS; Subject: Architectural Engineering; University: University of Texas - Austin; Term: Spring 2009;

Typology: Study notes

Pre 2010

Uploaded on 08/26/2009

koofers-user-npc
koofers-user-npc 🇺🇸

10 documents

1 / 13

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

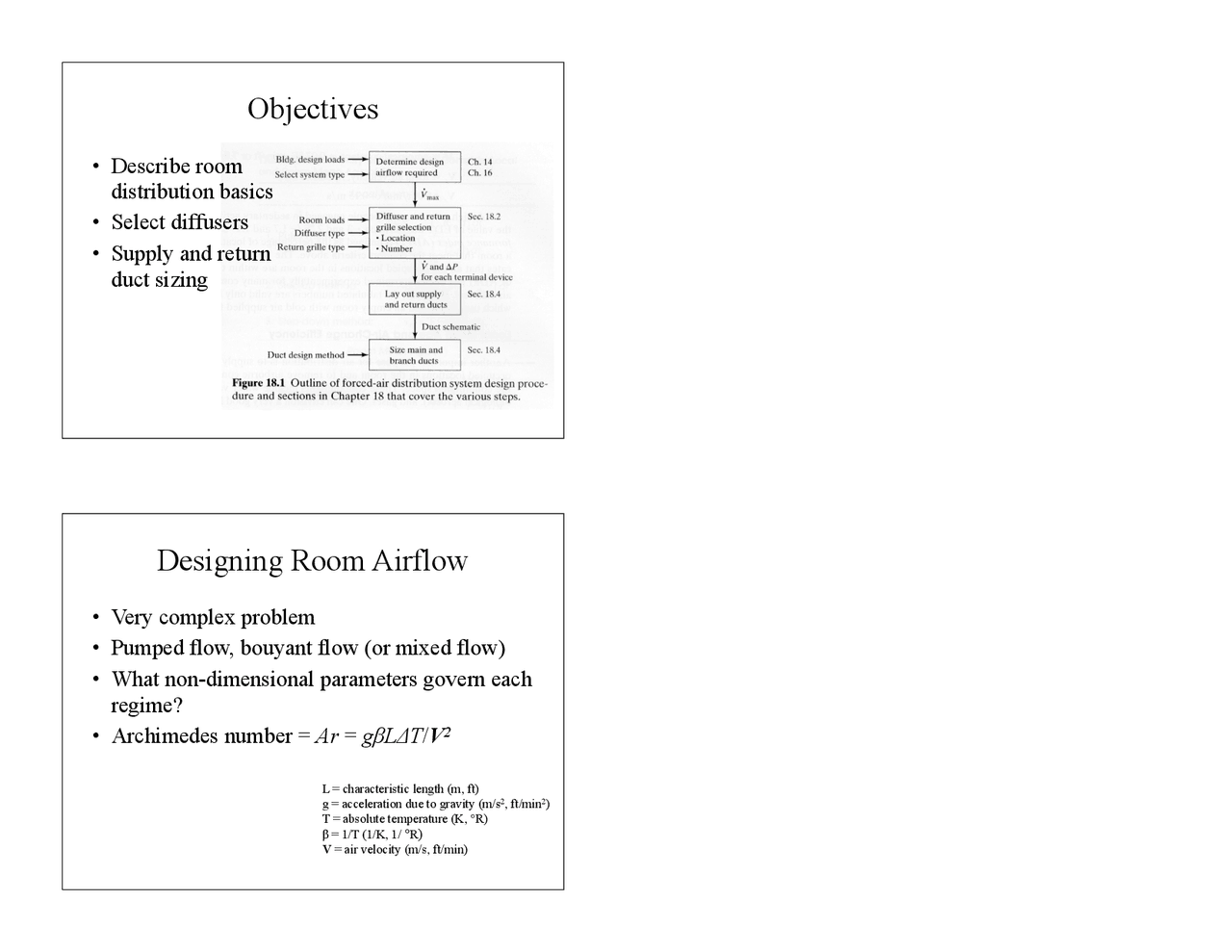

Objectives
• Describe room
distribution basics
• Select diffusers
• Supply and return
duct sizing
Designing Room Airflow
• Very complex problem
• Pumped flow, bouyant flow (or mixed flow)
• What non-dimensional parameters govern each
regime?
• Archimedes number = Ar = gβLΔT/V2
L = characteristic length (m, ft)
g = acceleration due to gravity (m/s2, ft/min2)
T = absolute temperature (K, °R)
β = 1/T (1/K, 1/ °R)
V = air velocity (m/s, ft/min)
pf3
pf4
pf5
pf8
pf9
pfa
pfd

Partial preview of the text

Download Room Distribution Basics, Diffusers, Supply and Return Duct Sizing | ARE 346N and more Study notes Architecture in PDF only on Docsity!

Objectives

  • Describe room distribution basics
  • Select diffusers
  • Supply and return duct sizing

Designing Room Airflow

  • Very complex problem
  • Pumped flow, bouyant flow (or mixed flow)
  • What non-dimensional parameters govern each regime?
  • Archimedes number = Ar = gβLΔT / V^2 L = characteristic length (m, ft) g = acceleration due to gravity (m/s^2 , ft/min^2 ) T = absolute temperature (K, °R) β = 1/T (1/K, 1/ °R) V = air velocity (m/s, ft/min)

Colorful Fluid Dynamics

Diffuser Selection Procedure

  • Select and locate diffusers, divide airflow amongst diffusers V = maximum volumetric flow rate (m^3 /s, ft^3 /min) Qtot = total design load (W, BTU/hr) Qsen = sensible design load (W, BTU/hr) ρ = air density (kg/m^3 , lbm/ft^3 ) Δt = temperature difference between supply and return air (°C, °F) Δh = enthalpy difference between supply and return air (J/kg, BTU/lbm)

Find Characteristic Length

Diversion

  • ADPI = air distribution performance index
  • Fraction of locations that meet criteria:
    • -3 °F < EDT < 2 °F
    • Where, EDT = effective draft temperature
      • Function of V and Δt (Eqn 18.1)

Ideal and Reasonable Throws

Pressures

  • Static pressure – pressure not due to velocity
  • Velocity pressure – pressure due to velocity
  • Total pressure – sum of above Relationship Between Static and Total Pressure
  • Total and static pressure drops are proportional to square of velocity
  • Plot of pressure drop vs. volumetric flow rate (or velocity) is called system characteristic

Duct Design

System Characteristic

Non-circular Ducts

  • Parallel concept to wetted perimeter

Dynamic losses

  • Losses associated with
    • Changes in velocity
    • Obstructions
    • Bends
    • Fittings and transitions
  • Two methods
  • Equivalent length and loss coefficients

Loss Coefficients

ΔPt = CoPv,

Summary

  • Select diffuser based on ADPI
  • Given a layout of duct system
    • Calculate total pressure drop
    • Identify fittings contributing most to pressure drop
    • Deal with non-circular ducts
  • Use fitting loss coefficient or equal length method
  • Next class: fans, duct layout, other equipment
