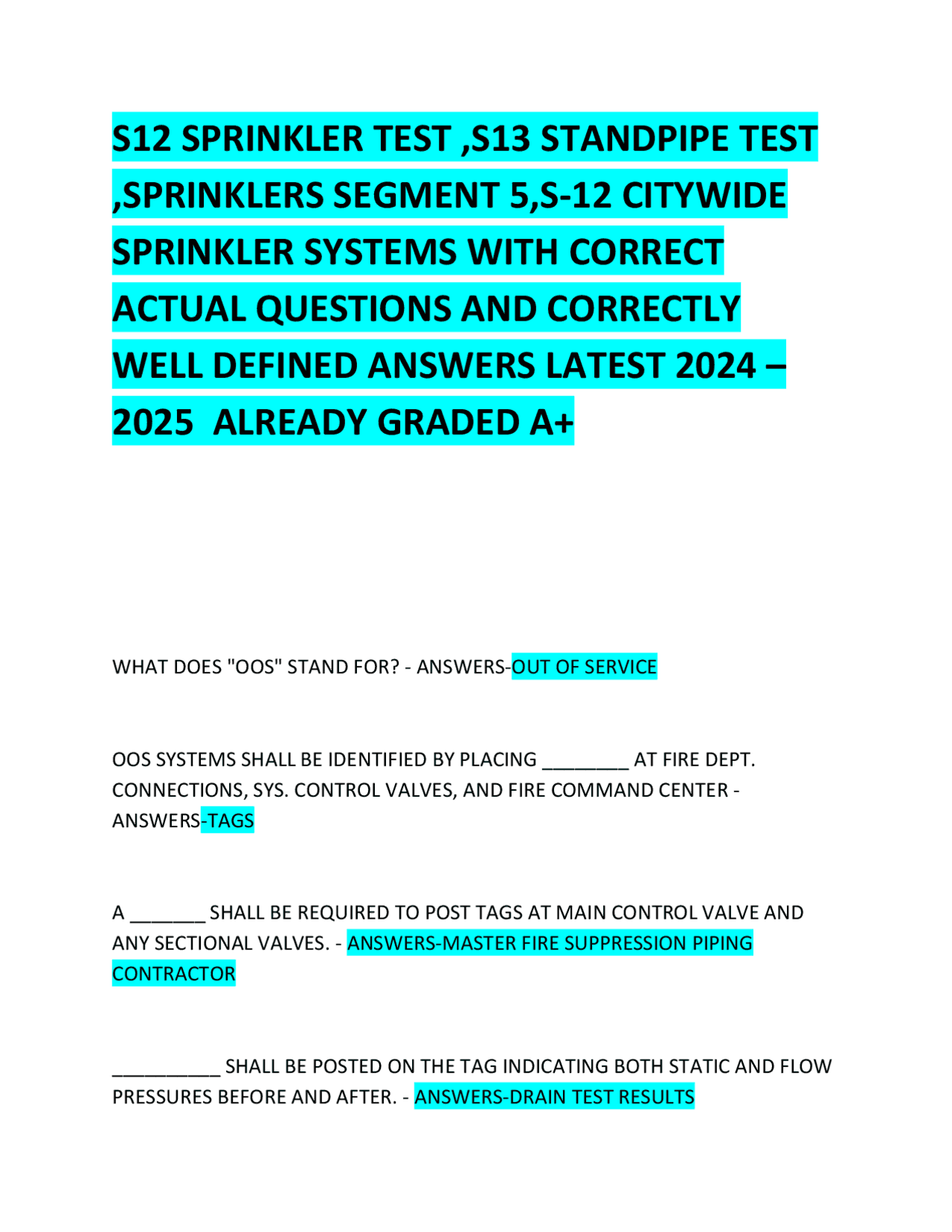

S12 SPRINKLER TEST ,S13 STANDPIPE TEST
,SPRINKLERS SEGMENT 5,S-12 CITYWIDE
SPRINKLER SYSTEMS WITH CORRECT
ACTUAL QUESTIONS AND CORRECTLY
WELL DEFINED ANSWERS LATEST 2024 –
2025 ALREADY GRADED A+
WHAT DOES "OOS" STAND FOR? - ANSWERS-OUT OF SERVICE
OOS SYSTEMS SHALL BE IDENTIFIED BY PLACING ________ AT FIRE DEPT.
CONNECTIONS, SYS. CONTROL VALVES, AND FIRE COMMAND CENTER -
ANSWERS-TAGS
A _______ SHALL BE REQUIRED TO POST TAGS AT MAIN CONTROL VALVE AND
ANY SECTIONAL VALVES. - ANSWERS-MASTER FIRE SUPPRESSION PIPING
CONTRACTOR
__________ SHALL BE POSTED ON THE TAG INDICATING BOTH STATIC AND FLOW
PRESSURES BEFORE AND AFTER. - ANSWERS-DRAIN TEST RESULTS
Fire pump, automatic standpipe. - ANSWERS-A fire pump located at or below street level that supplies the lower 300 feet (91.4 m) of a standpipe system or a combined standpipe and sprinkler system.
tags - ANSWERS-on closed section valves serving affected areas: area affected, brief description, occupancy classification, c of f number, estimated time until operational
Green tag - ANSWERS-no impairment found in entire system- main control valve
red tag - ANSWERS-place on main control valve if FULLY out of service... put sprinkler company name, date of removal from service and anticipated time to operational
blue disk - ANSWERS-partially out of service- on all fire department connections
fire department connection - ANSWERS-normally on exterior of building... FDNY can pump supplemental water into the sprinkler system, standpipe, or other system furnishing water for fire extinguishment to supplement existing water supplies.
system control valve - ANSWERS-valve controlling flow to water-based fire protection systems.
extended coverage sprinkler - ANSWERS-400 max square feet discharge 20 foot by 20 foot spacing between sprinklers
fire pump - ANSWERS-a provider of liquid flow and pressure dedicated to fire protection. A fire pump is a part of a fire sprinklers system water supply and can be powered by electric, diesel or steam. connected to public water source or tank. provides higher pressure to sprinkler system
Glass bulb sprinkler - ANSWERS-operated by heat breaking a glass bulb filled with a non freezing liquid with diameters that vary form 3 mm for quick response to 5 mm for standard response
hose valve - ANSWERS-valve to additional hose connection
hydraulic placard - ANSWERS-sign attached to a hydraulically calculated sprinkler system indicating the design density, required gallons per minute and pressure for the system to operate properly
hydraulically calculated systems - ANSWERS-method of sizing auto sprinkler piping using a prescribed amount of water to be distributed over a specific area.
impairment coordinator - ANSWERS-in charge of safety during out of service systems
intermediate level sprinkler - ANSWERS-sprinkler equipped with integral shields to protect the operating elemtn form discharge from sprinklers installed at higher elevations
large orifice sprinkler - ANSWERS-sprinkler head with orifice size equal or greater than 3/4 and less than 1 inch
listed device - ANSWERS-A fire protection component that has been tested to perform under parameters specified for its use by a nationally recognized testing agency. Underwriter's Laboratory (UL) and Factory Mutual (FM) are the two most common.
Master Pressure Reducing Valve - ANSWERS-A pressure reducing valve installed to regulate pressures in an entire fire protection system and/or standpipe system zone.
Main Drain - ANSWERS-The primary drain connection located on the system riser and also utilized as a flow test connection.
Microbiologically Influenced Corrosion (MIC) - ANSWERS-Corrosion caused by the presence of microbes in the water supply that over time attack the interior of metallic piping and cause leaks, pitting, and blockages.
Old-Style/Conventional Sprinkler - ANSWERS-A sprinkler that directs 40% to 60% of the water initially in a downward direction and is designed to be installed with the deflector in either the upright or pendent position.
Pressure Relief Valve - ANSWERS-A valve designed for the purpose of releasing excess air or water pressure from the Fire Protection Piping System.
Pressure Tank - ANSWERS-A tank using air pressure to supplying water for water- based fire protection systems. Tank contents to be maintained at one third air to two thirds water.
Quick Response Sprinkler Head - ANSWERS-A sprinkler having a fusible link with a response time index (RTI) of 50 or less.
Recessed Sprinkler - ANSWERS-A sprinkler in which all or part of the body, other than the shank thread, is mounted above the ceiling.
Residential Sprinkler - ANSWERS-A type of fast response sprinkler that has been specifically tested to enhance survivability in the room of fire origin and listed for use in dwelling units.
Response Time Index (RTI) - ANSWERS-A measurement of the thermal sensitivity of a sprinkler head expressed in (meters-seconds) 1/2.
Supervisory signal - ANSWERS-A signal indicating the need for action or the use of such device in connection with the supervision of fire alarm systems or the maintenance features of related systems.
Small orifice sprinklers - ANSWERS-A sprinkler head with and orifice size smaller than 1⁄2"
Solder Link Sprinkler - ANSWERS-A sprinkler operated by the melting of a metal link, they vary in size and configuration for quick response and standard response sprinklers. The smaller the size of the link, the faster the sprinkler operates.
Spray Sprinkler - ANSWERS-A type of sprinkler listed for its capability to provide fire control for a wide range of fire hazards. The most commonly used sprinkler since 1953.
Standard Response Sprinkler Head - ANSWERS-A sprinkler having a fusible link with a response time index (RTI) of 80 or more.
Supervisory signal-initiating device - ANSWERS-An initiating device, such as a valve supervisory switch,that triggers a supervisory signal.
Testing - ANSWERS-A procedure used to determine the status of a system as intended by conducting periodic physical checks on water based fire protection systems such as waterflow tests, fire pump tests, alarm tests, and trip tests of dry pipe, deluge, or preaction valves. These tests follow up on the original acceptance test at intervals specified in the appropriate chapter of NFPA #25, 2002 edition.
Upright Sprinkler - ANSWERS-A sprinkler designed to be installed in such a way that the water spray is directed upwards against the deflector.
NON-AUTOMATIC DRY SPRINKLER SYSTEMS - ANSWERS-ll pipes are normally dry. Water is supplied when needed by pumping water into the system through the Fire Department connection. Some of these systems are supplied by manual operation of a water control valve and may be equipped with sprinklers with or without fusible links.
There are several non-automatic systems: 1) Perforated pipe systems - a single line of piping drilled at intervals for water discharge. These systems are usually found in basements or other areas difficult to reach in fire fighting operations. 2) Open fixed spray nozzles for transformer vaults or other hazardous areas; 3) exterior exposure sprinklers (or window sprinklers) use open sprinkler heads to form an external water curtain on the walls of a building, and 4) Foam supply systems are used for the protection of special hazardous occupancies.
Curb Valves - ANSWERS-Gate valves of the non-indicating type are provided in water distribution systems. Gate valves allow the sprinkler system to be shut off for repairs or maintenance. Such valves are normally a non-rising stem type. They are operated using a special key wrench. A valve box is located over the valve to keep dirt from the valve. The valve box also provides a convenient access point for the valve wrench to the valve nut. A complete record should be made for each valve in the system. This record should include the exact location, the date it was installed, the make, the direction of opening, number of turns to open, and any maintenance that was performed.
The control valve for the building may also be on the outside wall or attached to an upright post, known as a post indicator valve (PIV). The building or section of the building controlled by the valve is usually marked on the post. The position of this valve (open or closed) is shown through a telltale opening in the post. On some posts, a padlock must first be opened to release the operating wrench or wheel handle.
Pumper Connections for Fire Department Use - ANSWERS-Fire Department connections must always be accessible. Each connection shall be fitted with a lower check valve. The lower check valve prevents the backflow of the private water supply into the Fire Department connection. The figure below shows the main features of a Fire Department connection.
Fire Pumps - ANSWERS-used as a main water supply source for sprinkler systems. They may also be used in combination with gravity tanks to supply sprinkler system. Fire pumps are designed to take the water from a supply source and then discharge the water into the fire protection system under pressure.
Waterflow Alarm Valves - ANSWERS-The basic design of most water-flow alarm valves is that of a check valve which lifts from its seat when water flows into a sprinkler system. This alarm then starts an audible signal to alert the occupants in the building that the sprinkler system has been activated.
Vane type waterflow - ANSWERS-Switches have a paddle inserted inside the main supply piping perpendicular to the direction of flow. Upon waterflow, the paddle switch transmits an alarm. Vane type waterflow switches cannot be installed to monitor waterflow in dry pipe sprinkler systems.
Alarm Retarding Devices - ANSWERS-An alarm check valve that is exposed to changing water supply pressure needs an alarm retarding device. This is required to prevent false alarms when the check valve clapper is lifted from its seat by a temporary pressure surge. Vane type water flow switches sensitivity can also be adjusted to changing water pressures.
Booster pumps/special service pumps - ANSWERS-Booster pumps are sometimes used in sprinkler systems. They small pumps with limited power are usually located in the basement or taking suction from gravity tanks. The booster pump is used when the water pressure available at the highest sprinkler head does not quite meet the needs of the sprinkler system. This small pump increases the water pressure in the sprinkler system until it reaches acceptable levels. The booster pump should not be confused with the fire pump or the jockey pump.
Sprinkler system piping - ANSWERS-Branch lines are directly connected to sprinkler heads.
Cross mains or loop mains are directly connected to branch lines. Feed mains are directly connected to cross mains or loop mains. Risers are able to supply feed mains or cross mains directly.
rti - ANSWERS-response time index
full flow test - ANSWERS-performed every 5 years:
- open main valve to let debris escape, then close
- system air a nd water pressrue recorded.
- relieve pressure by opening inspector test valve (use stopwatch)
- at dry pipe valve note aire pressure which valve trips an note time
- at inspectors test note time that water flows steadily.
- test terminated when clean water flows (shit valve)
compare to past tests
fire hydrant - ANSWERS-A valve connection on a water supply system having one or more outlets and that is used to supply hose and fire department pumps with water.
Control valve - ANSWERS-A valve controlling flow to water base fire protection system. Control valve do not include hose valves
Fire pump locations - ANSWERS-the fire pump should be located in a place that is noncombustible or fire resistant. has to be heated to a minimum of 40 degrees Fahrenheit.
Gravity tanks should be how high above the highest sprinkler head? - ANSWERS- 25 feet.
What are the three methods to heating a gravity tank - ANSWERS-Hot water circulation
Steam is discharged directly into the tank
steam coils are placed inside the tanks
Heat from the sun is used
Automatic fill pumps supply the water to most gravity tanks. The pumps fill the tank at a rate of __ gpm - ANSWERS-
Branch line - ANSWERS-A pipe system, generally in a horizontal plane, connecting not more than
one hose connection with a standpipe.
___ is known as a Deficiency - ANSWERS-A condition in which the application of the component is not within its designed limits or specifications.
Discharge Device - ANSWERS-A device designed to discharge water or foam-water solution in a predetermined, fixed, or adjustable pattern.
What is a Dry Standpipe? - ANSWERS-A standpipe system designed to have piping contain water only when the system is being utilized (No automatic water supply.)
____ is commonly refereed to as Dunnage - ANSWERS-designing a raised series of beams (usually steel) bearing on posts or bearing walls to support mechanical equipment (usually on a roof
top).
Fire Department Connection - ANSWERS-A connection , normally on the exterior of the building, through which the fire department can pump supplemental water into the sprinkler system, standpipe, or other system furnishing water for fire extinguishment to
supplement existing water supplies. (Formerly know as Siamese connection.)
Fire Hose - ANSWERS-A flexible conduit constructed with one or more reinforcements (Jackets), with or without a coating or covering but with an approved nonpermeable lining, or with an inner reinforcement between a protective cover and an approved nonpermeable lining.
Fire Hydrant - ANSWERS-A valve connection on a water supply system having one or more outlets and that is used to supply hose and fire department pumps with water.
Fire Pump - ANSWERS-A pump that is a provider of liquid flow and pressure dedicated to fire protection. A fire pump is a part of a fire standpipe system's water supply and can be powered by electric, diesel or steam. The pump intake is either connected to the public underground water supply piping or a static water source (e.g., tank, reservoir, lake). The pump provides water flow at higher pressure and volume to the standpipe system risers and hose standpipes.
A Fold is a ___ - ANSWERS-A transverse bend (fold) occurring where the hose is lengthwise double over on itself, as on a pin rack.
Gallons per minute (GPM) - ANSWERS-typically used to measure fluid flow rate (such as water) or pump capacity. Measurement of water flow rate for a pump or a fire standpipe or sprinkler system.
Hose Connection - ANSWERS-a combination of equipment provided for connection of a hose to the standpipe system that includes a hose valve with a threaded outlet.
Hose Station - ANSWERS-a combination of a hose rack, hose nozzle, hose, and hose connection.
In Service - ANSWERS-The status of hose stored in a hose house, on a rack or reel, or on a fire apparatus that is available and ready for immediate use at an incident.
In Storage - ANSWERS-A hose that is not readily available for use because it is not at the scene of an incident and not loaded on a vehicle that can transport it to the scene.
In Use - ANSWERS-Hose being used during fire suppression or during training.
Impairment Coordinator - ANSWERS-The person responsible for ensuring that proper safety precautions are taken when a fire protection system is placed out of service.
Labeled - ANSWERS-Equipment or materials to which has been attached a label, symbol or other identifying mark.
Listed Device - ANSWERS-A fire protection component that has been tested to perform under parameters specified for its use by a nationally recognized testing agency.
Manual Standpipe - ANSWERS-Standpipe system that relies exclusively on the fire department connection to supply the system demand.
Master Pressure Reducing Valve - ANSWERS-A pressure reducing valve installed to regulate pressures in an entire fire protection system and/or standpipe system zone.
Main Drain - ANSWERS-The primary drain connection located on the system riser and also utilized as a flow test connection for the automatic sprinkler system.
Nozzles - ANSWERS-A device for use in applications requiring special water discharge patterns, directional spray, or other unusual discharge characteristics.
Occupant-Use Hose - ANSWERS-Fire Hose designed to be used by the building's occupants to fight incipient fires prior to the arrival of trained fire fighters or fire brigade members.
Out of service system - ANSWERS-A fire protection system that is not fully functional; or whose operation is impaired or is otherwise not in good working order.
Personal Supervision - ANSWERS-Supervision by the holder of a department certificate who is required to be personally present on the premises, or other proximate location acceptable to the department, while the duties for which the certificate is required is being performed
Pounds per square inch (PSI) - ANSWERS-a unit of pressure measuring force per unit area.
