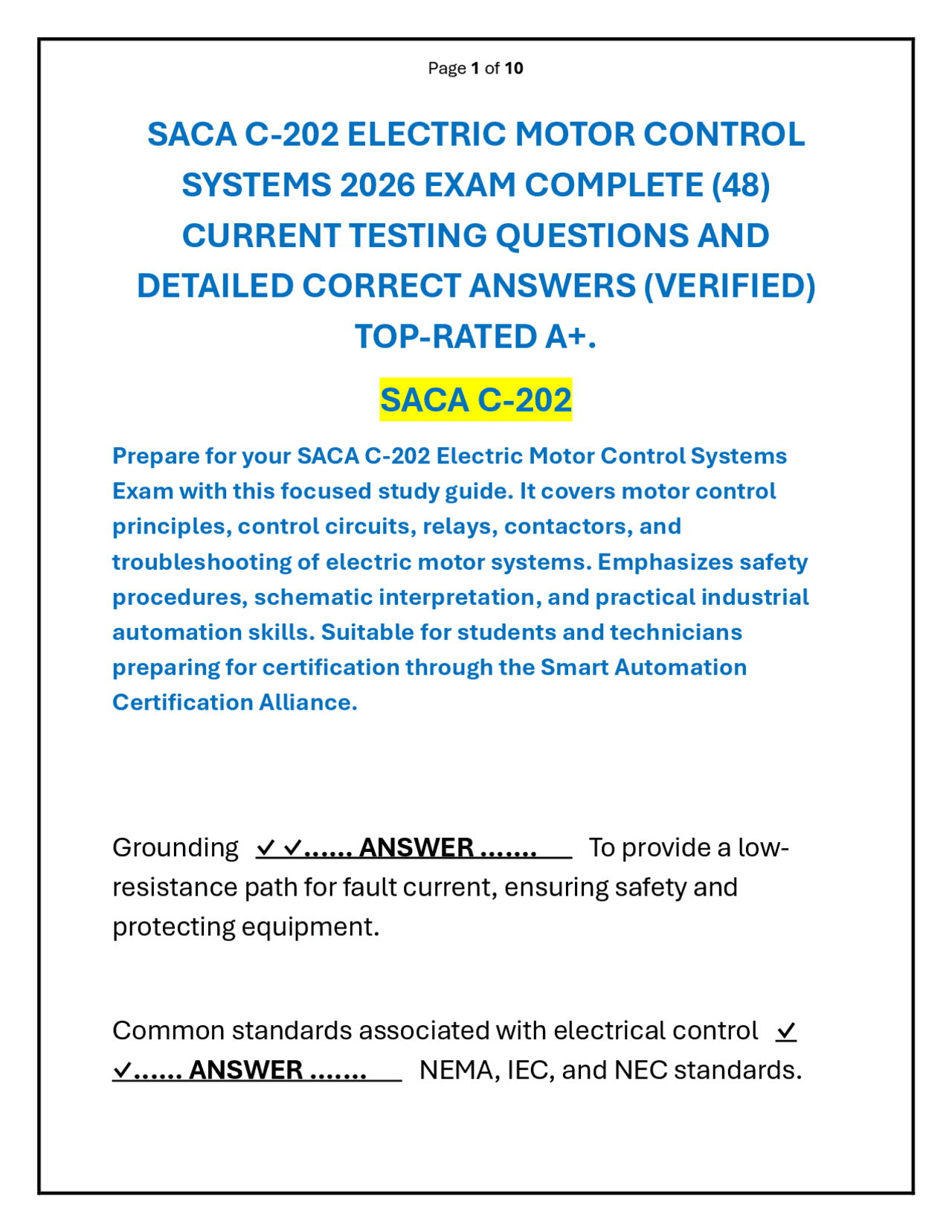

SACA C-202 ELECTRIC MOTOR CONTROL
SYSTEMS 2026 EXAM COMPLETE ( 48 )
CURRENT TESTING QUESTIONS AND
DETAILED CORRECT ANSWERS (VERIFIED)
TOP-RATED A+.
SACA C- 202
Prepare for your SACA C-202 Electric Motor Control Systems Exam with this focused study guide. It covers motor control principles, control circuits, relays, contactors, and troubleshooting of electric motor systems. Emphasizes safety procedures, schematic interpretation, and practical industrial automation skills. Suitable for students and technicians preparing for certification through the Smart Automation Certification Alliance. Grounding โ โ...... ANSWER ....... To provide a low- resistance path for fault current, ensuring safety and protecting equipment. Common standards associated with electrical control โ โ...... ANSWER ....... NEMA, IEC, and NEC standards.
Ten basic rules of electrical safety โ โ...... ANSWER ....... Includes de-energizing circuits, using PPE, verifying lockout/tagout, testing before touch, and using insulated tools, among others. Lockout/tagout system order โ โ...... ANSWER ....... Notify, shut down, isolate energy, apply LOTO device, release stored energy, and verify zero energy. Three-phase power operation โ โ...... ANSWER ....... Three AC voltages 120ยฐ out of phase provide continuous power with higher efficiency. Function of neutral in electrical power โ โ...... ANSWER ....... Serves as a return path for current in unbalanced systems and maintains voltage stability. Using a digital multimeter โ โ...... ANSWER ....... Set the function (volts, ohms, etc.), connect leads properly, and read measurements.
Functions of motor control โ โ...... ANSWER ....... Starting, stopping, reversing, speed control, and overload protection. Motor control relay circuit interpretation โ โ...... ANSWER ....... Understand how control relays activate coils and change contact states to control the motor. Operation of different types of motor starters โ โ...... ANSWER ....... Manual, magnetic, and solid-state starters vary by control type and application. Low-voltage protection โ โ...... ANSWER ....... Shuts off the motor if voltage drops and prevents automatic restart when voltage returns. Types of motor overload devices โ โ...... ANSWER ....... Thermal (bimetallic), magnetic, and electronic overloads. Motor control and transformer schematic symbols โ โ...... ANSWER ....... Symbols represent transformer coils, cores, and taps.
Operation of transformers โ โ...... ANSWER ....... Transfers electrical energy between circuits via electromagnetic induction. Turns ratio and secondary voltage of a transformer โ โ...... ANSWER ....... Secondary voltage = (Primary Voltage) ร (Secondary Turns / Primary Turns). Function of an electrical schematic diagram โ โ...... ANSWER ....... Visually represents how components are connected and function. Testing a transformer โ โ...... ANSWER ....... How do you test a transformer? Multimeter โ โ...... ANSWER ....... Use a multimeter to check for continuity and correct output voltage. Transformer sizing โ โ...... ANSWER ....... Use the formula: VA = Voltage ร Current.
Control relay operation โ โ...... ANSWER ....... Recognize how energizing the coil changes contact states. Memory logic circuit operation โ โ...... ANSWER ....... Uses a relay to latch its own coil, holding a state until another input breaks it. Two-wire motor control circuit operation โ โ...... ANSWER ....... Uses maintained contact devices (e.g., toggle switch); no holding circuit. Three-wire motor control circuit operation โ โ...... ANSWER ....... Uses momentary pushbuttons (Start/Stop) with holding contacts. Reversing motor control methods โ โ...... ANSWER ....... Swap any two phases or use reversing contactors. Drum switch operation โ โ...... ANSWER ....... Mechanically reverses phase connections to reverse motor direction.
Motor control circuit interlocking methods โ โ...... ANSWER ....... Mechanical, electrical (auxiliary contacts), and pushbutton interlocking. Forward/reverse motor jog control circuit โ โ...... ANSWER ....... Enables brief, manual movement in both directions using momentary contact buttons. Hand-off-automatic motor control circuit interpretation โ โ...... ANSWER ....... Understand manual/auto modes for user or sensor-controlled starts. Limit switch operation โ โ...... ANSWER ....... Opens or closes contacts when an object physically moves the actuator. Float switch function and operation โ โ...... ANSWER ....... Detects liquid level using a buoyant actuator to open/close electrical contacts.
Repeat cycle timer circuit operation โ โ...... ANSWER ....... Alternates between ON and OFF for set durations repeatedly.
