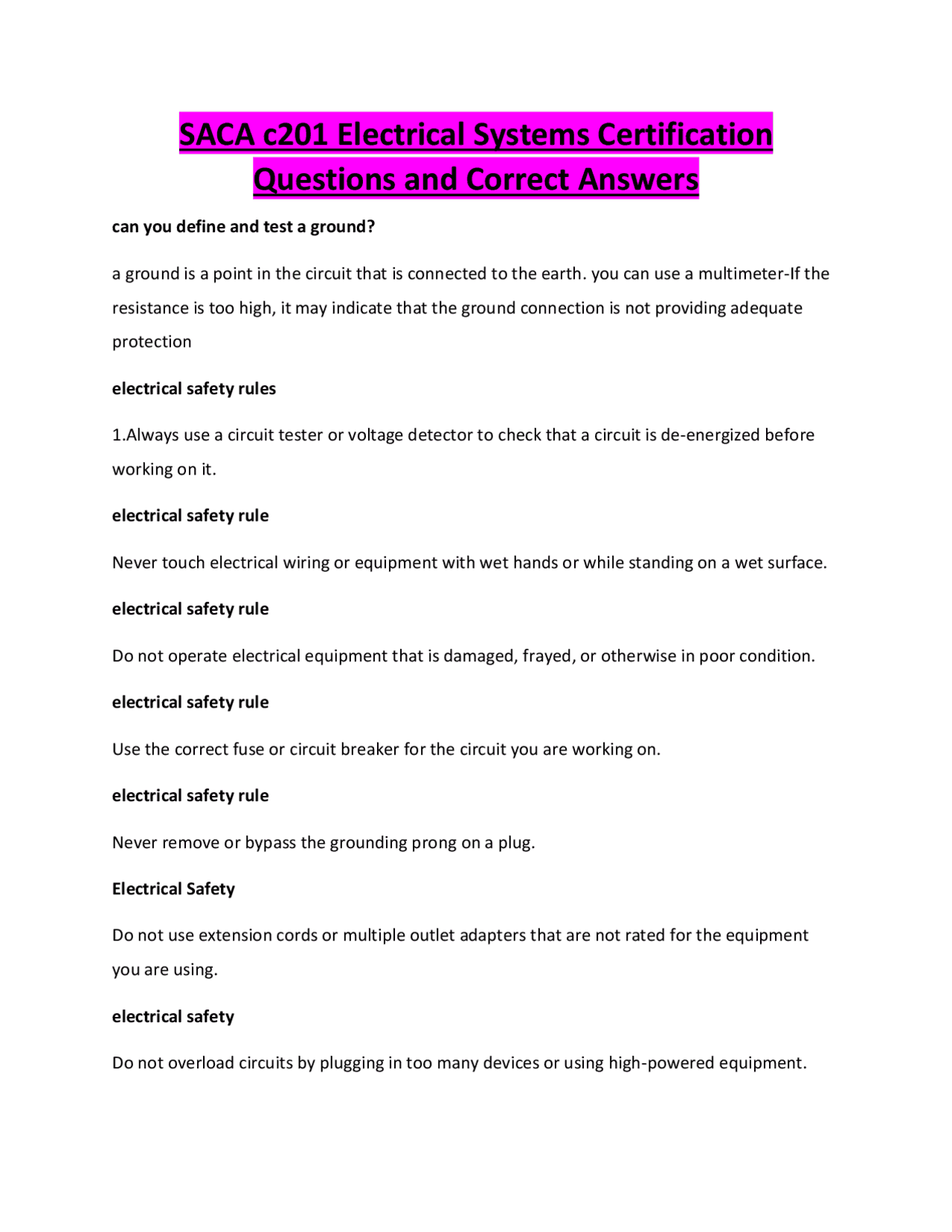

SACA c201 Electrical Systems Certification
Questions and Correct Answers
can you define and test a ground? a ground is a point in the circuit that is connected to the earth. you can use a multimeter-If the resistance is too high, it may indicate that the ground connection is not providing adequate protection electrical safety rules 1.Always use a circuit tester or voltage detector to check that a circuit is de-energized before working on it. electrical safety rule Never touch electrical wiring or equipment with wet hands or while standing on a wet surface. electrical safety rule Do not operate electrical equipment that is damaged, frayed, or otherwise in poor condition. electrical safety rule Use the correct fuse or circuit breaker for the circuit you are working on. electrical safety rule Never remove or bypass the grounding prong on a plug. Electrical Safety Do not use extension cords or multiple outlet adapters that are not rated for the equipment you are using. electrical safety Do not overload circuits by plugging in too many devices or using high-powered equipment.
electrical safety Do not use electrical equipment in wet or damp conditions unless it is specifically designed for that purpose. electrical safety Use properly rated and properly installed surge protectors for sensitive electronic equipment. electrical safety Always follow the manufacturer's instructions for using electrical equipment. purpose of lockout tag out to prevent unexpected energization or startup of machinery or equipment while it is being serviced or repaired. state the two types of electrical current AC and DC how to use a circuit tester To test a circuit, first locate the circuit breaker or fuse that controls the circuit you want to test. Then, using the circuit tester, touch the red probe to the live wire and the black probe to the neutral or ground wire. what is a power source The power source is the source of electrical energy for the circuit. It can be a battery, a generator, or a power outlet. The power source provides the electrical current that flows through the circuit. what is a conductor The conductor is a material that allows electricity to flow through it, such as a wire. The conductor carries the electrical current from the power source to the load.
a passive electronic component that resists the flow of electric current, reducing the voltage and current in a circuit. explain the function of five types of output devices: fan a device that produces a flow of air, typically using an electric motor. It is commonly used to circulate air in a room or to cool electronic equipment. explain the function of five types of output devices: lamp a device that produces light, typically using electricity. It can refer to a light bulb or any other device that is used to produce light. explain the function of five types of output devices: fuse a safety device that is used in electrical circuits to protect against overcurrents. It consists of a piece of wire or other conductor that is designed to melt and break the circuit if the current exceeds a certain level, preventing damage to the circuit or injury to individuals. explain the function of five types of output devices: transformer an electrical device that is used to transfer electrical energy from one circuit to another. It typically consists of two or more coils of wire, which are magnetically coupled to each other. When an alternating current flows through one coil, it creates a varying magnetic field, which in turn induces a voltage in the other coil, allowing electrical energy to be transferred from one circuit to the other. be able to interpret the function and states of a basic electrical circuit
- study basic electrical circuits Define voltage an electromotive force or potential difference expressed in volts. voltage characteristics in a series circuit
In a series circuit, the voltage is distributed evenly across all of the components in the circuit. This means that the voltage across each component will be the same, and the total voltage of the circuit will be equal to the sum of the voltages across each individual component. voltage characteristics of a parallel circuit In a parallel circuit, the voltage across each branch is the same, but the total current is divided among the branches. This means that the current flowing through each component in a parallel circuit will be determined by the resistance of that component. Define current flow of electrons (amps) characteristics of current in a series circuit In a series circuit, the total current is the same at every point in the circuit. This is because the current flowing through each component in the circuit must be the same, since the same current flows through each component in a series circuit. characteristics of current in a parallel circuit In a parallel circuit, the total current is the sum of the currents flowing through each branch. This is because the voltage across each branch is the same, but the current is divided among the branches according to their resistance values. Define resistance the opposition of current flow (measured in Ohms) characteristics of resistance in series circuits In a series circuit, the total resistance of the circuit is equal to the sum of the resistance values of the individual components in the circuit. This means that if a higher resistance component is added to a series circuit, the total resistance of the circuit will increase. characteristics of resistance in a parallel circuit
Parallel resistance equation 1/Rt = 1/R1 + 1/R2 + 1/R Kirchoff's Voltage Law The total of all voltage drops in a series circuit must equal the voltage supplied by the battery Define power rate of energy transfer (P) calculate Parallel current Total current = sum of the currents through each resistor calculate series current Total current = current through each resistor thermal circuit breaker Thermal circuit breakers use a bimetallic strip that heats up and bends when a certain level of current flows through it. When the strip bends far enough, it trips a mechanism that opens the circuit and interrupts the flow of current. To reset a thermal circuit breaker, you typically need to flip the switch on the breaker to the "off" position, then back to the "on" position. magnetic circuit breaker Magnetic circuit breakers use an electromagnet to trip a mechanism that opens the circuit when a certain level of current flows through it. The electromagnet becomes stronger as the current increases, and eventually trips the mechanism when the current reaches a certain level. To reset a magnetic circuit breaker, you typically need to push the reset button on the breaker. Electromagnetism Electromagnetism is the physical phenomenon in which electrically charged particles interact with each other through the force of electromagnetism. This force arises from the interactions
between electric fields and magnetic fields, and can be observed whenever electrically charged particles are in motion. Define inductance. An induced voltage which is opposite in direction to the applied voltage. henry (H) effect of an inductor in an AC system an inductor acts as a resistor to AC current. It opposes changes in current and causes the current to lag behind the voltage in the circuit. This property is known as inductive reactance, and is measured in ohms. effect on an inductor in a DC system an inductor acts as an open circuit to DC current. It does not allow DC current to pass through it and effectively blocks the flow of current in the circuit. This property is known as DC resistance, and is measured in ohms. total inductance equation Total inductance (L) = L1 + L2 + L3 + ... Inductive Reactance Formula XL = 2πfL where XL is the inductive reactance in ohms, f is the frequency of the AC current in hertz, and L is the inductance of the inductor in henries. total load on an AC circuit with inductors known: XL = 2πfL
- Total inductive reactance (XL) = XL1 + XL2 + XL3 + ... (for series connection) 1 / Total inductive reactance (XL) = 1 / XL1 + 1 / XL2 + 1 / XL3 + ... (for parallel connection)
- Total load = supply voltage / (1 / total inductive reactance + 1 / total resistance) Define capacitance
allows current to pass through easily, but at high frequencies its impedance increases and it acts as an open circuit, blocking the flow of current. calculate total capacitance add capacitances calculate total capacitive reactance X_C = 1 / (2 pi f * C) X_c= capacitive reactance in ohms f= frequency in hertz c= capacitance in farads calculate total load on an AC circuit with capacitors X_C = 1 / (2 pi f * C) calculate the time to charge and discharge a capacitor time=RC R= resistance of circuit C= capacitance of capacitor in farads capacitors in power supply Capacitors are used in power supplies to store electrical charge and to release it when the input voltage drops or when there is a sudden increase in current demand. This helps to smooth out fluctuations in the input voltage and to provide a steady flow of current to the load. inductors in power supply inductors are used in power supplies to store energy in the form of a magnetic field. When the input voltage fluctuates, the magnetic field in the inductor will also fluctuate, which can generate a counter-voltage that opposes the changes in the input voltage. This helps to smooth out the voltage fluctuations and to provide a more stable output voltage. operation of a variable resistor
A variable resistor, also known as a potentiometer, is a type of resistor that allows the resistance to be adjusted. It consists of a resistive element with a wiper that can be moved along the element to change the resistance. how to troubleshoot a short circuit
- First, make sure that the power is off and that all safety precautions are followed.
- Locate the source of the short circuit. This could be a damaged wire, a loose connection, or a faulty component such as a resistor or capacitor.
- Check the circuit for any visible signs of damage, such as burnt or melted components, or frayed or exposed wires.
- Use a multimeter to test the resistance and continuity of the circuit. A short circuit will typically have a very low resistance, so if you see a reading that is much lower than expected, it could indicate a short circuit. three basic steps for troubleshooting an open circuit
- First, make sure that the power is off and that all safety precautions are followed.
- Locate the source of the open circuit. This could be a broken wire, a loose connection, or a faulty component such as a resistor or capacitor.
- Use a multimeter to test the resistance and continuity of the circuit. An open circuit will typically have a very high resistance, so if you see a reading that is much higher than expected, it could indicate an open circuit. operation of a transformer A transformer is an electrical device that is used to transfer electrical energy from one circuit to another through inductively coupled conductors, or coils. It works on the principle of electromagnetic induction, where a changing magnetic field in one coil generates a voltage in the other coil. Transformer Output Voltage Formula
