Ultimate Exam

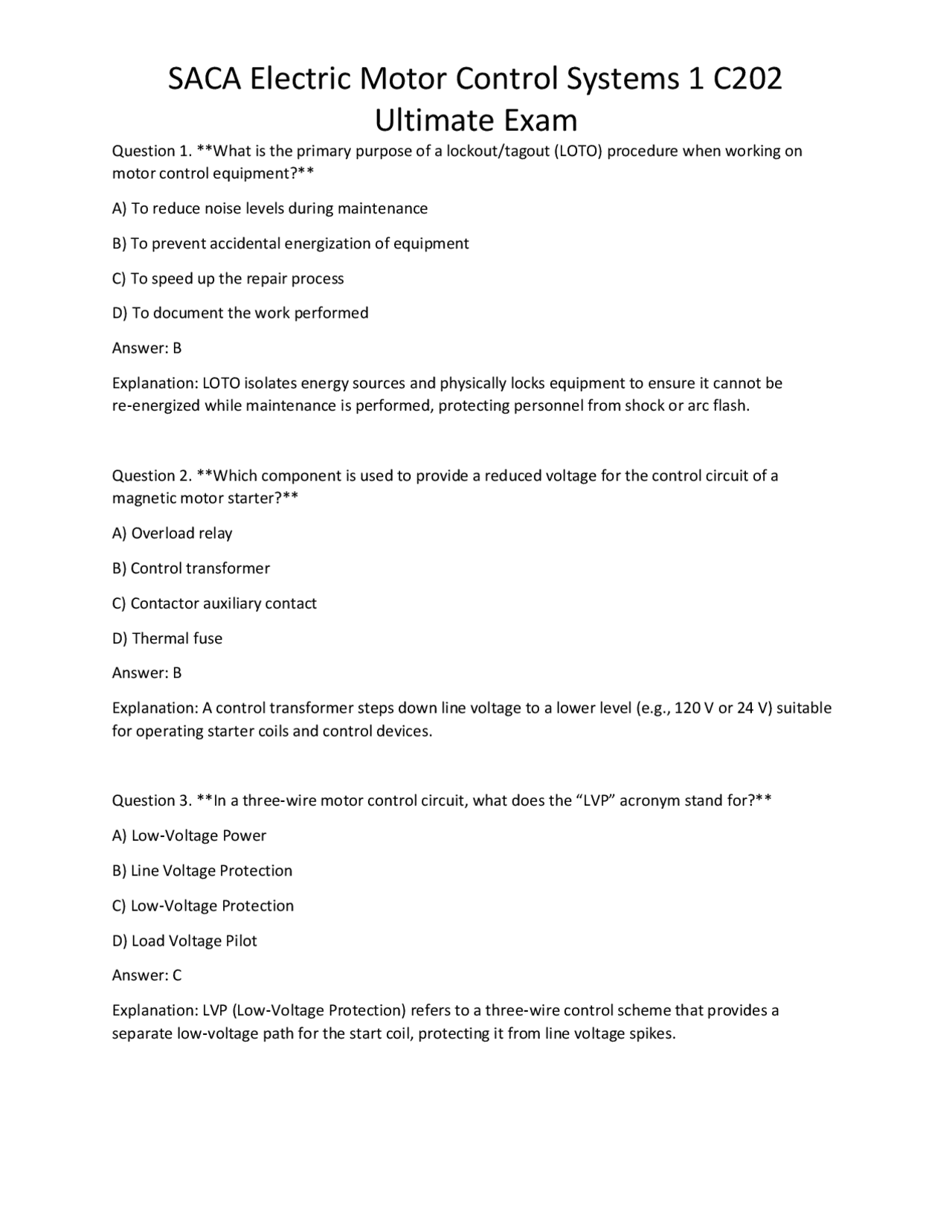

Question 1. What is the primary purpose of a lockout/tagout (LOTO) procedure when working on motor control equipment? A) To reduce noise levels during maintenance B) To prevent accidental energization of equipment C) To speed up the repair process D) To document the work performed Answer: B Explanation: LOTO isolates energy sources and physically locks equipment to ensure it cannot be re‑energized while maintenance is performed, protecting personnel from shock or arc flash. Question 2. Which component is used to provide a reduced voltage for the control circuit of a magnetic motor starter? A) Overload relay B) Control transformer C) Contactor auxiliary contact D) Thermal fuse Answer: B Explanation: A control transformer steps down line voltage to a lower level (e.g., 120 V or 24 V) suitable for operating starter coils and control devices. Question 3. In a three‑wire motor control circuit, what does the “LVP” acronym stand for? A) Low‑Voltage Power B) Line Voltage Protection C) Low‑Voltage Protection D) Load Voltage Pilot Answer: C Explanation: LVP (Low‑Voltage Protection) refers to a three‑wire control scheme that provides a separate low‑voltage path for the start coil, protecting it from line voltage spikes.
Ultimate Exam
Question 4. Which type of overload protection uses a bimetallic strip that bends with temperature rise? A) Magnetic overload B) Thermal overload C) Electronic overload D) Hydraulic overload Answer: B Explanation: Thermal overloads contain a bimetallic element that expands as current heats the element, eventually opening the circuit when the preset temperature is reached. Question 5. When reading a ladder diagram, which symbol represents a normally open (NO) push‑button? A) A single line with a break in the middle B) A single line with a slash through it C) Two parallel lines with a gap D) A circle with a “C” inside Answer: A Explanation: In ladder symbols, a normally open push‑button is shown as a single contact line with a break, indicating the circuit is open until the button is pressed. Question 6. What is the function of a seal‑in (holding) circuit in motor control? A) To protect the motor from overloads B) To keep the motor running after the start button is released C) To provide a safety interlock between forward and reverse starters D) To measure motor speed Answer: B Explanation: A seal‑in circuit uses an auxiliary contact that remains closed after the start button is released, maintaining coil energization until a stop command is given.
Ultimate Exam
Question 10. When selecting a circuit breaker for a motor branch circuit, which parameter is most critical to consider? A) Breaker frame size B) Trip class (e.g., D, K, Z) matching motor starting current C) Color of the breaker handle D) Number of poles only Answer: B Explanation: The trip class determines the breaker’s time‑current characteristics, which must accommodate the high inrush current of motor starting without nuisance tripping. Question 11. Which of the following best describes a drum switch? A) A rotary switch that selects between multiple circuits by rotating a drum with contacts B) A momentary push‑button used for jogging motors C) A magnetic device that trips on overload D) A fixed contactor used for continuous duty Answer: A Explanation: A drum switch contains a rotating drum with multiple contacts, allowing selection of different circuits or motor speeds by turning the handle. Question 12. What is the purpose of an auxiliary contact on a magnetic starter? A) To directly carry motor current B) To provide a low‑voltage path for the start coil only C) To perform auxiliary functions such as signaling or interlocking D) To replace the main contacts in case of failure Answer: C Explanation: Auxiliary contacts are low‑current contacts used for control functions like indicating motor status, interlocking, or sealing in circuits, not for carrying motor power.
Ultimate Exam
Question 13. Which type of motor winding is used in a squirrel‑cage induction motor rotor? A) Slip rings with brushes B) Laminated steel bars short‑circuited at each end C) Wound coils with external connections D) Permanent magnets embedded in the rotor core Answer: B Explanation: The squirrel‑cage rotor consists of conductive bars (usually aluminum or copper) shorted at both ends by end rings, forming a cage that induces current and creates rotating magnetic fields. Question 14. If a motor nameplate lists “4 HP, 460 V, 3 PH, 60 Hz, 4‑pole,” what is the synchronous speed of this motor? A) 1200 rpm B) 1500 rpm C) 1800 rpm D) 3600 rpm Answer: B Explanation: Synchronous speed = 120 × frequency / poles = 120 × 60 / 4 = 1800 rpm. However, the motor is a 4‑pole induction motor, so its rated speed will be slightly less (≈ 1725 rpm). The calculated synchronous speed is 1800 rpm, which is the answer requested. Question 15. During a motor start, the current drawn can be up to how many times the full‑load current (FLC) for a typical 3‑phase induction motor? A) 1‑ 2 × B) 3‑ 4 × C) 5‑ 7 × D) 10‑ 12 × Answer: C Explanation: Induction motors typically draw 5‑7 times their FLC during direct‑on‑line (DOL) starting due to the high inrush current needed to establish the rotating magnetic field.
Ultimate Exam
A) Uses separate start and stop contacts on the same coil B) Provides a low‑voltage release (LVR) path that allows the motor to start without a dedicated stop circuit C) Requires three separate wires for power, control, and ground D) Is only used for reversible motor circuits Answer: B Explanation: Two‑wire control employs a low‑voltage release circuit that supplies a separate low‑voltage path to the starter coil, allowing remote start without a dedicated stop button. Question 20. When performing a continuity test on a motor’s overload heater, what reading on a digital multimeter indicates a healthy heater? A) Infinite resistance B) Zero ohms C) A resistance value within the manufacturer‑specified range (typically 5‑ 15 Ω) D) A fluctuating resistance reading Answer: C Explanation: Overload heaters are resistive elements; a measured resistance within the specified range confirms the heater is intact and not open or shorted. Question 21. What is the main advantage of using a magnetic overload over a thermal overload for motor protection? A) Magnetic overloads are less expensive B) Magnetic overloads react faster to short‑circuit currents C) Magnetic overloads do not require any adjustment D) Magnetic overloads can handle higher ambient temperatures without tripping Answer: B Explanation: Magnetic overloads (or magnetic trip units) sense instantaneous high currents and trip quickly, providing superior protection against short‑circuit conditions compared with slower‑acting thermal devices.
Ultimate Exam
Question 22. In ladder logic, which arrangement of contacts implements an OR function? A) Contacts in series B) Contacts in parallel (same rung) C) A single NOT contact D) A normally closed contact followed by a normally open contact Answer: B Explanation: Parallel (side‑by‑side) contacts on the same rung allow current to flow if any one of them closes, which is the logical OR operation. Question 23. Which of the following statements about a “drum switch” is FALSE? A) It can be used to select different motor speeds by changing tap positions B) It provides a momentary contact only C) It is mechanically operated by rotating a drum with multiple contacts D) It can be locked in a selected position for continuous operation Answer: B Explanation: Drum switches can provide both momentary and maintained contacts; they are not limited to momentary operation. Question 24. When calculating voltage drop in a long control wiring run, which factor has the greatest effect? A) Wire color B) Conductor cross‑sectional area (gauge) C) Number of terminal blocks D) Ambient temperature only Answer: B Explanation: The resistance of a conductor (and thus voltage drop) is inversely proportional to its cross‑sectional area; larger gauges reduce voltage drop significantly. Question 25. What is the purpose of an “ambient compensation” feature in a bimetallic overload relay?
Ultimate Exam
B) A low‑current indicator (lamp, buzzer, pilot light) that shows the status of a circuit C) A device that adjusts motor speed automatically D) A type of overload relay with a built‑in pilot light Answer: B Explanation: Pilot devices are low‑current indicators used to display the operational status (on/off, fault) of a motor or control circuit. Question 29. When a motor starter’s auxiliary contacts are labeled “NO” and “NC,” what do these designations mean? A) “NO” = Normally Open, “NC” = Normally Closed; they describe the default state when the coil is de‑energized B) “NO” = No Output, “NC” = No Control C) “NO” = Not Operated, “NC” = Not Connected D) “NO” = New Order, “NC” = New Circuit Answer: A Explanation: “NO” (normally open) contacts are open when the coil is not energized, while “NC” (normally closed) contacts are closed in that condition. Question 30. What is the effect of increasing the number of poles in a synchronous AC motor while keeping frequency constant? A) Increases the motor’s speed B) Decreases the motor’s speed C) Has no effect on speed, only on torque D) Converts the motor to a DC motor Answer: B Explanation: Synchronous speed = 120 × f / P; increasing poles (P) reduces speed proportionally. Question 31. Which of the following is a common method for providing electrical interlocking in a reversible motor starter? A) Installing a mechanical key that must be turned to change direction
Ultimate Exam
B) Using a pair of normally closed auxiliary contacts, each in series with the opposite starter coil C) Adding a third start button labeled “Both” D) Wiring both forward and reverse coils in parallel Answer: B Explanation: Electrical interlocking uses NC auxiliary contacts from each coil placed in series with the opposite coil, ensuring that energizing one coil opens the contact of the other. Question 32. If a control transformer primary is rated for 240 V and the line voltage is 208 V, what is the likely impact on the secondary voltage? A) The secondary voltage will increase proportionally B) The secondary voltage will decrease proportionally C) The secondary voltage will remain unchanged D) The transformer will be damaged instantly Answer: B Explanation: Transformer voltage ratios are fixed; a lower primary voltage results in a proportionally lower secondary voltage, potentially causing insufficient voltage for control devices. Question 33. Which IEC standard defines the symbols used in ladder diagrams for control circuits? A) IEC 60204‑ 1 B) IEC 60947‑ 3 C) IEC 61800‑ 5 ‑ 1 D) IEC 60617‑ 11 Answer: D Explanation: IEC 60617‑11 provides graphical symbols for electrical diagrams, including ladder logic symbols. Question 34. What is the primary function of a “contactor” in an AC motor control circuit? A) To limit motor speed B) To provide overload protection
Ultimate Exam
Answer: B Explanation: Jogging (or inching) circuits use a momentary switch to energize the motor for a short, preset interval, then automatically de‑energize. Question 38. When a motor starter’s coil is supplied with a voltage lower than its rated coil voltage, what is the most common effect? A) The starter will trip faster B) The contactor may fail to pull in, preventing motor start C) The motor will run at a higher speed D) The overload relay will not function Answer: B Explanation: Insufficient coil voltage reduces magnetic force, possibly preventing the contactor from closing its power contacts, so the motor will not start. Question 39. Which of the following statements about “thermal‑magnetic” overloads is true? A) They provide both instantaneous short‑circuit protection (magnetic) and delayed overload protection (thermal) in a single device B) They are only used on DC motors C) They cannot be reset manually D) They do not require any ambient compensation Answer: A Explanation: Thermal‑magnetic overloads combine a magnetic element for instantaneous high‑current trips and a thermal element for prolonged overload conditions. Question 40. What does the “NEMA Design” letter “B” on a motor nameplate indicate? A) The motor is suitable for hazardous locations B) The motor has a high starting torque and is intended for constant or variable torque applications C) The motor is designed for low‑speed, high‑torque service only D) The motor is a single‑phase unit Answer: B
Ultimate Exam
Explanation: NEMA Design B motors are general‑purpose induction motors capable of handling a wide range of torque demands, including constant torque and variable torque applications. Question 41. In a control panel, why is it important to ground the secondary side of a control transformer? A) To increase the secondary voltage B) To provide a reference point for control circuits and reduce electromagnetic interference (EMI) C) To allow the transformer to operate at a higher frequency D) To enable the use of larger fuses Answer: B Explanation: Grounding the secondary creates a common reference, improves safety, and helps suppress noise that could affect sensitive control devices. Question 42. Which of the following is NOT a typical function of a “pilot relay” in motor control? A) To provide a low‑current path for control logic B) To directly switch the motor’s full‑load current C) To isolate the control circuit from the power circuit D) To generate a status signal for indicator lamps Answer: B Explanation: Pilot relays handle low‑current signals; they are not designed to carry the motor’s full‑load current, which is the role of contactors. Question 43. When troubleshooting a non‑functioning motor starter, which measurement would most directly verify that the control transformer secondary is delivering proper voltage? A) Measuring line voltage at the service entrance B) Measuring voltage across the transformer secondary terminals while the control circuit is energized C) Measuring resistance of the motor windings D) Measuring current on the motor’s power leads Answer: B
Ultimate Exam
Answer: B Explanation: Magnetic starters incorporate overload protection, remote control through a coil, and automatic opening of contacts on fault, offering safety and convenience beyond manual starters. Question 47. When a motor’s nameplate lists “Insulation Class B,” what maximum temperature rise is allowed for the motor windings? A) 90 °C above ambient B) 105 °C above ambient C) 130 °C above ambient D) 155 °C above ambient Answer: B Explanation: Insulation Class B is rated for a maximum temperature rise of 105 °C over ambient, defining the thermal limits for safe operation. Question 48. If a control circuit includes a “stop” push‑button that is normally closed (NC), what happens to the circuit when the button is pressed? A) The circuit opens, removing power to the starter coil B) The circuit closes, energizing the coil C) Nothing; NC buttons have no effect when pressed D) The motor speed increases automatically Answer: A Explanation: An NC stop button conducts when not pressed; pressing it opens the contact, breaking the control circuit and de‑energizing the starter coil. Question 49. What is the purpose of a “ground fault circuit interrupter” (GFCI) in a motor control panel? A) To protect against overloads B) To detect and quickly disconnect a circuit when a ground leakage current exceeds a set threshold, enhancing personnel safety C) To regulate motor speed
Ultimate Exam
D) To provide a backup power source Answer: B Explanation: GFCIs monitor the imbalance between hot and neutral currents; a detected ground fault triggers rapid disconnection, reducing shock hazards. Question 50. Which of the following best defines “voltage drop” in a control wiring run? A) The increase in voltage caused by inductive loads B) The reduction in voltage between the source and the load due to the resistance of the conductors C) The voltage generated by the motor’s back‑EMF D) The voltage difference between two phases in a three‑phase system Answer: B Explanation: Voltage drop is the loss of electrical potential along a conductor caused by its inherent resistance, affecting the voltage available at the load. Question 51. When selecting a control transformer, why is the “VA rating” important? A) It determines the transformer’s physical size only B) It indicates the maximum apparent power the transformer can deliver without overheating, ensuring all control devices receive adequate voltage and current C) It sets the frequency at which the transformer operates D) It defines the type of protective grounding required Answer: B Explanation: The VA (volt‑ampere) rating specifies the transformer's power handling capacity; undersizing can cause voltage sag or overheating under load. Question 52. In a reversible motor circuit, what does the term “mechanical interlock” refer to? A) A software lock that prevents accidental reversal B) A physical device (often a lever or key) that prevents the forward and reverse contactors from being pulled in at the same time C) A magnetic coil that disables the reverse starter when forward is active D) A timer that delays reversal for a set period
Ultimate Exam
D) The contact is a 9‑pole main contactor Answer: B Explanation: In NEMA/UL labeling, the suffix “9” denotes a normally open auxiliary contact; “8” would indicate normally closed. Question 56. Which of the following statements about a “drum switch” is true regarding its wiring? A) All positions share a common neutral conductor B) Each position can have a separate set of contacts for different circuits, allowing multiple motor speed selections from a single switch C) Drum switches cannot be used for three‑phase circuits D) Drum switches require a separate control transformer for each position Answer: B Explanation: Drum switches have multiple contact sets on the rotating drum, enabling selection among several circuits (e.g., motor speeds) with a single mechanical action. Question 57. If a motor’s overload relay is set to 115 % of the motor’s FLA, what is the approximate overload current at which it will trip? A) 115 % of FLA B) 150 % of FLA C) 100 % of FLA D) 200 % of FLA Answer: A Explanation: Setting the overload to 115 % means it will trip when the motor current exceeds 115 % of its full‑load amperage, providing a modest safety margin. Question 58. Which of the following best explains why a “magnetic contactor” is preferred over a “relay” for switching motor power? A) Contactors have higher voltage and current ratings, are designed for frequent operation, and have replaceable contacts suitable for motor duty cycles B) Relays are more expensive than contactors
Ultimate Exam
C) Relays cannot be controlled by low‑voltage coils D) Contactors are smaller in size, saving panel space Answer: A Explanation: Contactors are built for high‑current motor loads, have robust construction, and allow easy contact replacement, making them superior for motor power switching. Question 59. In a three‑phase delta‑connected motor, what is the relationship between line voltage and phase voltage? A) They are equal B) Line voltage is √3 times the phase voltage C) Line voltage is half the phase voltage D) Phase voltage is √3 times the line voltage Answer: A Explanation: In a delta connection, each phase is connected across a line, so line voltage equals phase voltage. Question 60. When a control circuit uses a “low‑voltage release” (LVR) arrangement, what safety benefit does it provide? A) It eliminates the need for a stop button B) It ensures that loss of line voltage automatically releases the starter, preventing motor run‑away if the control supply fails C) It increases motor starting torque D) It allows the motor to operate at reduced speed automatically Answer: B Explanation: LVR circuits provide a separate low‑voltage path that, when lost, de‑energizes the starter coil, causing the motor to stop safely. Question 61. Which of the following is the correct order of steps when performing a “single‑line diagram” verification for a motor control panel? A) Verify power source → Verify control transformer → Verify overload → Verify contactor → Verify motor connections
