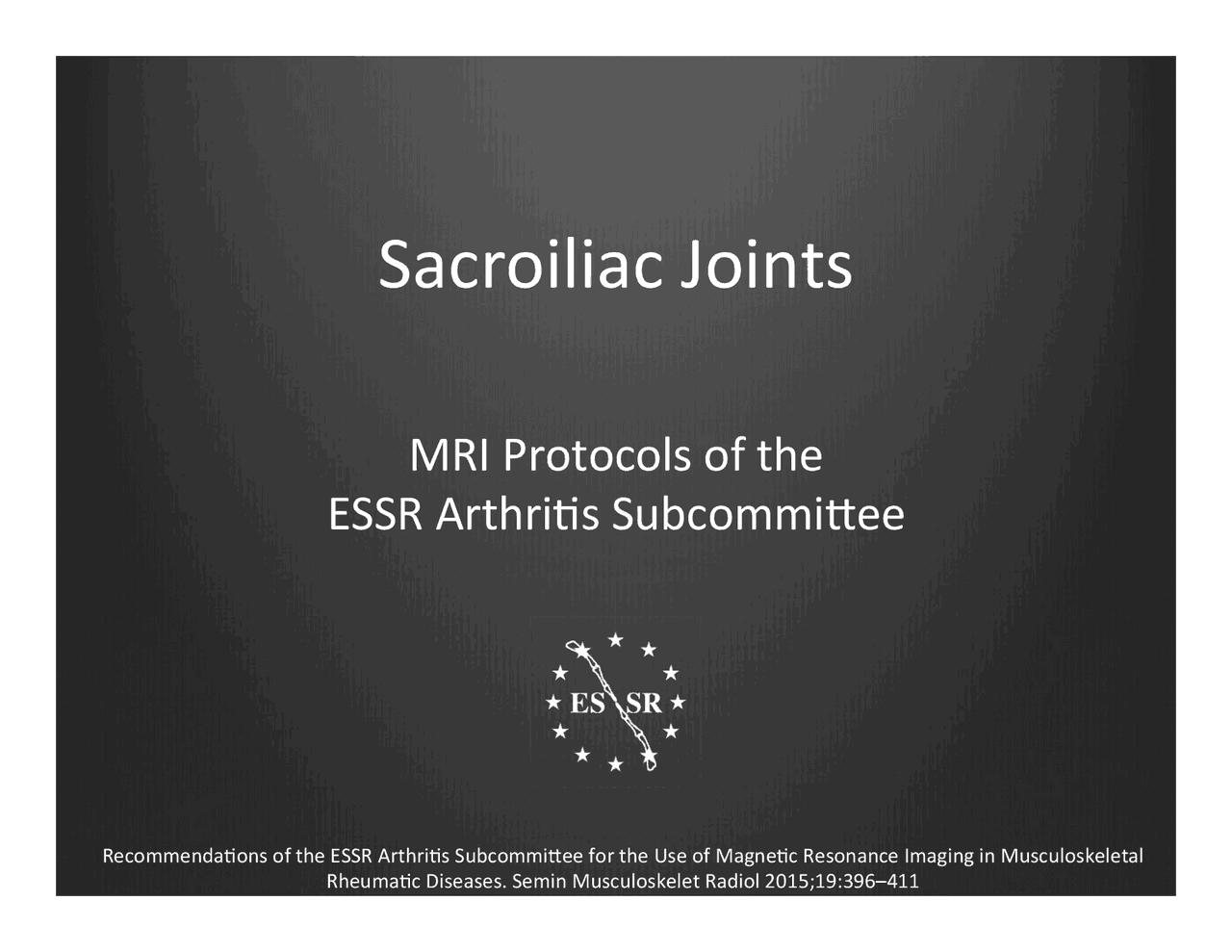

Sacroiliac(Joints(
MRI(Protocols(of(the((
ESSR(Arthri6s(Subcommi:ee(
Recommenda6ons(of(the(ESSR(Arthri6s(Subcommi:ee(for(the(Use(of(Magne6c(Resonance(Imaging(in(Musculoskeletal(
Rheuma6c(Diseases.(Semin(Musculoskelet(Radiol(2015;19:396–411(
(
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Sacroiliac Joints, Lecture notes of Magnetic Resonance Imaging (MRI)
Sacroiliac Joints. MRI Protocols of the. ESSR Arthri0s SubcommiVee. Recommenda0ons of the ESSR Arthri0s SubcommiVee for the Use of Magne0c Resonance Imaging ...
Typology: Lecture notes
2022/2023
1 / 8
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Sacroiliac Joints and more Lecture notes Magnetic Resonance Imaging (MRI) in PDF only on Docsity!
Sacroiliac Joints
MRI Protocols of the
ESSR Arthri6s Subcommi:ee
Recommenda6ons of the ESSR Arthri6s Subcommi:ee for the Use of Magne6c Resonance Imaging in Musculoskeletal Rheuma6c Diseases. Semin Musculoskelet Radiol 2015;19:396–
Acronyms
Ax= axial
CE= contrast enhanced
FOV= field of view
Obl= oblique
Sag= sagi:al
STIR= Short Tau Inversion Recovery
TE= echo 6me (ms)
TR= repe66on 6me (ms)
Oblique coronal plane: parallel to the long axis of the
sacrum - tangent to the posterior surface of S
Oblique axial plane : perpendicular to the coronal
orienta6on
Localizer
Obl cor T1 Obl cor T1FS Obl axial STIR Obl cor T2 FS or STIR or TIRM or PD FS
Recommended sequences
MRI protocols
Recommended Sequences
FOV
(cm) Slice thickness (mm)
TR
(ms)
TE
(ms) Matrix Obl cor T1 24-30 3 (max 4) 400-700 8-20 > Obl cor T1 FS 24-30 3 (max 4) 400-700 8-20 > Obl cor T2 fat sat 24-30 3 (max 4) 4000-6000 60-90 > Obl cor STIR 24-30 3 (max 4) 3000-6000 60-90 > Obl axial STIR 20-25 3 (max 4) 3000-6000 60-90 > CE Obl cor T1 FS 24-30 3 (max 4) 400-700 8-20 > CE Obl axial T1FS 20-25 3 (max 4) 400-700 8-20 >
- Anne Grethe Jurik, Denmark
- Edwin Oei, The Netherlands
- Kay G Herman, Germany
- Marius Wick, Sweden
Contributors
Project Coordinators
- Chiara Giraudo, Italy
- Hannes Platzgummer, Austria
