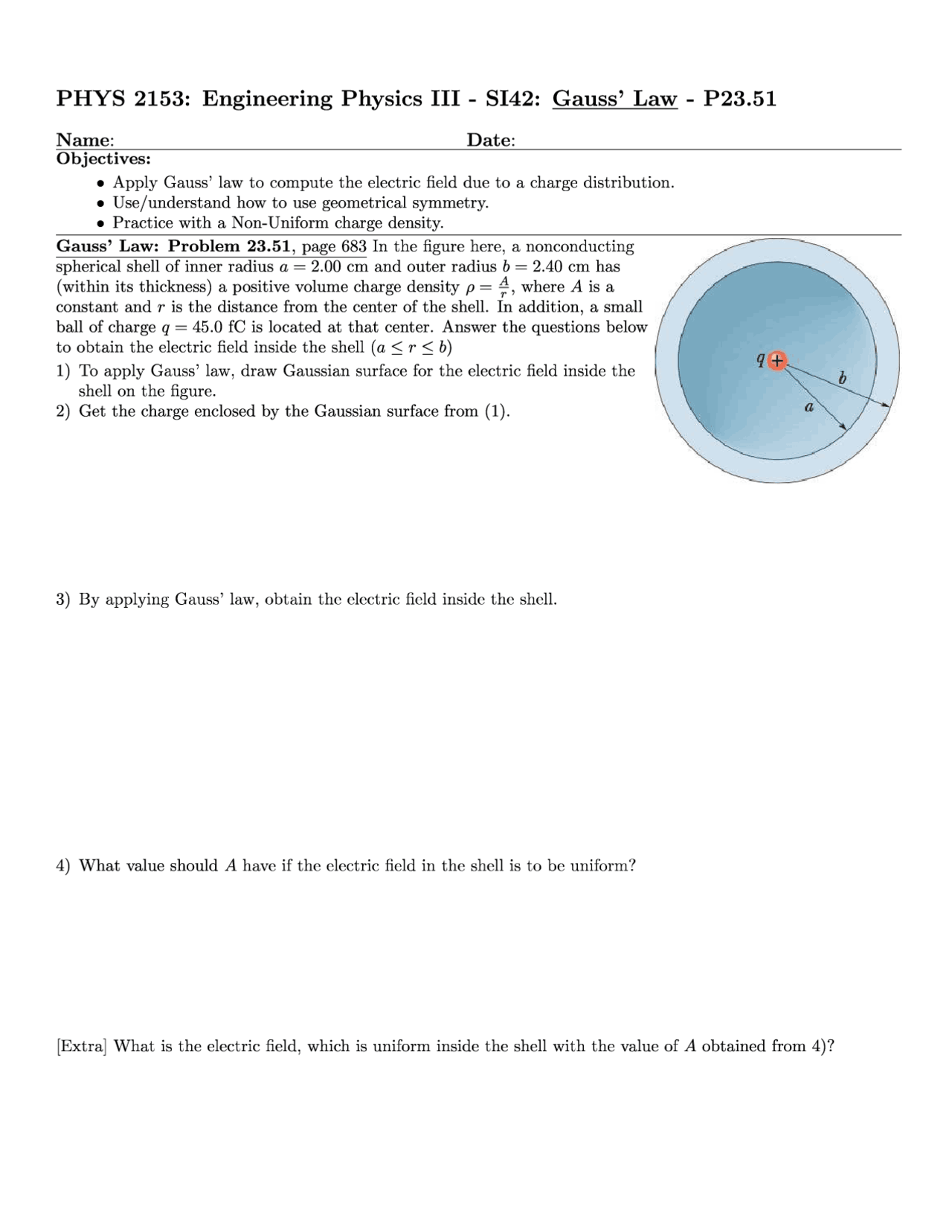

PHYS 2153: Engineering Physics III - S142: Gauss’ Law - P23.51 Name: Date: Objectives: e Apply Gauss’ law to compute the electric field due to a charge distribution. e Use/understand how to use geometrical symmetry. e Practice with a Non-Uniform charge density. Gauss’ Law: Problem 23.51, page 683 In the figure here, a nonconducting spherical shell of inner radius a = 2.00 cm and outer radius 6 = 2.40 cm has (within its thickness) a positive volume charge density p = 4, where A is a constant and r is the distance from the center of the shell. In addition, a small ball of charge q = 45.0 fC is located at that center. Answer the questions below to obtain the electric field inside the shell (a
