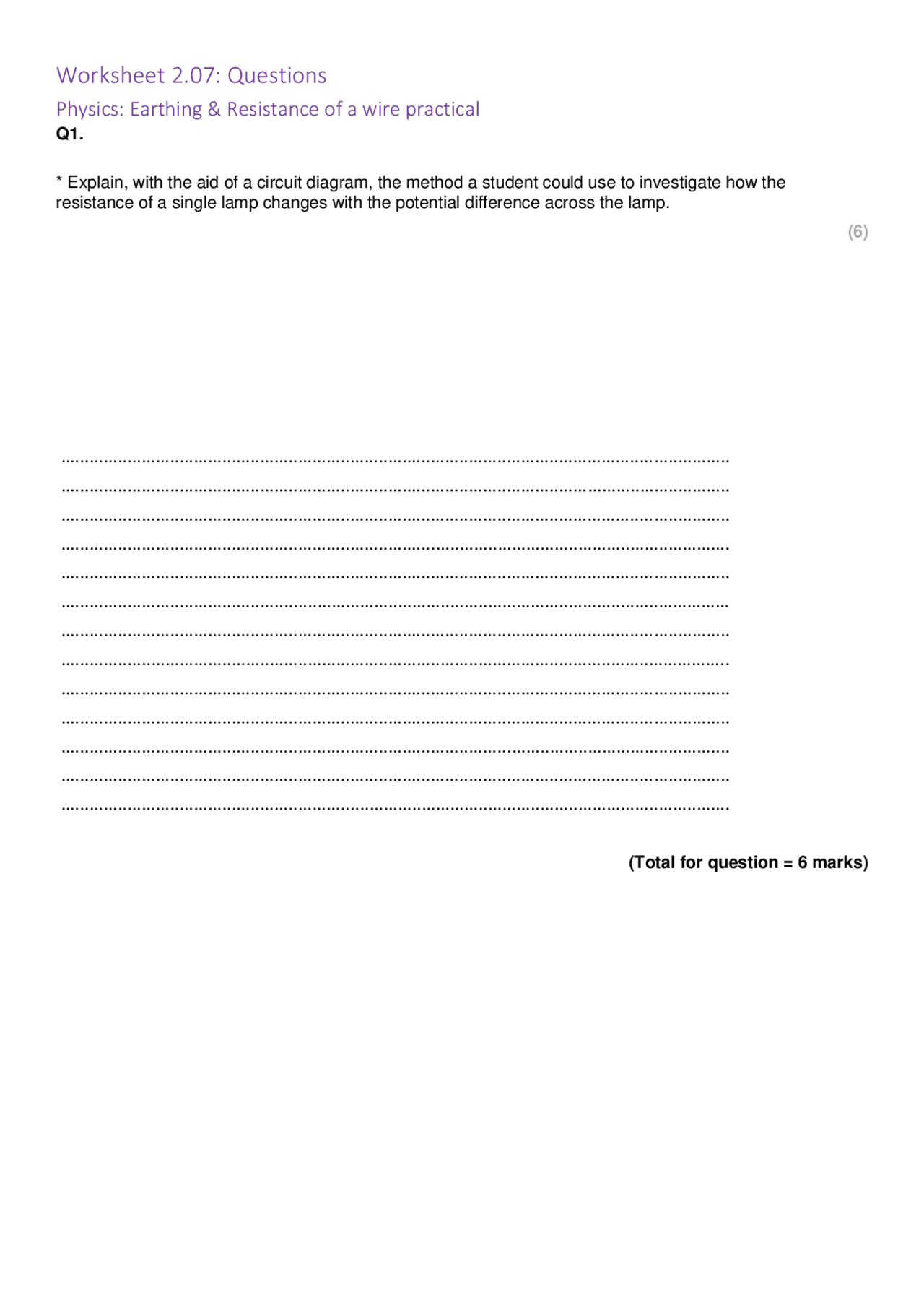

Worksheet 2.07: Questions
Physics: Earthing & Resistance of a wire practical
Q1.
* Explain, with the aid of a circuit diagram, the method a student could use to investigate how the
resistance of a single lamp changes with the potential difference across the lamp.
(6)
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
.............................................................................................................................................
(Total for question = 6 marks)
pf3
pf4
pf5

Partial preview of the text

Download Physics Worksheet: Investigating Resistance and Circuits and more Assignments Earth science in PDF only on Docsity!

Worksheet 2. 07 : Questions

Physics: Earthing & Resistance of a wire practical

Q1.

  • Explain, with the aid of a circuit diagram, the method a student could use to investigate how the resistance of a single lamp changes with the potential difference across the lamp. (6) ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. .............................................................................................................................................

Q2.

A student investigates resistors connected in parallel using a number of resistors. Each resistor has the same resistance. Figure 19 shows a circuit diagram with one resistor, R. (i) Add to Figure 19:

  • a voltmeter to find the potential difference across resistor R
    • another resistor in parallel with resistor R. (2) (ii) State the measurements that the student must take to find the overall resistance of the resistors in parallel. (2) ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. .............................................................................................................................................

Q3.

A circuit is then set up with two resistors as shown in Figure 21. (i) Calculate the potential difference across the 15 Ω resistor. (2) potential difference = ........................................................... V (ii) Calculate the total power dissipated when there is a current of 0.20 A in the two resistors. Use the equation P = I^2 × R (2) power produced ........................................................... W

Q4.

Draw a circuit diagram you could use to investigate the relationship between potential difference, current and resistance for a filament lamp. (3)
