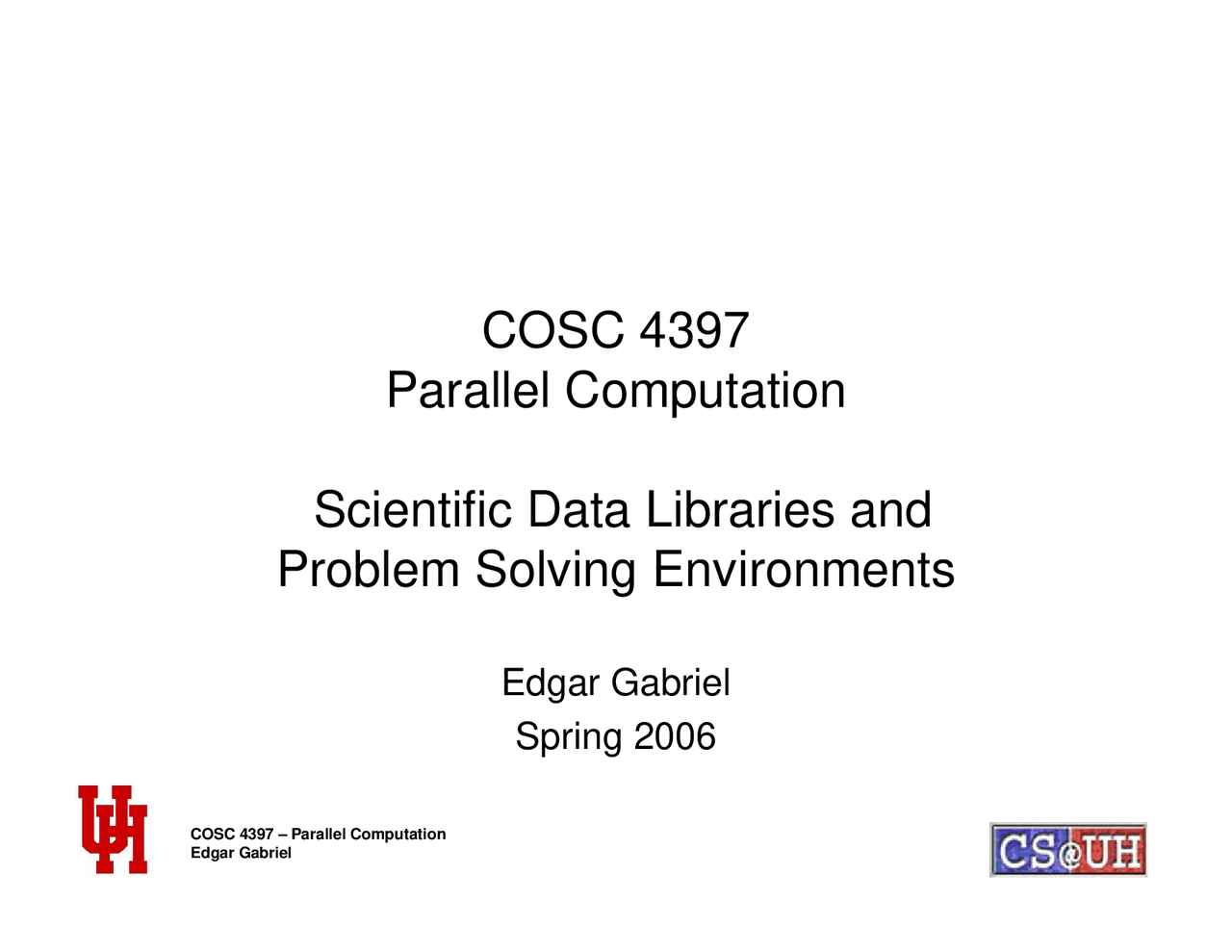

COSC 4397 – Parallel ComputationEdgar Gabriel

COSC 4397

Parallel Computation

Scientific Data Libraries and

Problem Solving Environments

Edgar Gabriel

Spring 2006

2

COSC 4397 – Parallel ComputationEdgar Gabriel

Motivation

MPI I/O is good

– It knows about data types (=> data conversion)– It can optimize various access patterns in

applications

MPI I/O is bad

– It does not store any information about the data

type

• A file written as MPI_INT can be read as

MPI_DOUBLE in another application

• No information is stored, whether it is a two-

dimensional data array or anything else

4

COSC 4397 – Parallel ComputationEdgar Gabriel

HDF-

Hierarchical Data Format (HDF) developed since 1988 atNCSA (University of Illinois)

– http://hdf.ncsa.uiuc.edu/HDF5/

Has gone through a long history of changes, the recentversion HDF-5 available since 1999

HDF-5 supports

– Very large files– Parallel I/O interface– Fortran, C, Java bindings

5

COSC 4397 – Parallel ComputationEdgar Gabriel

HDF-5 dataset

Multi-dimensional array of basic data elements

A dataset consists of

– Header + data

Header consists of

– Name– Datatype : basic (e.g. HDF_NATIVE_FLOAT) or

compound dataypes

– Dataspace: defines size and shape of a multidimensional array.

Dimensions can be fixed or unlimited.

– Storage layout: defines how multidimensional arrays are stored

in file. Can be contiguous or chunked.

7

COSC 4397 – Parallel ComputationEdgar Gabriel

Storage layout: contiguous vs. chunked

contiguous

chunked

1 9 17 25 33 41 49 57

2 10 18 26 34 42 50 58

3 11 19 27 35 43 51 59

4 12 20 28 36 44 52 60

5 13 21 29 37 45 53 61

6 14 22 30 38 46 54 62

7 15 23 31 39 47 55 63

8 16 24 32 40 48 56 64

1 5 9 13 33 37 41 45

2 6 10 14 34 38 42 46

3 7 11 15 35 39 43 47

4 8 12 16 36 40 44 48

21 25 29 49 57 61

22 26 30 50 58 62

23 27 31 51 59 63

24 28 32 52 60 64

17

18

19

20

53

54

55

56

„

Advantages and disadvantages of chunking

„

Accessing rows and columns require the same number ofaccesses

„

Data can be extended into all dimensions

„

Efficient storage of sparse arrays

„

Can improve caching

8

COSC 4397 – Parallel ComputationEdgar Gabriel

HDF-5 groups

A HDF-5 group is a collection of data sets

– Comparable to a directory in a UNIX-like file system

HDF-5 naming convention

– All API functions start with an

H

– The next character identifies category of functions

• H5F

: functions handling files

• H5G

: functions handling groups

• H5D

: functions handling datasets

• H5S

: functions handling dataspaces

• H5A

: functions handling attributes

10

COSC 4397 – Parallel ComputationEdgar Gabriel

Reading an HDF-5 file – structure of the

file known

Open the file

Open the group

Open each dataset inthe group

Look up dimensions

Read data

Read attributes

Read comments

Close all objects

h5file

=

H5Fopen(…)

group

=

H5Gopen(h5file,”tempseries”)

tset

=

H5Dopen(group,”temperature”);

tspace

=

H5Dget_space(

tset

);

H5Sget_simple_extent_dims

(tspace,

dims,

…);

H5Dread(tset,H5T_IEEE_F32BE,

ttype,

tspace,

…,

buffer);

tattr

=

H5Aopen_name(tset,

“units”);

attrtype

=

H5Aget_type

(

tattr

);

H5Aread(tattr,attrtype,attr);

11

COSC 4397 – Parallel ComputationEdgar Gabriel

Compound Datatypes

Abstraction for user structures

– Has a fixed size– Each member has its own name, datatype, reference,

and byte offset

h5type

H5Tcreate(

H5T_class

class,

size_t

size);

H5Tinsert

h5type,

const

char

*name,

off_t

offset,

hid_t

field_id);

13

COSC 4397 – Parallel ComputationEdgar Gabriel

Example using hyperslabs

Define

hyperslab in

the

dataset.

offset[0]

count[0]

NX_SUB;

offset[1]

count[1]

NY_SUB;

status

H5Sselect_hyperslab

(dataspace,

H5S_SELECT_SET,

offset,

NULL,

count,

NULL);

/*Read

data

from

hyperslab

in

file

into

hyperslab in

memory

status

H5Dread

(dataset,

H5T_NATIVE_INT,

memspace,

dataspace,

H5P_DEFAULT,

data_out);

offset[0]

offset[1]

count[0]

count[1]

Examples taken from HDF-5 webpage

14

COSC 4397 – Parallel ComputationEdgar Gabriel

More complex example using

hyperslabs

Memory

Process 0

Process 1

File

count[0]

count[1]

dimsmem[1];

block[0]

dimsfile[0];

block[1]

offset[0]

offset[1]

mpi_rank;

stride[0]

stride[1]

dimsmem[1]

block[0]

dimsmem[0]

For dimension x:you generate count[x]entries of block[x] elementsstarting from offset[x]. Thedistance between eachelement is stride[x].

offset[0]

offset[1] on rank

Examples taken from HDF-5 webpage

16

COSC 4397 – Parallel ComputationEdgar Gabriel

Parallel data access in HDF-

Application has to define a set of interleaved file dataspaces on the processes that will access the file

– Similar technique like setting the file-view in MPI I/O– Usually based on defining hyperslabs

Data transfer properties have to be set

/* example for using file properties */fileprops = H5Pcreate (H5P_DATASET_XFER);H5Pset_dxpl_mpio ( fileprops, H5FD_MPIO_COLLECTIVE);H5Dwrite ( tset, …, fileprops);

17

COSC 4397 – Parallel ComputationEdgar Gabriel

Problem Solving Environments

19

COSC 4397 – Parallel ComputationEdgar Gabriel

More detailed...

Development

– Tools to help problem specification, design, analysis and

verification

– Rapid prototyping– Dependence on a specific domain– Expert assistance

Execution

– Support online/offline observation– in the Grid: activities performed on multiple heterogeneous

components

• selection, testing, configuration, activation, monitoring,

data management

20

COSC 4397 – Parallel ComputationEdgar Gabriel

Overview about some existing PSEs

N a m e

A p p lic a tio nd o m a in

B a s ete c h n o lo g y

W e b - s ite

C a c tu s

A s tr o p h y s ic s

w w w .c a c tu s c o d e .o rg

T E N T

A e r o s p a c e

C O R B A /J a v a

w w w .d lr .d e /te n t

J A C O 3

A e r o s p a c e

C O R B A /J a v a

w w w .ir is a .f r /p a r is /n f r a n c a is /ja c o3 .h tm

C O V IS E

V is u a liz a tio n

w w w .h lr s .d e /o rg a n iz a tio n /v is /c o vis e

S C IR u n

M e d ic a l s im u la tio n

s o f tw a r e .s c i.u ta h .e d u /s c ir u n .h tm l
