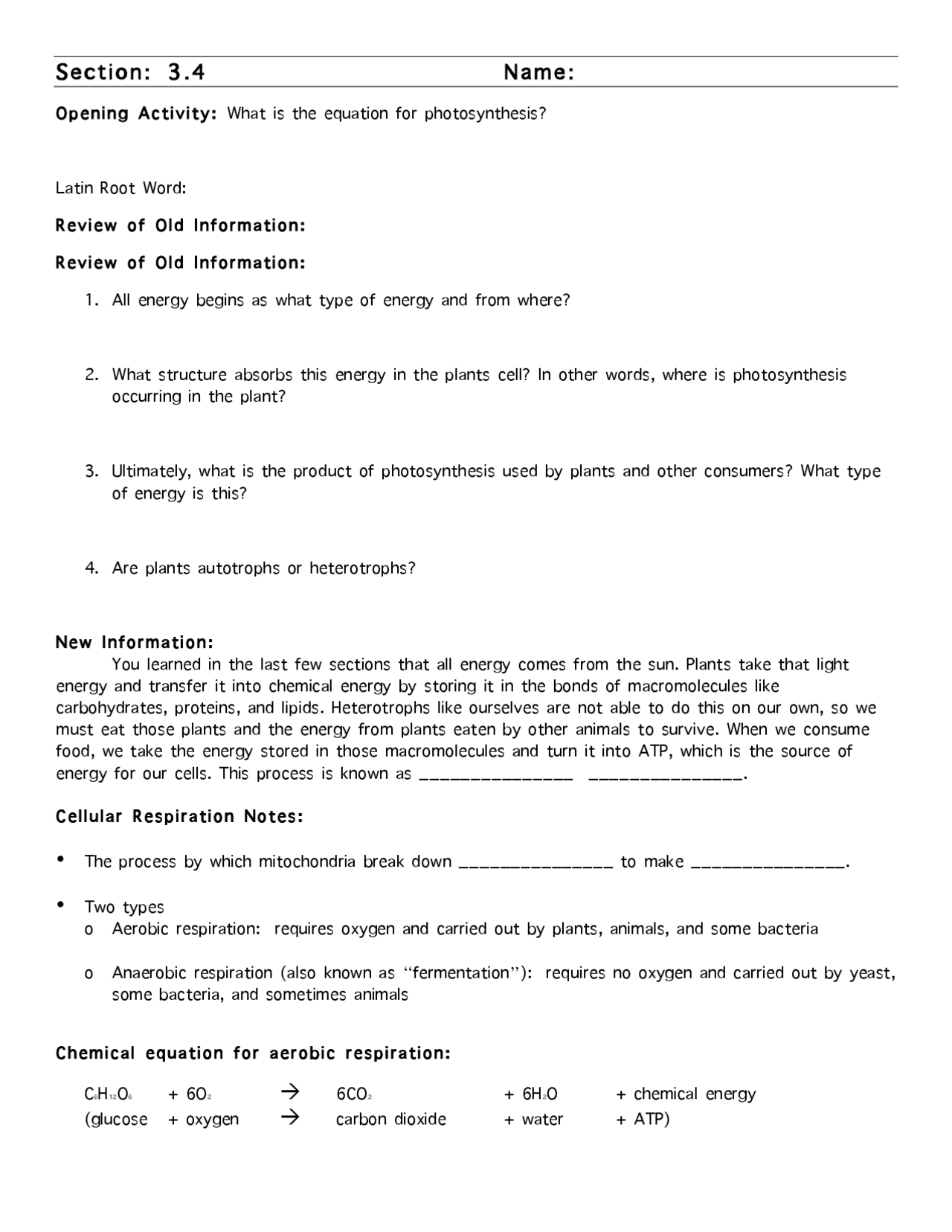

Section: 3.4 Name:
Opening Activity: What is the equation for photosynthesis?
Latin Root Word:
Review of Old Information:
Review of Old Information:
1. All energy begins as what type of energy and from where?
2. What structure absorbs this energy in the plants cell? In other words, where is photosynthesis
occurring in the plant?
3. Ultimately, what is the product of photosynthesis used by plants and other consumers? What type
of energy is this?
4. Are plants autotrophs or heterotrophs?
New Information:
You learned in the last few sections that all energy comes from the sun. Plants take that light
energy and transfer it into chemical energy by storing it in the bonds of macromolecules like
carbohydrates, proteins, and lipids. Heterotrophs like ourselves are not able to do this on our own, so we
must eat those plants and the energy from plants eaten by other animals to survive. When we consume
food, we take the energy stored in those macromolecules and turn it into ATP, which is the source of
energy for our cells. This process is known as _______________ _______________.
Cellular Respiration Notes:
The process by which mitochondria break down _______________ to make _______________.
Two types
o Aerobic respiration: requires oxygen and carried out by plants, animals, and some bacteria
o Anaerobic respiration (also known as fermentation): requires no oxygen and carried out by yeast,
some bacteria, and sometimes animals
Chemical equation for aerobic respiration:
C6H12O6 + 6O2 6CO2 + 6H2O + chemical energy
(glucose + oxygen carbon dioxide + water + ATP)
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Cellular Respiration and Photosynthesis: Energy Transfer in Plants and more Slides Latin in PDF only on Docsity!

Section: 3.4 Name:

Opening Activity: What is the equation for photosynthesis?

Latin Root Word:

Review of Old Information:

Review of Old Information:

1. All energy begins as what type of energy and from where?

2. What structure absorbs this energy in the plants cell? In other words, where is photosynthesis

occurring in the plant?

3. Ultimately, what is the product of photosynthesis used by plants and other consumers? What type

of energy is this?

4. Are plants autotrophs or heterotrophs?

New Information:

You learned in the last few sections that all energy comes from the sun. Plants take that light

energy and transfer it into chemical energy by storing it in the bonds of macromolecules like

carbohydrates, proteins, and lipids. Heterotrophs like ourselves are not able to do this on our own, so we

must eat those plants and the energy from plants eaten by other animals to survive. When we consume

food, we take the energy stored in those macromolecules and turn it into ATP, which is the source of

energy for our cells. This process is known as _______________ _______________.

Cellular Respiration Notes:

• The process by which mitochondria break down _______________ to make _______________.

• Two types

o Aerobic respiration: requires oxygen and carried out by plants, animals, and some bacteria

o Anaerobic respiration (also known as “fermentation”): requires no oxygen and carried out by yeast,

some bacteria, and sometimes animals

Chemical equation for aerobic respiration:

C 6 H 12 O 6 + 6O 2  6CO 2 + 6H 2 O + chemical energy

(glucose + oxygen  carbon dioxide + water + ATP)

Some of aerobic respiration occurs in the _______________ (plural of mitochondrion)

  • Makes energy for the cell through aerobic respiration

Structure of a mitochondrion:

Steps of aerobic respiration:

1. _______________: First step breaks down glucose into _______________. Also makes 2

_______________.

(Intermediate step: Change _______________ to acetyl CoA)

2. Citric Acid Cycle (Also known as Krebs Cycle): Second step uses the acetyl CoA to make

_______________ (in the form of NADH) for the last step. Also makes 2 _______________.

TOTALS:

Answer the questions in the spaces below using pages 135-138 in your textbook.

Electron transport occurs on the folds of the inner membrane of the mitochondria. What are these folds

called? _________________________________________________________________________

What molecule bonds with (or accepts) the hydrogen protons and electrons at the end of the transport

chain? ____________________________

If you have ever wondered why we must breath in oxygen in order to survive, this is one of the main

reasons.

How many ATP molecules are produced from one glucose molecule through aerobic respiration (including

glycolysis, Krebs, and the ETC- electron transport chain)? _____________________________________

What is the overall chemical equation for cell respiration?

This is the opposite of the overall equation for _________________________.

Anaerobic Respiration Notes:

  • Requires NO _______________
  • Also called _______________.

Activity:

Use pages 127-131 help you answer the review questions below. MULTIPLE CHOICE. Circle ALL that are TRUE. There may be MORE THAN one correct answer.

Bacteria use this to make cheese, yogurt, and sour cream ___________________ Use pages 133-135 in your text and the picture to help answer the questions below. Krebs Cycle Diagram: Circle the answer or answers that best complete the statement or answer the question. (THERE MAY BE MORE THAN ONE RIGHT ANSWER.) Where do the carbon atoms in pyruvic acid end up following the Krebs cycle? A. They enter the electron transport chain and make ATP B. They become part of a carbon dioxide molecule and end up in the atmosphere C. They join with citric acid to make Acetyl-CoA D. They build up in the intermembrane space Because cellular respiration requires oxygen it is said to be _________________ A. aerobic B. anaerobic How many total CO 2 molecules are produced by 1 molecule of glucose completing cellular respiration? 2 6 24 36

WHICH OF THE FOLLOWING ARE PRODUCED DURING THE KREBS CYCLE?

A. ATP

B. NADH

C. FADH 2

D. CO 2

Name the? molecule that joins in this reaction to make Acetyl-CoA. A. ATP B. NADP+ C. Coenzyme A D. citric acid If oxygen is present, what will happen to the NADH produced in this reaction? A. Its electrons will enter the Electron transport chain B. It will donate its H+^ ions to make glucose C. It will join with ATP to make citric acid D. It will join with oxygen to make CO 2 Answer the questions in the spaces below using pages 135-138 in your textbook and the diagram below. You will also be summarizing the entire process at the conclusion of these questions. Circle the answer or answers that best complete the statement or answer the question. (THERE MAY BE MORE THAN ONE RIGHT ANSWER.) Which of the following shows the correct sequence during cellular respiration? A. Electron transport chain → glycolysis → Krebs cycle B. Glycolysis → Electron transport chain → Krebs cycle C. Krebs cycle → Electron transport chain → glycolysis D. Glycolysis → Krebs cycle → Electron transport chain

Compare this reaction to the one you learned about last chapter for PHOTOSYNTHSIS (6 H 2 O + 6 CO 2 + light energy → C 6 H 12 O 6 + 6 O 2 ) How are these equations related?
