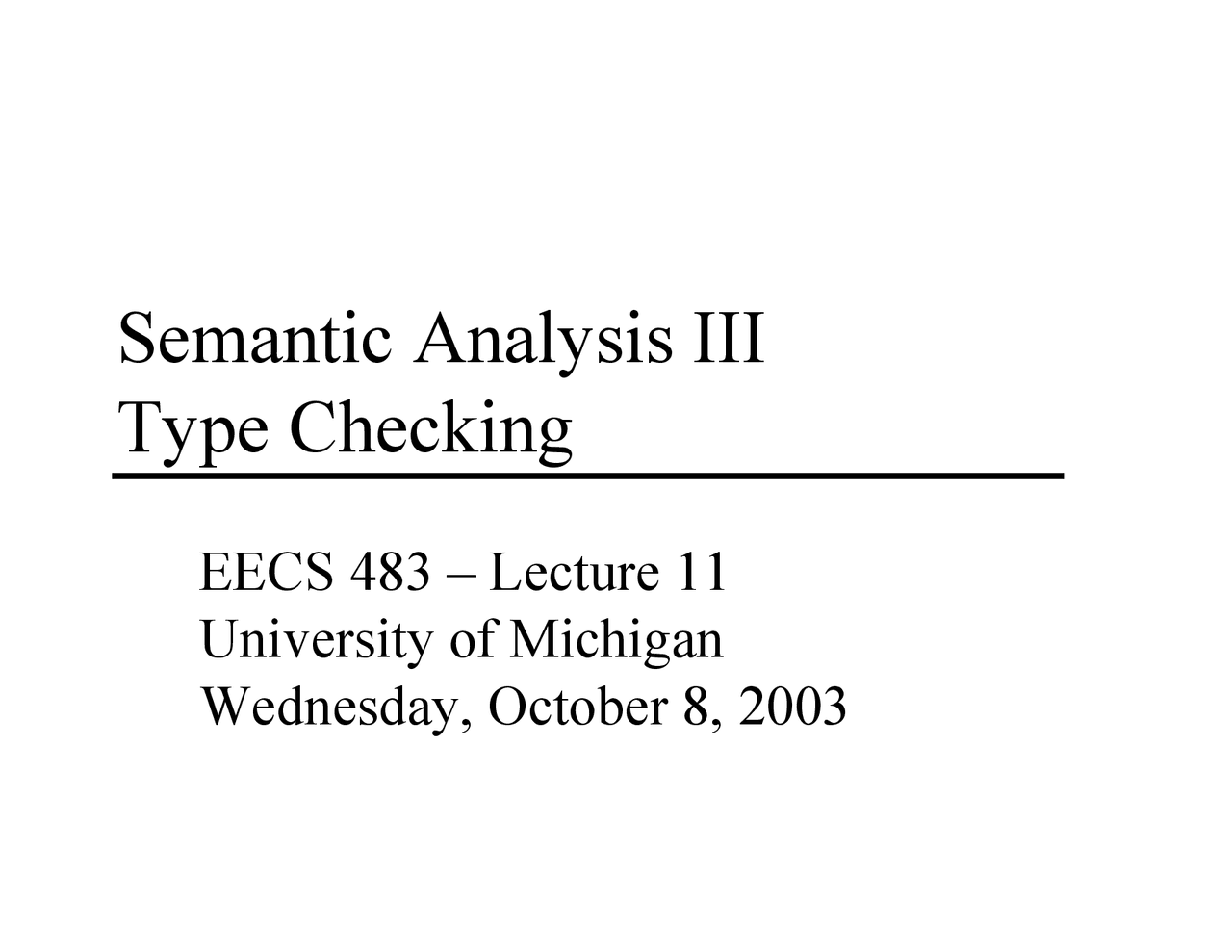

Semantic Analysis III Type Checking

EECS 483 – Lecture 11 University of Michigan Wednesday, October 8, 2003

Type Checking

Y

What are types?

» They describe the values computed during the

execution of the program

» Essentially they are a predicate on values

y^

E.g., “int x” in C means –2^31 <= x < 2^

Y

Type Errors: improper or inconsistentoperations during program execution

Y

Type-safety: absence of type errors

Type Checking

Y

Semantic checks to enforce the type safety of theprogram

Y

Examples^ » Unary and binary operators (e.g. +, ==, [ ]) must

receive operands of the proper type » Functions must be invoked with the right number and

type of arguments » Return statements must agree with the return type » In assignments, assigned value must be compatible

with type of variable on LHS » Class members accessed appropriately

4 Concepts Related to Types/Languages

Static vs dynamic checking »^

When to check types

Static vs dynamic typing »^

When to define types

Strong vs weak typing »^

How many type errors

Sound type systems »^

Statically catch all type errors

Static vs Dynamic Typing

Y

Static and dynamic typing refer to typedefinitions (i.e., bindings of types to variables,expressions, etc.)

Y

Static typed language^ » Types defined at compile-time and do not change

during the execution of the program^ y

E.g., C

Y

Dynamically typed language^ » Types defined at run-time, as program executes

y^

E.g., Lisp

Strong vs Weak Typing

Y

Refer to how much type consistency isenforced

Y

Strongly typed languages

» Guarantee accepted programs are type-safe

Y

Weakly typed languages

» Allow programs which contain type errors

Y

These concepts refer to run-time

» Can achieve strong typing using either static

or dynamic typing

• 9 -

Class Problem^ Classify the following languages: C, C++, Pascal, Java, Scheme^ ML, Postscript, Modula-3, Smalltalk, assembly code

Strong Typing

Weak Typing

Static Typing Dynamic Typing

Why Static Checking?

Y

Efficient code

» Dynamic checks slow down the program

Y

Guarantees that all executions will be safe

» Dynamic checking gives safety guarantees

only for some execution of the program

Y

But is conservative for sound systems

» Needs to be expressive: reject few type-safe

programs

Type Expressions

Y

Language type systems have basic types(aka: primitive types or ground types)

» E.g., int, char*, double

Y

Build type expressions using basic types:

» Type constructors

y^

Array types y^

Structure types y^

Pointer types

» Type aliases » Function types

Type Expressions: Arrays

Y

Various kinds of array types in differentprogramming languages

Y

Array(T): arrays without bounds^ » C, Java: T[ ]

Y

Array(T,S): array with size^ » C: T[S], may be indexed 0 .. S-

Y

Array(T,L,U): array with upper/lower bounds^ » Pascal: array[L .. U] of T

Y

Array(T, S1, …, Sn): multi-dimensional arrays^ » Fortran: T(L1, …, Ln)

Type Expressions: Aliases / Pointers

Y

Type aliases^ » C: typedef int int_array[ ];^ » Aliases are not type constructors

y^

Int_array is the same type as int [ ]

» Problem: Different type expressions may denote the

same type

Y

Pointers^ » Pointer types characterize values that are addresses of

variables of other types » C pointers: T* (e.g., int *x; )

Implementation

Y

Use a separate class hierarchy for types:

» class BaseType extends Type {String name;} » class IntType extends BaseType { ... } » class FloatType extends BaseType { ... } » class ArrayType extends BaseType { ... } » class FunctionType extends BaseType { ... }

Y

Semantic analysis translates all typeexpressions to type objects

Y

Symbol table binds name to type object

Creating Type Objects

Y

Build types while parsing – use a syntax-directed definition

Y

non terminal Type typetype : INTEGER Type objects = AST nodes for typeexpressions

{$$ = new IntType(id); } | ARRAY LBRACKET type RBRACKET

{$$ = new ArrayType($3); } ;

Processing Type Declarations

Y

Type declarations add new identifiers andtheir types in the symbol tables

Y

Class definitions must be added to symboltable:

» class_defn : CLASS ID {decls} ;

Y

Forward references require multiple passesover AST to collect legal names

» class A {B b; } » class B { ... }
