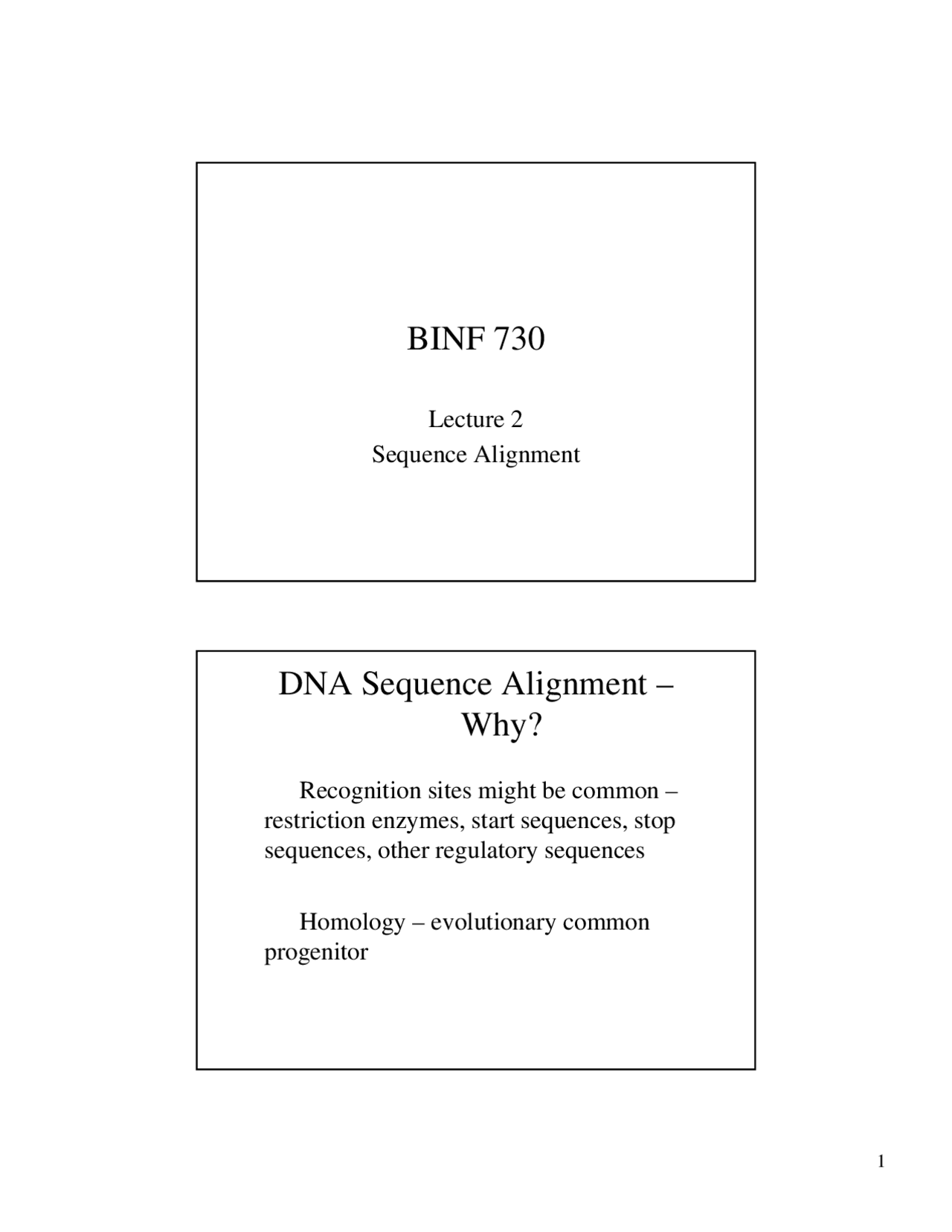

BINF 730
Lecture 2
Sequence Alignment
DNA Sequence Alignment –
Why?
Recognition sites might be common –
restriction enzymes, start sequences, stop
sequences, other regulatory sequences
Homology – evolutionary common
progenitor
Mutations
-Deletions
-Insertions
-Transitional Substitution (purine-purine
A-G, pyr-pyr T-C)
-Translational Substitution (pur-pyr,
pyr-pur)
Example
Start with ACGTACGT after 9540
generations with the following probabilities:
Deletion 0.
Insertion 0.
Transitional substitution 0.
Translational substitution 0.
Example
or using Gotoh’s algorithm with mismatch
penalty 3 and gap penalty function g(k) =
2+2k for length k gap
ACACG - - GTCCTAATAATGGCC
- CAGGAAGATCT - - TAGTT - - C
The alignment depends on algorithm used!
Protein sequence alignment
A. Homologous proteins
i. Evolutionary common origin ii. Structural similarity iii. Functional similarity
B. Conserved regions
i. Functional domains ii. Evolutionary similarity iii. Structural motif
Example 3.
Choosing the best alignment
•Every alignment has a score
•Chose alignment with highest score
•Must choose appropriate scoring function
•Scoring function based on evolutionary
model with insertions, deletions, and
substitutions
•Use substitution score matrix – contains an
entry for every amino acid pair
Statistical approach
- Let s and s’ be two amino acid sequences
of length n that we want to compute an
alignment score
- Assume only substitutions occur (no
insertions or deletions)
- Works for local alignment
- Odds Ratio and Log Odds Ratio
Odds Ratio and Log Odds Ratio
The score for aligning s and s’ is based on the comparison of the hypothesis that the two sequences are generated randomly with the hypothesis that they come from a common ancestor. Assume q (^) A is the probability of producing amino acid A in model R (based on the relative frequency at which A is found in proteins). The probability for the null hypothesis (that s and s’ do not stem from a common ancestor) is
∏ ∏ ∏ ≤≤
′ ≤≤
′ ≤≤
i n
si si in
si in
si 1
, , 1
, 1
P(s,s |R) q, q q q
Odds Ratio and Log Odds Ratio
The second hypothesis (homologous hypothesis) that s and s’ arise from a common ancestor sequence r, of length n, is based on the evolutionary model (E). The probability that the amino acids A and B are aligned and hence have been derived from an ancestor amino acid C is given by pA,B is given by
≤≤
′ = ′ i n
sis i 1
P(s,s |E) p, ,
How this probability is determined will be explained later.
Odds Ratio and Log Odds Ratio
The odds ratio compares the homologous hypothesis with the null hypothesis
∏ ∏
∏
≤ ≤ ′
′
≤≤
′
≤≤
′ = = ′
′ i n si si
sisi
in
si si
in
sisi Pss R
Pss E (^1) , ,
, ,
1
, ,
1
, , q q
p q q
p
(, | )
(, | )
To achieve a scoring function that is additive rather that multiplicative, the log odds ratio can be used
A B
AB q q
p s (^) A,B = log
PAM and Amino Acid Pair
Probabilities
We now have which is the relative frequency of a
pair (A,B) in the alignment of s and s’ where
n (^) AB(s,s’) is the number of times the amino acids A
and B are aligned in one column in the alignment
of s and s’ and n is the length of s and s’.
To find a value for n (^) AB, some homologous
sequences are needed. To do this Dayhoff and co-
workers used local sequence alignment.
PAM and Amino Acid Pair
Probabilities
Problem – They used sequence alignment to find a substitution matrix (substitution score matrix) for sequence alignment – which comes first, the chicken or the egg?
Answer – Use only very closely related sequence (sequences differ in at most 15% of the amino acid.
Caveat – The substitution matrix is only valid for closely related protein sequences
