Server Setup and Architecture
Jeff Morrow
Installation:
The server side code can reside on any computer that has .NET 2.0 and SQL Server 2005
on it. At the moment, no other software is actually necessary. In order to compile and
run the server, open the SkyNetMain2.sln solution in Visual Studios, and set the startup
project to be server/ServerMain. Once your code has been compiled, it is necessary to
run a post-build script which resides in the base directory of your SkyNet folder called
postbuilddiscoverable. After that the server should be ready to start. You could find the
executable itself in your SkyNet directory
/server/ServerMain/bin/Debug/ServerMain.exe.
Architecture:

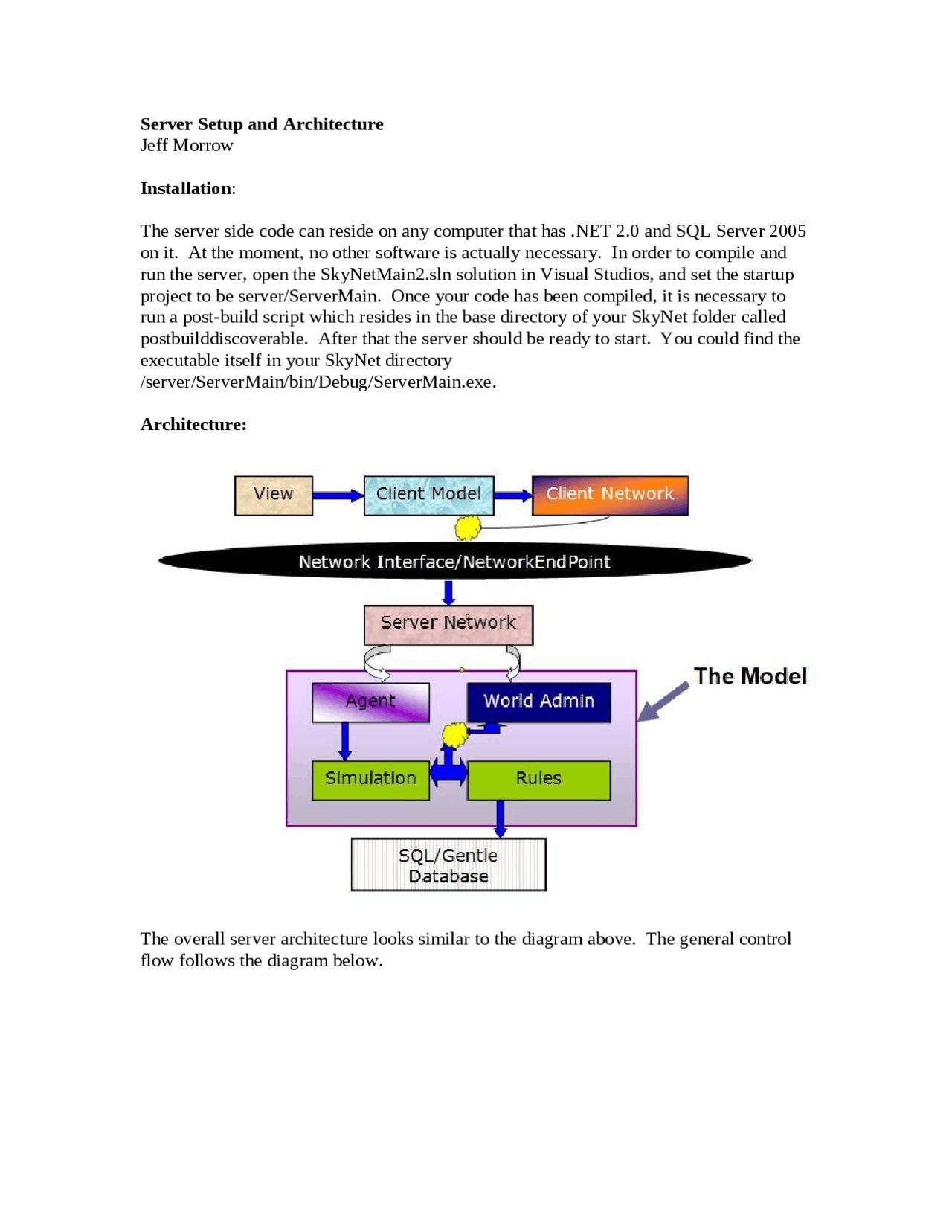

The overall server architecture looks similar to the diagram above. The general control
flow follows the diagram below.
pf3
pf4

Partial preview of the text

Download Server Setup and Architecture – Project Report | COMP 410 and more Study Guides, Projects, Research Software Engineering in PDF only on Docsity!

Server Setup and Architecture Jeff Morrow Installation : The server side code can reside on any computer that has .NET 2.0 and SQL Server 2005 on it. At the moment, no other software is actually necessary. In order to compile and run the server, open the SkyNetMain2.sln solution in Visual Studios, and set the startup project to be server/ServerMain. Once your code has been compiled, it is necessary to run a post-build script which resides in the base directory of your SkyNet folder called postbuilddiscoverable. After that the server should be ready to start. You could find the executable itself in your SkyNet directory /server/ServerMain/bin/Debug/ServerMain.exe. Architecture: The overall server architecture looks similar to the diagram above. The general control flow follows the diagram below.

To describe in words what the pictures are talking about, the Network exists and is documented elsewhere. The network proper interfaces with the class known as Generic Agent. Generic Agent is an abstract agent class that we created with the goal of simplifying out a lot of the more mundane details about how to talk with the model and the world administrator in the way that the view expects it to be talked to. Below the Generic Agent is the SimulationAgent. This is the concrete implementation of GenericAgent that does things specific to the DiscoverableSimulation. This notion of Agents requires us to trust the users somewhat in that they won’t upload completely malicious code, but also attempts to keep them in a managed and partially trusted environment to limit the damage that they would be allowed to do to a system. The agent talks to the world through an ISimulation interface. However, the ISimulation interface only has the basics like logonAgent, logoffAgent, etc etc.

is where all of the default behaviors and rules are stored. If youyou’re your new rule/behavior to that folder it will be included in the package automatically. Postbuilddiscoverable also does some things like moving the necessary library files around within the directory, but by and large, takes care of it automatically for you. Where can I find the media packages? How can I add a new one? Media packages can be found and stored in their current location of /client/media. To add a new one, you need to find one of the 3d mesh types that Irrlicht supports, and put it into a zip file along with an xml schema manifest. Are there hooks for user authentication? Yes, they do exist in the server model. The WorldAdmin class or the simulation class itself would be good places to look for where to implement some form of user authentication. At this time, there are no protections against anyone doing anything they want within the world, but user authentication is a good way to start guaranteeing more security in the system.
