B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management

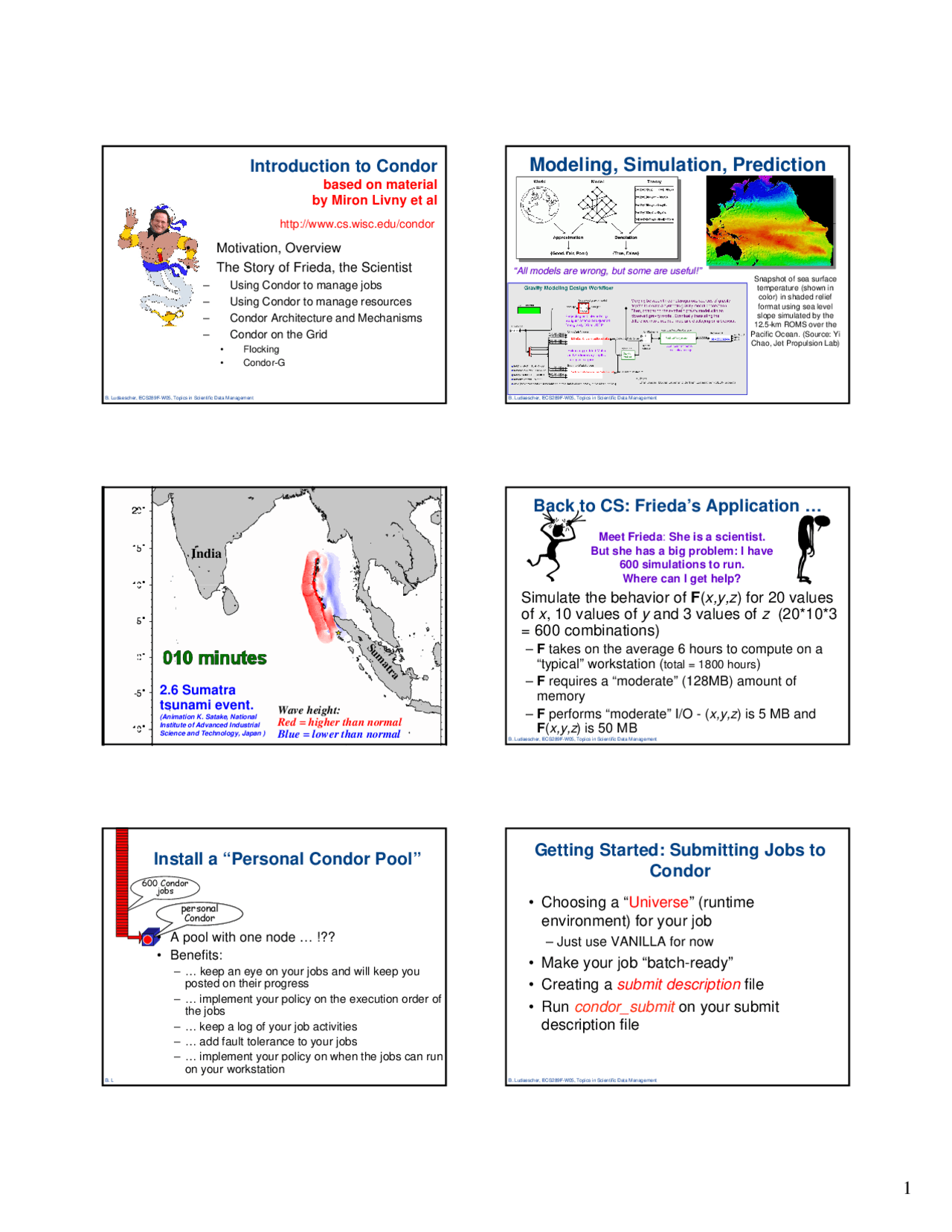

Introduction to Condor
based on material by Miron Livny et al
- Motivation, Overview
- The Story of Frieda, the Scientist
- Using Condor to manage jobs
- Using Condor to manage resources
- Condor Architecture and Mechanisms
- Condor on the Grid
http://www.cs.wisc.edu/condor
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Modeling, Simulation, Prediction
““All models are wrong, but some are useful!All models are wrong, but some are useful!”” Snapshot of sea surface temperature (shown in color) in shaded relief format using sea level slope simulated by the 12.5-km ROMS over the Pacific Ocean. (Source: Yi Chao, Jet Propulsion Lab)
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Sumatra
India
2.6 Sumatra tsunami event. (Animation K. Satake, National Institute of Advanced Industrial Science and Technology, Japan )
Wave height: Red = higher than normal Blue = lower than normal
India
Sumatra
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Back to CS: Frieda’s Application …
Simulate the behavior of F ( x,y,z ) for 20 values
of x , 10 values of y and 3 values of z (2010
= 600 combinations)
- F takes on the average 6 hours to compute on a “typical” workstation ( total = 1800 hours )
- F requires a “moderate” (128MB) amount of memory
- F performs “moderate” I/O - ( x,y,z ) is 5 MB and F ( x,y,z ) is 50 MB
Meet Frieda : She is a scientist. But she has a big problem: I have 600 simulations to run. Where can I get help?
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
your workstation
personal Condor
600 Condor jobs
Install a “Personal Condor Pool”
- A pool with one node … !??
- Benefits:
- … keep an eye on your jobs and will keep you posted on their progress
- … implement your policy on the execution order of the jobs
- … keep a log of your job activities
- … add fault tolerance to your jobs
- … implement your policy on when the jobs can run on your workstation B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Getting Started: Submitting Jobs to
Condor
- Choosing a “Universe” (runtime
environment) for your job
- Just use VANILLA for now
- Make your job “batch-ready”
- Creating a submit description file
- Run condor_submit on your submit
description file
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Making your job batch-ready
- Must be able to run in the background: no
interactive input, windows, GUI, etc.
- Can still use STDIN, STDOUT, and
STDERR (the keyboard and the screen),
but files are used for these instead of the
actual devices
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Creating a Submit Description File
- A plain ASCII text file
- Tells Condor about your job:
- Which executable, universe, input, output and error files to use, command-line arguments, environment variables, any special requirements or preferences (more on this later)
- Can describe many jobs at once (a “cluster”) each with different input, arguments, output, etc.
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Simple Submit Description File
**# Simple condor_submit input file
(Lines beginning with # are comments)
NOTE: the words on the left side are not
case sensitive, but filenames are!
Universe = vanilla Executable = my_job Queue**
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Running condor_submit
- You give condor_submit the name of the submit file you have created
- condor_submit parses the file, checks for errors, and creates a “ClassAd” that describes your job(s)
- Sends your job’s ClassAd(s) and executable to the condor_schedd, which stores the job in its queue - Atomic operation, two-phase commit
- View the queue with condor_q
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Running condor_submit
% condor_submit my_job.submit-file Submitting job(s). 1 job(s) submitted to cluster 1. % condor_q -- Submitter: perdita.cs.wisc.edu : <128.105.165.34:1027> : ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 1.0 frieda 6/16 06:52 0+00:00:00 I 0 0.0 my_job 1 jobs; 1 idle, 0 running, 0 held %
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Another Submit Description File
**# Example condor_submit input file
(Lines beginning with # are comments)
NOTE: the words on the left side are not
case sensitive, but filenames are!
Universe = vanilla Executable = /home/wright/condor/my_job.condor Input = my_job.stdin Output = my_job.stdout Error = my_job.stderr Arguments = -arg1 -arg InitialDir = /home/wright/condor/run_ Queue**
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Temporarily halt a Job
- Use condor_hold to place a job on hold
- Kills job if currently running
- Will not attempt to restart job until released
- Sometimes Condor will place a job on hold (“system hold”)
- Use condor_release to remove a hold and permit job to be scheduled again
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Using condor_history
- Once your job completes, it will no longer show up in condor_q
- You can use condor_history to view information about a completed job
- The status field (“ST”) will have either a “C” for “completed”, or an “X” if the job was removed with condor_rm
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Getting Email from Condor
- By default, Condor will send you email when your jobs completes - With lots of information about the run
- If you don’t want this email, put this in your submit file: notification = never
- If you want email every time something happens to your job (preempt, exit, etc), use this: notification = always
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Getting Email from Condor (cont’d)
- If you only want email in case of errors,
use this:
notification = error
- By default, the email is sent to your
account on the host you submitted from.
If you want the email to go to a different
address, use this:
notify_user = [email protected]
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
A Job’s life story: The “User Log” file
- A UserLog must be specified in your submit file:
- You get a log entry for everything that happens to your job: - When it was submitted, when it starts executing, preempted, restarted, completes, if there are any problems, etc.
- Very useful! Highly recommended!
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Sample Condor User Log
000 (8135.000.000) 05/25 19:10:03 Job submitted from host: <128.105.146.14:1816> ... 001 (8135.000.000) 05/25 19:12:17 Job executing on host: <128.105.165.131:1026> ... 005 (8135.000.000) 05/25 19:13:06 Job terminated. (1) Normal termination (return value 0) Usr 0 00:00:37, Sys 0 00:00:00 - Run Remote Usage Usr 0 00:00:00, Sys 0 00:00:05 - Run Local Usage Usr 0 00:00:37, Sys 0 00:00:00 - Total Remote Usage Usr 0 00:00:00, Sys 0 00:00:05 - Total Local Usage 9624 - Run Bytes Sent By Job 7146159 - Run Bytes Received By Job 9624 - Total Bytes Sent By Job 7146159 - Total Bytes Received By Job ...
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Uses for the User Log
- Easily read by human or machine
- C++ library and Perl Module for parsing UserLogs is available
- Event triggers for meta-schedulers
- Visualizations of job progress
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Condor JobMonitor Screenshot
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Job Priorities w/ condor_prio
- condor_prio allows you to specify the order in which your jobs are started
- Higher the prio #, the earlier the job will start % condor_q -- Submitter: perdita.cs.wisc.edu : <128.105.165.34:1027> : ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 1.0 frieda 6/16 06:52 0+00:02:11 R 0 0.0 my_job % condor_prio +5 1. % condor_q -- Submitter: perdita.cs.wisc.edu : <128.105.165.34:1027> : ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 1.0 frieda 6/16 06:52 0+00:02:13 R 5 0.0 my_job
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
Want other Scheduling possibilities?
Use the Scheduler Universe
- In addition to VANILLA, another job
universe is the Scheduler Universe.
- Scheduler Universe jobs run on the
submitting machine and serve as a
meta-scheduler.
- DAGMan meta-scheduler included
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
DAGMan
• Directed Acyclic Graph Manager
- DAGMan allows you to specify the dependencies between your Condor jobs, so it can manage them automatically for you.
- (e.g., “Don’t run job “B” until job “A” has completed successfully.”)
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
What is a DAG?
- A DAG is the data structure used by DAGMan to represent these dependencies.
- Each job is a “node” in the DAG.
- Each node can have any number of “parent” or “children” nodes – as long as there are no loops!
Job A
Job B Job C
Job D
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
DAGMan
Recovering a DAG (cont’d)
- Once that job completes, DAGMan will continue the DAG as if the failure never happened.
Condor Job Queue
C
D
A
B D
B. Ludaescher, ECS289F-W05, Topics in Scientific Data Management
DAGMan
Finishing a DAG
- Once the DAG is complete, the DAGMan job itself is finished, and exits.
Condor Job Queue
C
D
A
B
