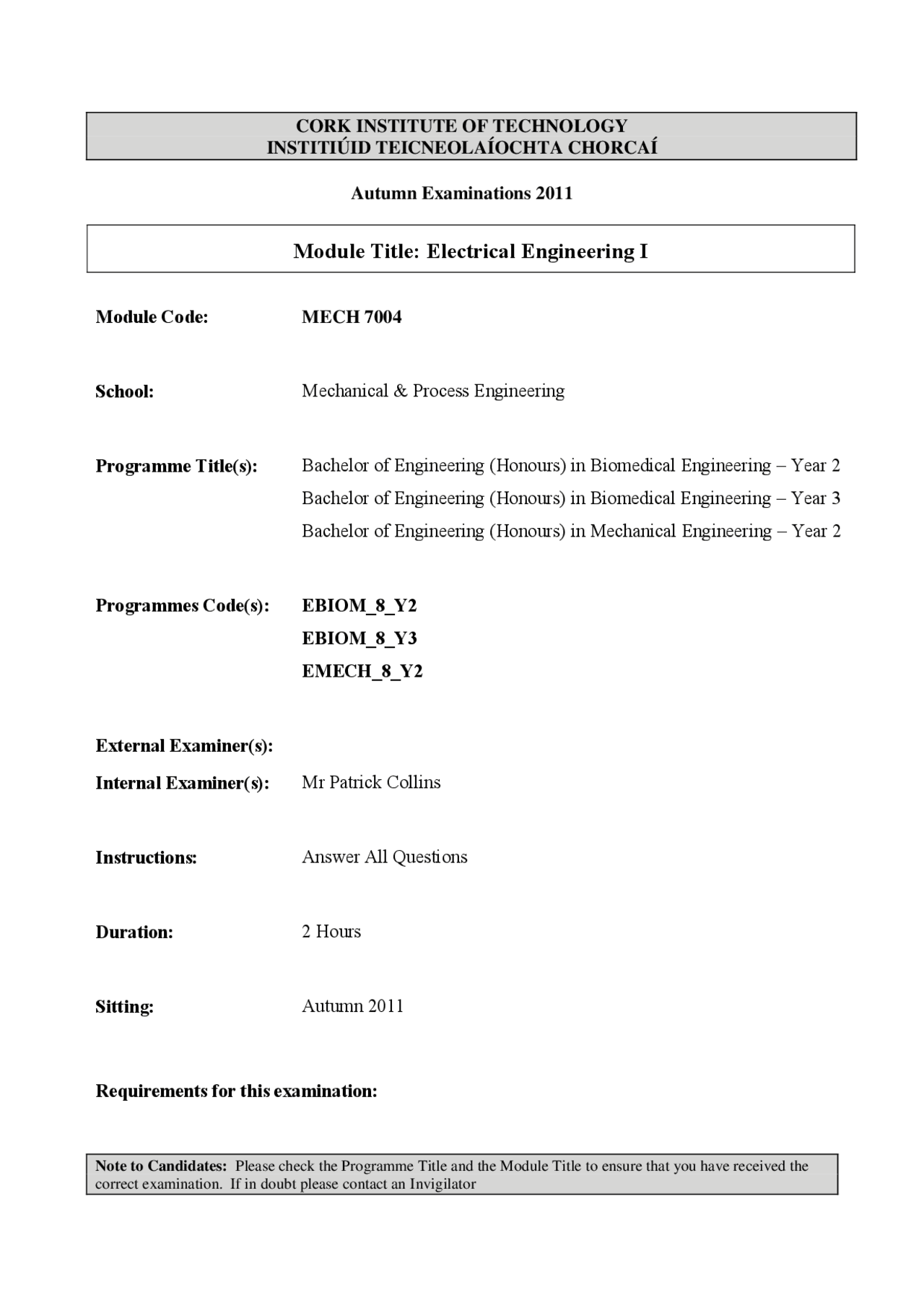

CORK INSTITUTE OF TECHNOLOGY
INSTITIÚID TEICNEOLAÍOCHTA CHORCAÍ
Autumn Examinations 2011
Module Title: Electrical Engineering I
Module Code:
MECH 7004
School:
Mechanical & Process Engineering
Programme Title(s):
Bachelor of Engineering (Honours) in Biomedical Engineering Year 2
Bachelor of Engineering (Honours) in Biomedical Engineering Year 3
Bachelor of Engineering (Honours) in Mechanical Engineering Year 2
Programmes Code(s):
EBIOM_8_Y2
EBIOM_8_Y3
EMECH_8_Y2
External Examiner(s):
Internal Examiner(s):
Mr Patrick Collins
Instructions:
Answer All Questions
Duration:
2 Hours
Sitting:
Autumn 2011
Requirements for this examination:
Note to Candidates: Please check the Programme Title and the Module Title to ensure that you have received the
correct examination. If in doubt please contact an Invigilator
pf3
pf4
pf5

Partial preview of the text

Download Autumn Examinations 2011 - Electrical Engineering I (MECH 7004) Exam Questions and more Exams Electrical Engineering in PDF only on Docsity!

CORK INSTITUTE OF TECHNOLOGY

INSTITIÚID TEICNEOLAÍOCHTA CHORCAÍ

Autumn Examinations 2011

Module Title: Electrical Engineering I

Module Code: MECH 7004

School: Mechanical & Process Engineering

Programme Title(s): Bachelor of Engineering (Honours) in Biomedical Engineering^ –^ Year 2

Bachelor of Engineering (Honours) in Biomedical Engineering – Year 3

Bachelor of Engineering (Honours) in Mechanical Engineering – Year 2

Programmes Code(s): EBIOM_8_Y

EBIOM_8_Y

EMECH_8_Y

External Examiner(s):

Internal Examiner(s): Mr Patrick Collins

Instructions: Answer All Questions

Duration: 2 Hours

Sitting: Autumn 2011

Requirements for this examination:

Note to Candidates: Please check the Programme Title and the Module Title to ensure that you have received the correct examination. If in doubt please contact an Invigilator

  1. A resistor of 1k carries a current of 100mA. Find : (i) The power it dissipates. Use two different methods to calculate power. (ii) The energy expended in 30 minutes. [ 5 marks ]
  2. For the resistor network shown below in Fig Q2 , find the current flowing through each resistor and the voltage across each resistor. [ 22 marks ]

Fig Q2. V1 = 15V. R7 = 3k. R8 = 1.5k. R9 = 2k. R10 = 4k. R11 = 5k. R12 = 6k.

  1. For the circuit shown in Fig Q4 , Vin 1 = 10Vpk-pk sine wave at 300kHz, R 1 = 3 , L 1 = 30H and C 1 = 10nF. Calculate : a. the impedance – in polar and complex form. b. the rms current. c. the phase angle between the applied voltage and the current flowing. d. the power factor.

[ 15 marks ]

Fig Q4.

  1. For the circuit in Fig Q4 , calculate : a. the resonant frequency. b. the dynamic impedance. c. the Q factor at resonance. d. the 3dB bandwidth. [ 10 marks ]
  1. For the circuit shown in Fig Q6, Vin 2 = 15Vpk-pk sine wave at 900Hz, R 2 = 1.3 , R 3 = 0.75, L 2 = 200H and C 2 = 50F. Calculate : a. the total equivalent impedance. b. the rms supply current. c. the total apparent power. d. the total active power. e. the total reactive power. f. the power factor. [ 25 marks ]

Fig Q6.
