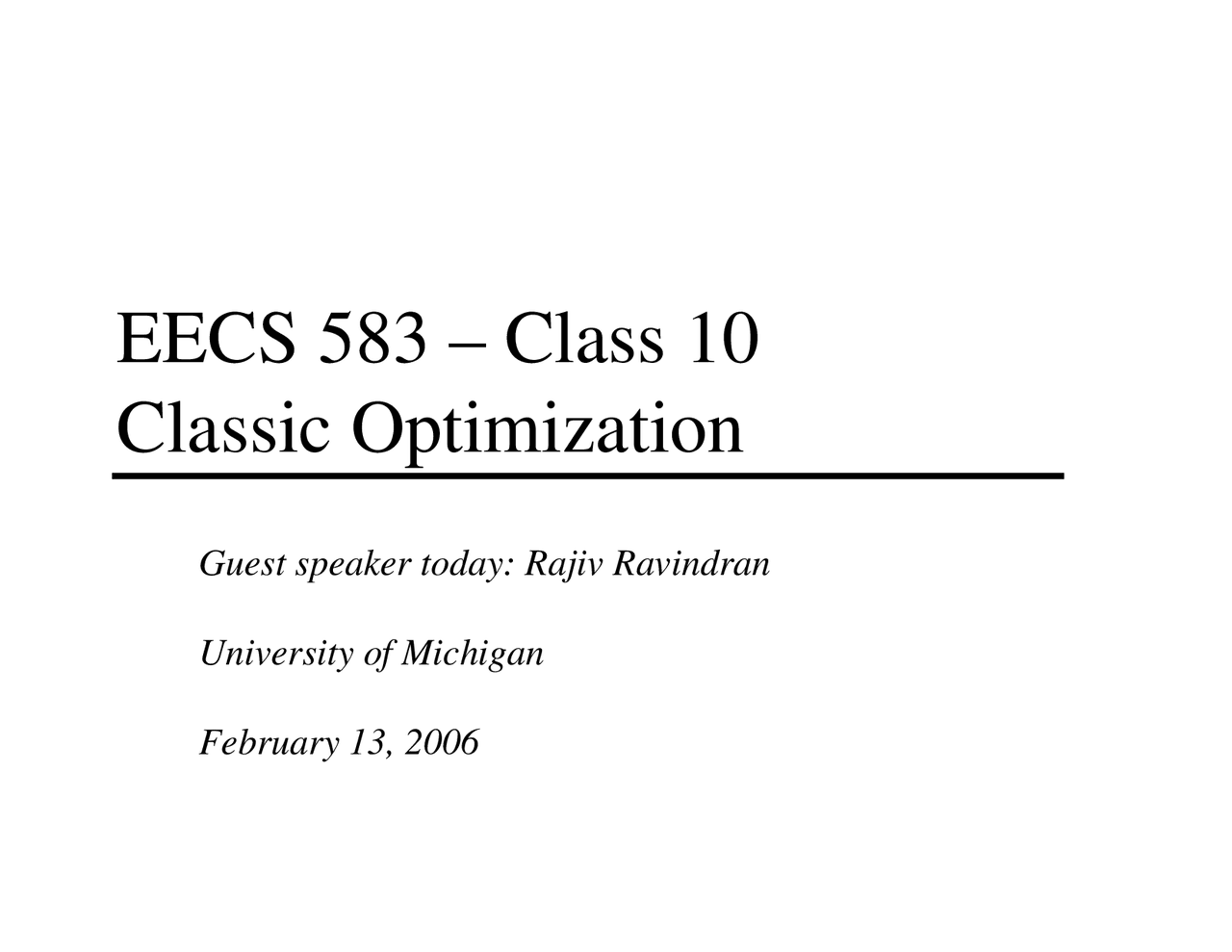

EECS 583 – Class 10Classic Optimization

Guest speaker today: Rajiv RavindranUniversity of MichiganFebruary 13, 2006

• 1 -

Reading Material^

Today’s class»

Compilers: Principles, Techniques, and Tools

A. Aho, R. Sethi, and J. Ullman, Addison-Wesley, 1988,9.9, 10.2, 10.3, 10.

Material for the next lecture»

"Compiler Code Transformations for Superscalar-Based High-Performance Systems", S. Mahlke et al., Supercomputing '92,Nov. 1992, pp. 808-817.

Predicate-sensitive dataflow analysis»

Finish this on Wednesday when Scott is back

• 3 -

Classical Optimizations^

Operation-level – 1 operation in isolation»

Constant folding, strength reduction

Dead code elimination (global, but 1 op at a time)

Local/Global – Pairs of operations»

Constant propagation »^

Forward copy propagation »^

Backward copy propagation »^

CSE

»^

Constant combining »^

Operation folding

Loop – Body of a loop»

Invariant code removal »^

Global variable migration »^

Induction variable strength reduction »^

Induction variable elimination

• 4 -

Caveat^

Traditional compiler class»

Fancy implementations of optimizations, efficient algorithms

»^

Entire papers written on how to do 1 optimization

»^

Spend entire class on 1 optimization

For this class – Go over concepts of each optimization»

What it is, why its useful

»^

When can it be applied (set of conditions that must be satisfied)

Challenges»

How do predicates affect things?

»^

Register pressure?

»^

ILP verses operation count

• 6 -

Strength Reduction^

Replace expensive ops with cheaper ones»

Constant propagation creates opportunities for this

Power of 2 constants»

Multiply by power of 2, replace with left shift^

r1 = r2 * 8

r1 = r2 << 3

»^

Divide by power of 2, replace with right shift^

r1 = r2 / 4

r1 = r2 >> 2

»^

Remainder by power of 2, replace with logical and^

r1 = r2 REM 16

r1 = r2 & 15

More exotic»

Replace multiply by constant by sequence of shift and adds/subs^

r1 = r2 * 6

^

r100 = r2 << 2; r101 = r2 << 1; r1 = r100 + r

^

r1 = r2 * 7^

r100 = r2 << 3; r1 = r100 – r

• 7 -

Dead Code Elimination^

Remove any operation who’sresult is never consumed

Rules»

X can be deleted^

no stores or branches

»^

DU chain empty or destregister not live

This misses some dead code!!»

Especially in loops »^

Critical operation^

store or branch operation

»^

Any operation that does notdirectly or indirectly feed acritical operation is dead »^

Trace UD chains backwardsfrom critical operations »^

Any op not visited is dead

r1 = 3r2 = 10 r4 = r4 + 1r7 = r1 * r

r2 = 0

r3 = r3 + 1

r3 = r2 + r1 store (r1, r3)

• 9 -

Constant Propagation^

Forward propagation of movesof the form»

rx = L (where L is a literal) »^

Maximally propagate »^

Assume no instructionencoding restrictions

When is it legal?»

SRC: Literal is a hard codedconstant, so never a problem »^

DEST: Must be available^

Guaranteed to reach  May reach not good enough

r1 = 5r2 = r1 + r

r1 = r1 + r

r7 = r1 + r

r8 = r1 + 3

r9 = r1 + r

• 10 -

Local Constant Propagation^

Consider 2 ops, X and Y in aBB, X is before Y»

1. X is a move »^
   2. src1(X) is a literal »^
      3. Y consumes dest(X) »^
         4. There is no definition ofdest(X) between X and Y »^
            5. No danger betw X and Y^

When dest(X) is a Macroreg, BRL destroys the value

Note, ignore operation formatissues, so all operations canhave literals in either operandposition

r1 = 5r2 = ‘_x’r3 = 7r4 = r4 + r1r1 = r1 + r2r1 = r1 + 1r3 = 12r8 = r1 - r2r9 = r3 + r5r3 = r2 + 1r10 = r3 – r

• 12 -

What About Predicated Code?^

Use global formulation with predicate-sensitive dataflow

Use local formulation

» Predicate dominates – predicate of def >=

predicate of use » Intervening writes do not matter if they are on

disjoint predicater1 = 2 if p1.. .r2 = r1 + r3 if p

r1 = 2 if p1.. .r1 = load(r5) if p3.. .r2 = r1 + r3 if p

• 13 -

Predicated Local Constant Propagation^

Consider 2 ops, X and Y in aPredicated BB, X is before Y»

1. X is a move »^
   2. src1(X) is a literal »^
      3. Y consumes dest(X) »^

3.5. pred(X) >= pred(Y) »^

4. There is no definition of dest(X), D, between X and Y such that pred(D)

pred(X)

!= False »^

5. No danger betw X and Y^

When dest(X) is a Macroreg, BRL destroys the value

r1 = 5 if Tr2 = ‘_x’ if Tr3 = 7 if Tp1,p2 = cmppUNUC r5 < 0 if Tr4 = r4 + r1 if p1r1 = r1 + r2 if p1r1 = r1 + 1 if p1r3 = 12 if p1r8 = r1 - r2 if p2r9 = r3 + r5 if p2r3 = r1 + 1 if p2r10 = r3 – r1 if p

• 15 -

Forward Copy Propagation^

Forward propagation of the RHSof moves»

r1 = r »^

»^

r4 = r1 + 1

r4 = r2 + 1

Benefits»

Reduce chain of dependences »^

Eliminate the move

Rules (ops X and Y)»

X is a move »^

src1(X) is a register »^

Y consumes dest(X) »^

X.dest is an available def at Y »^

X.src1 is an available expr at Y

r1 = r2r3 = r

r2 = 0

r6 = r3 + 1

r5 = r2 + r

• 16 -

Backward Copy Propagation^

Backward propagation of the LHSof moves»

r1 = r2 + r



r4 = r2 + r

»^

… »^

r5 = r1 + r



r5 = r4 + r

»^

… »^

r4 = r



noop

Rules (ops X and Y in same BB)»

dest(X) is a register »^

dest(X) not live out of BB(X) »^

Y is a move »^

dest(Y) is a register »^

Y consumes dest(X) »^

dest(Y) not consumed in (X…Y) »^

dest(Y) not defined in (X…Y) »^

There are no uses of dest(X) afterthe first redefinition of dest(Y)

r1 = r8 + r9r2 = r9 + r1r4 = r2r6 = r2 + 1r9 = r1r10 = r6r5 = r6 + 1r4 = 0r8 = r2 + r

• 18 -

Class Problem

Optimize this applying 1. dead code elimination2. forward copy propagation3. backward copy propagation4. CSE

r1 = r5 if Truer4 = r1 if Truer6 = r15 if Truer2 = r3 * r4 if Truer8 = r2 + r5 if Truer9 = r3 if Truep1,p2 = cmpp(r2, r8) if Truer7 = load(r2) if Truer5 = r9 * r4 if p1r3 = load(r2) if p2r10 = r3 / r6 if p2r11 = r2 if Truer12 = load(r11) if p1store (r8, r7) if p2store(r12, r3) if True

Be careful of the predicates!

• 19 -

Loop Optimizations^

The most important set of optimizations»

Because programs spend so much time in loops

Optimize given that you know a sequence of code will berepeatedly executed

Optis»

Invariant code removal

»^

Global variable migration

»^

Induction variable strength reduction

»^

Induction variable elimination
