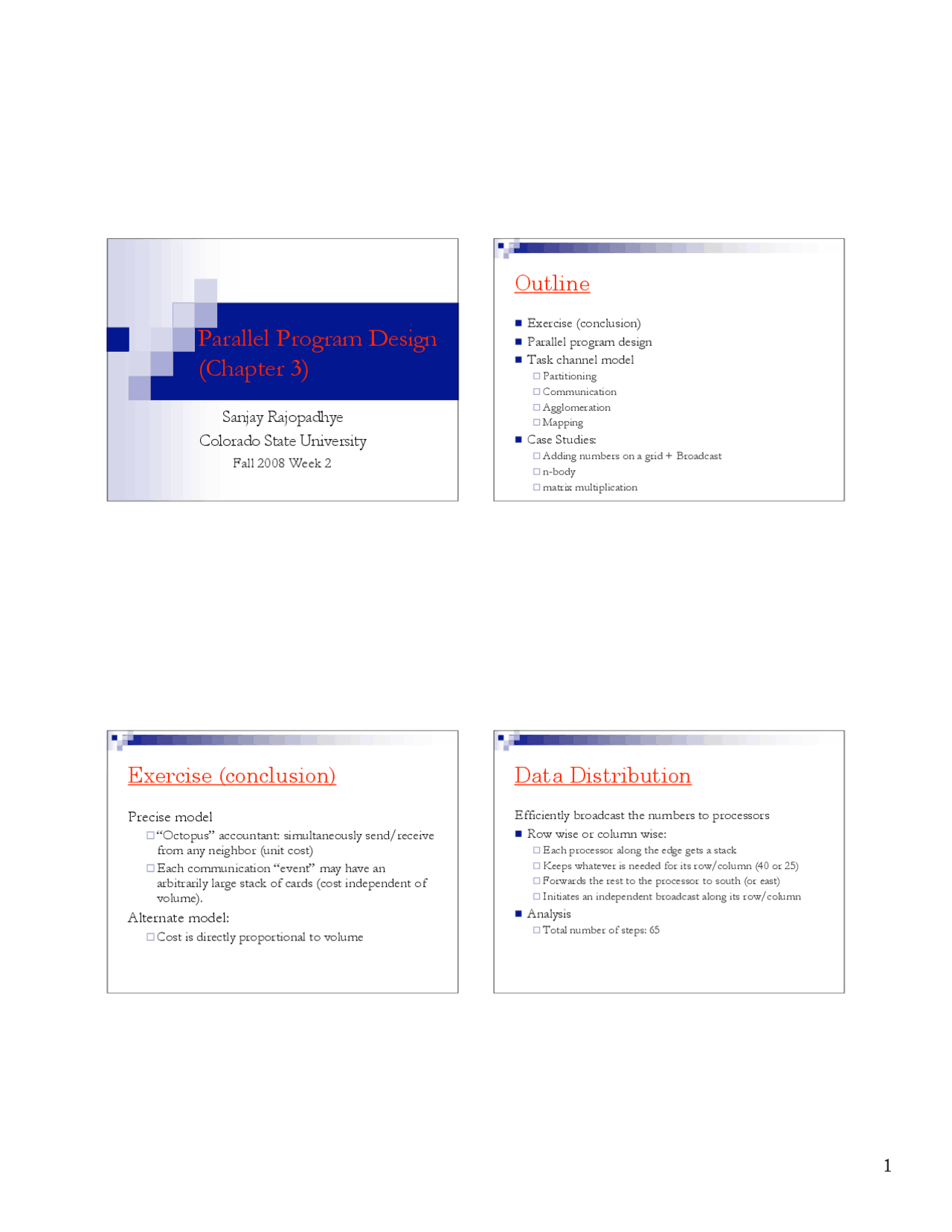

Parallel Program Design
(Chapter 3)
Sanjay Rajopadhye
Colorado State University
Fall 2008 Week 2
Outline
Exercise (conclusion)
Parallel program design
Task channel model
Partitioning
Communication
Agglomeration
Mapping
Case Studies:
Adding numbers on a grid + Broadcast
n-body
matrix multiplication
Exercise (conclusion)
Precise model
“Octopus” accountant: simultaneously send/receive
from any neighbor (unit cost)
Each communication “event” may have an
arbitrarily large stack of cards (cost independent of
volume).
Alternate model:
Cost is directly proportional to volume
Data Distribution
Efficiently broadcast the numbers to processors
Row wise or column wise:
Each processor along the edge gets a stack
Keeps whatever is needed for its row/column (40 or 25)
Forwards the rest to the processor to south (or east)
Initiates an independent broadcast along its row/column
Analysis
Total number of steps: 65
Computation/Accumulation
Efficiently compute and collect answers.
Each processor computes the sum of 2 numbers
Communicate backward to the corner processor
Intersperse with one addition operation
Analysis
Number of steps: 2 + 2* Total execution time: 197
Can we do better?
Tradeoff
Use fewer processors (only 500 in a 25x20 grid)
Local data = 4 Communication distance = 45 Total time = 139
Optimal?
10x20 grid: 95 10x10 grid: 70 5x10 grid: 65 5x5 grid: 70
New twist: what if the problem size is different?
Tradeoff (analytical) Assumptions: P processors, arranged in a square grid (to minimize perimeter) N numbers to add, no overlap of communication & computation Total execution time = N/P + 3 √P One term increases with P (as a square-root, polynomial of degree 0.5) and other decreases (hyperbolically). Note we are not interested in asymptotic behavior here, but rather with a tradeoff. What value of P minimizes the time. Set derivative to zero and solve ! P ^ = 4 N^ 2 3 3 Task-Channel Model Task: program with local memory plus “I/O ports” d ef pa rse(bod y) if /Error/ =~ bod y then m = /(^ #^ /r/P a rserFa ilure.m a tch()[i] g enera tes a wa rning.+)/.m a tch(bod y) end^ r a ise m [0] h = /a c = /a href=" href="(..h)"/.m a tch(bod y)(.*.c)"/.m a tch(bod y) end^ r eturn h[1],c[1]
Communication
Insert channels for tasks that need to communicate
Local communication: each task needs to communicate with a
few tasks
Global communication: many tasks involved in a single
“communication event”
Clutters the graph (avoid, but keep track) Drawback of the methodology: “collective communications” are a powerful design paradigm (e.g., matrix multiplication later). Communication issues
Communication should be balanced
Favor local communication
Parallelism in communication
tasks should perform communications independently
Parallelism in the computation
tasks should be able to perform computations concurrently Agglomeration
Now group tasks into “clusters” (throttle parallelism)
Improve locality
Achieve load balance
Simplify programming effort
Achieve scalability
Agglomeration issues
Agglomeration should increase locality(?)
Replicated tasks
take less time than avoided communication allow scaling Clusters have similar size (computation + communication)
Number of clusters is
increasing function of problem size as small as possible (but no less than number of processors)
Modifications to existing code are reasonable (ideally
parameterizable)
Mapping
Assign tasks to processors, and orchestrate a schedule. Main goal:
processor utilization/load balance
Static Structured communication constant computation per task minimize communication, one task per processor variable computation per task cyclic mapping for load balance Unstructured static load balancing algorithm Dynamic Frequent communication dynamic load balancing algorithm Many short lived tasks (no inter-task communications) run-time schedule Case studies: broadcast
One processor out of P has a single value, and we want every
processor to have a copy of the same value? Device efficient
algorithms to achieve this
Simplified use of Foster’s methodology: no agglomeration,
(#tasks = #processors) and no mapping.
Special conditions arise when we take processor architecture
into account
“Octopus accountant” grid Ideal (fully connected) machine where any pair of processors can communicate (but a processor cannot simultaneously communicate with multiple other processors) Broadcast (grid lower bound)
Time for a processor to receive the value must be at least equal
to its distance (number of hops in the grid graph) from the
corner (source)
This is the perimeter of the grid, P0.
The “data distribution” phase of the “add-numbers” exercise
can be adapted to achieve this.
Broadcast (ideal lower bound)
At any time, let’s say that k processors have a copy.
Then, by our rules, no more than 2k processors can have a copy
(only pairwise communications are allowed) at the next step.
Initially, only one processor has a copy.
This successive doubling implies that at least lg P steps are
needed.
If the model is changed so that a processor may communicate
simultaneously with b others (for some constant, b), there is
“only a constant factor” improvement.
Not significant is asymptotic analysis -- crucial in real life.
n- Body Problem Partitioning: one task per body Communication: complete graph main “collective communication event” is everyone must send all its single, unique data to everyone else, i.e., a simultaneous broadcast also called “all-gather” Brute force: n steps, each processor receives data from every other coordination is a detail that needs to be resolved Better way: divide and conquer If half the nodes have already achieved an all gather amongst themselves One more step to complete all-gather for all n nodes. All-gather Analysis Naïve strategy: n λ Divide-and-conquer: lg n steps T = λ lg n Message size grows at each step Realistic communication model (affine cost function) Time to transmit a message of volume v All-gather under affine communication model (geometric series) ! t = " + (^) # v ! T gather = "lg n + (^) # n n -Body (concl.)
Many more particles than processors
One task per processor and agglomerate n/p particles into each cluster. Modify the all-gather
Alternate methodology:
Tasks for each step Agglomeration first projects along the time iteration
Analysis:
T iter = "lg p + n (^ p $^ p #^1 )+ % n p Input/Output
Task-channel model does not deal explicitly with I/O
Solution: add auxiliary tasks: time (also affine function but
different latency and bandwidth) = λ′^ + n /β′
Distributing the inputs (scatter)
Adding accountants example Divide & conquer scatter (in affine model) ! T iter = "lg p + n (^ p $^ p #^1 )
PRAM Model
(Yet) Another model for parallel programming
Ideal SIMD machine
Completely ignore communication
Assume a shared memory, globally accessible by all processors
in constant time
What if processors access the same location
PRAM Model (variants) Conflict resolution (for both reads and writes): Disallow (weaker machine) but probably more realistic Allow but provide a resolution mechanism EREW: Exclusive Read, Exclusive Write (no conflicts allowed) CREW ERCW (rarely considered) CRCW: Write conflicts resolved by arbitrary: any of the writers succeeds (non-deterministically) priority: the writer with the highest priority succeeds common: the algorithm must ensure that all writers write the same value combining (most powerful): the values are combined using an associative operator (e.g., sum, max, etc.) PRAM Matrix Multiplication
Work out on your sheets
Why PRAM
Provides lower bounds (the best you can do in an ideal situation)
plus indication of how much you’d lose moving to a real
machine
Good starting point for task-channel model
Evolution of the matrix multiplication example
