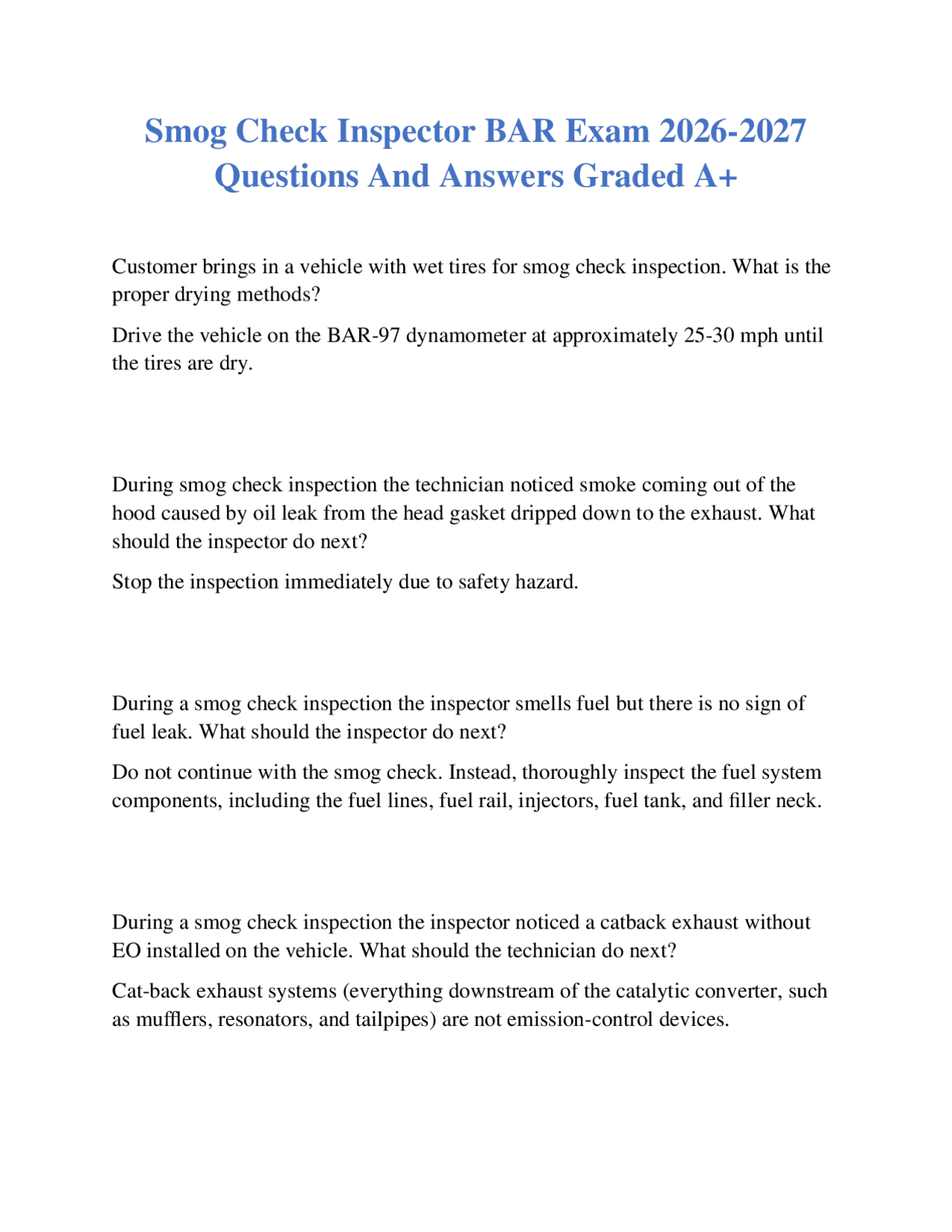

Smog Check Inspector BAR Exam 2026-
Questions And Answers Graded A+
Customer brings in a vehicle with wet tires for smog check inspection. What is the proper drying methods? Drive the vehicle on the BAR-97 dynamometer at approximately 25-30 mph until the tires are dry. During smog check inspection the technician noticed smoke coming out of the hood caused by oil leak from the head gasket dripped down to the exhaust. What should the inspector do next? Stop the inspection immediately due to safety hazard. During a smog check inspection the inspector smells fuel but there is no sign of fuel leak. What should the inspector do next? Do not continue with the smog check. Instead, thoroughly inspect the fuel system components, including the fuel lines, fuel rail, injectors, fuel tank, and filler neck. During a smog check inspection the inspector noticed a catback exhaust without EO installed on the vehicle. What should the technician do next? Cat-back exhaust systems (everything downstream of the catalytic converter, such as mufflers, resonators, and tailpipes) are not emission-control devices.
They do not require an Executive Order (EO) from the Air Resources Board (ARB). Pass the visual inspection and continue with the Smog Check. During a smog inspection on a diesel truck, the inspector noticed an additional catalytic converter to the muffler. What should the technician do next? For diesel-powered vehicles, the inspector must confirm that all emission-control components are present and unmodified. An additional catalytic converter (not originally part of the manufacturer’s configuration) is considered an emissions-related modification. If an extra CAT has been added without an EO, it is tamper During smog inspection the inspector noticed the vehicles license plate is from Utah out of state of California. What should the technician do next? Out-of-state vehicles must first go through DMV before a California Smog Check can be performed. During smog check inspection the inspector noticed the vehicle has an additional fuel filter without an EO number. What should the technician do next?
What are the two types of Acceleration Simulation mode tests? 50/15 and 25/25 test What does DAD stand for? Data acquisition device Smog check program divides the state into 3 areas determined by the air quality.. what are they? Enhanced, Basic, and Change of Ownership Biennial smog checks are required in which program area? Enhanced areas ( these areas do not meet federal or state air quality standards for ozone and carbon monoxide) If the VIN on the vehicle doesn't match the registration documents what should the inspector do? Use the VIN on the vehicle to inform the customer that it doesn't match the registration document. Refer customer to DMV Customer comes in for a smog check inspection for change of ownership and notifies the technician that the previous owner did smog and passed 3 weeks ago. What should the technician do next?
explain that a new smog check is required for the change of ownership, regardless of a recent pass, and perform the inspection During smog check inspection the inspector noticed the o2 wire is extended. What should the inspector do next? The inspector should fail the vehicle and document the extended O2 sensor wire because this is considered a tampering violation, and the vehicle will not pass the inspection During a smog check inspection the inspector notice the PCV hose is extended. What should the inspector do next? The inspector should fail the vehicle because an extended PCV hose is a form of tampering and can cause a vacuum leak, violating smog check requirements During smog check inspection the inspector noticed the pcv hose was replaced with a fuel hose. What should the inspector do next? The inspector must fail the vehicle and record the tampering with the correct hose type as the reason.
BAR FILE # (thereby preventing a certificate of compliance from being issues) N/A What is required under visual inspection for gasoline vehicles from 1975-1999? All of them (Crankcase emission controls, TAC, EVAP, EGR, computers, sensors, switches, visible smoke, liquid fuel leaks, ignition spark controls, Star Station certification allows test and repair stations to..? Issue certificates to gross polluters, perform repairs, perform initial inspection, issue certificates to directed vehicles What are directed vehicles? Bar directs a portion of the enhanced area fleet to star certified stations for certification Required tests for Tailpipe inspection? (2) ASM or two speed idle Bar referee label provides what information on the label for kit cars? (2) Certification type and emission control requirements
If a vehicle is not at normal operating temperature the vehicles may either be ___ or ___. Idled or driven normally as necessary to achieve normal operating temperature Which type of vehicles excluding hybrids (electric) must be tested for visible smoke? Gasoline and Diesel What is the BAR snap test? Quickly push and release the accelerator pedal from idle position to between 2,000- 3,000 RPM then immediately allow the engine to return to idle. What is an under hood emission control label? Indicates the vehicles ___? Certification type ( California or Federal) Does a missing or ilegible emission control label constitute in an inspection failure? No, you can proceed with the inspection provided that the required emission controls can be determined using other sources
98 and newer diesel vehicles are tested on which machine? OIS What does the crankcase test consist of? 👀👀 and for how long? Observe the engine crankcase for 10 seconds A certification of compliance is not required for which type of vehicles? Government fleet vehicles Change of ownership area 76' to 99' MY vehicles are subject to what kind of emissions test? Hint: tailpipe 2 speed idle test No repairs or diagnoses can be performed at a TEST ONLY station except for minor repairs such as ..? replacing gas cap or reconnecting of hoses that was disconnected during inspection. When applicable a directed vehicles may also be certified where? Bar referee facility
If a vehicle fails smog, and get the needed repairs done, which station should they refer back to? Any STAR certified stations Directed vehicles can only receive a smog check certification from which stations ?? Any Star certified stations A certificate of compliance is required whenever a vehicle changes ownership except when the vehicle is being transferred between? Family (parent ,child, spouse, grandparents) companies, lessor and lessee What are three main reasons to reject a vehicle from performing an initial inspection? Excessive fluid leaks, engine overheating, unsafe drive axle tire or wheel (dyno test only) While performing a visual inspection an inspector observes there is no EGR amplifier even though one is shown on the under hood emission label. The EGR valve is connected to the ported vacuum. What EIS analyzer entry should be made?
No but there are a few exceptions Is sales tax included on the estimate? No only on the invoice Functional tests are procedures that consist of EGR systems, ignition timing, MIL, OBD, LPFET, fuel cap (following manufacturer procedures, smog check manual and as prompted by the inspection system Under functional which two tests does gasoline powered vehicles from 96 to 99 require? OBD AND MIL On government vehicles if the odometer is missing or illegible enter ___? None; N/A Inspect a dual/ bi-fuel vehicle using the 👀 Fuel in which the vehicle was operating on when it arrived to the station
The ASM emission inspection includes two loaded mode sequences known as / and ___/____? 50/15 and 25/ If the BAR referee label is missing what should the technician inform the customer ?? To contact the bar referee for inspection information An SPCN, grey market or vehicle with an engine change without a bar referee label it must be first inspected where? Referee If no liquid leak is found what should you input into the EIS OR OIS? Pass If a liquid fuel leak is detected what should you input into the EIS OR OIS? "F" for fail , defective If a vehicle is equipped with parts that modify the original emission control configuration, inspectors must verify if those parts are exempted or? CARB approved
The last 7 digits of the plate number What are the three required tests for gasoline powered vehicles from 96-99? Visual functional and tailpipe What if a SPCNS vehicle doesn't have the BAR Referee label? Then you must send it to the state referee to be inspected When should a written estimate be provided? Before and after the repair is conducted Who cannot sublet smog check inspections or repairs Test only stations What does sublet mean? Send vehicle to another shop after diagnosing it What is the station license duration? 1 year
Which areas are LESS polluted than enhanced areas? Basic areas Older vehicles from 76-99 are subject to what kind if emissions test? Dyno- OBD I ASM When inspecting a government fleet vehicle what vehicle information is needed? Bar file number What should the tech do if the VIN # on the bar code is illegible? Then you must input it manually Diesel vehicles that are 98 and newer require which two functional tests ?? OBD and MIL (malfunction indicator light) The visible smoke test consists of? 3 bar snap tests
Number of incomplete monitors allowed to pass OBD test for 98-2006 diesel vehicles is? Zero Number of incomplete monitors allowed to pass the OBD TEST for 2007 and newer diesel vehicles is? Any two The smog check sign shall be how many inches wide and how many inches tall? (Measurements for the sign) 24 wide x 30 height If a vehicle is registered in the enhanced area but it garaged in a basic area it must undergo ..? An enhanced area inspection If a vehicle has tampered emission control equipment then what cannot be issued to them? They don't qualify for a ..? Repair cost waiver All 95 and older equipped with EGR and are subject to a two speed idle test must undergo the EGR functional test
TRUE
Pass fail determination - bar snap test?? Pass the vehicle if the vehicle does not emit smoke during the idle test, crankcase test and both of the final two bar snap tests. Fail if smoke does come out on either of the final two bar snap tests Diesel- a visible smoke plume observed 5 to 15 feet from the tailpipes that lingers for more than 3 seconds on either of the final 2 bar snap tests. Pass or fail Fail Pass or fail? Any visible smoke observed during the idle test? Fail What is the crankcase PCV test? Continue to leave the engine running, go to vehicles engine compartment open the hood and determine whether any smoke is coming from the crankcase pcv system (observe for 10 seconds) What is the EVAP test? Detects any leaks for vehicles 95' and older
