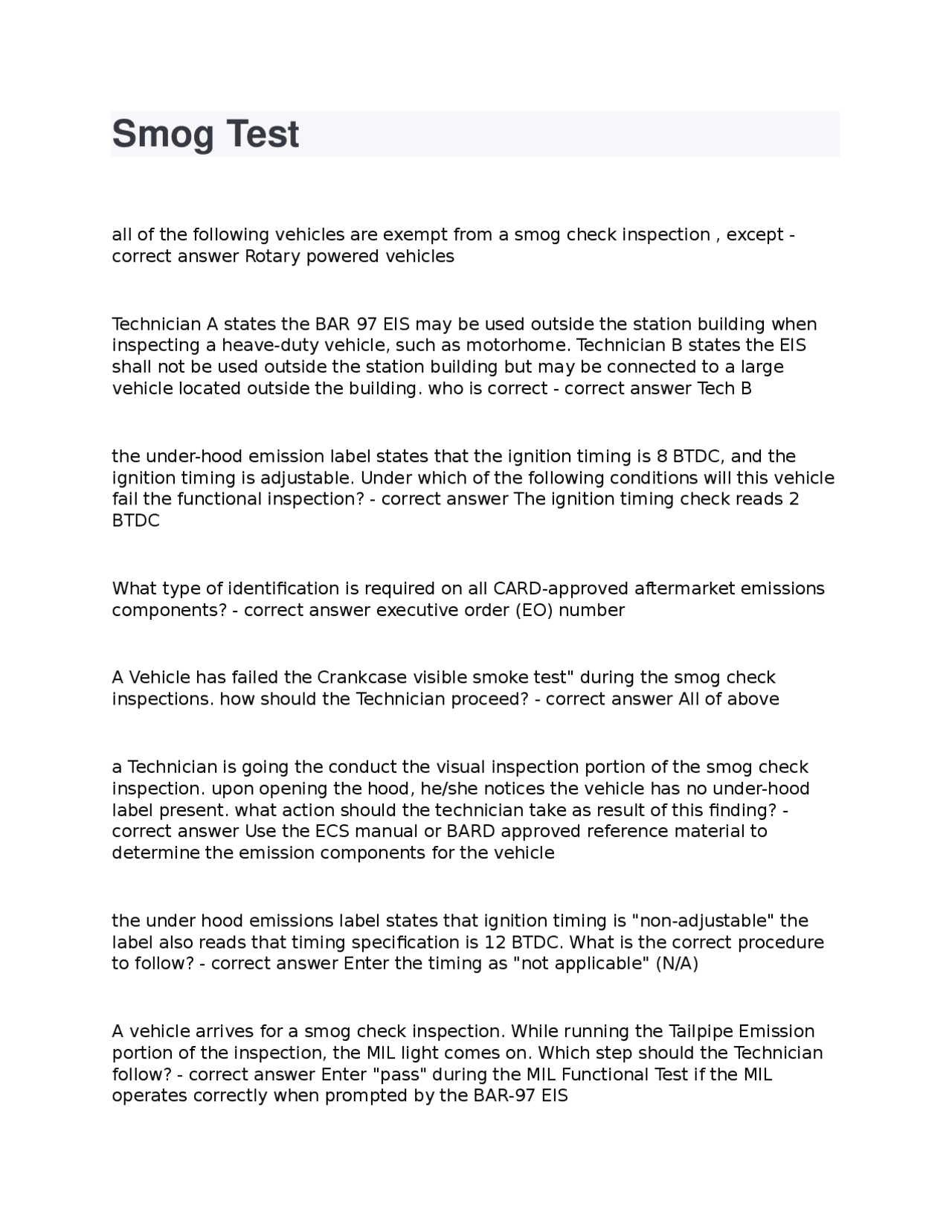

Smog Test
all of the following vehicles are exempt from a smog check inspection , except -
correct answer Rotary powered vehicles
Technician A states the BAR 97 EIS may be used outside the station building when
inspecting a heave-duty vehicle, such as motorhome. Technician B states the EIS
shall not be used outside the station building but may be connected to a large
vehicle located outside the building. who is correct - correct answer Tech B
the under-hood emission label states that the ignition timing is 8 BTDC, and the
ignition timing is adjustable. Under which of the following conditions will this vehicle
fail the functional inspection? - correct answer The ignition timing check reads 2
BTDC
What type of identification is required on all CARD-approved aftermarket emissions
components? - correct answer executive order (EO) number
A Vehicle has failed the Crankcase visible smoke test" during the smog check
inspections. how should the Technician proceed? - correct answer All of above
a Technician is going the conduct the visual inspection portion of the smog check
inspection. upon opening the hood, he/she notices the vehicle has no under-hood
label present. what action should the technician take as result of this finding? -
correct answer Use the ECS manual or BARD approved reference material to
determine the emission components for the vehicle
the under hood emissions label states that ignition timing is "non-adjustable" the
label also reads that timing specification is 12 BTDC. What is the correct procedure
to follow? - correct answer Enter the timing as "not applicable" (N/A)
A vehicle arrives for a smog check inspection. While running the Tailpipe Emission
portion of the inspection, the MIL light comes on. Which step should the Technician
follow? - correct answer Enter "pass" during the MIL Functional Test if the MIL
operates correctly when prompted by the BAR-97 EIS
