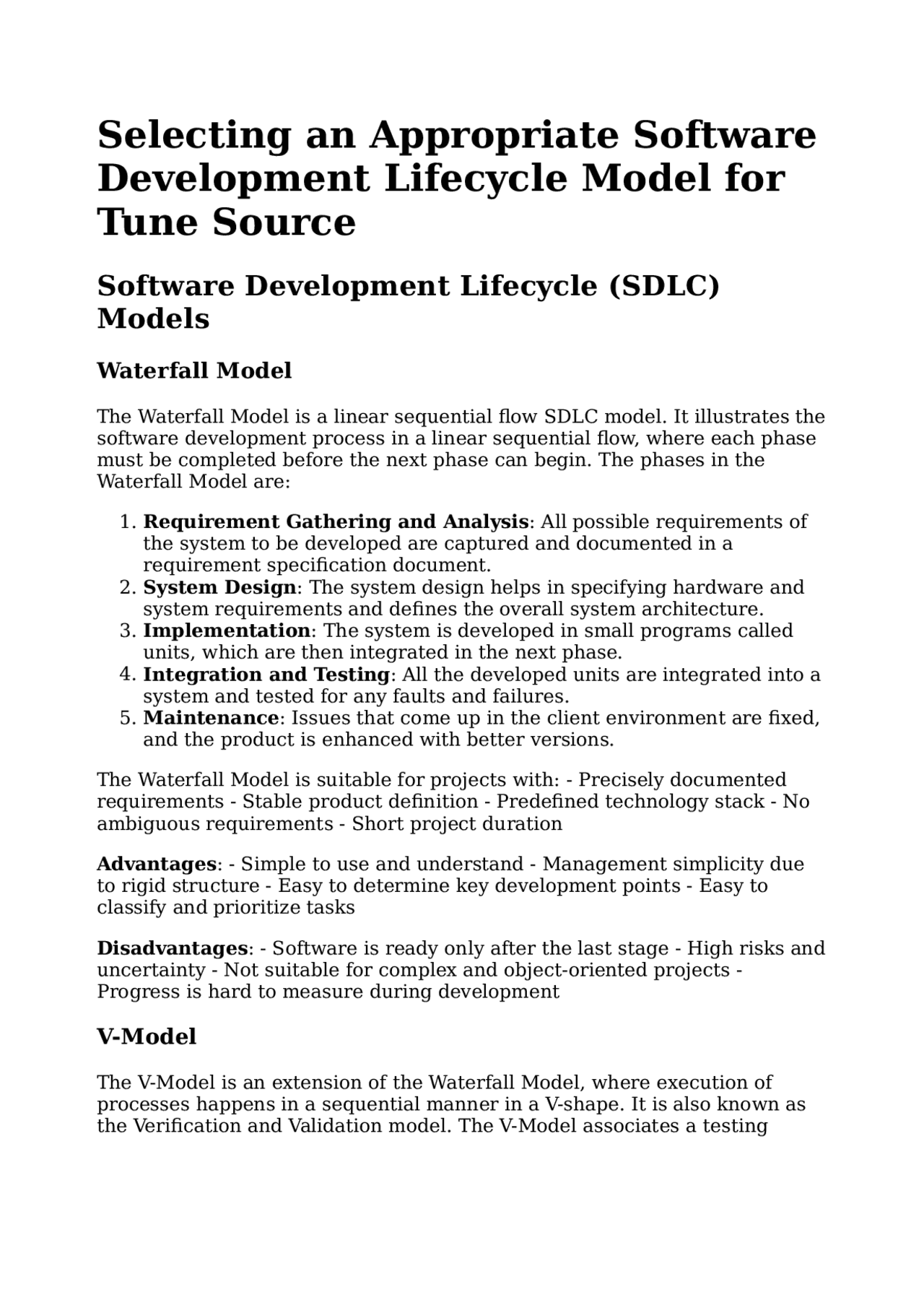

Selecting an Appropriate Software
Development Lifecycle Model for
Tune Source
Software Development Lifecycle (SDLC)
Models
Waterfall Model
The Waterfall Model is a linear sequential flow SDLC model. It illustrates the software development process in a linear sequential flow, where each phase must be completed before the next phase can begin. The phases in the Waterfall Model are:
Requirement Gathering and Analysis : All possible requirements of the system to be developed are captured and documented in a requirement specification document. System Design : The system design helps in specifying hardware and system requirements and defines the overall system architecture. Implementation : The system is developed in small programs called units, which are then integrated in the next phase. Integration and Testing : All the developed units are integrated into a system and tested for any faults and failures. Maintenance : Issues that come up in the client environment are fixed, and the product is enhanced with better versions.
The Waterfall Model is suitable for projects with: - Precisely documented requirements - Stable product definition - Predefined technology stack - No ambiguous requirements - Short project duration
Advantages : - Simple to use and understand - Management simplicity due to rigid structure - Easy to determine key development points - Easy to classify and prioritize tasks
Disadvantages : - Software is ready only after the last stage - High risks and uncertainty - Not suitable for complex and object-oriented projects - Progress is hard to measure during development
V-Model
The V-Model is an extension of the Waterfall Model, where execution of processes happens in a sequential manner in a V-shape. It is also known as the Verification and Validation model. The V-Model associates a testing
phase for each corresponding development stage. The phases in the V-Model are:
Business Requirement Analysis : Understanding the customer's expectations and requirements. System Design : Defining the overall system architecture and hardware/software requirements. Unit Design : Designing the individual components or units of the system. Coding : Developing the system in small programs called units. Unit Testing : Testing the individual units for their functionality. Integration Testing : Testing the integrated system for any faults and failures. System Testing : Testing the entire system against the business requirements. Acceptance Testing : Testing the system in the customer's environment to ensure it meets their expectations.
The V-Model is highly disciplined, and the next phase starts only after the completion of the previous phase. It is suitable for projects with well-defined requirements and a linear development approach.
Spiral Model
The Spiral Model is an iterative SDLC model that combines the features of the Waterfall Model and the Prototyping Model. It is designed to overcome the weaknesses of the Waterfall Model. The Spiral Model has four main phases:
Planning : Defining objectives, alternatives, and constraints. Risk Analysis : Identifying and resolving risks. Engineering : Developing the next version of the product. Evaluation : Evaluating the developed product and planning the next iteration.
The Spiral Model is suitable for projects with: - High-risk, complex, and large projects - Unclear requirements - New product lines - Significant changes in the scope of the project
The Spiral Model manages risk by breaking a project into smaller segments and reviewing the progress at the end of each iteration. This allows for early identification and mitigation of risks.
Rapid Application Development (RAD) Model
The RAD Model is an iterative SDLC model that emphasizes rapid prototyping and iterative delivery of software. It is suitable for projects with well-defined requirements that can be met in a short time frame. The phases in the RAD Model are:
Requirements Planning : Defining the business requirements and project scope.
Evaluation : Reviewing the developed product and the risk management process to plan the next iteration and address any new risks that may have emerged.
By continuously evaluating and addressing risks throughout the development process, the Spiral Model helps to ensure that the project stays on track and delivers a successful outcome.
Feasibility Study
A feasibility study is an important step in the software development process, as it helps to determine the viability and practicality of a proposed project. The purpose of a feasibility study is to:
Assess the technical feasibility : Evaluate the technical requirements, available resources, and the organization's capability to develop and implement the proposed system. Evaluate the economic feasibility : Analyze the costs and potential benefits of the project to determine its financial viability. Examine the operational feasibility : Assess the organization's readiness and ability to operate and maintain the new system. Investigate the schedule feasibility : Determine the timeline for the project and ensure that it can be completed within the required timeframe.
The components of a feasibility report typically include:
Executive Summary : A high-level overview of the proposed project and the key findings of the feasibility study. Project Description : A detailed description of the project, including its objectives, scope, and expected benefits. Technical Feasibility : An assessment of the technical requirements, available resources, and the organization's capability to develop and implement the proposed system. Economic Feasibility : An analysis of the costs and potential benefits of the project, including a cost-benefit analysis and a return on investment (ROI) calculation. Operational Feasibility : An evaluation of the organization's readiness and ability to operate and maintain the new system. Schedule Feasibility : A timeline for the project and an assessment of the feasibility of completing the project within the required timeframe. Recommendations : The final recommendation on whether to proceed with the project or not, based on the findings of the feasibility study.
The feasibility study helps the project team and the organization's decision- makers to make an informed decision on whether to proceed with the proposed project or not. It also provides valuable insights that can be used to refine the project plan and ensure its successful implementation.
Comparing Technical Solutions
When evaluating multiple technical solutions for a software development project, the project team should consider the following factors:
Functionality : Assess how well each solution meets the defined business requirements and provides the necessary functionality. Scalability : Evaluate the ability of each solution to handle increasing workloads and user demands as the business grows. Compatibility : Ensure that the proposed solutions are compatible with the organization's existing technology infrastructure and can integrate seamlessly with other systems. Maintainability : Assess the ease of maintaining and updating the solutions, including the availability of support and documentation. Security : Evaluate the security features and measures implemented in each solution to protect the organization's data and systems. Cost : Analyze the total cost of ownership (TCO) for each solution, including initial implementation, ongoing maintenance, and any licensing or subscription fees. Implementation Time : Assess the time required to implement each solution and ensure that it aligns with the project's timeline.
By carefully evaluating these factors, the project team can make an informed decision on the most suitable technical solution for Tune Source's digital music download project. The feasibility study can provide valuable insights to support this decision-making process.
The V-Model
Acceptance Test Design Planning
The acceptance test design planning is done at this stage as business requirements can be used as an input for acceptance testing.
System Design
Once you have the clear and detailed product requirements, it is time to design the complete system. The system design will have the understanding and detailing the complete hardware and communication setup for the product under development. The system test plan is developed based on the system design. Doing this at an earlier stage leaves more time for the actual test execution later.
Architectural Design
Architectural specifications are understood and designed in this phase. Usually more than one technical approach is proposed and based on the technical and financial feasibility the final decision is taken. The system design is broken down further into modules taking up different functionality. This is also referred to as High Level Design (HLD). The data transfer and communication between the internal modules and with the outside world
tests uncover the compatibility issues with the other systems available in the user environment. It also discovers the non-functional issues such as load and performance defects in the actual user environment.
The Usage of V-Model
The V-Model application is almost the same as the waterfall model, as both the models are of sequential type. Requirements have to be very clear before the project starts, because it is usually expensive to go back and make changes. This model is used in the medical development field, as it is strictly a disciplined domain. The following pointers are some of the most suitable scenarios to use the V-Model application:
Requirements are well defined, clearly documented and fixed. Product definition is stable. Technology is not dynamic and is well understood by the project team. There are no ambiguous or undefined requirements. The project is short.
Pros and Cons of V-Model
Advantages
This is a highly-disciplined model and Phases are completed one at a time. Works well for smaller projects where requirements are very well understood. Simple and easy to understand and use. Easy to manage due to the rigidity of the model. Each phase has specific deliverables and a review process.
Disadvantages
High risk and uncertainty. Not a good model for complex and object-oriented projects. Poor model for long and ongoing projects. Not suitable for the projects where requirements are at a moderate to high risk of changing. Once an application is in the testing stage, it is difficult to go back and change a functionality. No working software is produced until late during the life cycle.
The Spiral Model
The Spiral model combines the idea of iterative development with the systematic, controlled aspects of the waterfall model. This Spiral model is a combination of iterative development process model and sequential linear development model i.e. the waterfall model with a very high emphasis on risk analysis. It allows incremental releases of the product or incremental refinement through each iteration around the spiral.
Phases of the Spiral Model
Identification
This phase starts with gathering the business requirements in the baseline spiral. In the subsequent spirals as the product matures, identification of system requirements, subsystem requirements and unit requirements are all done in this phase. This phase also includes understanding the system requirements by continuous communication between the customer and the system analyst. At the end of the spiral, the product is deployed in the identified market.
Design
The Design phase starts with the conceptual design in the baseline spiral and involves architectural design, logical design of modules, physical product design and the final design in the subsequent spirals.
Construct or Build
The Construct phase refers to production of the actual software product at every spiral. In the baseline spiral, when the product is just thought of and the design is being developed a POC (Proof of Concept) is developed in this phase to get customer feedback. Then in the subsequent spirals with higher clarity on requirements and design details a working model of the software called build is produced with a version number. These builds are sent to the customer for feedback.
Evaluation and Risk Analysis
Risk Analysis includes identifying, estimating and monitoring the technical feasibility and management risks, such as schedule slippage and cost overrun. After testing the build, at the end of first iteration, the customer evaluates the software and provides feedback.
The Usage of Spiral Model
The Spiral Model is widely used in the software industry as it is in sync with the natural development process of any product, i.e. learning with maturity which involves minimum risk for the customer as well as the development firms. The following pointers explain the typical uses of a Spiral Model:
When there is a budget constraint and risk evaluation is important. For medium to high-risk projects. Long-term project commitment because of potential changes to economic priorities as the requirements change with time. Customer is not sure of their requirements which is usually the case. Requirements are complex and need evaluation to get clarity. New product line which should be released in phases to get enough customer feedback.
defined in the Business Modeling step is also established during this phase of the RAD model.
Stage 3: Process Modeling
The Process Modeling phase is the step in the RAD model procedure where all the groups of information gathered during the Data Modeling step are converted into the required usable information. During the Process Modeling stage, changes and optimizations can be done, and the sets of data can be further defined. Any descriptions for adding, removing, or changing the data objects are also created during this phase.
Stage 4: Application Generation
The Application Generation step is when all the information gathered is coded, and the system that is going to be used to create the prototype is built. The data models created are turned into actual prototypes that can be tested in the next step.
Stage 5: Testing and Turnover
The Testing and Turnover stage allows for reduced time in the overall testing of the prototypes created. Every model is tested separately to identify and adapt the components quickly to create the most effective product. Since most of the elements have already been examined previously, there should not be any major problems with your prototype.
The Usage of RAD Model
RAD models can be very successful when a quick delivery of a product is needed for a customer. It is also the best model to choose when there are going to be changes made to the prototype throughout the process before the final product is completed. It is important to know that the RAD model is only valid when there are plenty of knowledgeable developers and engineers on hand prepared to work on the progress of the product. The customer must also remain committed to the process and the schedule in place for the completion of the model. When either of these two components is not available, the RAD formula can fail.
Pros and Cons of RAD
Advantages
Reduce development Time. Encourages customer feedback. Quick initial reviews. Easy to accommodate changing the requirements.
Disadvantages
Need of highly skilled team. Customer involvement is required throughout the RAD model. Implementable only those projects which can be modularized.
Risk Management in the Spiral Lifecycle
Model
Risks are possible conditions and events that prevent the development team from achieving its goals. There's a wide range of them, from trivial to fatal. The primary task for the development team is to enumerate all the possible risks and prioritize them according to importance. The next step is to determine the potential strategies that can help to overcome the risks. Evaluation of these parameters can cause changes at the next steps. At the end of this stage, a prototype is produced.
The most important feature of the spiral model is handling these unknown risks after the project has started. Such risk resolutions are easier done by developing a prototype. The spiral model supports coping up with risks by providing the scope to build a prototype at every phase of the software development.
For any project (such as needs analysis, design, prototyping, testing), the project team must determine how much resources are needed. During the actual spiral cycle, these decisions are made by minimizing overall risk, for example, Increasing the time it takes to test a software product will reduce the risk of market rejection of a poor quality product. However, this additional time trial leads to another risk which is the entry of competitors. From the spiral model perspective, tests should be carried out until the risks are minimized and not incurred in the future.
Considering the specification requirements is also an example, precise projects should identify features that minimize risk through accurate specifications. The Spiral Model is well-suited for managing risks in software development projects.
Selecting an Appropriate Lifecycle Model for
a Development Environment
Software Development Life Cycle (SDLC)
The Software Development Life Cycle (SDLC) concept can be applied to both technical and non-technical project management. SDLC typically involves project managers, program managers, software engineers, developers, and end-users working together through an iterative development process with various stages.
This Agile approach allows the customer to interact with and provide feedback on the functioning software at the end of each iteration, enabling easier incorporation of changes and course corrections as needed.
Conclusion
The selection of an appropriate lifecycle model is crucial for the success of a software development project. Factors such as the characteristics of the software, development team, project risks, and customer needs must be carefully considered to choose the most suitable model.
Technical Solution Comparison
Criteria for Evaluating Technical Solutions
When comparing technical solutions, there are several key factors to consider:
1. Cost
Cost is often a primary decision factor when selecting a new technology. Factors to consider include: - Current costs - Potential return on investment (ROI) of a new solution - Estimated payback period It's important to be realistic when setting a budget and expect that cutting-edge technology will typically cost more than basic solutions. When comparing estimates, ensure you are comparing apples to apples.
2. Contract Length
Flexibility in contract length is an important consideration. Look for providers that offer options such as month-to-month, 1-year, or multi-year agreements. Weigh the benefits of month-to-month flexibility versus long- term savings from a term contract.
3. Functionality
Thoroughly evaluate the functionality of each technical solution to ensure it meets your specific requirements. Consider factors such as: - Features and capabilities - Ease of use - Integration with existing systems - Scalability to accommodate future growth
4. Vendor Reputation and Support
Assess the reputation, stability, and customer support of the technology vendor. Important factors include: - Years in business - Customer references and case studies - Availability and responsiveness of technical support
5. Security and Compliance
Ensure the technical solution meets any relevant security and compliance requirements for your industry and organization. This may include: - Data encryption - Access controls - Audit trails - Regulatory compliance (e.g. HIPAA, PCI DSS)
6. Implementation and Training
Evaluate the effort and resources required to implement the technical solution, as well as the availability and quality of training for your staff. Factors to consider include: - Time and cost of deployment - Availability of professional services - Quality of user documentation and training materials
Comparing Technical Solutions
When evaluating and comparing technical solutions, it's important to:
Clearly define your requirements and priorities. Rank the importance of each evaluation criteria for your specific needs. Gather detailed information from vendors on the features, costs, and support for each solution. Conduct thorough testing and proof-of-concept demonstrations to validate the functionality and fit. Carefully analyze the tradeoffs between the solutions, weighing the pros and cons of each option. Consult with industry experts, peers, and trusted advisors to gather additional insights and perspectives.
By following a structured approach to evaluating and comparing technical solutions, you can make an informed decision that best meets your organization's needs and objectives.
Auto-Renewal Clauses and Contract Length
Be on the lookout for auto-renewal clauses in your contract. If there is one, make sure to add the renewal date to your calendar so you don't unknowingly get trapped into another long-term agreement.
When it comes to contract length, look for options that give you flexibility, such as month-to-month, 1-year, or multi-year agreements. Be sure to ask about contract options as an initial question when starting a conversation with any technology provider.
Integrations
No matter what type of technology you're shopping for, a flexible integration program will enable you to create your own technology strategy and likely save you money. Make a list of your current technology solutions and find out whether the new and current solutions can integrate with each other.
