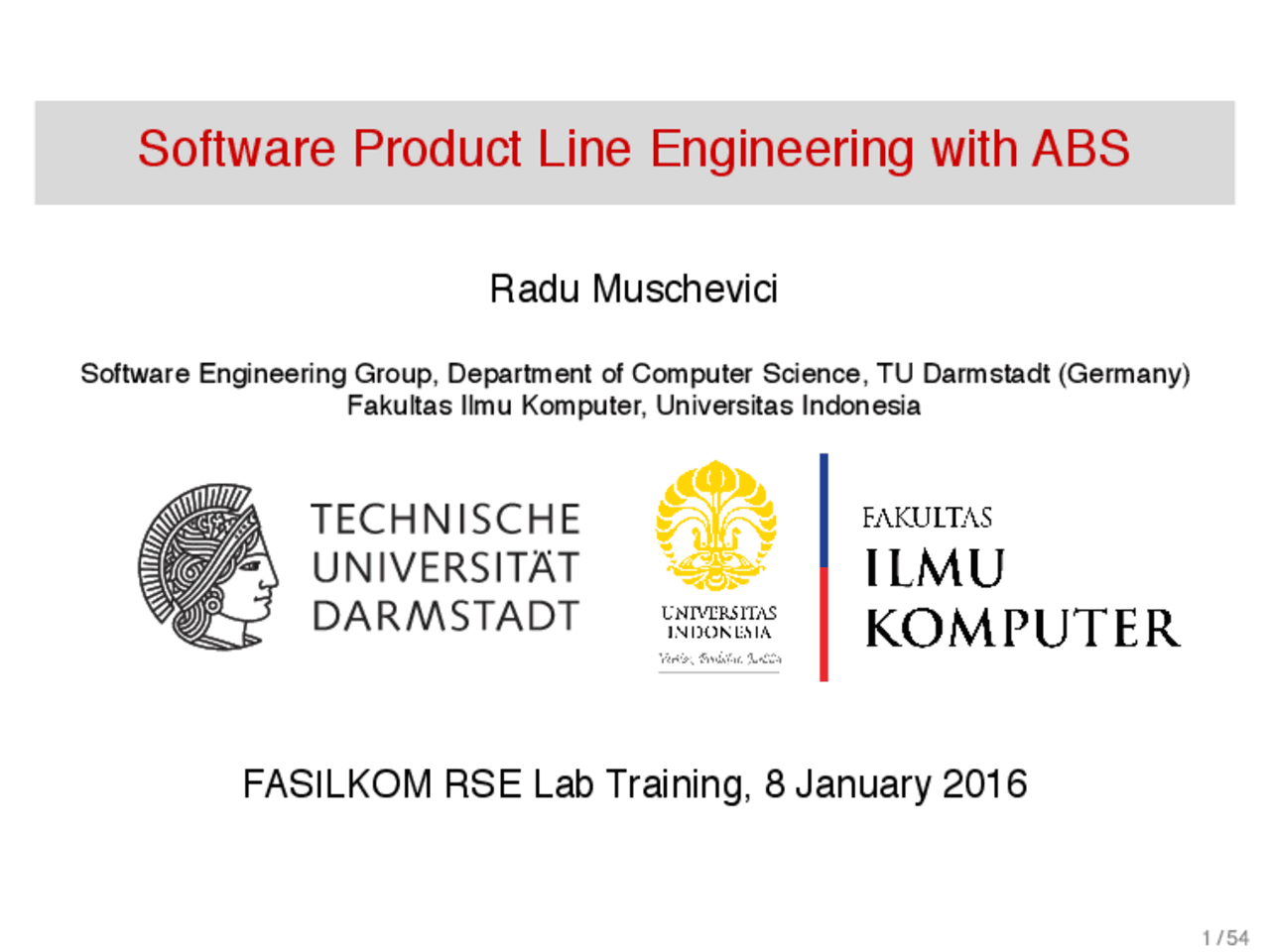

Software Product Line Engineering with ABS
Radu Muschevici
Software Engineering Group, Department of Computer Science, TU Darmstadt (Germany) Fakultas Ilmu Komputer, Universitas Indonesia
FASILKOM RSE Lab Training, 8 January 2016
Software Engineering Challenges
Different customers (users)…
▶ (^) Have individual requirements. ▶ (^) Need individual software solutions based on their requirements.
(Custom) software development is challenging and expensive.
▶ (^) The nature of programming is inherently complex. ▶ (^) Skilled developers are expensive and hard to come by.
Software Engineering Challenges: SPLE
Software Product Lines (SPL) , a.k.a. Software Product Families ▶ (^) Develop collection of similar software products from a shared set of software assets.
Development Effort
# Variants
Effort/Costs
Traditional
Development
Software
Product
Lines
37 ▶ (^) How is this reduced effort achieved?
Software Product Line Engineering (SPLE)
SPLE makes the development of software variants more efficient by systematic sharing of common features.
▶ (^) Software variants are individual software solutions based on individual customer requirements. ▶ (^) Software variants are built from reusable parts (artifacts). ▶ (^) Software variability is modelled explicitly.
Advantages over standard software: ▶ (^) Reduced complexity and resource usage, better performance ▶ (^) Better fit for systems with limited resources: embedded, mobile
Features
SPLE uses features to distinguish different software products.
Features are familiar notion when talking about software. Examples:
▶ (^) “My text editor provides a spell-checking feature.” ▶ (^) “Database system A provides multi-user support, database system B does not.” ▶ (^) “Email client A supports IMAP and POP3, client B supports only POP3.” ▶ (^) “The game we are developing will run on Android and iOS.” ▶ (^) “Both financial software products support international transactions.”
The SPLE Process
Basic principle: Two engineering processes
- Domain engineering : Build repository of reusable software artefacts.
- Application engineering : Build individual products by reusing these artefacts.
The SPLE Process
Diagram
Problem Space Solution Space
Feature Model 1. Domain Engineering
Reusable Software Artefacts
Feature Selection 2. Application Engineering
Software Product
The SPLE Process using ABS
Diagram
Problem Space Solution Space
Feature Model (μTVL) 1. Domain Engineering
Core + ABS Deltas
Feature Selection (Product)
2. Application Engineering
Software Product
What is a Feature in SPLE?
A feature is an abstraction in the problem space – usually a name.
▶ (^) Derived from customer requirements. ▶ (^) Expresses variability: used to distinguish the products (variants) of an SPL from each other. ▶ (^) Means to communicate between stakeholders. ▶ (^) Means to specify variants: feature selection as input for variant generation. ▶ (^) Mapped to reusable software artefacts in the solution space.
Feature Modelling
Features relate to other features. Examples: ▶ (^) Secure email download requires SSL protocol ▶ (^) Spell checking requires at least one natural language dictionary ▶ (^) The game variant for Android is incompatible with iOS
Feature Model
▶ (^) Models the variability of an SPL. ▶ (^) Describes relationships between features ⇒ which feature combinations (selections) are valid? ▶ (^) Model elements: features and their relationships (constraints).
Feature Model Example
Feature model for a product line of cars :
- Four features: engine, gasoline tank, electric motor, battery.
- Feature dependencies: ▶ (^) An engine requires a gasoline tank; ▶ (^) A gasoline tank requires an engine; ▶ (^) An electric motor requires a battery; ▶ (^) A battery requires an electric motor.
Desired (valid) feature selections according to feature model: ▶ (^) engine + gasoline tank ▶ (^) electric motor + battery ▶ (^) engine + gasoline tank + electric motor + battery These feature selections describe the products of the product line, i.e. the car variants.
Feature Selection Example
“Build me an electric car!”
▶ (^) “Electric car” is the name (handle) for the feature selection { electric motor , battery } – a.k.a. product. ▶ (^) The feature selection satisfies the feature model constraints. ▶ (^) Build requested product by composing the implementations of the selected features.
Feature Diagrams (cont.)
▶ (^) Tree structure
▶ (^) Nodes represent features (optional feature denoted by circle)
▶ (^) Edges represent standard constraints, such as choice (one-out-of-many, some-out-of-many, all-out-of-many) ▶ (^) More general constraints (“cross-tree” constraints) need to be specified with additional propositional logic formulas, E.g. Video ⇒ (Voice ∧ Text)
Feature Diagram Semantics: Propositional Formula
▶ (^) Features diagrams map to propositional formulas. ▶ (^) Features represented as Boolean variables (true if selected) ▶ (^) Constraints represented using logical connectors
▶ (^) Example: propositional formula for the chat feature diagram: Chat ∧ (Mode ⇔ Chat) ∧ (FileTransfer ⇒ Chat) ∧ ((Text ∨ Voice ∨ Video) ⇔ Mode)
▶ (^) Enables automated reasoning ▶ (^) Check validity of given feature selection (does it satisfy the propositional formula?) ▶ (^) Find all valid feature selections (= all solutions of the formula) ▶ (^) Compare feature models, etc.
