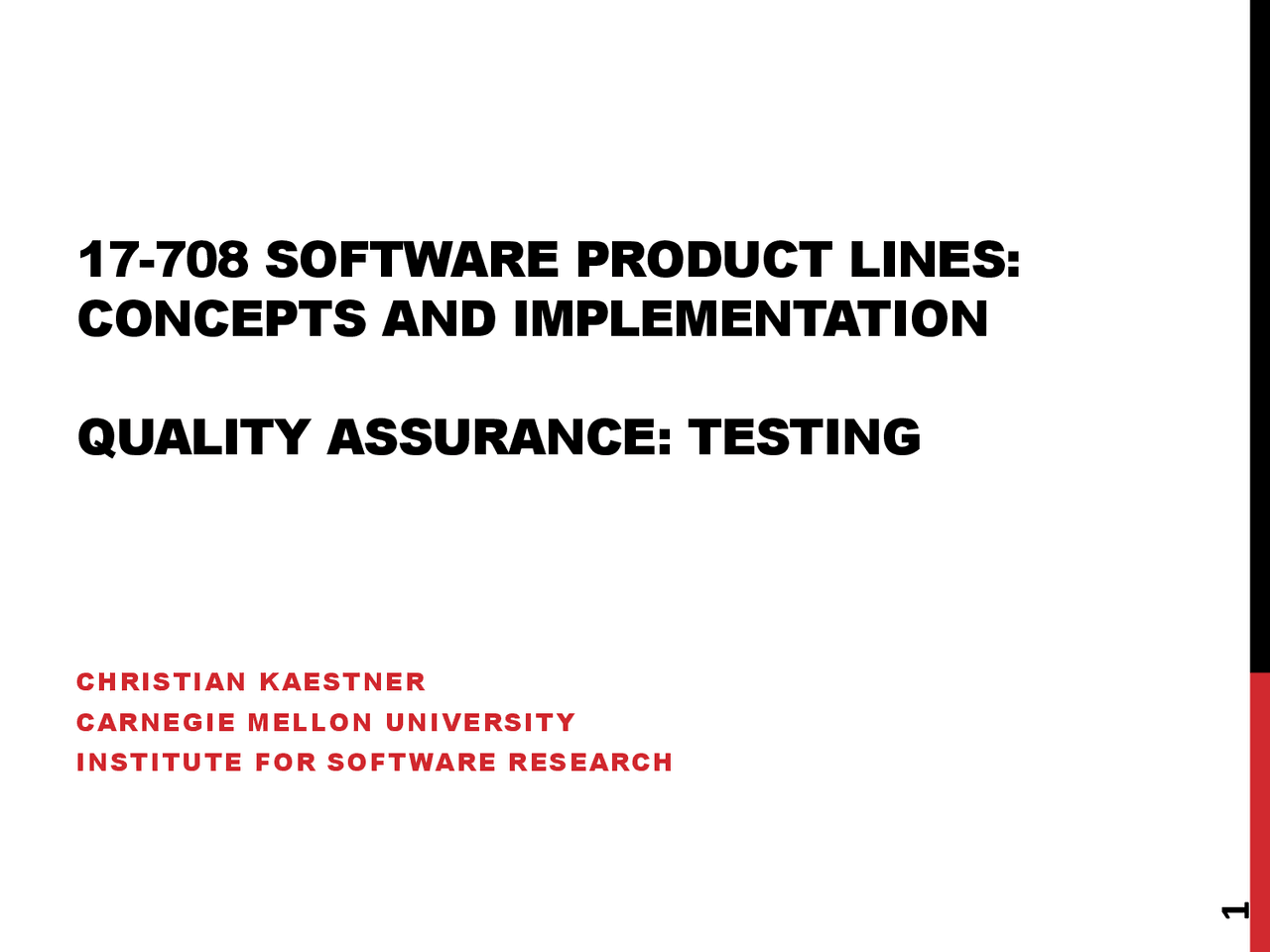

17-708 SOFTWARE PRODUCT LINES: CONCEPTS AND IMPLEMENTATION QUALITY ASSURANCE: TESTING CHRISTIAN KAESTNER CARNEGIE MELLON UNIVERSITY INSTITUTE FOR SOFTWARE RESEARCH 1
READING
ASSIGNMENT NOV 16
Textbook, Chapter 10 Thaker et al. Safe Composition. GPCE 2007
Requirements-based SPL testing Source: Klaus Pohl and Andreas Metzger. 2006. Software product line testing. Commun. ACM 49, 12 (December 2006), 78-
PRINCIPLES FOR SPL
SYSTEM TESTING
P-1: Preserve Variability in Domain Test Artifacts P-2: Test Commonalities in Domain Engineering P-3: Use Reference Applications to Determine Defects in Frequently Used Variants P-4: Test Commonalities based on a Reference Application P-5: Test Correct Variability Bindings P-6: Reuse Application Test Artifacts across Different Applications Source: Klaus Pohl and Andreas Metzger. 2006. Software product line testing. Commun. ACM 49, 12 (December 2006), 78-
TEST STRATEGIES
Brute Force Strategy Pure Application Strategy Sample Application Strategy Commonality and Reuse Strategy
- Domain testing aims at testing common parts and preparing test artefacts for variable parts. Application testing aims at reusing the test artefacts for common parts and reusing the predefined, variable domain test artefacts to test specific applications. Source: Pohl et al. Software Product Line Engineering. Chapter Domain Testing. Springer 2005
Source: Greiler, Michaela, Arie Van Deursen, and Margaret-Anne Storey. "Test confessions: a study of testing practices for plug-in systems." Software Engineering (ICSE), 2012 34th International Conference on. IEEE, 2012.
OPEN VS CLOSED
WORLD
What's the Specification?
Typically global property ๐ฅ for every program Syntactically correct, well-typed Absence of double-free vulnerabilities Returns positive number for parameter 3 Terminates within 10 seconds Challenge is checking all configurations e.g., โ๐ โ ๐๐ฟ: ๐โจ๐ฅ
Feature-Based Specifications
Property ๐ฅ for every program with feature ๐ No access to the file system Renders โ[:weather:]โ as Challenge is checking many configurations e.g., โ๐ โ ๐๐ฟ: (๐ โ ๐) (๐ โจ ๐ฅ)
Feature-Based Specification AG (incoming(email e ) & e.isEncrypted => ((outgoing(email e ) => e.isEncrypted) R outgoing(email e )) [Apel et al., COMNETโ13]
