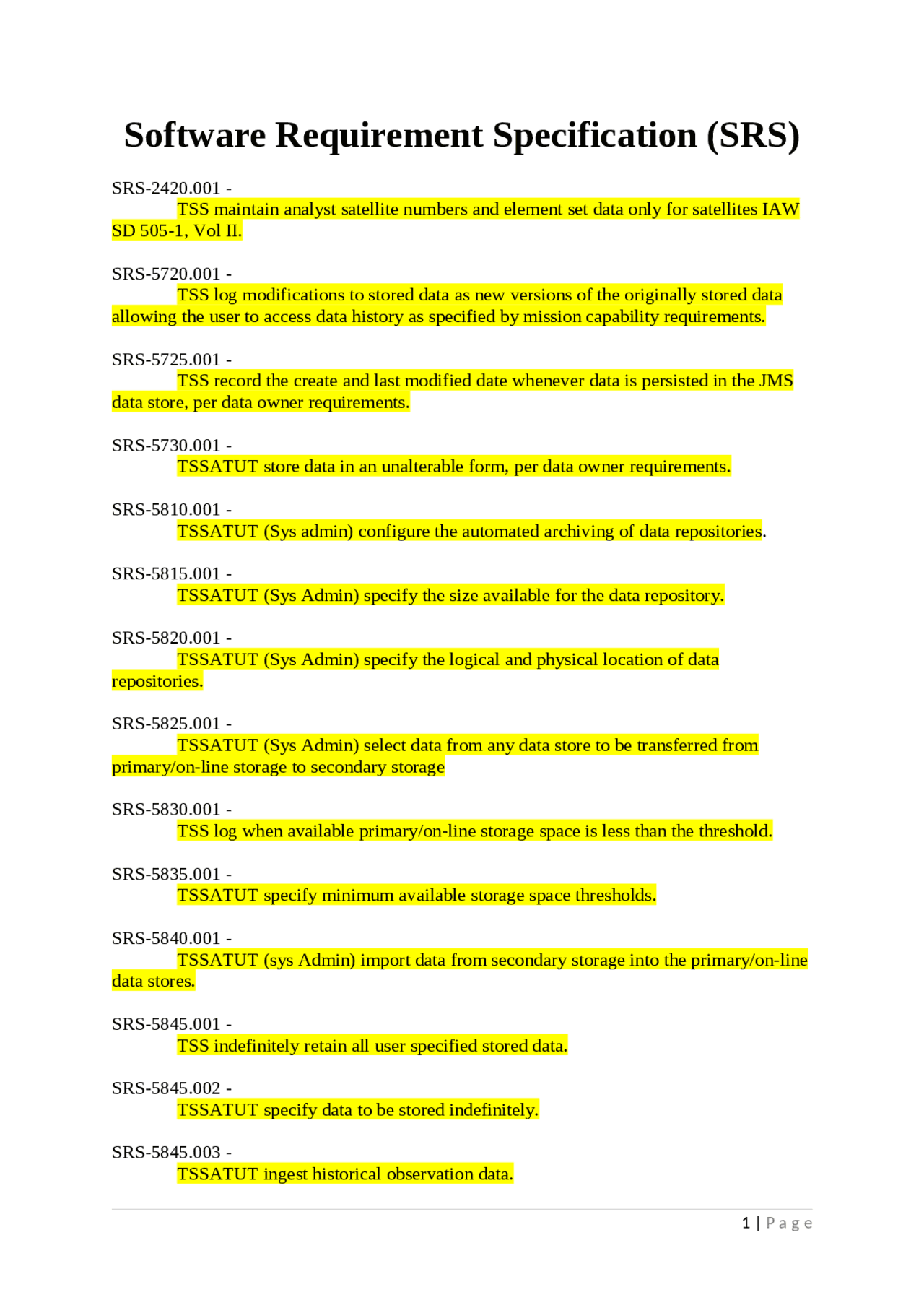

Software Requirement Specification (SRS)
SRS-2420.001 -
TSS maintain analyst satellite numbers and element set data only for satellites IAW SD 505-1, Vol II. SRS-5720.001 - TSS log modifications to stored data as new versions of the originally stored data allowing the user to access data history as specified by mission capability requirements. SRS-5725.001 - TSS record the create and last modified date whenever data is persisted in the JMS data store, per data owner requirements. SRS-5730.001 - TSSATUT store data in an unalterable form, per data owner requirements. SRS-5810.001 - TSSATUT (Sys admin) configure the automated archiving of data repositories. SRS-5815.001 - TSSATUT (Sys Admin) specify the size available for the data repository. SRS-5820.001 - TSSATUT (Sys Admin) specify the logical and physical location of data repositories. SRS-5825.001 - TSSATUT (Sys Admin) select data from any data store to be transferred from primary/on-line storage to secondary storage SRS-5830.001 - TSS log when available primary/on-line storage space is less than the threshold. SRS-5835.001 - TSSATUT specify minimum available storage space thresholds. SRS-5840.001 - TSSATUT (sys Admin) import data from secondary storage into the primary/on-line data stores. SRS-5845.001 - TSS indefinitely retain all user specified stored data. SRS-5845.002 - TSSATUT specify data to be stored indefinitely. SRS-5845.003 - TSSATUT ingest historical observation data.
SRS-5865.001 -
TSSATUT browse the data repository. SRS-1015.001 - TSS automatically execute a second OD attempt based on authorized user defined rule set. SRS-1020.001 - TSS attempt an SGP4 OD when the automatic recovery of a failed SP OD is not successful. SRS-1025.001 - TSS notify the user when a high priority RSO is added to the work list. SRS-1025.002 - " TSS generate a notification upon high priority RSOs being added to the work list." SRS-1030.001 - TSS store metrics for the Automatic Orbit Determination (OD) failures. SRS-1035.001 - TSS perform AOD when the event indication is decay, space launch, or maneuver upon receipt of new observations. SRS-1040.001 - TSS update OD estimates based on new track/observation data using the SP OD rule set applicable to that RSO. SRS-1040.002 - TSS update orbital parameters based on new track/observation data using the SP OD rule set applicable to that RSO. SRS-1040.003 - TSS propagate new state vector estimates following successful AOD or MOD using the SP OD rule set applicable to that RSO. SRS-1040.004 - TSS apply OD rule set following verification of tagged obs, retagging of detagged obs, or association of UCT obs to that RSO. SRS-1040.005 - TSSATUT produce state vectors consistent with the force model of selected subscribed users to include METSAT/BEVEL subscribers. SRS-1075.001 - TSSATUT reject automatic OD results via the UDOP. SRS-1075.002 -
SRS-2115.001 -
TSS produce ephemeris containing predicted position and velocity following an orbital state update for the RSO over a specified timeframe. SRS-2115.002 - TSS produce ephemeris containing predicted covariance matrix following an orbital state update for the RSO over a specified timeframe. SRS-2115.003 - TSS produce ephemeris with a specified adjustable timeframe defaulted to five days. SRS-2115.004 - TSSATUT specify a timeframe for ephemeris generation following an orbital state update. SRS-2145.003 - TSS generate extrapolated GP element sets compatible with SGP orbit representation. SRS-3460.002 - TSS associate metric information for RSOs flagged as having a parent RSO with the parent RSO metric information during the period that the RSO is docked to the parent. SRS-3460.004 - TSS update catalog metric information for a docked object each time the parent RSO metric information is updated. SRS-3700.001 - TSS update launch orbital state with received metric observations. SRS-5705.001 - TSSATUT define and save reusable queries and associated parameters for data retrieval as permitted by the UDOP views. SRS-1050.001 - TSSATUT modify OD control parameters associated with a specific instance of a manual orbit determination. SRS-1050.003 - TSSATUT modify and save changes as the default OD control parameters from the manual orbit determination instance. SRS-1060.001 - TSSATUT use OD control parameters of an existing RSO to apply to a different RSO within a specific instance of a manual orbit determination. SRS-1060.002 - TSSATUT use OD control parameters of an existing RSO to apply to a different RSO and save them as the default control parameters.
SRS-1065.001 -
TSSATUT display manual OD results based on the current state of the manual OD for each iteration SRS-1065.002 - TSS generate manual OD results based on the current state of the manual OD for each iteration. SRS-1070.001 - TSS generate the current iteration residuals during manual orbit correction processing. SRS-1070.002 - TSS generate the best iteration residuals during manual orbit correction processing. SRS-1070.004 - TSSATUT display the current iteration residuals during manual orbit correction processing. SRS-1070.005 - TSSATUT display the best iteration residuals during manual orbit correction processing SRS-1070.006 - TSSATUT display residuals during the manual orbit correction processing in a descending observation time. SRS-1070.007 - TSSATUT display the sensor number for the residuals during orbit manual correction processing. SRS-1070.008 - TSSATUT display the observation time for the residuals during manual orbit correction processing. SRS-1070.009 - TSSATUT display the original and current SATNO for the observation residuals during orbit manual correction processing. SRS-1070.010 - TSSATUT display the argument of latitude for the residuals during orbit manual correction processing. SRS-1070.011 - TSSATUT display the time difference for the residuals during manual orbit correction processing. SRS-1070.012 -
SRS-1085.004 -
TSS display an indicator of which viewing mode is currently in use. SRS-1085.005 - In Standard Viewing Mode, TSS display indicators to differentiate between rejected and accepted observations for the displayed residuals. SRS-1085.006 - In Sensor Viewing Mode, TSS display indicators to differentiate between sensor numbers on the observations for the displayed residuals. SRS-1085.007 - In Object Viewing Mode, TSS display indicators to differentiate between object numbers for the displayed residuals. SRS-1090.001 - TSSATUT review OD results during a MOD process before having to decide retention of the orbital state solution. SRS-1090.002 - TSSATUT review element set comparison results during a MOD process before having to decide retention of the orbital state solution. SRS-1090.003 - TSS perform element set comparison during a MOD process before having to decide retention of the orbital state solution. SRS-1090.004 - TSSATUT accept or reject MOD results after deciding on retention. SRS-1090.005 - TSSATUT perform element set comparison during a MOD process before having to decide retention of the orbital state solution. SRS-1295.002 - TSSATUT select RSOs for manual orbit determination. SRS-1780.001 - TSSATUT reset OD control parameters to default values for selected RSOs and pieces in an MPS session. SRS-1780.002 - TSSATUT modify OD control parameters for selected RSOs and pieces in an MPS session. SRS-1780.003 - TSSATUT specify whether the ODs should be run in single step mode, or in run-to- completion mode for each selected RSO and piece in an MPS session
SRS-1780.004 -
"TSSATUT select the OD methods to be used for the MPS ODs by RSO or Piece, to include: a. Initial Orbit Determination b. GP Orbit Determination c. SP Orbit Determination " SRS-1780.005 - TSSATUT Initiate ODs for selected RSOs and pieces in an MPS session. SRS-1780.006 - TSS Perform the MPS ODs as requested by the user. SRS-1785.001 - TSSATUT, during OD MPS processing, select RSO and MPS piece OD data to be retained in an MPS session. SRS-1785.002 - TSS retain MPS piece OD data only in an MPS session SRS-1785.003 - TSS retain RSO OD data including retagging observations used in the OD solution. SRS-1790.001 - TSSATUT create new RSO piece(s) within MPS, and assign selected observations/tracks to those pieces SRS-1790.002 - TSSATUT initiate an Initial Orbit Determination (IOD) for selected MPS pieces. SRS-1790.003 - TSS Perform Initial Orbit Determination (IOD) for MPS pieces using the observations/tracks allocated to those pieces SRS-1790.004 - TSSATUT review the IOD results for the requested MPS pieces. SRS-1795.001 - TSSATUT select a RSO as the base satellite, which is used as the reference element set for Manual Piece Separation (MPS) processing, at MPS Initialization Time. SRS-1800.001 - TSSATUT view the current observation residuals (with respect to the base RSO Elset) and secondary Elsets (relative to the base elset) in an MPS session, in both graphical and tabular formats. SRS-1800.002 - "TSSATUT view observation residuals against the base element set in both graphical and tabular formats, to include:
"TSSATUT specify criteria for selecting observations for the MPS session, to include: a. Observations tagged to the selected RSOs with specified ASTAT (Association Status) values b. Observations the user retrieves using manual observation maintenance capabilities c. Observations the user retrieves using manual obs association capabilities d. Observations associated with a selected SSA event (such as launch or breakup)" SRS-1805.004 - TSS process the MPS request, retrieve all specified RSOs Orbital data and selected observations. SRS-1805.005 - TSSATUT review the MPS session data and MPS session processing options. SRS-1815.001 - TSSATUT select MPS Pieces to be saved as analyst satellites. SRS-1815.002 - TSSATUT view available Analyst SATNOs for assignment to the MPS pieces. SRS-1815.003 - TSSATUT manage analyst satellite numbers from the catalog administration service. SRS-1815.004 - TSS manage analyst satellite numbers from the catalog administration service. SRS-1815.005 - TSSATUT select from available Analyst SATNOs to assign an analyst SATNO to each piece to be saved. SRS-1815.006 - TSS create analyst satellites from specified MPS pieces with the designated analyst satellite numbers SRS-1815.007 - TSS retag the observations from the MPS Session dataset to those analyst satellites. SRS-1815.008 - TSS update the MPS Session Dataset pieces and observations to reflect the assignment of the MPS Pieces to analyst satellites. SRS-1820.001 - TSSATUT save pieces during the MPS process. SRS-1825.001 - TSSATUT, during MPS OD processing, select RSO and MPS piece OD data to be deleted from the MPS session. SRS-1825.002 -
TSS delete MPS pieces and/or piece OD data from the MPS Session Dataset as instructed by the user. SRS-1825.003 - TSS allow Observations in the MPS Session dataset were tagged to a deleted piece to remain in the MPS Session Dataset, but be marked that they are not tagged by MPS. SRS-1830.001 - TSSATUT terminate an MPS Session. SRS-1830.002 - TSS provide summary data regarding the outcome of the MPS results disposition. SRS-1830.003 - TSSATUT view the MPS results disposition feedback information. SRS-1835.001 - TSSATUT Retag observations to an RSO or MPS analyst satellite within the current MPS Session from graphical or tabular observation MPS displays. SRS-1835.002 - " TSS retag observations to the RSO or MPS analyst satellite specified by the user." SRS-1845.001 - TSSATUT retag observations to an existing updated RSO in MPS. SRS-1845.002 - TSS retag observations to the RSO specified by the user. SRS-2145.001 - TSS perform an SP to SGP4 extrapolation upon completion of successful SP orbital state updates. SRS-2145.004 - TSSATUT specify the fit span and epoch placement for SP to GP extrapolation when SP updates are initiated. SRS-2145.006 - "TSSATUT specify the fit span and epoch placement for SP to GP extrapolation when SP updates are initiated via MOD. " SRS-3115.001 - TSSATUT initiate MPS for a maneuvering RSO. SRS-3125.001 - " TSSATUT initiate IOD using observations selected from MOD."
TSS use event priorities for assigning associations status SRS-1315.001 - "TSS Maintain settings for each RSO governing external maintenance of the RSO, to include: Whether the RSO may be configured to accept external SP vectors, and what external sources and formats are authorized to provide them " SRS-1315.002 - "TSS Maintain settings for each RSO governing external maintenance of the RSO, to include: Whether the RSO may be configured to accept external GP Elsets, and what external sources and formats are authorized to provide them " SRS-1315.003 - "TSS Maintain settings for each RSO governing external maintenance of the RSO, to include: Whether external orbital parameters require manual intervention before storing in the JMS system, and which JMS user role(s) are involved " SRS-1315.004 - TSSATUT review and modify the external maintenance status for selected RSOs. SRS-1315.005 - "TSS receive external RSO element set and vector information from legacy sources via the following message types: DN08 - Satellite Element Set AA06 - Space Detection and Tracking System (SPADATS) Element AL11 - Satellite Element Set BM23 - BMEWS SSPAR Element Set CD04 - Orbital Element Set FP10 - Element Set PP05 - Element Set DN06 - SPEPH Vector GE05 - GEODSS Element Set MU46 - Double precision position and velocity vectors SU84 - Special Perturbations vector MU88 - Special Perturbations Ephemeris (SPEPH) Vector MU15 - Satellite Element Set " SRS-1315.007 - TSS update the catalog using external vector information from netcentric sources in accordance with the JMS Enterprise Common Data Model. SRS-1315.008 -
TSS update RSO orbital parameters in accordance with RSO external maintenance control settings. SRS-1315.009 - TSS alert or notify the appropriate analyst upon reception of RSO Element set and vector information messages according to RSO external maintenance control settings. SRS-1315.010 - TSSATUT review and disposition (accept or reject) external RSO Element set and vector information updates. SRS-1315.011 - TSSATUT access and run element set and vector comparison functions for the externally received orbital parameters. SRS-1315.012 - TSSATUT have the option to create a new analyst satellite for the externally received orbital parameters. SRS-1315.013 - TSS perform RSO satellite and orbital parameter updates as requested by the appropriate analyst. SRS-1315.014 - TSS log reception and disposition of all externally received RSO orbital parameters. SRS-1315.015 - TSS update RSO SP Vector and GP Elset histories when external orbital parameters are accepted for operational use. SRS-1315.016 - TSS maintain settings for external maintenance to update the element set number only when accepting external elements. Setting is for an authorized source for all RSOs. SRS-1315.017 - TSSATUT configure the "update elset number only" mode for an authorized source via web administration. SRS-1315.024 - TSS initiate conjunction screening following a successful catalog update of externally received RSO vectors. SRS-1585.001 - TSSATUT request recommended maintenance parameters for specified RSOs SRS-1585.002 - TSSATUT accept the recommended maintenance parameters for selected RSOs. SRS-1585.003 - TSS store the accepted maintenance parameters for selected RSOs.
SRS-1610.007 -
TSS store the accepted maintenance parameters for the RSO specified for maintenance parameter assignment. SRS-1590.001 - TSSATUT request recommended tasking group assignments for specified RSOs SRS-1590.002 - TSSATUT accept the recommended tasking group assignments for selected RSOs. SRS-1590.003 - TSS store the accepted tasking group assignments for selected RSOs. SRS-1590.004 - TSSATUT create and modify RSO conjunction tasking group assignments SRS-1590.005 - TSS automatically revert to previous tasking group assignment for RSOs within a user-configurable time of the time of closest approach. SRS-1590.006 - "TSS automatically determine the correct tasking for CAP List or secondary RSOs involved in a conjunction using the conjunction tasking criteria: a. age of most recent state vector epoch b. age of most recent observation c. size of u,v,w covariance diagonal d. number of obs in latest OD e. number of sensors in latest OD f. Time until TCA g. number of tracks per day h. number of tracks in last OD (current LUPI) i. Future look angle passes per sensor j. angle off boresight per sensor k. SNR by sensor" SRS-1590.007 - TSSATUT modify the conjunction tasking criteria. SRS-1590.008 - TSS provide the ability to modify the conjunction tasking criteria. SRS-1590.009 - TSS generate an notification when an RSO initially meets the conjunction tasking criteria for verbal/special tasking. The alert shall identify the RSO and provide a recommend tasking priority and suffix. NOTE: Do not alert on subsequent detections for the same conjunction event. SRS-1590.010 - TSS publish the conjunction tasking notification.
SRS-1590.011 -
TSS display the conjunction tasking notification. SRS-1595.001 - TSSATUT display the set of currently-defined tasking groups and tasking group definition parameters. SRS-1595.002 - TSS provide the list of current tasking groups, definitions and assigned RSOs. SRS-1595.003 - TSSATUT use an existing tasking group as a template for creating a new, unique tasking group. SRS-1595.004 - TSSATUT create a new tasking group (i.e., not as a copy of an existing tasking group). SRS-1595.005 - "TSSATUT edit parameters associated with a selected tasking group, to include: a. EDR Bin b. Orbit Regime c. Object Type d. Object Category e) Required tracks with range per day f) Required angles-only tracks per day" SRS-1595.006 - TSSATUT save a newly-created or edited tasking group. SRS-1595.007 - TSS save newly created or edited tasking groups. SRS-1595.008 - TSSATUT display all RSOs assigned to a specified tasking group. SRS-1595.009 - TSS provide a list of RSOs assigned to a specified tasking group. SRS-1595.010 - TSSATUT view tasking group assignments for specified RSOs. SRS-1595.011 - TSS provide a list of tasking group assignments for specified RSOs. SRS-1595.012 - TSSATUT modify the tasking group assignments for selected RSOs. SRS-1595.013 - TSSATUT move a selected set of RSOs from one tasking group to another.
SRS-1610.013 -
TSS store the accepted Tasking Group for the RSO specified for Tasking Group assignment. SRS-1640.001 - TSSATUT generate RSO sensor tasking groups for RSOs with common routine tasking needs. SRS-1640.002 - TSSATUT view a RSO sensor tasking group. SRS-1640.003 - TSS manage and expose RSO sensor tasking groups. SRS-1645.001 - TSSATUT modify an existing RSO sensor tasking group. SRS-1645.002 - TSS provide a service to modify existing RSO sensor tasking groups. SRS-1650.001 - TSSATUT assign an RSO to a RSO sensor tasking group. SRS-1650.002 - TSS provide a service to assign a sensor tasking group to an RSO. SRS-1655.001 - TSSATUT assign an RSO sensor tasking group from an existing RSO to a new RSO. SRS-1655.002 - TSS provide a service to modify an RSO sensor tasking group assignment. SRS-1660.001 - TSSATUT modify an RSO's sensor tasking group assignment in response to a new collection request for metric tasking. SRS-1660.002 - TSSATUT modify the tasking group assignments for selected RSOs appropriate for the RSO and event type. SRS-1665.001 - TSS generate a notification, when updating a RSO sensor tasking group, if the modified group matches an existing set of tasking parameters. SRS-1665.002 - TSSATUT view a notification if a modified RSO sensor tasking group matches an existing RSO sensor tasking group. SRS-1095.001 -
TSSATUT view a parameterized ELSET. SRS-1095.002 - TSSATUT edit an ELSET. SRS-1095.003 - TSSATUT save an edited ELSET. SRS-1095.004 - TSS provide a service to retrieve and modify ELSETs. SRS-1330.001 - "TSSATUT add element set data in two card format. " SRS-1330.002 - TSSATUT add element set data in parameter format Keplarian elements SRS-1330.003 - TSS provide a service to update the database with manually entered element set data SRS-1330.004 - TSSATUT add state vector data in the supported reference frames. SRS-1330.005 - TSS provide a service to update the database with manually entered state vector data in the TEME tTrue equator mean equinox) of date reference frame SRS-1335.001 - TSSATUT allow the user to enter and display satellite numbers containing up to 9 digits in the UDOP, as allowed by the underlying mission services SRS-1335.002 - TSS number RSOs according to RSO numbering scheme specified in accordance with Satellite Catalog Renumber Working Group Final Report 18 June 2013 (sec 6.5). SRS-1385.001 - TSSATUTstore and retrieve SP vectors and covariance matrices from the UDOP. SRS-1385.002 - TSS provide a service to store and retrieve SP vectors and covariance matrices. SRS-1390.001 - TSSATUT store and retrieve general perturbation elements sets from the UDOP. SRS-1390.002 - TSS provide a service to store and retrieve general perturbation element sets. SRS-1415.001 -
