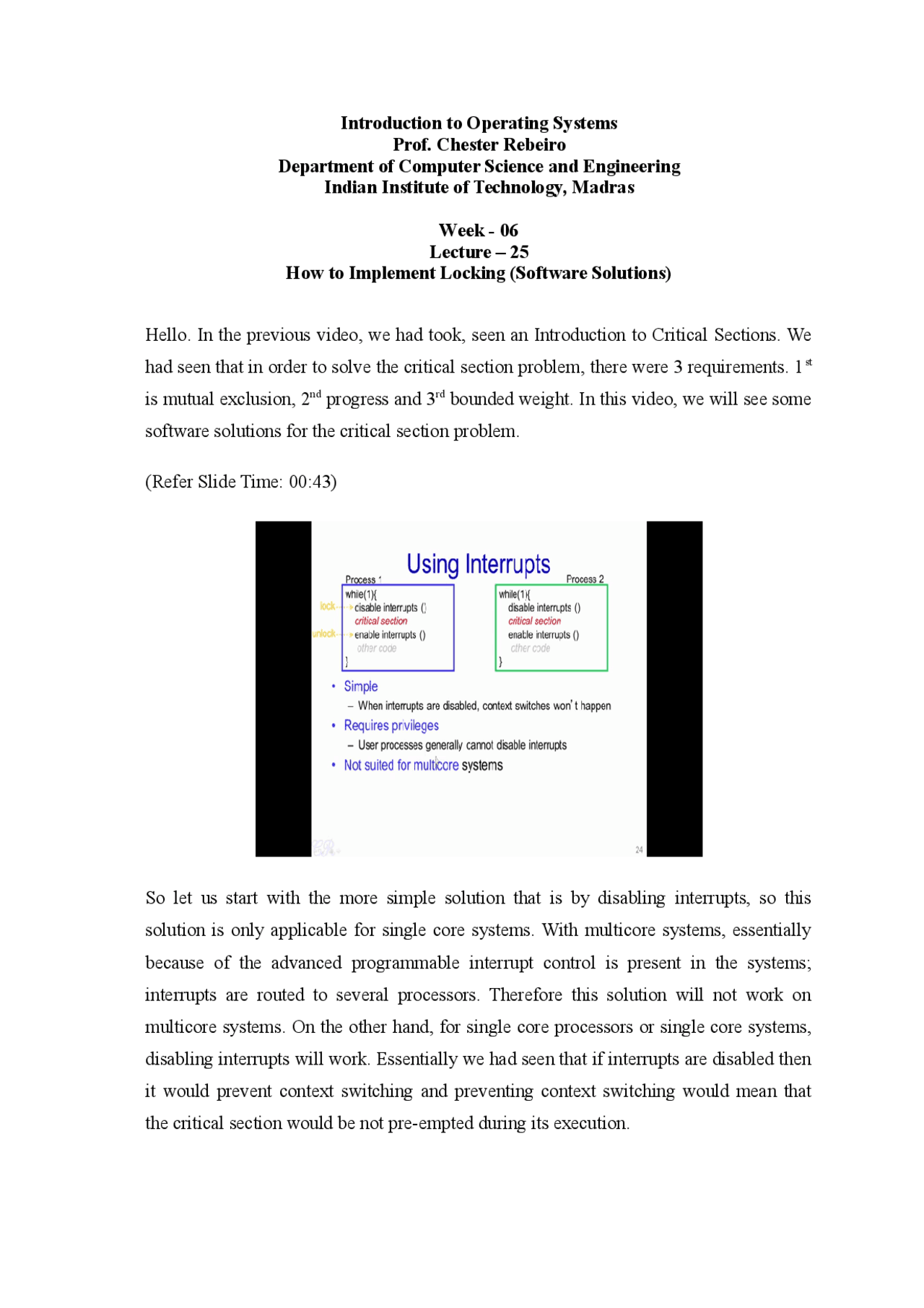

Introduction to Operating Systems Prof. Chester Rebeiro Department of Computer Science and Engineering Indian Institute of Technology, Madras Week - 06 Lecture – 25 How to Implement Locking (Software Solutions) Hello. In the previous video, we had took, seen an Introduction to Critical Sections. We had seen that in order to solve the critical section problem, there were 3 requirements. 1st is mutual exclusion, 2nd^ progress and 3rd^ bounded weight. In this video, we will see some software solutions for the critical section problem. (Refer Slide Time: 00:43) So let us start with the more simple solution that is by disabling interrupts, so this solution is only applicable for single core systems. With multicore systems, essentially because of the advanced programmable interrupt control is present in the systems; interrupts are routed to several processors. Therefore this solution will not work on multicore systems. On the other hand, for single core processors or single core systems, disabling interrupts will work. Essentially we had seen that if interrupts are disabled then it would prevent context switching and preventing context switching would mean that the critical section would be not pre-empted during its execution.
Let us look at how interrupts can be used to solve the critical section problem (refer above slide). So, we have the two processes, process 1 and process 2 and they have this critical section which is shown in red. In this critical section, both processes access or modify the same shared data. In order to ensure that the critical section problem is solved and that both processes do not end up in the critical section at the same time, we disable interrupts before entering into the critical section. While, on the other hand, while leaving the critical section the interrupts are enabled again. Disabling interrupts as we have seen will prevent the process from getting pre empted at the end of its time slice. Essentially, there would not be a timer interrupt that would occur which would prevent process 1 from pre-empting. Therefore, we see that this is a very simple solution and process 1 will continue to execute without any other interrupts at occurring as a result of the disabling of interrupts. Similarly, when process 2 enters into this critical section, it disables interrupts; and on leaving the critical section, it enables interrupts again (mentioned in above slide). So, this application of disabling and enabling interrupts is similar to the locking mechanism before entering the critical section and the unlocking mechanism at the exit of the critical section. The locking will ensure that only one process enters or executes in the critical section at a given time. While the unlocking mechanism that is when interrupts are enabled would then allow other processes the chance to enter or execute in the critical section. So, this method of solving the critical section problem is simple. It just requires a single instruction in order to disable or enable interrupts. Thus, preventing context switches from happening. However, the limitations of using interrupts is that it requires a higher privilege level. So, normal application programs which run in user space will not be able to disable and enable interrupts in such a way. Therefore, this solution is only applicable for code that runs in the kernel. So it is only the kernel or the operating system that is allowed to disable interrupts and enable interrupts again. Therefore, this solution is only applicable for operating system code. And as we have seen before this disabling and enter enabling of interrupts is not suited for multicore systems; essentially because when interrupts are disabled on a multicore system, it would mean that interrupts corresponding to that code alone is
particular while loop (because while condition is true). The only time that it is capable of exiting from this while loop is when the 1st^ process sets turn to 2, so when the value of turn is set to 2, and remember that turn is a shared variable, therefore, this while loop in process 2 will terminate. And process 2 will then enter into the critical section. At the exit of the critical section, process 2 will set the value of turn to 1 (i.e turn = 1;). So, setting the value of turn to 1 would mean that a process 1 can then enter into the critical section. So, essentially when we look at the locking and unlocking mechanism to solve this critical section problem, we see that this while loop present over here (second while in process) is the locking mechanism, while the unlocking mechanism is the third line that is setting the value of turn to 2 (i.e turn = 2 in process 1). The second observation that we make is that this algorithm or this solution for the critical section problem requires that process 1 executes into the critical section and then because turn is set to 2 over here (last line in process 1), after process 1 completes its critical section execution, process 2 should execute. So, once process 2 completes its execution, process 1 will execute and so on. So essentially there is an alternating behaviour for the critical section (refer last bullet point in above slide image). First, process 1 needs to execute the critical section because the value of turn is equal to 1 (turn = 1;). Then when it completes it sets turn to 2 (turn = 2;), so process 2 will execute. And process 2 will set the value of turn to 1 (turn = 1;) at the end of its critical section which will result in process 1 executing in the critical section and so on. So, we see that there is an alternating behaviour between process 1 and process 2. Quite naturally because the value of turn is shared between both the processes and as we have seen only one process could satisfy this while condition, and break out from this while loop. Therefore, exactly one process would enter into the critical section at a given time. Therefore, this solution achieves mutual exclusion. However, there are two limitations of this solution; 1 is the busy waiting. So while process 1 is executing in this critical section, process 2 would endlessly execute in this particular while loop. Note that process 2 is in the ready state or the running state it is not in the blocked state and therefore, it would consume power as well as time, because it needs to execute in the
CPU periodically in order that this value of turn is checked. Another limitation as we have seen before it is that this solution for the critical section problem requires that process 1 and process 2 alternates its access into the critical section. So what it means is that first process 1 should execute then process 2, process 1, process 2 and so on. So, this creates a problem especially with the progress requirement of the critical section solution. So, the progress requirement condition stated that if no process is in the critical section, and a process request for the critical section, then it should be offered the lock, essentially it should be able to execute in the critical section. We see that this solution will not satisfy the progress requirement. For instance (refer above slide image) let us say that process 2 begins to execute before process 1. So process 2 comes here (check while condition) and it executes this while turn equal to 1, and we see that since process 1 has not yet started. So if the progress condition needs to be met, so process 2 should enter into the critical section. But this is not so, therefore this is not a good solution for the critical section problem. (Refer Slide Time: 11:16) The main drawback or the main problem with our first attempt to solve the critical section problem was that it used a common turn flag that was modified by both processes. So, this turn flag was set to 2 in process 1 and set to 1 in process 2 (last line in both the process); and this force the two processes to alternate execution in the critical
Similarly, process 2 would first execute this while loop (check while condition). Until p1_inside = false (i.e already set in process 1 while exiting), so a value of p1_inside is false would mean that process p 1 has exited from the critical section and is no longer in the critical section. And after it obtain such a condition, the while loop is completed and execution comes over here where process 2 sets p2_inside = true indicating that it is inside the critical section and at the end of the critical section, just before exiting it sets that p2_inside = false. Now this second solution does not require that the two processes alternate execution in the critical section. So, for instance, since the initial values of p1_inside and p2_inside are false, suppose process 2 executes first, so it sees p1_inside = false, so it breaks from this (while) loop and enters into the critical section. Similarly, if process 1 does not start executing, it will keep entering into the critical section without requiring process 1 to execute. However, the problem with this particular solution is that it does not guarantee mutual exclusion rather under some circumstances it is possible that process 1 as well as process 2 is present in the critical section at the same instant of time. (Refer Slide Time: 15:45). So let us see when this mutual exclusion does not hold for our second attempt. This particular table here (refer above slide image) shows the execution of various statements in the CPU with respect to time that means, that this particular while loop (while loop in first row of the table) executes and while since it is in blue colour it means that it
corresponds to the process 1. Then while (p1_inside == true) (third row in the table) and p2_inside = true (fourth row in the table), so this is in the green colour, so it corresponds to process 2. And p1_inside = true (sixth row in the table) again corresponds to process
So, this is how the CPU would execute instructions corresponding to the two processes and we have like several context switches that occur during the execution and these are the status of the various flags as the execution progresses (second and third column in the table). So let us start with process 1, we have initially set that p1_inside and p2_inside is both false, indicating that both processes are not in the critical section. Therefore, this particular while loop (while loop mentioned in first row) will complete, essentially because p2_inside is false; now suppose there is a context switch that occurs resulting in process p 2 which executes, so it will also execute these statements while p1_inside is false (mentioned in third row of the table), so the while loop will break. And then it sets p2_inside = true (fourth row of the table)(. Now immediately after setting this suppose there is a context switch that occurs and process p 1 will continue to execute and it sets p1_inside = true (mentioned in last row). Essentially due to the context switch, it will continue to execute from where it has stopped that is it has stopped just soon after completion of the while loop (first while loop in the table) and then it continues with the next instruction over here (last row in the table) that is setting of p1_inside = true. So, here we see we have a state where p2_inside = true (mentioned in fourth row)indicating that p 2 is in the critical section as well as p1_inside = true indicating that p 1 is also in the critical section. Therefore, we have not able to achieve mutual exclusion.
So, we will start with the third attempt that is the third attempt for a solving the critical section problem. And what we will do is just a simple change, so we will have these two flags instead of p1_inside, we will have now p1_wants_to_enter into the critical section, and p2_wants_to_enter into the critical section. Essentially, each of these flags are set to true when the corresponding process wants to enter into the critical section. So, the minor change we do over here with respect to the second attempt is that process 1 first shows his intention to enter into the critical section by setting p1_wants_to_enter = true. And only then will it try to determine, if process p 2 is in the critical section or not. So, essentially it sets p1_wants_to_enter to true and then it would execute in this while loop until p2_wants_to_enter is false. So, when p2_wants_to_enter it becomes false indicating that the 2nd^ process has completed execution in the critical section then process 1 will enter into the critical section. At the end, after the critical section has completed execution p 1 sets the flag p1_wants_to_enter = false, so this setting of false will allow process 2 to enter into the critical section. Note that the only difference of this, corresponding to our previous attempt was that we move the flag from inside the critical section that is after the while loop to before the while loop. So, what we see is that this particular solution achieves mutual exclusion, so, unlike the previous attempt where we obtained a condition where mutual exclusion was not achieved and we had two processes in the critical section at the same time. In this solution, the mutual exclusion is achieved; essentially, it is guaranteed that when process 1 is in the critical section, process 2 is not in the critical section and vice versa. So, what is not guaranteed is Progress. Essentially, we could obtain a state where both processes are endlessly waiting or endlessly executing in this while loop and we will see how this thing occurs, so such a state is known as a deadlocked state.
(Refer Slide Time: 21:54) So let’s see the deadlock situation in this particular case. So let us look in this table (refer above slide), which shows how the CPU executes instructions with respect to time, and also this table shows the various values of the flags which are present. Let us start with process 1 executing and the CPU executes this particular statement (first row statement) and it sets the value of p1_wants_to_enter = true. Then there is a context switch, which results in process 2 executing which sets the flag p2_wants_to_enter = true. Now you see that both processes have set their respective flags to true (as mentioned above). Now when both processes enter into this while loop (second while loop in above program), we see that in both cases process 1 and as well as process 2, this flag is set to true indicating that both processes will continue to execute this while loop endlessly. Essentially, process 1 is waiting for process 2 to set its flag to false, while process 2 is waiting or is waiting for process 1 to set its flag to false. So, essentially we have reached a state which where each process is waiting for the other process to do something. So, this is what is known as a deadlocked situation and it could lead to considerable amongst of problem in operating systems.
(Refer Slide Time: 25:18). So let us see what the problem was with the third attempt. Essentially we had the process setting its flag and waiting for the other processes flag to be set to false. And we have seen that because both processes may enter into the while loop and wait for each other, we would have a deadlock situation. Now the next best thing to do is whenever we have such a deadlock situation, we need to find a way to actually come out of the deadlock situation. Essentially we need to ensure that one and exactly one of these two processes will break from the while loop and enter into the critical section. (Refer Slide Time: 26:03)
So, this solution was made by Peterson, and it is what is known as a Peterson’s solution, and essentially has an other variable known as favored (refer above slide image), so this is a globally defined variable which is shared among the two processes. Essentially, what the favored variable does is that whenever deadlock situation occurs, it favors one of the processes, and that process would then enter into the critical section. While the other process will continue to wait until the second process sets its flag to false. So, essentially Peterson’s solution sets the value of favor to the other process so that it favors the other process to enter into the critical section. Now favored it is used to break the tie when both p 1 and p 2 want to enter into the critical section that is when both p 1 and p 2 are waiting in this while loop or rather are executing in this while loop. The reason this particular solution works is that, out of the two processes there is exactly two values that favored can take, it can take only one or two, and therefore only one of these while loops will actually break or complete execution. (Refer Slide Time: 27:31) So let us see this in more detail. So, we have seen the two processes p 1 and p 2, and everything is as the third attempt that we want that p1_wants_to_enter set to true and then there is a while loop and then the critical section and then p1_wants_to_enter set to false (refer above image process 1). Now we also have a favored added here in the Peterson solution and this favored is set to 2 over here and favored is set to 1 in the 2nd process (mentioned in above slide). So, in all other cases this particular Peterson’s
