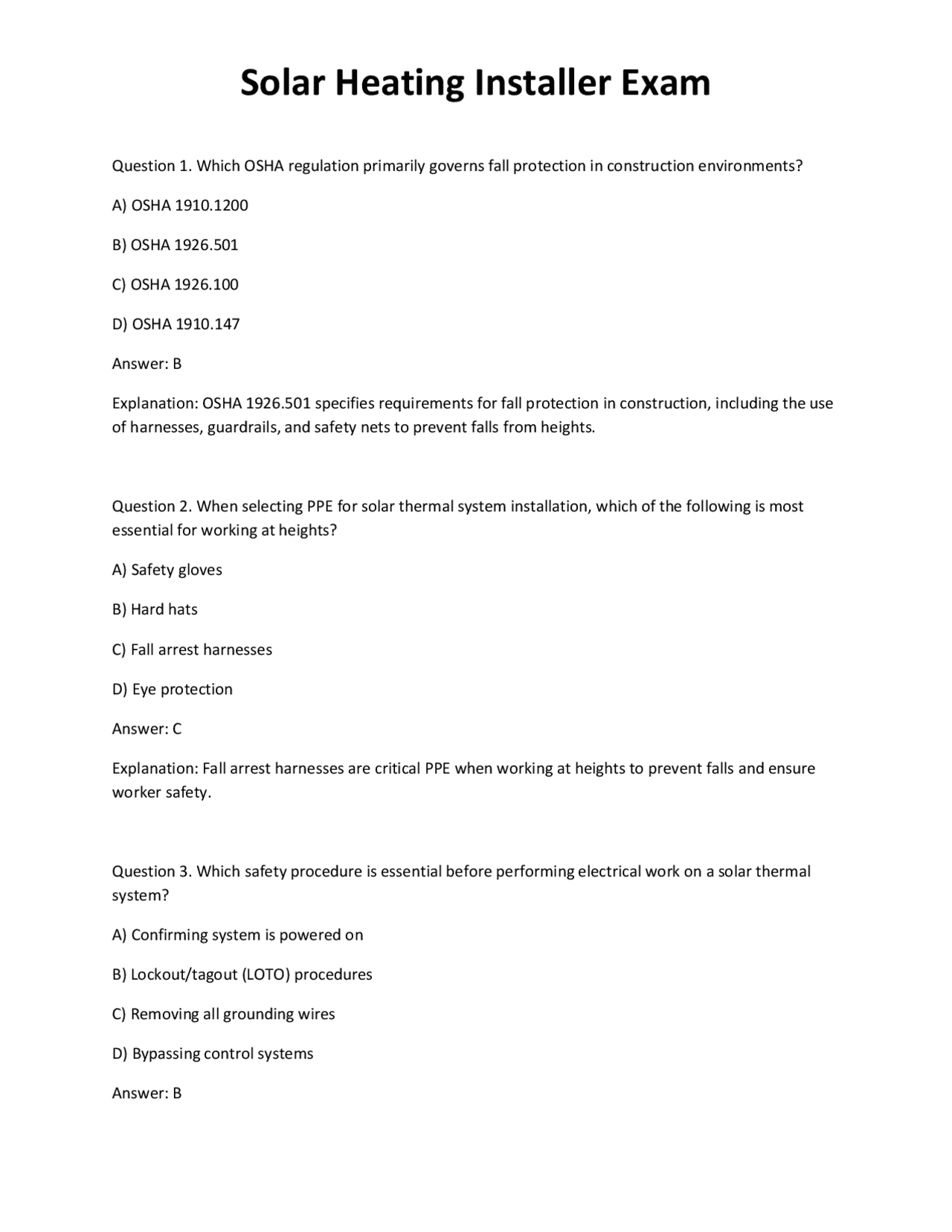

Question 1. Which OSHA regulation primarily governs fall protection in construction environments? A) OSHA 1910. B) OSHA 1926. C) OSHA 1926. D) OSHA 1910. Answer: B Explanation: OSHA 1926.501 specifies requirements for fall protection in construction, including the use of harnesses, guardrails, and safety nets to prevent falls from heights. Question 2. When selecting PPE for solar thermal system installation, which of the following is most essential for working at heights? A) Safety gloves B) Hard hats C) Fall arrest harnesses D) Eye protection Answer: C Explanation: Fall arrest harnesses are critical PPE when working at heights to prevent falls and ensure worker safety. Question 3. Which safety procedure is essential before performing electrical work on a solar thermal system? A) Confirming system is powered on B) Lockout/tagout (LOTO) procedures C) Removing all grounding wires D) Bypassing control systems Answer: B
Explanation: Lockout/tagout procedures are used to ensure electrical systems are de-energized and safe for maintenance, preventing accidental energization. Question 4. What is the primary purpose of MSDS/SDS sheets in solar thermal installation work? A) Provide electrical wiring diagrams B) Offer safety information on hazardous materials C) Detail mechanical assembly instructions D) List warranty conditions Answer: B Explanation: MSDS/SDS sheets contain critical safety information about hazardous chemicals, including handling, storage, and emergency measures. Question 5. Which of the following is a critical fire prevention measure during solar thermal system installation? A) Ignoring electrical wiring regulations B) Keeping combustible materials near hot components C) Ensuring proper wiring and avoiding overcurrent conditions D) Using uninsulated piping for quick installation Answer: C Explanation: Proper wiring and avoiding overcurrent conditions reduce the risk of electrical fires during installation and system operation. Question 6. Which is the correct procedure for confined space entry in solar system work? A) Enter immediately with minimal equipment B) Test the atmosphere, ventilate, and use PPE before entry C) Use only a ladder for access
B) Ignore temperature gauges C) Directly touch pipes for temperature confirmation D) Use open flames to test fluid temperature Answer: A Explanation: Insulated gloves and PPE protect workers from burns when handling high-temperature fluids. Question 10. Which safety device is critical for protecting a solar thermal system from overpressure? A) Check valve B) Pressure relief valve (PRV) C) Flow sensor D) Thermostatic mixing valve Answer: B Explanation: A pressure relief valve automatically releases excess pressure, preventing system damage or failure. Question 11. What electrical hazard is most associated with solar thermal pump wiring? A) Arc flash hazards B) Static electricity C) Electromagnetic interference D) Lightning strikes Answer: A Explanation: Pump wiring involves electrical currents that can cause arc flash hazards if not properly protected and installed. Question 12. Which chemical safety concern is most relevant when handling antifreeze solutions?
A) Combustibility B) Toxicity and environmental impact C) Corrosiveness to copper D) Radioactivity Answer: B Explanation: Antifreeze solutions can be toxic and pose environmental hazards; proper handling and disposal are necessary. Question 13. Which local regulation must be followed for solar thermal system installation? A) OSHA only B) Local building codes and permits C) International standards only D) No regulations apply Answer: B Explanation: Local building codes and permitting processes must be followed to ensure legal compliance and safety. Question 14. Which standard is most relevant for plumbing in solar thermal systems? A) NEC B) IPC or UPC C) ASHRAE 90. D) ISO 9001 Answer: B Explanation: IPC (International Plumbing Code) or UPC (Uniform Plumbing Code) govern plumbing installations, including those in solar thermal systems.
Explanation: Open-loop systems circulate water directly through collectors, while closed-loop systems use a separate heat transfer fluid in a sealed circuit. Question 18. Which type of collector is most efficient for space-limited applications due to its higher operating temperatures? A) Flat-plate collectors B) Unglazed collectors C) Evacuated tube collectors D) Batch heaters Answer: C Explanation: Evacuated tube collectors can achieve higher temperatures and are efficient in space- constrained applications. Question 19. For flat-plate collectors, which material commonly forms the absorber plate? A) Plastic B) Aluminum or copper with selective coating C) Glass D) Steel mesh Answer: B Explanation: Aluminum or copper with a selective coating is used for absorber plates to maximize heat transfer efficiency. Question 20. Which component is essential for preventing reverse flow in a solar thermal system? A) Check valve B) Pressure relief valve C) Thermostatic mixing valve
D) Expansion tank Answer: A Explanation: A check valve prevents backflow, ensuring fluid flows only in the intended direction. Question 21. Which sensors are typically used to monitor temperature in solar thermal systems? A) Thermistors and RTDs B) Photodiodes C) Piezoelectric sensors D) Hall effect sensors Answer: A Explanation: Thermistors and RTDs (Resistance Temperature Detectors) are common temperature sensors used for precise thermal monitoring. Question 22. What is the primary function of a differential controller in a solar thermal system? A) Measure pressure differences B) Compare collector and storage tank temperatures to control pump operation C) Regulate system pressure D) Detect system leaks Answer: B Explanation: Differential controllers compare temperatures to activate the pump when the collector temperature exceeds the tank temperature, optimizing heat transfer. Question 23. Which system component is used to automatically mix hot and cold water to prevent scalding? A) Pressure relief valve B) Thermostatic mixing valve
A) Store excess heat B) Absorb thermal expansion of the fluid C) Filter debris D) Regulate system pressure automatically Answer: B Explanation: The expansion tank accommodates volume changes due to temperature fluctuations, preventing overpressure. Question 27. During system commissioning, which parameter should be verified first? A) System pressure B) Proper fluid flow and air-free operation C) Customer training D) System aesthetics Answer: B Explanation: Ensuring proper fluid flow and removing air ensures the system operates efficiently and safely from startup. Question 28. Which method is most effective for leak detection during pressure testing of piping? A) Visual inspection and pressure gauges for pressure drops B) Listening for hissing sounds C) Using a soap solution only D) Relying solely on system temperature readings Answer: A Explanation: Visual inspection combined with pressure gauges monitoring for drops is effective for identifying leaks.
Question 29. Which routine maintenance task helps prevent freezing damage in a solar thermal system? A) Insulating piping and draining the system during cold periods B) Increasing system pressure C) Removing the collector glass covers D) Turning off the system during summer Answer: A Explanation: Insulating pipes and draining or bypassing the system during cold weather prevents freezing damage. Question 30. Which troubleshooting step is appropriate if a solar pump is making noise but not circulating fluid? A) Replace the entire system B) Check for airlocks, debris, or cavitation in the pump C) Increase the system pressure manually D) Disconnect the pump and leave it off Answer: B Explanation: Noisy pumps often indicate airlocks, debris, or cavitation; inspecting and clearing these issues can restore operation. Question 31. When a system shows low pressure, what is the first step to troubleshoot? A) Check for leaks and refill the system if necessary B) Replace the pump immediately C) Increase system temperature D) Remove pressure relief valve Answer: A
Answer: A Explanation: Incorrect wiring or sensor positioning can cause the controller to malfunction or fail to operate correctly. Question 35. Which safety measure should be taken when replacing a pressure relief valve? A) Depressurize the system before removal B) Remove it while system is pressurized C) Use a hammer to loosen it D) Ignore system pressure and proceed Answer: A Explanation: Depressurizing the system prevents sudden release of pressurized fluid, ensuring safety during replacement. Question 36. Which component is essential for preventing air accumulation in the piping system? A) Air vent or air purge valve B) Check valve C) Pressure relief valve D) Thermostatic mixing valve Answer: A Explanation: Air vents or purge valves remove trapped air, preventing airlocks that impair system circulation. Question 37. When installing a flat-plate collector, what is the optimal tilt angle relative to the horizontal for maximum annual solar gain in most locations? A) Equal to the latitude angle of the location B) 15 degrees
C) 45 degrees D) Vertical (90 degrees) Answer: A Explanation: The optimal tilt angle for maximizing annual solar gain is approximately equal to the latitude of the location. Question 38. Which mounting method is most suitable for collectors on a roof with high wind loads? A) Free-standing mounts B) Rigid, reinforced mounting hardware anchored to the roof structure C) Temporary supports D) No mounting; place collectors on the ground only Answer: B Explanation: Rigid, reinforced mounts anchored properly ensure stability and safety under high wind conditions. Question 39. During pipe installation, which support spacing is generally recommended for horizontal piping? A) Every 2 feet B) Every 4-6 feet C) Every 10 feet D) No support needed Answer: B Explanation: Pipe supports are typically spaced every 4-6 feet to prevent sagging and maintain system integrity. Question 40. Which jointing method is most suitable for copper pipes in solar thermal systems?
Question 43. What is the primary purpose of a check valve in the solar thermal system piping? A) Prevent backflow of fluid B) Control flow rate C) Regulate pressure D) Mix hot and cold water Answer: A Explanation: Check valves prevent reverse flow, maintaining proper flow direction and system safety. Question 44. Which safety device is designed to open at a specific temperature to prevent overheating in a solar system? A) Pressure relief valve B) T&P (temperature and pressure) relief valve C) Check valve D) Flow sensor Answer: B Explanation: T&P relief valves open at preset temperature and pressure limits to prevent system damage from overheating. Question 45. Which component is used to balance flow between multiple collectors in a series configuration? A) Flow restrictor B) Balancing valve or flow restrictor C) Check valve D) Expansion tank Answer: B Explanation: Balancing valves regulate flow to ensure each collector receives appropriate fluid volume.
Question 46. What is the main function of an air vent in a solar thermal system? A) Remove trapped air from the system B) Increase system pressure C) Cool the system D) Prevent leaks Answer: A Explanation: Air vents release trapped air to prevent airlocks, which impair circulation. Question 47. Which property of glycol solutions makes them suitable for solar thermal systems? A) High electrical conductivity B) Low freezing point and corrosion inhibition C) Flammability D) High viscosity at low temperatures Answer: B Explanation: Glycol solutions have low freezing points and inhibit corrosion, making them suitable heat transfer fluids. Question 48. When installing a drain valve, what is an important consideration? A) Positioning at the lowest point of the system for drainage B) Installing it at the highest point C) Using it only for system filling D) Placing it inside the building Answer: A
C) Unglazed collectors D) Batch heaters Answer: B Explanation: Evacuated tube collectors operate at higher temperatures suitable for industrial processes. Question 52. When selecting insulation for piping, what R-value is generally recommended? A) R- 1 B) R-4 to R-6 for outdoor piping C) R- 10 D) No insulation needed Answer: B Explanation: R-4 to R-6 insulation is typically sufficient for outdoor solar piping to reduce heat loss. Question 53. Which component increases system safety by preventing excessive pressure buildup? A) Pressure relief valve (PRV) B) Flow sensor C) Thermostatic mixing valve D) Check valve Answer: A Explanation: PRVs automatically release excess pressure, protecting system components from overpressure damage. Question 54. During piping support installation, what is an important consideration? A) Supports must be spaced to prevent sagging and vibration B) Supports are optional
C) Supports should be made of plastic only D) Supports should be placed only at system ends Answer: A Explanation: Proper support spacing prevents pipe sagging, vibration, and potential damage. Question 55. Which is the best practice for connecting a solar collector to the piping system? A) Use appropriate mounting hardware, sealing penetrations, and ensuring proper tilt and orientation B) Place collectors flat on the ground C) Connect with flexible garden hoses D) Avoid sealing penetrations to allow air flow Answer: A Explanation: Proper mounting and sealing ensure structural stability, leak prevention, and optimal orientation. Question 56. What is a typical procedure during system flushing? A) Open all valves, circulate clean water through the system, and remove debris and deposits B) Fill with antifreeze only C) Turn on the pump without flow D) Use soap solution to test for leaks Answer: A Explanation: Flushing removes debris, scale, and deposits, ensuring clean fluid and efficient operation. Question 57. Which safety device should be tested regularly to ensure proper functioning? A) Thermostatic mixing valve B) Pressure relief valve (PRV) and T&P valves
