MT-170 Assignment#1
M. Bilal Awais
Assignment # 1 Total Marks: 15
MT-170 Due on 14/01/2019
Question # 1:
The pictorial view of different types of objects are shown in figure-1 below. Sketch,
looking from arrow, Front, Top and Side view using first-angle projection
method.
The solution of first pictorial view is shown in figure-2. There’s no need for dimensions,
you just have to draw all the features in Front, Top and Side view.

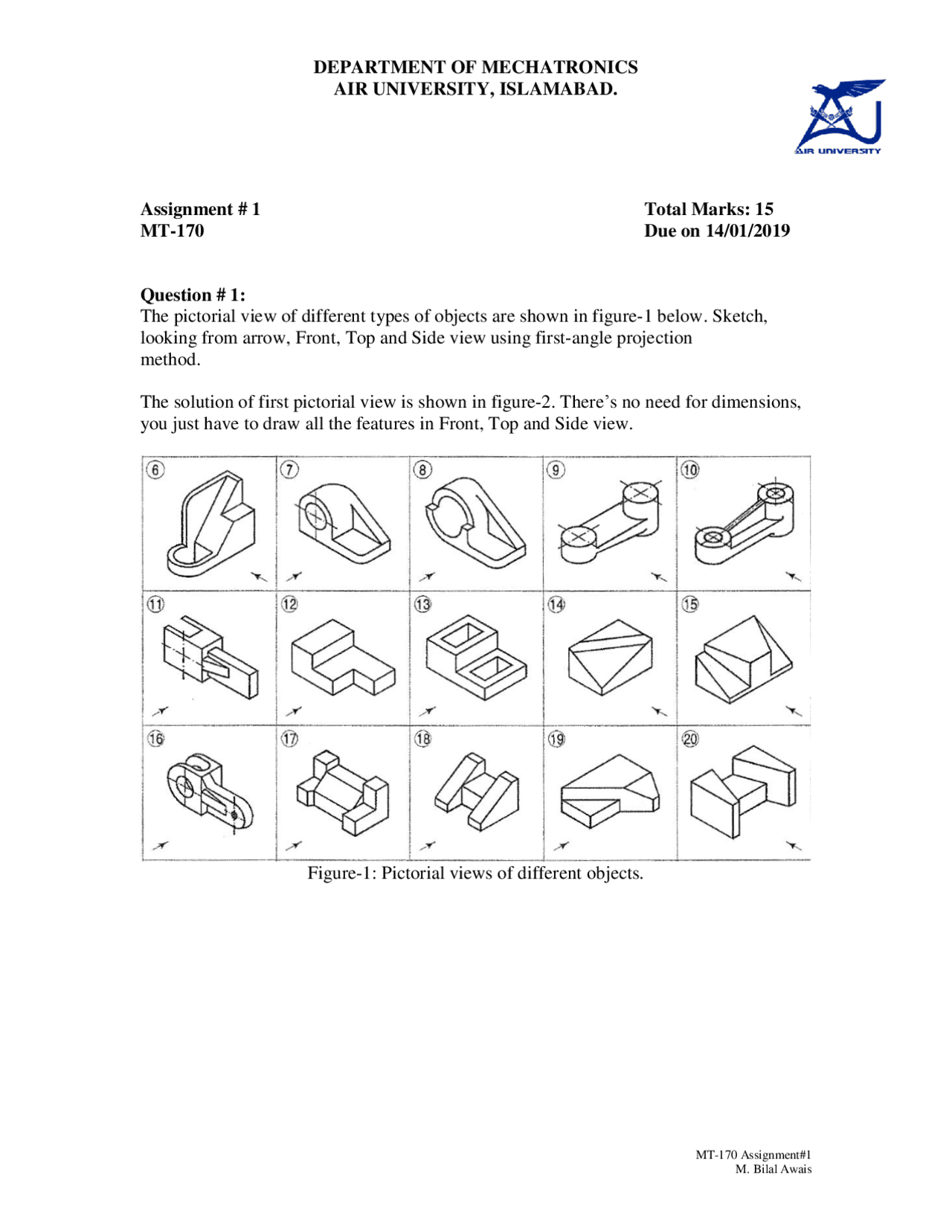

Figure-1: Pictorial views of different objects.
