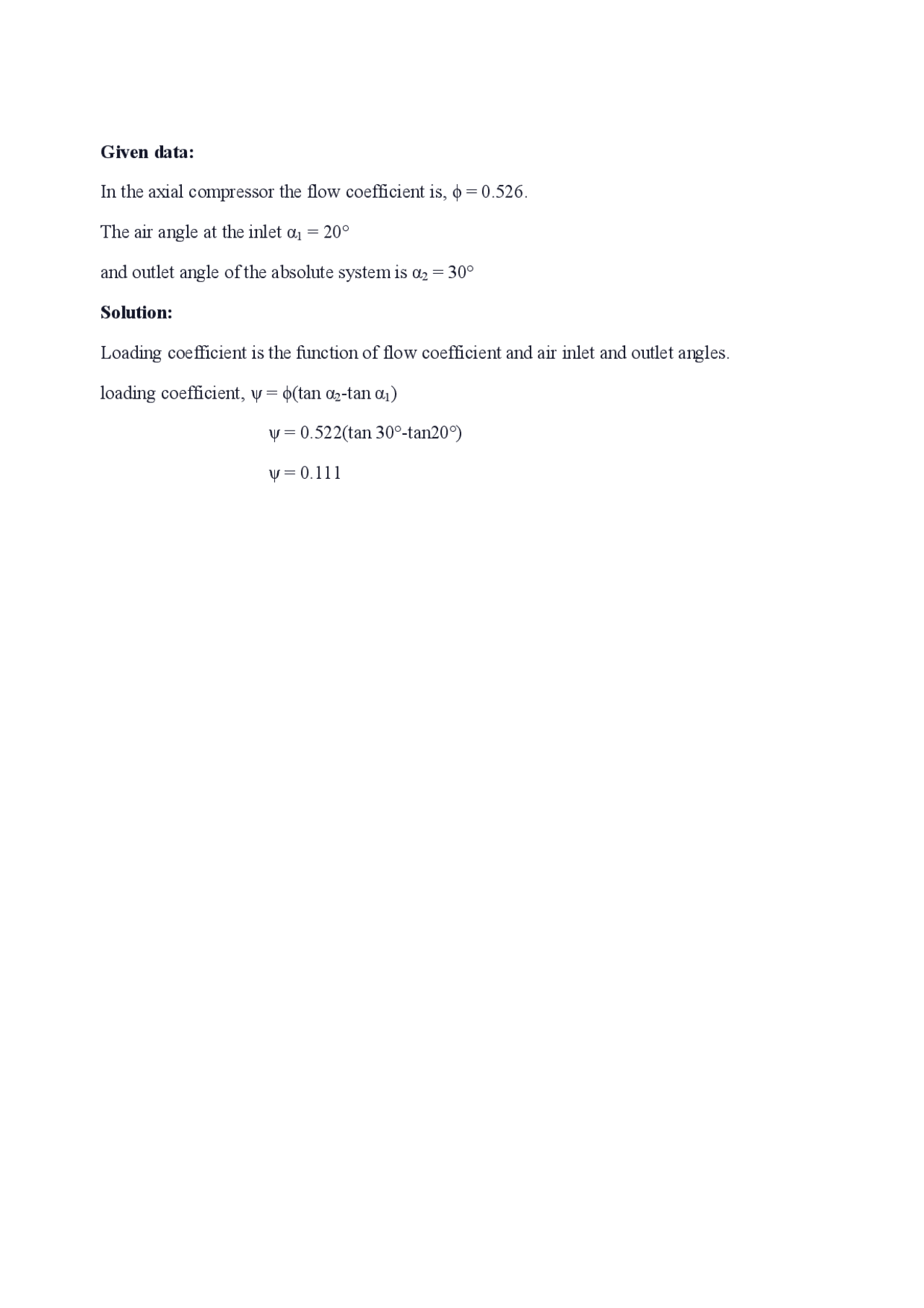

Given data:
In the axial compressor the flow coefficient is, ϕ = 0.526.
The air angle at the inlet α1 = 20°
and outlet angle of the absolute system is α2 = 30°
Solution:
Loading coefficient is the function of flow coefficient and air inlet and outlet angles.
loading coefficient, ψ = ϕ(tan α2-tan α1)
ψ = 0.522(tan 30°-tan20°)
ψ = 0.111
