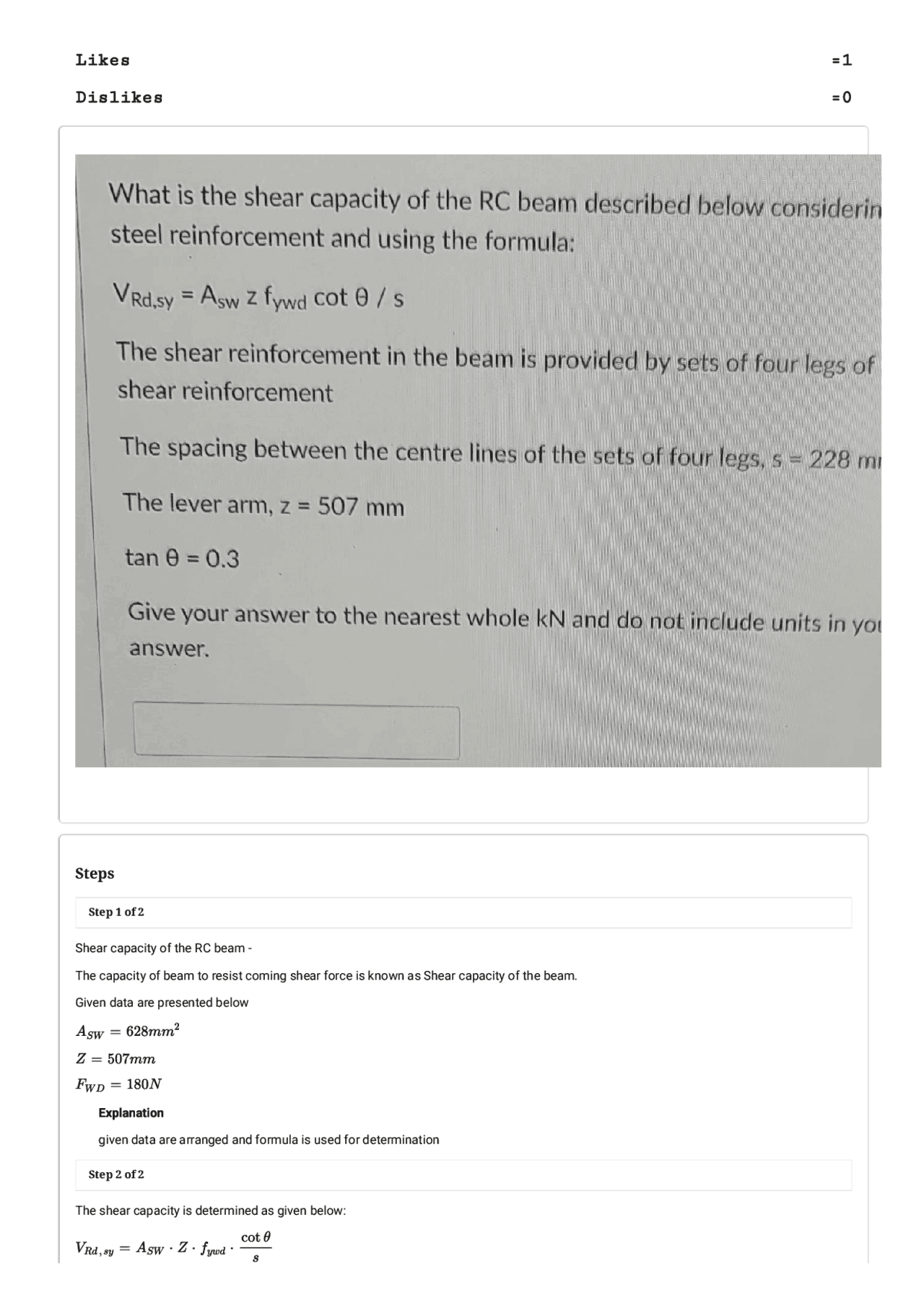

Shear capacity of the RC beam -
The capacity of beam to resist coming shear force is known as Shear capacity of the beam.
Given data are presented below
Explanation
given data are arranged and formula is used for determination
Step 2 of 2
The shear capacity is determined as given below:
ASW
= 628
mm
2
Z
= 507
mm
FWD
= 180
N
VRd
,
sy
=
ASW
⋅
Z
⋅
fywd
⋅cot
θ
s
pf2

Partial preview of the text

Download Solved solution available and more Assignments Mathematics in PDF only on Docsity!

Likes =

Dislikes =

Steps

Step 1 of 2

Shear capacity of the RC beam -

The capacity of beam to resist coming shear force is known as Shear capacity of the beam.

Given data are presented below

Explanation given data are arranged and formula is used for determination

Step 2 of 2

The shear capacity is determined as given below:

ASW = 628mm^2

Z = 507mm

FW D = 180N

VRd , sy = ASW ⋅ Z ⋅ fywd ⋅

cot θ s

shear force is calculated above

Explanation above formula is used for determination

Final Answer

Shear reinforcement of the RC beam= 837.884 KN

VRd , sy = 628 ⋅ 180 ⋅ 507 ⋅

VRd , sy = 837884.

VRd , sy = 837.884KN
