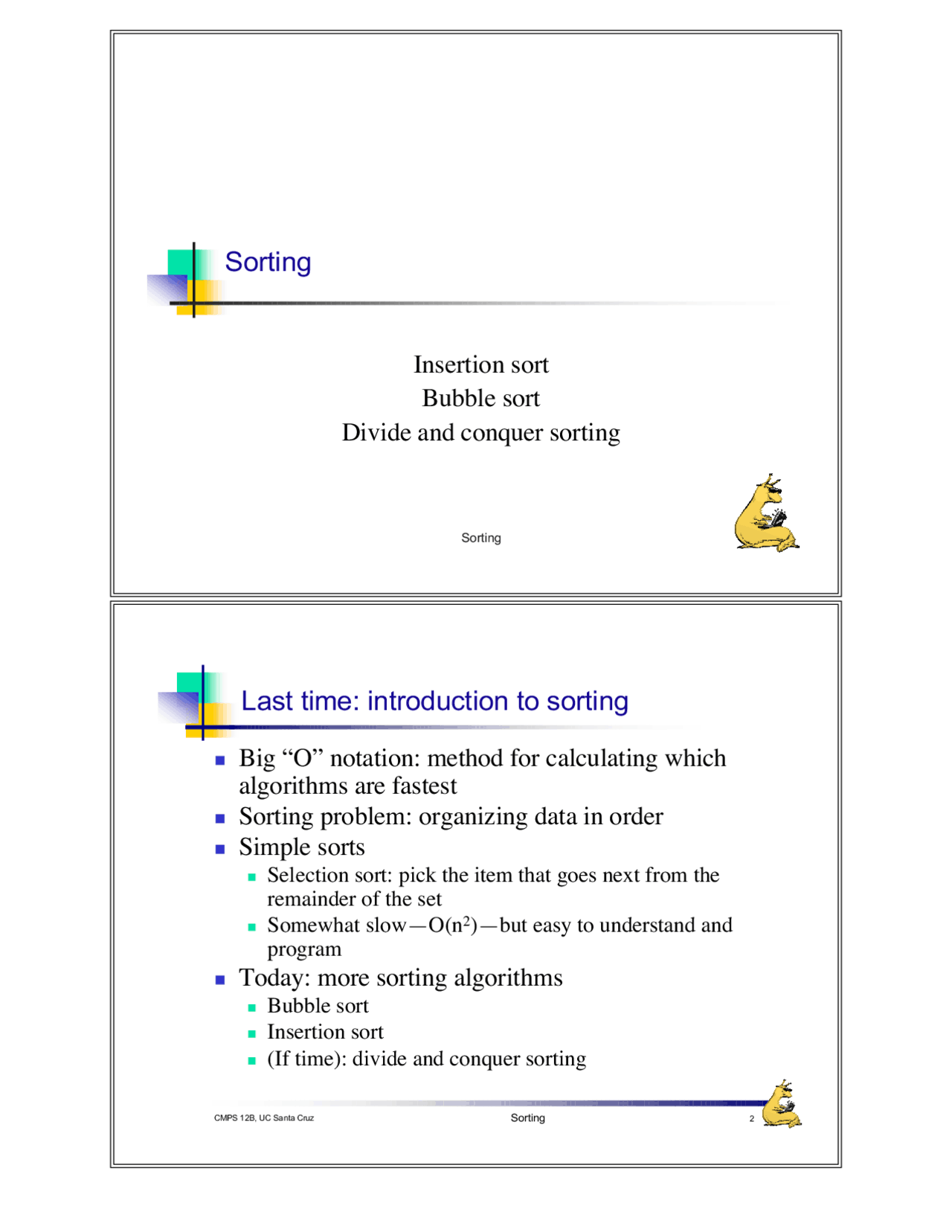

Sorting
Sorting
Insertion sort
Bubble sort
Divide and conquer sorting
Last time: introduction to sorting
! Big “O” notation: method for calculating which
algorithms are fastest
! Sorting problem: organizing data in order
! Simple sorts
! Selection sort: pick the item that goes next from the
remainder of the set
! Somewhat slow—O(n 2 )—but easy to understand and
program
! Today: more sorting algorithms
! Bubble sort
! Insertion sort
! (If time): divide and conquer sorting
CMPS 12B, UC Santa Cruz Sorting 3
Bubble sort
! Basic idea: run through the array, exchanging values
that are out of order
! May have to make multiple “passes” through the array
! Eventually, we will have exchanged all out-of-order
values, and the list will be sorted
! Easy to code!
! Unlike selection sort, bubble sort doesn’t have an
outer loop that runs once for each item in the array
! Bubble sort works well with either linked lists or
arrays
Bubble sort: code
do { done = 1; for (j = 0; j < nItems-1; j++) { if (arr[j] > arr[j+1]) { temp = arr[j]; arr[j] = arr[j+1]; arr[j+1] = temp; done = 0; } } } while (!done);
! Code is very short and simple
! Will it ever finish?
! Keeps going as long as at least one swap was made ! How do we know it’ll eventually end?
! Guaranteed finish: finite number
of swaps possible
! Large elements “bubble” to the end of the array ! Outer loop runs at most nItems- times
! Generally not a good sort
! OK if a few items slightly out of order
CMPS 12B, UC Santa Cruz Sorting 7
Pseudocode for insertion sort
while (unsorted list not empty) { pop item off unsorted list for (cur = sorted.first; cur is not last && cur.value < item.value; cur = cur.next) { ; if (cur.value < item.value) { insert item after cur // last on list } else { insert item before cur } } for (j = 1; j < nItems; j++) { curr = arr[j]; for (k = j-1; (k>=0) && (arr[k]>curr); k--) { arr[k+1] = arr[k]; } arr[k+1] = curr; }
How fast is insertion sort?
! Insertion sort has two nested loops
! Outer loop runs once for each element in the original
unsorted loop
! Inner loop runs through sorted list to find the right
insertion point
! Average time: 1/2 of list length
! The timing is similar to selection sort: O(n 2 )
! Can we improve this time?
! Inner loop has to find element just past the one we want to
insert
! We know of a way to this in O(log n) time: binary search!
! Requires arrays, but insertion sort works best on linked lists…
! Maybe there’s hope for faster sorting
CMPS 12B, UC Santa Cruz Sorting 9
How can we improve sorting speed?
! Why is sorting so slow?
! We have to iterate over the entire unsorted array
! Operations for each item we’re sorting take time O(n)
! Attack the problem by breaking it into smaller
pieces: divide and conquer
! Break the array in half
! Sort each half
! Merge the two halves together
! Is this any faster?
! May be faster because merging is easier than sorting…
Sorting by merging: mergesort
! Break the data into two
(equal) halves
! Recursively sort each half
the same way
! How many levels of splits
do we have?
! Each level takes time O(n)
! We have O(log n) levels!
! This means that total
required time is O(n log n)!
! It works because we can sort
smaller pieces
! Merging is very fast: O(n)
