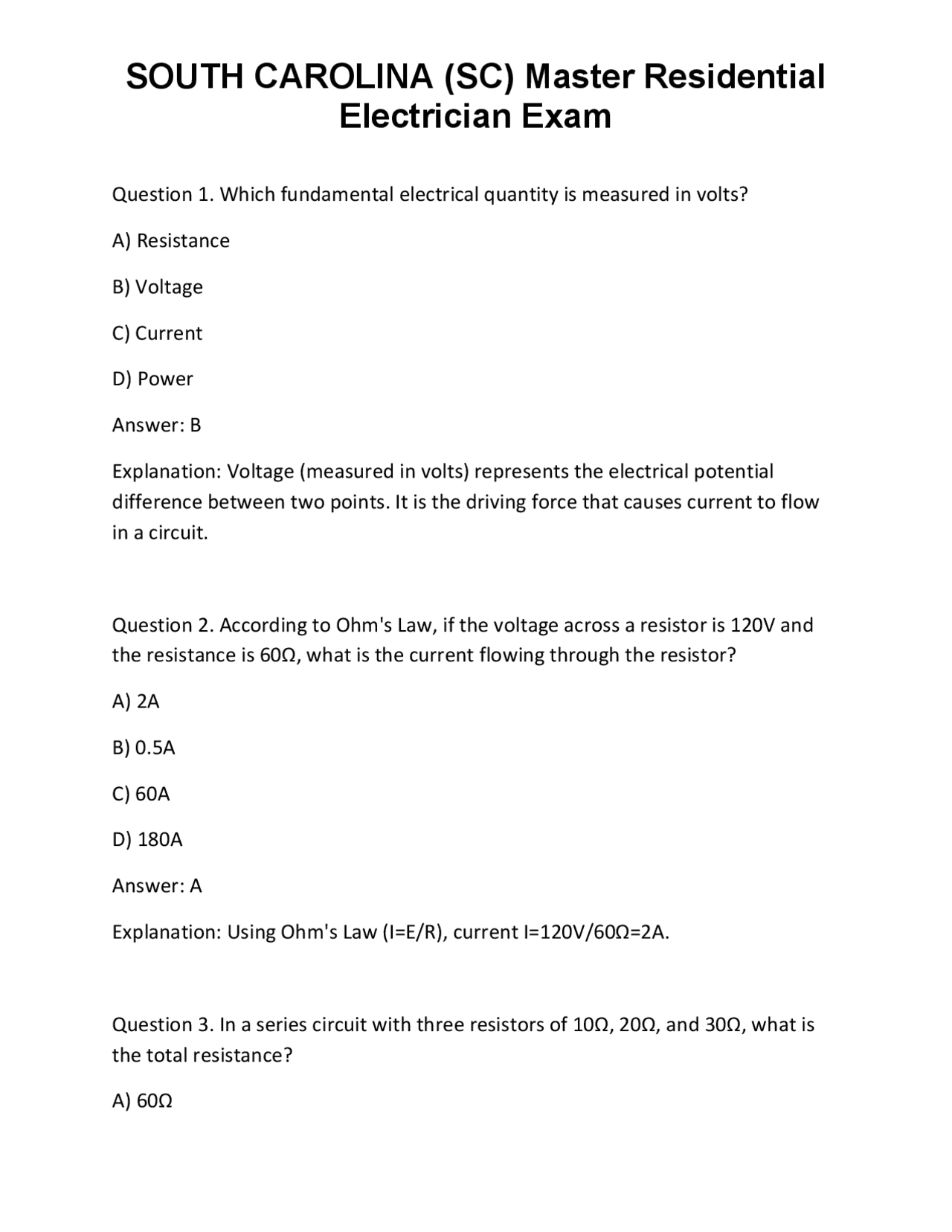

Electrician Exam
Question 1. Which fundamental electrical quantity is measured in volts? A) Resistance B) Voltage C) Current D) Power Answer: B Explanation: Voltage (measured in volts) represents the electrical potential difference between two points. It is the driving force that causes current to flow in a circuit. Question 2. According to Ohm's Law, if the voltage across a resistor is 120V and the resistance is 60Ω, what is the current flowing through the resistor? A) 2A B) 0.5A C) 60A D) 180A Answer: A Explanation: Using Ohm's Law (I=E/R), current I=120V/60Ω=2A. Question 3. In a series circuit with three resistors of 10Ω, 20Ω, and 30Ω, what is the total resistance? A) 60Ω
Electrician Exam
B) 20Ω
C) 10Ω
D) 40Ω
Answer: A Explanation: Total resistance in series is the sum: 10Ω + 20Ω + 30Ω = 60Ω. Question 4. Which statement best describes a parallel circuit? A) The total resistance is the sum of individual resistances. B) The current divides equally among branches. C) Voltage across each branch is the same. D) Resistance increases as more branches are added. Answer: C Explanation: In parallel circuits, the voltage across each branch remains equal, while the total current divides among the branches. Question 5. Which of the following is a key difference between AC and DC circuits? A) AC current flows in one direction only. B) DC voltage varies sinusoidally over time. C) AC is used mainly in residential power supply. D) DC is used in transformers.
Electrician Exam
Question 8. Which safety principle involves shutting off power and tagging equipment before maintenance? A) Arc-flash hazard assessment B) Lockout/Tagout procedures C) PPE enforcement D) Grounding Answer: B Explanation: Lockout/Tagout procedures ensure that equipment is de-energized and tagged to prevent accidental energization during maintenance. Question 9. Which type of personal protective equipment is essential when working on live electrical circuits? A) Steel-toed boots B) Insulated gloves C) Safety goggles D) Ear protection Answer: B Explanation: Insulated gloves provide protection against electrical shocks when working near live circuits.
Electrician Exam
Question 10. Which instrument is used to measure the resistance between two points in a circuit? A) Multimeter B) Circuit tracer C) Ground GFCI tester D) Clamp meter Answer: A Explanation: A multimeter can measure resistance, voltage, and current; resistance measurement is essential for troubleshooting. Question 11. How should a multimeter be calibrated before use? A) By adjusting the zero ohms setting B) By following manufacturer instructions and verifying calibration standards C) Calibration is not necessary D) By connecting it to live power sources Answer: B Explanation: Proper calibration involves following manufacturer instructions and verifying against known standards to ensure accuracy. Question 12. What does a blue electrical symbol on a blueprint typically represent? A) Power source
Electrician Exam
D) Article 310 Answer: C Explanation: NEC Article 220 covers service sizing and load calculations for dwelling units. Question 15. For a dwelling unit, which of the following is required for an emergency disconnect? A) Located at the main service entrance B) Rated at 200A minimum C) Easily accessible and clearly marked D) Located in the garage only Answer: C Explanation: Emergency disconnects must be easily accessible, clearly marked, and capable of quickly disconnecting power for safety. Question 16. When sizing a feeder conductor for a subpanel, what should be considered? A) Length of the conductor only B) Total load demand and voltage drop C) Number of circuits in the main panel D) Only the conductor's insulation type Answer: B
Electrician Exam
Explanation: Calculations should consider total load demand and voltage drop to ensure proper sizing and performance. Question 17. Which NEC article mandates GFCI protection for receptacles in dwelling units? A) 210. B) 210. C) 210. D) 250. Answer: A Explanation: NEC Article 210.8 requires GFCI protection for receptacles in specific locations within dwelling units. Question 18. Which branch circuit protection device is designed to protect against arc faults? A) GFCI B) AFCI C) Standard circuit breaker D) Fuse Answer: B Explanation: AFCI (Arc-Fault Circuit Interrupter) devices detect arc faults and disconnect the circuit to prevent fires.
Electrician Exam
A) To prevent electrical shock hazards B) To increase current flow C) To reduce resistance D) To improve efficiency Answer: A Explanation: Grounding provides a safe path for fault current, reducing the risk of electrical shock. Question 22. Which grounding electrode is typically driven into the earth near the building? A) Ground rod B) Metal water pipe C) Concrete-encased electrode D) All of the above Answer: D Explanation: All listed options can serve as grounding electrodes provided they meet NEC requirements. Question 23. What size grounding electrode conductor is generally required for a 100A service? A) 8 AWG copper B) 6 AWG copper
Electrician Exam
C) 4 AWG copper D) 2 AWG copper Answer: B Explanation: NEC Table 250.66 indicates that a 6 AWG copper conductor is typically used for a 100A service. Question 24. When bonding a metal water pipe to the grounding system, what is the minimum conductor size? A) 14 AWG B) 10 AWG C) 8 AWG D) 6 AWG Answer: A Explanation: NEC requires at least 18 AWG copper or equivalent for bonding water pipes, but 14 AWG is commonly used. Question 25. Which of the following best describes the function of a bonding jumper? A) Connects a grounding conductor to a grounding electrode B) Connects metal parts to the grounding system C) Isolates circuits from each other D) Protects against overcurrent
Electrician Exam
Question 28. Which type of cable is nonmetallic-sheathed and commonly used in residential wiring? A) Type NM B) Type UF C) Type MC D) Type SE Answer: A Explanation: Type NM (Nonmetallic Sheathed) cable is widely used in residential wiring for interior circuits. Question 29. Which of the following is an important consideration when bending conduit? A) Maintaining a minimum bend radius B) Using a hammer for bends C) Bending only when hot D) Bending without supports Answer: A Explanation: Maintaining a minimum bend radius prevents damage to conductors and ensures code compliance. Question 30. In conduit fill calculations, what does NEC Chapter 9 address?
Electrician Exam
A) Conductor sizing B) Raceway fill limits C) Grounding requirements D) Receptacle spacing Answer: B Explanation: NEC Chapter 9 contains tables and rules for calculating the fill capacity of raceways and conduit. Question 31. Which type of conduit is flexible and often used for connecting fixtures or equipment subject to movement? A) RMC B) EMT C) FMC D) PVC Answer: C Explanation: Flexible Metal Conduit (FMC) is designed for applications requiring movement or flexibility. Question 32. What is the primary benefit of using conduit in residential wiring? A) Provides physical protection for conductors B) Eliminates the need for grounding
Electrician Exam
Answer: B Explanation: All conductors, devices, and fittings occupying the box must be included in box fill calculations per NEC Article 314. Question 35. Which of the following is an example of a weatherproof enclosures suitable for outdoor wet locations? A) Regular outlet box B) Weatherproof junction box with cover C) Standard switch box D) Open conduit connection Answer: B Explanation: Weatherproof junction boxes with appropriate covers are designed to protect wiring connections outdoors in wet locations. Question 36. Which type of raceway is most suitable for indoor light fixture wiring? A) RMC B) PVC conduit C) EMT D) LFMC Answer: C
Electrician Exam
Explanation: Electrical Metallic Tubing (EMT) is commonly used indoors for wiring fixtures due to ease of installation and protection. Question 37. What does a 'pull point' in conduit systems provide? A) A point to access conductors for pulling or splicing B) A grounding connection C) A junction for multiple circuits D) A device for measuring current Answer: A Explanation: Pull points are accessible locations in conduit to facilitate pulling conductors or splicing. Question 38. Which of the following is a primary safety concern associated with arc-flash hazards? A) Overcurrent B) Sudden release of intense heat and light C) Ground faults D) Electromagnetic interference Answer: B Explanation: Arc-flash hazards involve a sudden release of energy that can cause burns, fires, or injuries.
Electrician Exam
C) Continuity mode D) Current mode Answer: C Explanation: Continuity mode checks whether a complete path exists between two points, indicating no breaks. Question 42. In blueprint symbols, what does a circle with a letter 'L' typically represent? A) Light fixture B) Receptacle C) Switch D) Junction box Answer: A Explanation: A circle with an 'L' usually indicates a light fixture in electrical plans. Question 43. When developing a basic sketch for electrical installation, what is most important to include? A) Exact measurements B) Clear representations of wiring paths and locations of outlets and switches C) Complete circuit calculations D) Material specifications
