Exam

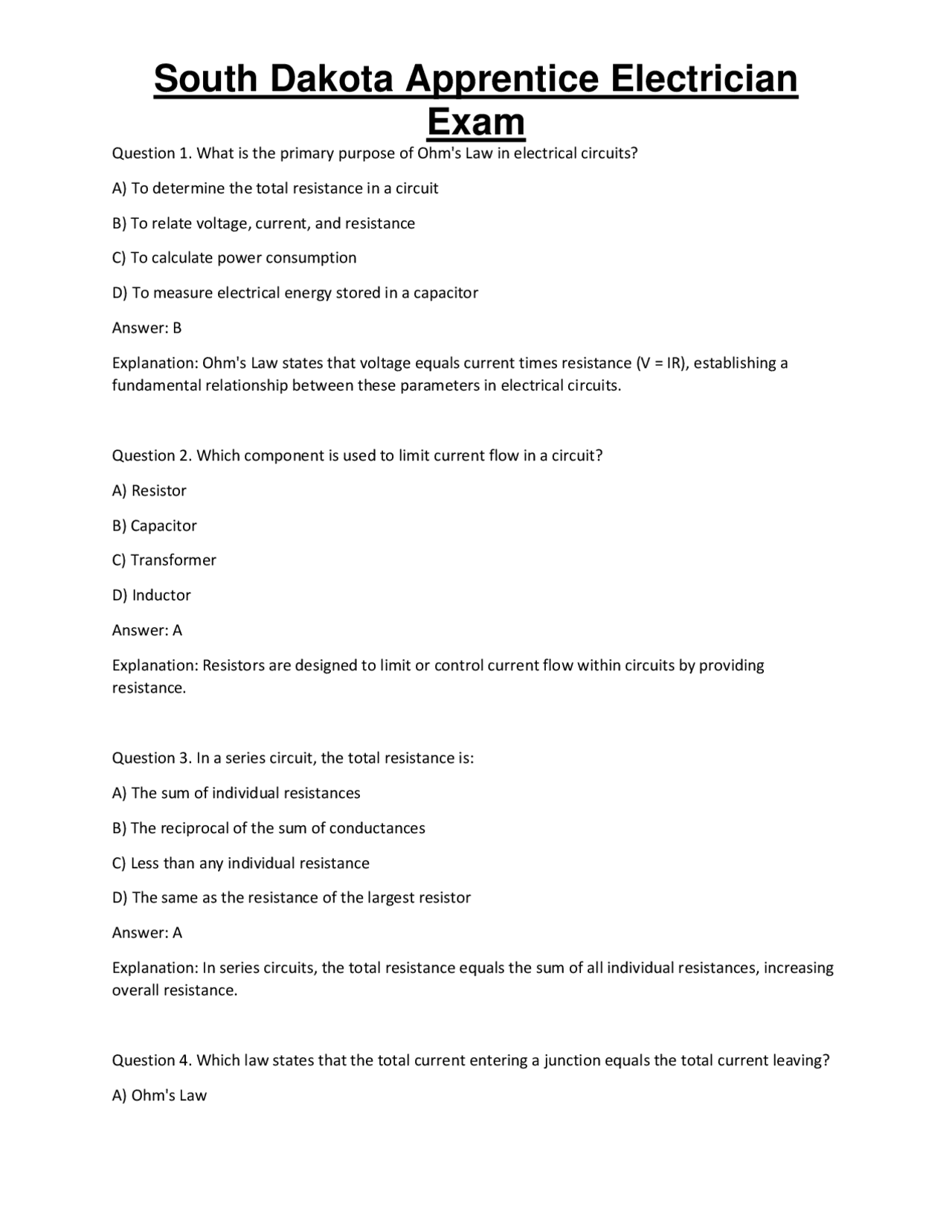

Question 1. What is the primary purpose of Ohm's Law in electrical circuits? A) To determine the total resistance in a circuit B) To relate voltage, current, and resistance C) To calculate power consumption D) To measure electrical energy stored in a capacitor Answer: B Explanation: Ohm's Law states that voltage equals current times resistance (V = IR), establishing a fundamental relationship between these parameters in electrical circuits. Question 2. Which component is used to limit current flow in a circuit? A) Resistor B) Capacitor C) Transformer D) Inductor Answer: A Explanation: Resistors are designed to limit or control current flow within circuits by providing resistance. Question 3. In a series circuit, the total resistance is: A) The sum of individual resistances B) The reciprocal of the sum of conductances C) Less than any individual resistance D) The same as the resistance of the largest resistor Answer: A Explanation: In series circuits, the total resistance equals the sum of all individual resistances, increasing overall resistance. Question 4. Which law states that the total current entering a junction equals the total current leaving? A) Ohm's Law
Exam
B) Kirchhoff's Voltage Law C) Kirchhoff's Current Law D) Power Law Answer: C Explanation: Kirchhoff's Current Law (KCL) asserts that the algebraic sum of currents at a junction is zero, meaning current entering equals current leaving. Question 5. What does a power factor of less than 1 indicate? A) The circuit is purely resistive B) The circuit has reactive components causing phase difference C) The circuit is overpowered D) The circuit is operating at maximum efficiency Answer: B Explanation: A power factor less than 1 indicates reactive components like inductors or capacitors cause a phase difference between voltage and current. Question 6. Which type of current flows in one constant direction? A) Alternating Current (AC) B) Direct Current (DC) C) Both AC and DC D) Neither AC nor DC Answer: B Explanation: Direct Current (DC) flows in a single direction, whereas AC periodically reverses direction. Question 7. Which characteristic is unique to AC waveforms? A) Constant voltage B) Frequency and phase variation C) Unidirectional flow D) No impedance
Exam
Question 11. Copper is preferred as a conductor mainly because of its: A) High resistance B) Low cost and high conductivity C) Insulating properties D) Resistance to corrosion only Answer: B Explanation: Copper has high electrical conductivity and is cost-effective, making it ideal for conductors. Question 12. The resistance of a conductor is affected by all of the following EXCEPT: A) Material type B) Length of the conductor C) Cross-sectional area D) The color of the conductor Answer: D Explanation: The color of a conductor does not affect its resistance; material, length, and cross-sectional area do. Question 13. Which type of insulation is rated for high voltages and used in power transmission lines? A) Thermoplastic B) Thermoset C) Mineral-insulated D) Rigid plastic conduit Answer: C Explanation: Mineral-insulated conductors are rated for high voltages and used in power transmission. Question 14. The purpose of the NEC is to: A) Provide electrical safety standards and guidelines
Exam
B) Design lighting layouts only C) Regulate manufacturing of electrical equipment D) Control environmental pollution Answer: A Explanation: The National Electrical Code (NEC) establishes safety standards for electrical installations to protect persons and property. Question 15. Which article of the NEC primarily covers general requirements for electrical installations? A) Article 90 B) Article 100 C) Article 110 D) Article 250 Answer: A Explanation: Article 90 provides the purpose, scope, and general requirements for electrical installations. Question 16. The term "branch circuit" refers to: A) The main power supply to a building B) The circuit supplying one or more outlets or fixtures C) The conductors connecting transformers D) The grounding system Answer: B Explanation: A branch circuit supplies outlets, fixtures, or appliances from the distribution point to individual loads. Question 17. Which device is used to protect conductors from overcurrent? A) Transformer B) Fuse or circuit breaker C) Resistor
Exam
Explanation: Flexible cords are insulated with rubber or thermoplastic for flexibility and safety. Question 21. The purpose of a conduit in electrical wiring is to: A) Protect conductors from physical damage B) Increase electrical resistance C) Reduce electromagnetic interference D) Serve as a grounding conductor Answer: A Explanation: Conduits shield conductors from physical damage and environmental factors. Question 22. Which type of lighting is most energy-efficient? A) Incandescent B) Fluorescent C) LED D) HID Answer: C Explanation: LED lighting provides high energy efficiency and long lifespan compared to incandescent and HID lamps. Question 23. Which symbol typically represents a switch on an electrical diagram? A) A circle with a line through it B) A zigzag line C) A break in a line with an opening D) A rectangle with a diagonal line Answer: C Explanation: A switch symbol usually depicts a break in the circuit line with an open contact indicating the switch position. Question 24. In a wiring diagram, a dotted line around a component indicates:
Exam
A) A physical enclosure or specific grouping B) A circuit fault C) A power source D) A ground connection Answer: A Explanation: Dotted lines often represent enclosures, boundaries, or groupings of components in diagrams. Question 25. When reading a panel schedule, the "Ampacity" indicates: A) The maximum current the conductor or device can handle safely B) The voltage rating of the device C) The power consumption of the load D) The number of circuits in the panel Answer: A Explanation: Ampacity refers to the maximum current an electrical conductor or device can carry safely without overheating. Question 26. Which wiring method is commonly used for residential branch circuits? A) Rigid conduit B) Non-metallic (NM) cable C) Flexible conduit D) Metal-clad (MC) cable only Answer: B Explanation: NM cable, such as Romex, is widely used in residential wiring for its ease of installation. Question 27. In industrial wiring, what is the typical purpose of motor control centers? A) To distribute lighting in factories B) To control and protect motors and related equipment C) To provide backup power for entire facilities
Exam
Explanation: AC induction motors with variable frequency drives allow precise speed control for industrial applications. Question 31. Incandescent lamps produce light primarily through: A) Excited gas discharge B) Heating a filament until it glows C) Phosphor coating fluorescence D) Electron emission from a cathode Answer: B Explanation: Incandescent lamps generate light by heating a tungsten filament until it glows. Question 32. Which device is used to automatically turn lights on when occupancy is detected? A) Dimmer switch B) Occupancy sensor C) Photocell D) Timer switch Answer: B Explanation: Occupancy sensors detect movement or presence to automatically control lighting. Question 33. Which of the following is a low-voltage system? A) Main service entrance wiring B) Fire alarm signaling system C) High-tension transmission lines D) Industrial motor feeders Answer: B Explanation: Fire alarm systems typically operate on low voltage for safety and control purposes. Question 34. What is the main function of a GFCI?
Exam
A) Protect against overcurrent B) Detect ground faults and shut off power C) Limit current flow in high-voltage circuits D) Protect against voltage surges Answer: B Explanation: GFCIs detect ground faults and trip to prevent electrical shock hazards. Question 35. When performing a lockout/tagout procedure, what is the primary goal? A) To prevent unauthorized access to equipment B) To ensure equipment is de-energized and cannot be operated during maintenance C) To label electrical components for identification D) To test the circuit for continuity Answer: B Explanation: Lockout/tagout procedures prevent accidental energization during maintenance, ensuring safety. Question 36. Which PPE is essential when working on energized circuits? A) Safety goggles and insulated gloves B) Hearing protection only C) Hard hat only D) Steel-toed boots only Answer: A Explanation: Insulated gloves and safety goggles protect against electrical shock and arc flash hazards. Question 37. What is a common symptom of an open circuit in an electrical system? A) Continuity test passes with low resistance B) No current flow at the load C) Excessive current flow
Exam
Question 41. What is the typical voltage rating for residential branch circuit outlets in South Dakota? A) 120V only B) 120V and 240V C) 277V D) 480V Answer: B Explanation: Residential outlets are typically rated for 120V, with some appliances requiring 240V circuits. Question 42. Which type of conduit is most suitable for outdoor or exposed environments? A) EMT (Electrical Metallic Tubing) B) Rigid metal conduit (RMC) C) Non-metallic conduit (PVC) D) Flexible cord Answer: C Explanation: PVC conduit is weather-resistant and suitable for outdoor or exposed environments. Question 43. When selecting conductors for a circuit, the ampacity must be based on: A) The lowest rated component in the circuit B) The maximum current the conductor can safely carry C) The length of the conductor only D) The voltage drop alone Answer: B Explanation: Conductors must be sized to handle the maximum current safely, considering ampacity ratings. Question 44. The purpose of a panel schedule is to: A) Show the physical location of circuits
Exam
B) List circuits, their loads, and breaker ratings C) Detail wiring methods D) Explain grounding procedures Answer: B Explanation: Panel schedules list circuit numbers, loads, and breaker ratings for proper system management. Question 45. In troubleshooting, a multimeter set to measure voltage should be placed: A) Across the load terminals to check for voltage presence B) In series with the circuit C) Between ground and a live conductor only D) To measure resistance first Answer: A Explanation: To verify voltage, the multimeter should be connected across the circuit or component terminals. Question 46. Which motor starter type provides overload protection and remote control? A) Star-delta starter B) Direct-on-line (DOL) starter C) Magnetic motor starter (contactor-based) D) Variable frequency drive Answer: C Explanation: Magnetic starters with contactors provide overload protection and remote control capability. Question 47. Which lighting type is most suitable for high-intensity industrial applications? A) Incandescent B) HID (High-Intensity Discharge) C) Fluorescent
Exam
Question 51. Which device is primarily used to measure electrical current in a circuit? A) Voltmeter B) Ohmmeter C) Ammeter D) Insulation tester Answer: C Explanation: An ammeter measures the flow of current in a circuit, providing current readings directly. Question 52. Which law relates the power dissipated in a resistor to voltage and current? A) Ohm's Law B) Power Law (P = VI) C) Kirchhoff's Voltage Law D) Kirchhoff's Current Law Answer: B Explanation: Power dissipation in a resistor is calculated as P = VI, relating voltage and current directly. Question 53. In a parallel circuit, the total current is: A) The sum of individual branch currents B) Equal to the current through the largest resistor C) The same as the voltage across each branch D) The reciprocal of the total resistance Answer: A Explanation: In parallel circuits, total current equals the sum of currents through each branch. Question 54. Which component stores electrical energy in an electric field? A) Inductor B) Capacitor
Exam
C) Resistor D) Transformer Answer: B Explanation: Capacitors store electrical energy in an electric field between their plates. Question 55. What is the primary function of a transformer in electrical systems? A) To change AC voltage levels B) To convert AC to DC C) To store electrical energy D) To protect against overcurrent Answer: A Explanation: Transformers adjust voltage levels through electromagnetic induction, either stepping up or down voltage. Question 56. Which material is most suitable for high-voltage insulators? A) Rubber B) Glass or porcelain C) Copper D) Aluminum Answer: B Explanation: Glass and porcelain are non-conductive materials suitable for high-voltage insulation. Question 57. What is the main purpose of the National Electrical Code (NEC)? A) To regulate electrical energy prices B) To ensure safe electrical design and installation practices C) To standardize manufacturing processes D) To promote energy conservation only Answer: B
Exam
A) 14 or 12 AWG B) 4/0 AWG C) 1/0 AWG D) 8 AWG only Answer: A Explanation: 14 AWG is used for 15-amp circuits, and 12 AWG for 20-amp circuits in residential wiring. Question 62. The main function of a circuit breaker is to: A) Convert AC to DC B) Protect circuits from overcurrent and short circuits C) Step voltage levels up or down D) Store charge for backup power Answer: B Explanation: Circuit breakers automatically disconnect power during overloads or short circuits to prevent damage. Question 63. In electrical safety, what does the term "lockout/tagout" refer to? A) Labeling circuits for identification B) Securing equipment to prevent accidental energization during maintenance C) Testing circuit continuity D) Grounding equipment properly Answer: B Explanation: Lockout/tagout involves physically locking and tagging equipment to ensure it remains de- energized during service. Question 64. Which PPE is essential for arc flash protection? A) Hard hat only B) Arc-rated clothing and face shield C) Steel-toed boots only
Exam
D) Ear plugs only Answer: B Explanation: Arc-rated clothing, face shields, and gloves protect against arc flash hazards. Question 65. When troubleshooting an electrical problem, the first step is to: A) De-energize the circuit and perform visual inspection B) Replace all components C) Reset all circuit breakers D) Increase circuit voltage Answer: A Explanation: The initial step involves turning off power and visually inspecting for obvious issues. Question 66. Which test instrument is used to verify the presence of voltage without making contact? A) Multimeter in voltage mode B) Non-contact voltage tester C) Continuity tester D) Megohmmeter Answer: B Explanation: Non-contact voltage testers detect voltage presence without direct contact, enhancing safety. Question 67. Which type of motor is typically used in appliances and small tools? A) Synchronous motor B) Universal motor C) Three-phase induction motor D) DC motor with variable resistor control Answer: B Explanation: Universal motors are lightweight, high-speed motors used in household appliances and power tools.
