Electrician Exam

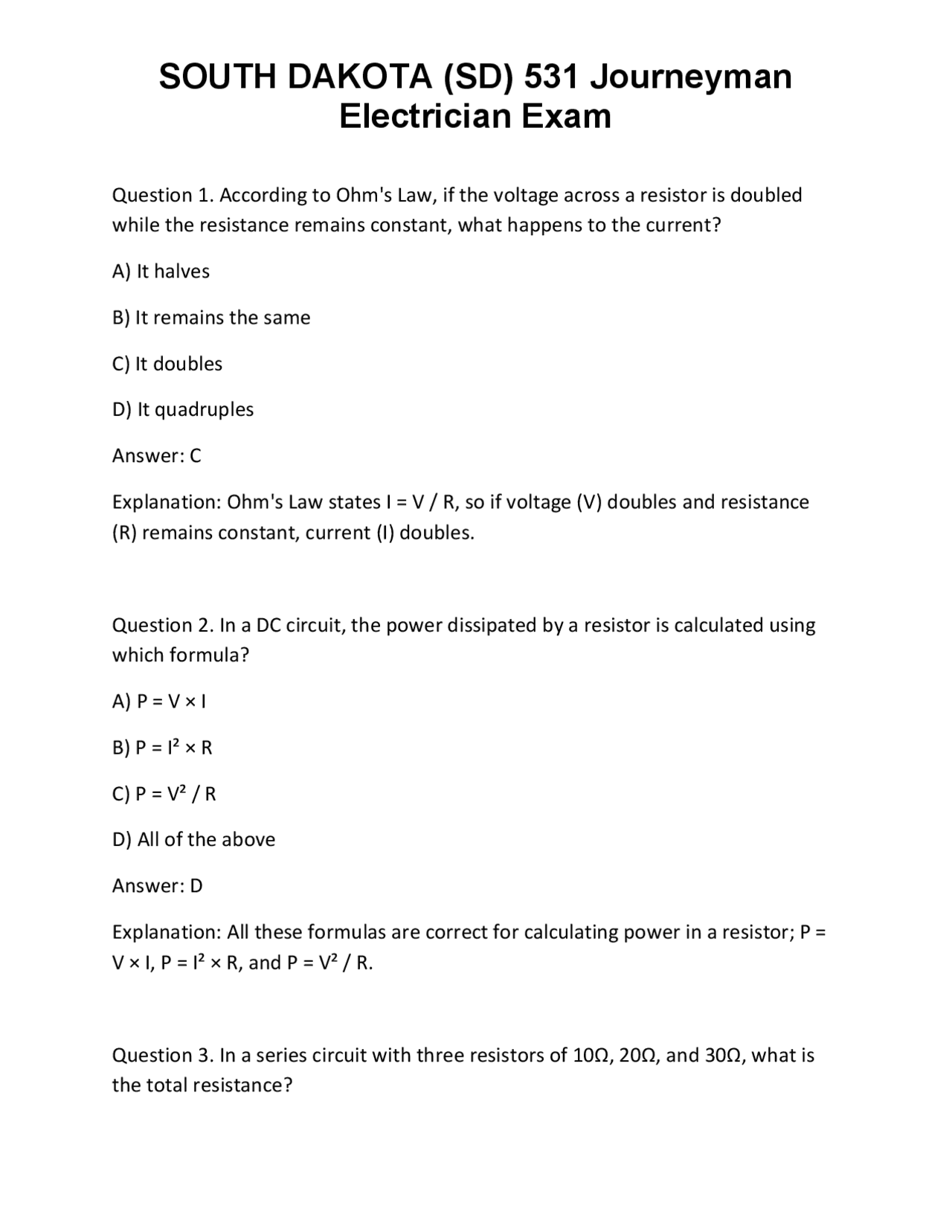

Question 1. According to Ohm's Law, if the voltage across a resistor is doubled while the resistance remains constant, what happens to the current? A) It halves B) It remains the same C) It doubles D) It quadruples Answer: C Explanation: Ohm's Law states I = V / R, so if voltage (V) doubles and resistance (R) remains constant, current (I) doubles. Question 2. In a DC circuit, the power dissipated by a resistor is calculated using which formula? A) P = V × I B) P = I² × R C) P = V² / R D) All of the above Answer: D Explanation: All these formulas are correct for calculating power in a resistor; P = V × I, P = I² × R, and P = V² / R. Question 3. In a series circuit with three resistors of 10Ω, 20Ω, and 30Ω, what is the total resistance?
Electrician Exam
A) 60Ω
B) 20Ω
C) 10Ω
D) 60Ω divided by 3 Answer: A Explanation: In series, total resistance is the sum: 10Ω + 20Ω + 30Ω = 60Ω. Question 4. Which characteristic distinguishes a parallel circuit from a series circuit? A) Same current flows through all components B) Total resistance is the sum of individual resistances C) Voltage across each component is the same D) Components are connected end-to-end Answer: C Explanation: In parallel circuits, voltage across each branch is the same, whereas in series, voltage divides among components. Question 5. What is the primary effect of reactance in an AC circuit? A) It causes resistance to vary with temperature B) It opposes changes in current due to inductance or capacitance C) It converts AC to DC
Electrician Exam
Explanation: Transformers transfer electrical energy between circuits and change voltage levels in AC systems. Question 8. When reading a blueprint, what does the symbol "G" typically represent? A) Ground connection B) GFCI outlet C) Generator D) Gas line Answer: A Explanation: "G" commonly indicates a grounding point or connection in electrical schematics. Question 9. In an electrical schematic, a zigzag line symbolizes which component? A) Resistor B) Capacitor C) Inductor D) Transformer Answer: A Explanation: A zigzag line is the standard symbol for a resistor in electrical diagrams.
Electrician Exam
Question 10. When interpreting architectural drawings, what measurement is critical for ensuring proper electrical device placement? A) Door swing radius B) Wall thickness and height C) Window dimensions D) Ceiling height only Answer: B Explanation: Wall thickness and height determine the placement and mounting height of electrical devices and boxes. Question 11. Which test instrument is most appropriate for measuring the resistance of an electrical circuit? A) Multimeter B) Clamp meter C) Insulation tester D) Oscilloscope Answer: A Explanation: A multimeter can measure resistance, current, and voltage; resistance measurement is common for troubleshooting. Question 12. When using an insulation tester, what does a high resistance reading indicate?
Electrician Exam
C) Overcurrent conditions D) Circuit overloads Answer: A Explanation: Lockout/Tagout procedures ensure that electrical equipment cannot be energized during servicing, preventing accidents. Question 15. Which of the following is a primary hazard associated with arc flash? A) Electric shock B) Thermal burns and intense light C) Radio frequency interference D) Ground faults Answer: B Explanation: Arc flash releases intense heat and light, causing burns and eye damage. Question 16. The National Electrical Code (NEC) requires that service conductors be sized based on which of the following factors? A) Conductor material only B) Calculated load, conductor adjustment factors, and voltage drop C) Length of the building D) Number of circuits installed
Electrician Exam
Answer: B Explanation: NEC considers load calculations, conductor properties, and voltage drop to determine appropriate conductor sizing. Question 17. When selecting a meter for measuring current in a circuit, what is the most important factor? A) Its input impedance B) Its current range capacity and proper connection in series C) Its ability to measure resistance D) Its size and weight Answer: B Explanation: Ammeters (or clamp meters) must be connected in series and have the appropriate current range to measure current safely and accurately. Question 18. Which overcurrent protective device is most commonly used for residential branch circuits? A) Fuses only B) Circuit breakers C) Time-delay relays D) Ground-fault interrupters Answer: B
Electrician Exam
Question 21. Which of the following is an example of a nonmetallic-sheathed cable? A) NM cable B) MC cable C) Rigid conduit D) PVC conduit Answer: A Explanation: NM (non-metallic) cable uses a plastic sheath and is commonly used in residential wiring. Question 22. What is the primary purpose of a junction box? A) To connect and protect wiring splices and terminations B) To serve as a conduit support C) To house circuit breakers D) To serve as a grounding point Answer: A Explanation: Junction boxes provide a protected enclosure for splicing and terminating conductors. Question 23. When installing conduit, what is the maximum bending radius typically recommended? A) 3 times the conduit diameter
Electrician Exam
B) 6 times the conduit diameter C) 10 times the conduit diameter D) 12 inches regardless of diameter Answer: B Explanation: The NEC generally recommends a minimum bend radius of 6 times the conduit diameter to prevent damage and maintain proper fill. Question 24. Which type of conduit is most suitable for underground installation and provides corrosion resistance? A) EMT B) Rigid metal conduit (RMC) C) PVC conduit D) FMC Answer: C Explanation: PVC conduit is nonmetallic, corrosion-resistant, and suitable for underground use. Question 25. In a multiwire branch circuit, how are the ungrounded conductors typically connected? A) To separate overcurrent devices B) To a common circuit breaker or handle tie C) To different phases
Electrician Exam
Explanation: Copper is the most common conductor material due to its excellent conductivity and flexibility. Question 28. When installing a GFCI receptacle, which locations require it? A) Bathrooms, kitchens, outdoor, garages, and crawl spaces B) Only outdoor outlets C) All outlets in the house D) Only in the garage Answer: A Explanation: GFCI protection is required in areas with increased risk of shock, including bathrooms, kitchens, outdoors, garages, and crawl spaces. Question 29. What is the purpose of an AFCI device? A) Protect against arc faults that could cause fires B) Detect ground faults C) Provide surge protection D) Protect against overloads Answer: A Explanation: AFCI (Arc-Fault Circuit Interrupter) devices detect arc faults that can start fires and disconnect power.
Electrician Exam
Question 30. Which type of conduit is most suitable for seismic zones due to its flexibility and strength? A) EMT B) IMC C) Rigid metal conduit (RMC) D) FMC (Flexible Metal Conduit) Answer: D Explanation: FMC is flexible and durable, making it suitable for seismic zones where movement or vibration occurs. Question 31. When calculating the conductor size for a feeder, which code section provides the primary guidance? A) NEC Article 310 B) NEC Article 240 C) NEC Article 250 D) NEC Article 300 Answer: A Explanation: NEC Article 310 covers conductors, including sizing, ampacity, and installation requirements. Question 32. The purpose of a grounding conductor is to: A) Carry current during normal operation
Electrician Exam
D) To select the appropriate conduit material Answer: A Explanation: Conduit fill calculations prevent overfilling, which can cause overheating and make wiring difficult. Question 35. Which device is used to protect against overloads and short circuits in residential circuits? A) Circuit breaker B) GFCI C) AFCI D) Fuse Answer: A Explanation: Circuit breakers are designed to trip during overloads and short circuits, protecting wiring and devices. Question 36. What is the typical minimum clearance for a service lateral from a building wall, according to the NEC? A) 3 feet B) 4 feet C) 5 feet D) 10 feet Answer: C
Electrician Exam
Explanation: The NEC generally requires a minimum clearance of 5 feet from the edge of the service lateral to the building wall for access and safety. Question 37. Which type of wiring method is most suitable for exposed outdoor applications? A) Rigid metal conduit (RMC) B) NM cable C) EMT D) Nonmetallic-sheathed cable (NM) Answer: A Explanation: RMC provides mechanical protection and is suitable for outdoor exposed applications. Question 38. When installing a receptacle in a bathroom, what additional protection is required? A) GFCI protection B) AFCI protection C) Surge protection device D) No additional protection needed Answer: A Explanation: GFCI protection is required for bathroom receptacles to prevent shock hazards.
Electrician Exam
A) To distribute power within a building efficiently B) To serve as a grounding conductor C) To provide surge protection D) To convert AC to DC power Answer: A Explanation: Busways are designed for efficient internal power distribution within buildings. Question 42. Which type of conduit is most suitable for use in areas with high seismic activity due to its ability to accommodate movement? A) EMT B) IMC C) Flexible metal conduit (FMC) D) PVC conduit Answer: C Explanation: FMC's flexibility allows it to handle movement and vibrations in seismic zones. Question 43. When selecting overcurrent protection for a conductor, what is the maximum percentage of the conductor’s ampacity that the protective device should allow? A) 100%
Electrician Exam
B) 125% for continuous loads C) 80% for short-term overloads D) 150% for surge conditions Answer: B Explanation: For continuous loads, overcurrent devices should be rated at 125% of the circuit's continuous load for proper protection. Question 44. Which of the following is an approved method for supporting nonmetallic-sheathed cable (NM cable)? A) Secured within 8 inches of box and every 4.5 feet along its run B) Free-hanging without support C) Only supported by conduit clamps D) Supported only at the ends Answer: A Explanation: NEC requires NM cable to be supported within 8 inches of box connections and every 4.5 feet along its length. Question 45. In a residential wiring system, what is the minimum size for grounding conductors in a 100A circuit? A) 8 AWG copper B) 6 AWG copper C) 10 AWG copper
