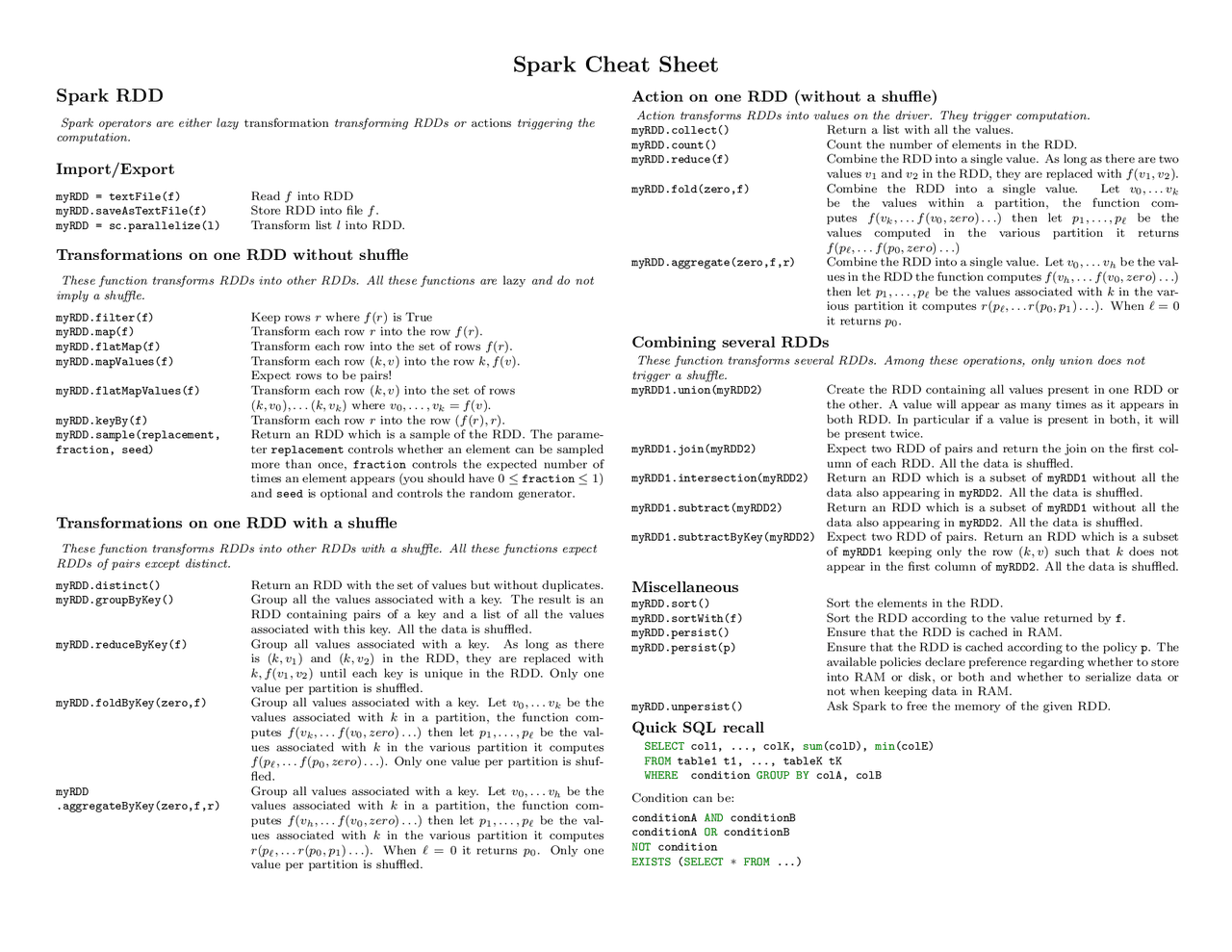

Spark Cheat Sheet
Spark RDD
Spark operators are either lazy transformation transforming RDDs or actions triggering the
computation.
Import/Export
myRDD = textFile(f) Read finto RDD
myRDD.saveAsTextFile(f) Store RDD into file f.
myRDD = sc.parallelize(l) Transform list linto RDD.
Transformations on one RDD without shuffle
These function transforms RDDs into other RDDs. All these functions are lazy and do not
imply a shuffle.
myRDD.filter(f) Keep rows rwhere f(r) is True
myRDD.map(f) Transform each row rinto the row f(r).
myRDD.flatMap(f) Transform each row into the set of rows f(r).
myRDD.mapValues(f) Transform each row (k, v) into the row k, f (v).
Expect rows to be pairs!
myRDD.flatMapValues(f) Transform each row (k, v) into the set of rows
(k, v0),...(k, vk) where v0,...,vk=f(v).
myRDD.keyBy(f) Transform each row rinto the row (f(r), r).
myRDD.sample(replacement,
fraction, seed)
Return an RDD which is a sample of the RDD. The parame-
ter replacement controls whether an element can be sampled
more than once, fraction controls the expected number of
times an element appears (you should have 0 ≤fraction ≤1)
and seed is optional and controls the random generator.
Transformations on one RDD with a shuffle
These function transforms RDDs into other RDDs with a shuffle. All these functions expect
RDDs of pairs except distinct.
myRDD.distinct() Return an RDD with the set of values but without duplicates.
myRDD.groupByKey() Group all the values associated with a key. The result is an
RDD containing pairs of a key and a list of all the values
associated with this key. All the data is shuffled.
myRDD.reduceByKey(f) Group all values associated with a key. As long as there
is (k, v1) and (k, v2) in the RDD, they are replaced with
k, f (v1, v2) until each key is unique in the RDD. Only one
value per partition is shuffled.
myRDD.foldByKey(zero,f) Group all values associated with a key. Let v0,...vkbe the
values associated with kin a partition, the function com-
putes f(vk,...f(v0,z ero)...) then let p1,...,p`be the val-
ues associated with kin the various partition it computes
f(p`,...f(p0,z ero)...). Only one value per partition is shuf-
fled.
myRDD
.aggregateByKey(zero,f,r)
Group all values associated with a key. Let v0,...vhbe the
values associated with kin a partition, the function com-
putes f(vh,...f(v0,z ero)...) then let p1,...,p`be the val-
ues associated with kin the various partition it computes
r(p`,...r(p0, p1)...). When `= 0 it returns p0. Only one
value per partition is shuffled.
Action on one RDD (without a shuffle)
Action transforms RDDs into values on the driver. They trigger computation.
myRDD.collect() Return a list with all the values.
myRDD.count() Count the number of elements in the RDD.
myRDD.reduce(f) Combine the RDD into a single value. As long as there are two
values v1and v2in the RDD, they are replaced with f(v1,v2).
myRDD.fold(zero,f) Combine the RDD into a single value. Let v0,...vk
be the values within a partition, the function com-
putes f(vk,...f(v0,z ero)...) then let p1,...,p`be the
values computed in the various partition it returns
f(p`,...f(p0,z ero)...)
myRDD.aggregate(zero,f,r) Combine the RDD into a single value. Let v0,...vhbe the val-
ues in the RDD the function computes f(vh,...f(v0,z ero)...)
then let p1,...,p`be the values associated with kin the var-
ious partition it computes r(p`,...r(p0, p1)...). When `= 0
it returns p0.
Combining several RDDs
These function transforms several RDDs. Among these operations, only union does not
trigger a shuffle.
myRDD1.union(myRDD2) Create the RDD containing all values present in one RDD or
the other. A value will appear as many times as it appears in
both RDD. In particular if a value is present in both, it will
be present twice.
myRDD1.join(myRDD2) Expect two RDD of pairs and return the join on the first col-
umn of each RDD. All the data is shuffled.
myRDD1.intersection(myRDD2) Return an RDD which is a subset of myRDD1 without all the
data also appearing in myRDD2. All the data is shuffled.
myRDD1.subtract(myRDD2) Return an RDD which is a subset of myRDD1 without all the
data also appearing in myRDD2. All the data is shuffled.
myRDD1.subtractByKey(myRDD2) Expect two RDD of pairs. Return an RDD which is a subset
of myRDD1 keeping only the row (k, v) such that kdoes not
appear in the first column of myRDD2. All the data is shuffled.
Miscellaneous
myRDD.sort() Sort the elements in the RDD.
myRDD.sortWith(f) Sort the RDD according to the value returned by f.
myRDD.persist() Ensure that the RDD is cached in RAM.
myRDD.persist(p) Ensure that the RDD is cached according to the policy p. The
available policies declare preference regarding whether to store
into RAM or disk, or both and whether to serialize data or
not when keeping data in RAM.
myRDD.unpersist() Ask Spark to free the memory of the given RDD.
Quick SQL recall
SELECT col1, ..., colK, sum(colD), min(colE)
FROM table1 t1, ..., tableK tK
WHERE condition GROUP BY colA, colB
Condition can be:
conditionA AND conditionB
conditionA OR conditionB
NOT condition
EXISTS (SELECT *FROM ...)
