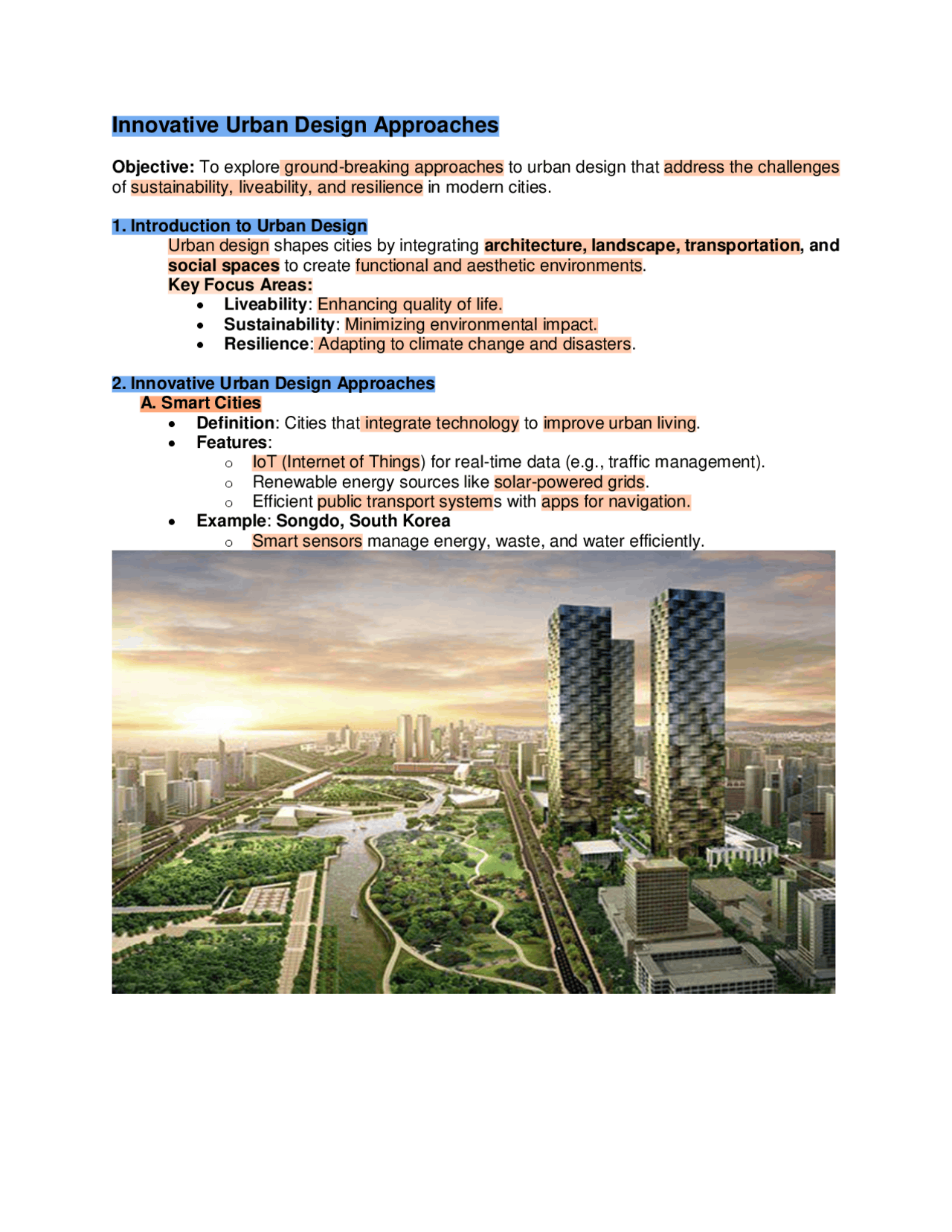

Innovative Urban Design Approaches
Objective: To explore ground-breaking approaches to urban design that address the challenges of sustainability, liveability, and resilience in modern cities.
1. Introduction to Urban Design Urban design shapes cities by integrating architecture, landscape, transportation, and social spaces to create functional and aesthetic environments. Key Focus Areas: Liveability : Enhancing quality of life. Sustainability : Minimizing environmental impact. Resilience : Adapting to climate change and disasters. 2. Innovative Urban Design Approaches A. Smart Cities Definition : Cities that integrate technology to improve urban living. Features : o IoT (Internet of Things) for real-time data (e.g., traffic management). o Renewable energy sources like solar-powered grids. o Efficient public transport systems with apps for navigation. Example : Songdo, South Korea o Smart sensors manage energy, waste, and water efficiently.
B. Green Infrastructure Definition : Systems that integrate natural processes into urban areas. Features : o Green roofs and walls. o Urban forests and parks for climate regulation. o Permeable pavements for water management. Example : High Line, New York City o Repurposed railway turned into a green pedestrian corridor.
C. Transit-Oriented Development (TOD) Definition : Urban areas designed around efficient public transit. Features : o High-density, mixed-use developments near transit hubs. o Walkable neighborhoods reducing car dependency. Example : Curitiba, Brazil o Bus Rapid Transit (BRT) system integrated with land-use planning.
F. Participatory Urban Design Definition : Involves communities in the urban design process. Features : o Citizen engagement workshops. o Crowdsourced urban initiatives. Example : Favela-Bairro, Rio de Janeiro o Community-driven upgrades to informal settlements.
3. Case Studies of Innovative Urban Design A. Masdar City, UAE Innovation : A zero-carbon city with renewable energy, walkable streets, and underground automated vehicles. Learning Point : Shows the potential for sustainable urban planning in harsh climates.
B. Copenhagen, Denmark Innovation : Integrated bike lanes and climate-resilient infrastructure. Learning Point : Demonstrates how urban mobility and green design improve liveability.
C. Singapore Innovation : Vertical gardens and integration of nature into high-density developments. Learning Point : Proves the feasibility of green infrastructure in compact cities.
Multidisciplinary Coordination : o Effective urban design requires collaboration across engineering, architecture, social science, and technology, which can be difficult to achieve. Example : Small cities may struggle to attract experts needed for innovative projects.
g. Governance and Collaboration Issues Interagency Coordination : o Misalignment between government departments and stakeholders. o Fragmented responsibilities delay decision-making and implementation. Private vs. Public Interests : o Balancing commercial profitability with public welfare in urban projects. Example : Public-private partnerships often face disputes over funding priorities.
h. Social Inequality and Accessibility Exclusivity : o Innovations often benefit wealthier segments of society, widening inequality. Affordability : o High costs of sustainable housing and transit systems can marginalize low-income groups. Example : Green infrastructure projects in affluent neighborhoods leaving poorer areas underdeveloped.
i. Long-Term Maintenance and Operation Operational Costs : o Maintaining smart technologies and green infrastructure can be expensive. Neglect : o Lack of planning for long-term maintenance leads to deterioration. Example : Vertical gardens and green walls requiring regular upkeep to remain functional.
j. Climate and Disaster Risks Unpredictability : o Designs may not fully anticipate future climate conditions or natural disasters. Adaptation Costs : o Retrofitting urban infrastructure for resilience can be challenging and costly. Example : Coastal cities facing rising sea levels struggle to fund adaptive designs like sea walls or floating neighborhoods.
5. Strategies to Overcome Challenges Financial Incentives : Tax breaks or grants for sustainable urban projects. Community Engagement : Involving residents in the planning process to build trust and reduce resistance. Capacity Building : Training professionals in new tools and techniques. Integrated Policies : Aligning national, regional, and local policies with urban innovation goals. Sustainability Mandates : Setting long-term environmental and social goals as prerequisites for urban projects.
Implementing innovative urban design requires addressing economic, social, political, and technical challenges through collaborative and inclusive efforts. By recognizing these barriers and planning accordingly, cities can achieve a sustainable and equitable future.
Strategies for Designing to Prevent Flooding in Urban Areas
Flooding is a significant challenge in urban areas due to increasing rainfall intensity, rising sea levels, and rapid urbanization. Effective design strategies can mitigate the impacts of flooding while enhancing urban sustainability and liveability. Below are key strategies:
1. Green Infrastructure Solutions a. Permeable Pavements What It Is : Surfaces that allow water to infiltrate into the ground. Benefits : Reduces water runoff and replenishes groundwater.
Porous concrete, pavers, and asphalt in parking lots and sidewalks.
b. Green Roofs and Walls What It Is : Vegetation planted on building rooftops or walls. Benefits : Absorbs rainwater, reduces runoff, and lowers urban temperatures
Green roofs in high-density areas like New York City.
b. Bio swales and Rain Gardens What It Is : Landscaped features that slow and filter storm water. Benefits : Improves water quality and reduces urban runoff.
Bio swales along roadways or in urban plazas.
c. Floodable Parks What It Is : Parks designed to temporarily store excess water during heavy rains. Benefits : Dual-purpose spaces for recreation and flood control.
Rotterdam’s "Water Square" that transforms from a park into a water basin.
3. Urban Planning and Zoning a. Elevating Buildings and Infrastructure What It Is : Constructing buildings and roads above projected flood levels. Benefits : Protects critical infrastructure from flood damage.
Elevated homes in coastal areas prone to storm surges.
b. Zoning Regulations What It Is : Restricting development in flood-prone areas. Benefits : Reduces risk and exposure to flooding.
Designating floodplains as open spaces or agricultural zones.
b. Advanced Drainage Channels What It Is : Designing drains and canals with greater capacity and efficiency. Benefits : Enhances the city’s ability to manage heavy rains.
Singapore’s Marina Barrage acts as a dam and drainage system.
c. Smart Water Management Systems What It Is : Using sensors and technology to monitor and control water levels. Benefits : Provides real-time flood alerts and optimizes water flow.
Smart drainage networks in cities like Copenhagen.
5. Coastal and Riverine Protections a. Sea Walls and Levees What It Is : Barriers to protect urban areas from storm surges and rising tides. Benefits : Shields cities from coastal flooding.
Sea walls protecting Jakarta from tidal flooding.
b. Restoring Natural Barriers What It Is : Preserving or enhancing natural ecosystems like mangroves and wetlands. Benefits : Acts as a buffer against floods and absorbs excess water.
Mangrove restoration in coastal areas of Southeast Asia.
URBAN DESIGN
Urban design is versatile and so urban designers can produce ideas and work that is indicative or specific, strategic or detailed, and this is reflected in the types of drawings, reports and ways of working commonly used:
Urban design is visionary creating a ‘ vision ’ to show the economic, social and environmental benefits of investment or changes at a strategic scale over a wide area and over a long period of time. This is usually conveyed through a vision statement, projecting forward 20-25 years’ time to explain the future characteristics of an area and how people will use it. This can then be complemented by a development framework, outlining the key physical features that will deliver the vision.
Urban design is fact-finding urban designers gather data and evidence about places to identify future options, and test the feasibility and viability of change or development in context , for example transport and infrastructure capacity, development character and density, environmental capacity issues (such as flooding), plus local community needs and values. Feasibility studies usually include options and a recommendation on the ‘best fit’ scenario.
Urban design can be illustrative using masterplans, artists’ impressions, photomontages, 3D models and photographs of other successful places, urban designers can bring to life how a development could look. This includes highlighting important local characteristics, landmarks and public spaces. Illustrative masterplans often show just one way in which design guidelines can be built out.
Urban design setting specifications site-specific masterplans set out precise proposals for which planning consent is being sought, and the use, size, form and location of buildings, roads and open spaces, which are fixed. A local planning authority may prepare a site-specific development brief, which sets out the main characteristics required, and it allows developers to draw up a proposed scheme in response. Masterplans and design codes bring together plot-specific requirements for a site, which development proposals will need to comply with in order to be approved.
SIGNIFICANCE OF URBAN DESIGN
The field of urban design is important because it strengthens in the planning and development of liveable and workable surroundings. Urban design can significantly influence the economic, environmental, social and cultural outcomes of a place:
- Urban design can influence the economic success and socio-economic composition of a locality —whether it encourages local businesses and entrepreneurship; whether it attracts people to live there; whether the costs of housing and travel are affordable; and whether access to job opportunities, facilities and services are equitable.
- Urban design determines the physical scale, space and ambience of a place and establishes the built and natural forms within which individual buildings and infrastructure are sited. As such, it affects the balance between natural ecosystems and built environments , and their sustainability outcomes.
- Urban design can influence health and the social and cultural impacts of a locality: how people interact with each other, how they move around, and how they use a place. 4. Although urban design is often delivered as a specific ‘project’, it is in fact a long-term process that continues to evolve over time. It is this layering of building and infrastructure types, natural ecosystems, communities and cultures that gives places their unique characteristics and identities.
KEY ASPECTS
Places for People For places to be well-used and well-loved, they must be safe, comfortable, varied and attractive. They also need to be distinctive, and offer variety, choice and fun. Vibrant places offer opportunities for meeting people, playing in the street and watching the world go by.
Enrich the Existing New development should enrich the qualities of existing urban places. This means encouraging a distinctive response that arises from and complements its setting. This applies at every scale – the region, the city, the town, the neighbourhood, and the street.
Make Connections Places need to be easy to get to and be integrated physically and visually with their surroundings. This requires attention to how to get around by foot, bicycle, public transport and the car – and in that order.
Work with the Landscape Places that strike a balance between the natural and man-made environment and utilise each site’s intrinsic resources – the climate, landform, landscape and ecology – to maximise energy conservation and amenity.
Mix Uses and Forms Stimulating, enjoyable and convenient places meet a variety of demands from the widest possible range of users, amenities and social groups. They also weave together different building forms, uses, tenures and densities.
Manage the Investment For projects to be developable and well cared for they must be economically viable, well managed and maintained. This means understanding the market considerations of developers, ensuring long term commitment from the community and the local authority, defining appropriate delivery mechanisms and seeing this as part of the design process.
Design for Change New development needs to be flexible enough to respond to future changes in use, lifestyle and demography. This means designing for energy and resource efficiency; creating flexibility in the use of property, public spaces and the service infrastructure and introducing new approaches to transportation, traffic management and parking.
TYPES OF URBAN DESIGN ELEMENTS
Urban design elements are the fundamental components used to shape the physical and functional aspects of cities. These elements work together to create cohesive, sustainable, and vibrant urban environments.
1. Streets and Circulation Systems Purpose: Facilitate movement of people and goods while influencing urban connectivity and accessibility. Types: o Streets (arterial, collector, local) o Boulevards and avenues o Pedestrian pathways and sidewalks o Bike lanes and cycle tracks o Public transportation corridors (bus rapid transit, tramways, etc.) 2. Public Spaces Purpose: Foster community interaction, recreation, and cultural activities. Types: o Plazas and squares o Parks and green spaces o Playgrounds and recreational areas o Waterfronts and esplanades 3. Built Form and Architecture Purpose: Define the character and skyline of urban areas, balancing functionality and aesthetics. Types: o Residential buildings (single-family homes, apartments) o Commercial buildings (offices, malls) o Civic and institutional structures (libraries, schools, government offices) o Skyscrapers and iconic landmarks 4. Urban Blocks and Lot Patterns Purpose: Organize the arrangement of buildings and spaces within a city. Types: o Regular grid patterns o Organic or irregular layouts o Mixed-use blocks o Cul-de-sacs and superblocks 5. Nodes and Landmarks Purpose: Provide orientation, identity, and focal points in the urban landscape. Types: o Transportation hubs (train stations, bus terminals) o Iconic structures (towers, monuments) o Cultural centers (museums, theaters) o Religious sites (temples, churches, mosques)
6. Edge Conditions Purpose: Define boundaries and transitions between different urban zones or natural areas. Types: o Riverbanks and waterfronts o Urban-rural fringes o Transitional zones (between commercial and residential areas) o Walls, fences, or other physical separators 7. Infrastructure and Utilities Purpose: Support the functioning of urban areas and their sustainability. Types: o Roads, bridges, and tunnels o Drainage and sewer systems o Power lines and renewable energy installations o Water supply networks 8. Streetscapes and Street Furniture Purpose: Enhance functionality, aesthetics, and comfort in public spaces. Types: o Benches, trash bins, and lighting o Signage and wayfinding systems o Public art installations o Landscaping elements (trees, planters) 9. Transportation and Mobility Systems Purpose: Support efficient movement within and beyond the urban area. Types: o Public transit (subways, buses, trams) o Bicycle-sharing systems o Parking facilities and transit-oriented development (TOD) o Airports and seaports 10. Green Infrastructure Purpose: Promote environmental sustainability and improve urban liveability. Types: o Green roofs and walls o Urban forests and community gardens o Stormwater management systems (bioswales, rain gardens) o Renewable energy installations 11. Zoning and Land Use Purpose: Regulate urban growth and ensure harmony among various activities. Types: o Residential zones o Commercial and industrial zones o Mixed-use developments o Open space and conservation areas
