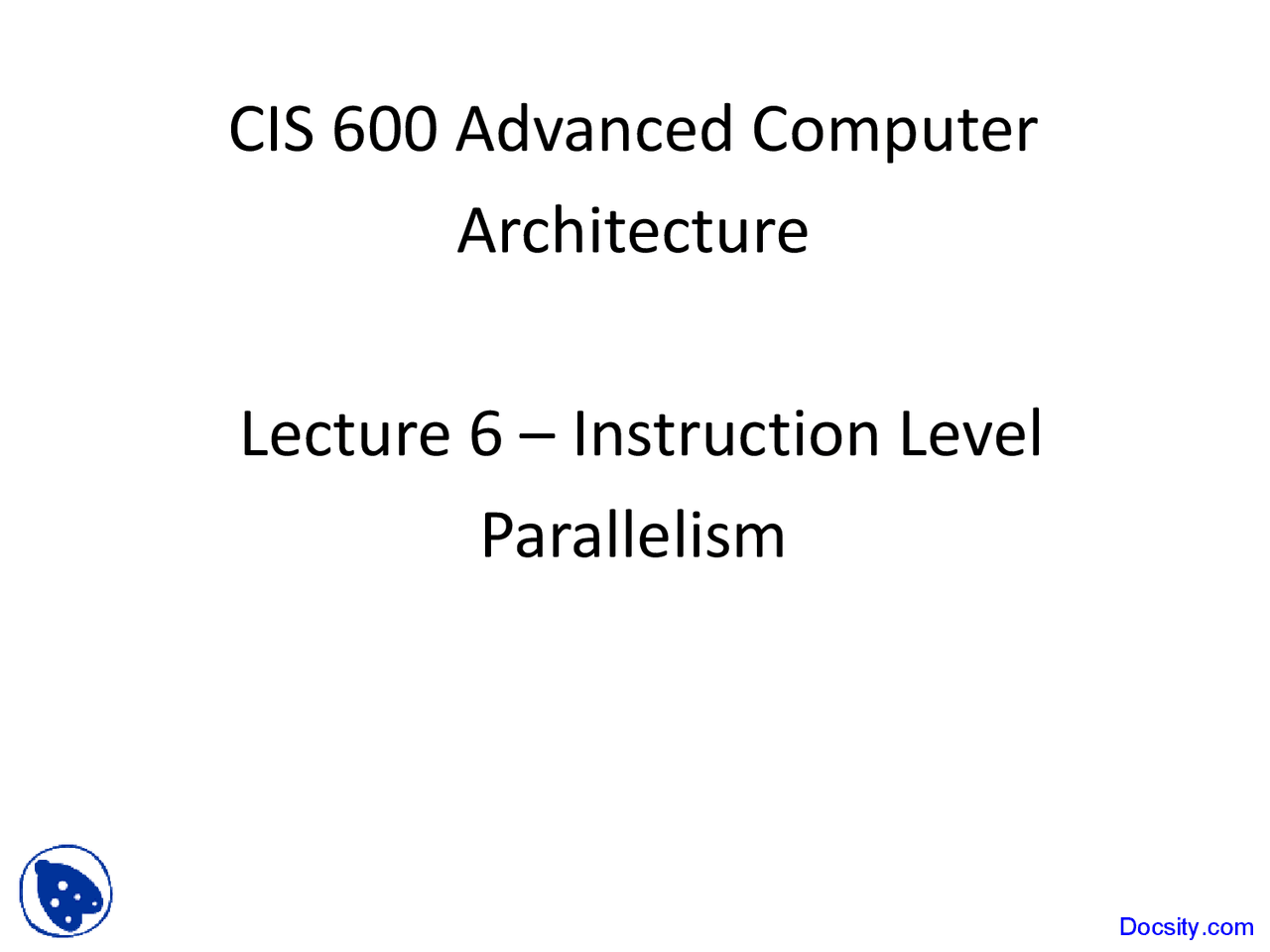

CIS 600 Advanced Computer

Architecture

Lecture 6 – Instruction Level

Parallelism

Review from Last Time

• Leverage Implicit Parallelism for Performance:

Instruction Level Parallelism

• Loop unrolling by compiler to increase ILP

• Branch prediction to increase ILP

• Dynamic HW exploiting ILP

– Works when can’t know dependence at compile

time

– Can hide L1 cache misses

– Code for one machine runs well on another

Outline

• ILP

• Speculation

• Speculative Tomasulo Example

• Memory Aliases

• Exceptions

• VLIW

• Increasing instruction bandwidth

• Register Renaming vs. Reorder Buffer

• Value Prediction

Speculation to greater ILP

• Greater ILP: Overcome control dependence

by hardware speculating on outcome of

branches and executing program as if

guesses were correct

• Speculation ⇒ fetch, issue, and execute instructions as if branch

predictions were always correct

• Dynamic scheduling ⇒ only fetches and issues instructions

• Essentially a data flow execution model:

Operations execute as soon as their

operands are available

Adding Speculation to Tomasulo

• Must separate execution from allowing

instruction to finish or “commit”

• This additional step called instruction

commit

• When an instruction is no longer speculative,

allow it to update the register file or memory

• Requires additional set of buffers to hold

results of instructions that have finished

execution but have not committed

• This reorder buffer (ROB) is also used to pass

results among instructions that may be

speculated

Reorder Buffer (ROB)

• In Tomasulo’s algorithm, once an instruction writes its

result, any subsequently issued instructions will find result

in the register file

• With speculation, the register file is not updated until the

instruction commits

• (we know definitively that the instruction should execute)

• Thus, the ROB supplies operands in interval between

completion of instruction execution and instruction commit

• ROB is a source of operands for instructions, just as reservation

stations (RS) provide operands in Tomasulo’s algorithm

• ROB extends architectured registers like RS

Reorder Buffer operation

• Holds instructions in FIFO order, exactly as issued
• When instructions complete, results placed into ROB
  • Supplies operands to other instruction between execution complete & commit ⇒ more registers like RS
  • Tag results with ROB buffer number instead of reservation station
• Instructions commit ⇒values at head of ROB placed in

registers

• As a result, easy to undo

speculated instructions

on mispredicted branches

or on exceptions

Reorder

FP^ Buffer Op Queue

FP Adder FP Adder

Res Stations Res Stations

FP Regs

Commit path

Recall: 4 Steps of Speculative

Tomasulo Algorithm

1. Issue—get instruction from FP Op Queue

If reservation station and reorder buffer slot

free, issue instr & send operands & reorder

buffer no. for destination (this stage sometimes

called “dispatch”)

2. Execution—operate on operands (EX)

When both operands ready then execute; if not

ready, watch CDB for result; when both in

reservation station, execute; checks RAW

(sometimes called “issue”)

3. Write result—finish execution (WB)

Write on Common Data Bus to all awaiting FUs

& reorder buffer; mark reservation station

available.

Docsity.com

Tomasulo With Reorder buffer:

2 ADDD R(F4),ROB

To Memory

FP adders FP multipliers

Reservation Stations

FP Op Queue

ROB ROB

ROB

ROB

ROB

ROB

ROB

F

F

ADDD F10,F4,F

LD F0,10(R2)

N

N

Done?

Dest Dest

Oldest

Newest

from Memory

1 10+R

Dest

Reorder Buffer

Registers

Tomasulo With Reorder buffer:

3 DIVD ROB2,R(F6)

2 ADDD R(F4),ROB

To Memory

FP adders FP multipliers

Reservation Stations

FP Op Queue

ROB ROB

ROB

ROB

ROB

ROB

ROB

F

F

F

DIVD F2,F10,F

ADDD F10,F4,F

LD F0,10(R2)

N

N

N

Done?

Dest Dest

Oldest

Newest

from Memory

1 10+R

Dest

Reorder Buffer

Registers

Tomasulo With Reorder buffer:

3 DIVD ROB2,R(F6)

2 ADDD R(F4),ROB

6 ADDD ROB5, R(F6)

To Memory

FP adders FP multipliers

Reservation Stations

FP Op Queue

ROB ROB

ROB

ROB

ROB

ROB

ROB

F

ROB5 ST 0(R3),F

ADDD F0,F4,F

N

N

F4 LD F4,0(R3) N

-- BNE F2,<…> N

F

F

F

DIVD F2,F10,F

ADDD F10,F4,F

LD F0,10(R2)

N

N

N

Done?

Dest Dest

Oldest

Newest

from Memory

Dest

Reorder Buffer

Registers

1 10+R

5 0+R

Tomasulo With Reorder buffer:

3 DIVD ROB2,R(F6)

To Memory

FP adders FP multipliers

Reservation Stations

FP Op Queue

ROB ROB

ROB

ROB

ROB

ROB

ROB

F

M[10] ST 0(R3),F

ADDD F0,F4,F

Y

N

F4 M[10] LD F4,0(R3) Y

-- BNE F2,<…> N

F

F

F

DIVD F2,F10,F

ADDD F10,F4,F

LD F0,10(R2)

N

N

N

Done?

Dest Dest

Oldest

Newest

from Memory

1 10+R

Dest

Reorder Buffer

Registers

2 ADDD R(F4),ROB

6 ADDD M[10],R(F6)

Tomasulo With Reorder buffer:

F

M[10]

ST 0(R3),F

ADDD F0,F4,F

Y

Ex F4 M[10] LD F4,0(R3) Y -- BNE F2,<…> N

3 DIVD ROB2,R(F6)

2 ADDD R(F4),ROB

To Memory

FP adders FP multipliers

Reservation Stations

FP Op Queue

ROB ROB

ROB

ROB

ROB

ROB

ROB

F

F

F

DIVD F2,F10,F

ADDD F10,F4,F

LD F0,10(R2)

N

N

N

Done?

Dest Dest

Oldest

Newest

from Memory

1 10+R

Dest

Reorder Buffer

Registers

What about memory

hazards???

Avoiding Memory Hazards

• WAW and WAR hazards through memory are

eliminated with speculation because actual

updating of memory occurs in order, when a

store is at head of the ROB, and hence, no

earlier loads or stores can still be pending

• RAW hazards through memory are maintained

by two restrictions:

1.not allowing a load to initiate the second step of

its execution if any active ROB entry occupied by a

store has a Destination field that matches the

value of the A field of the load, and

2.maintaining the program order for the

computation of an effective address of a load with
