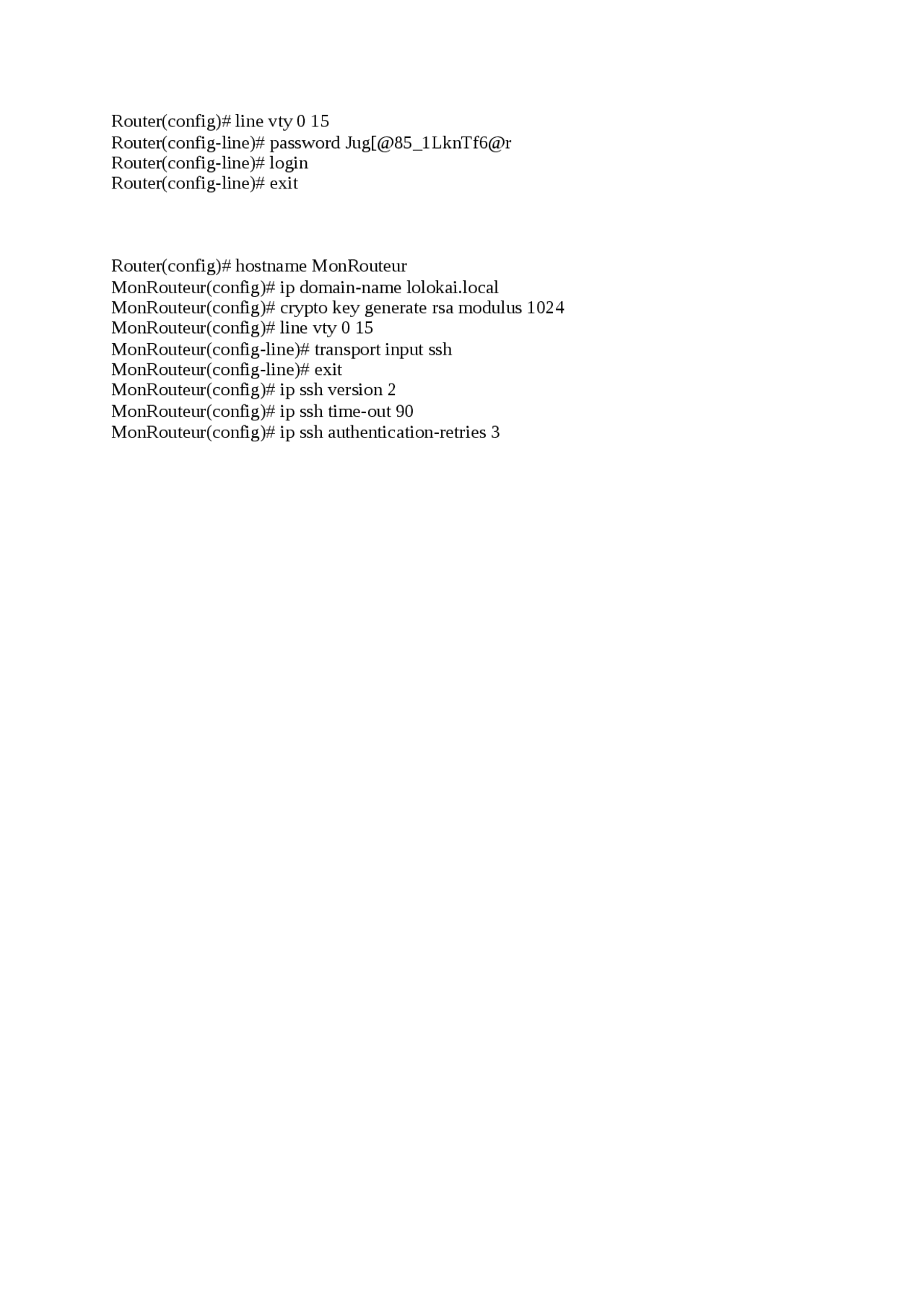

bg1
Router(config)# line vty 0 15
Router(config-line)# password Jug[@85_1LknTf6@r
Router(config-line)# login
Router(config-line)# exit
Router(config)# hostname MonRouteur
MonRouteur(config)# ip domain-name lolokai.local
MonRouteur(config)# crypto key generate rsa modulus 1024
MonRouteur(config)# line vty 0 15
MonRouteur(config-line)# transport input ssh
MonRouteur(config-line)# exit
MonRouteur(config)# ip ssh version 2
MonRouteur(config)# ip ssh time-out 90
MonRouteur(config)# ip ssh authentication-retries 3
