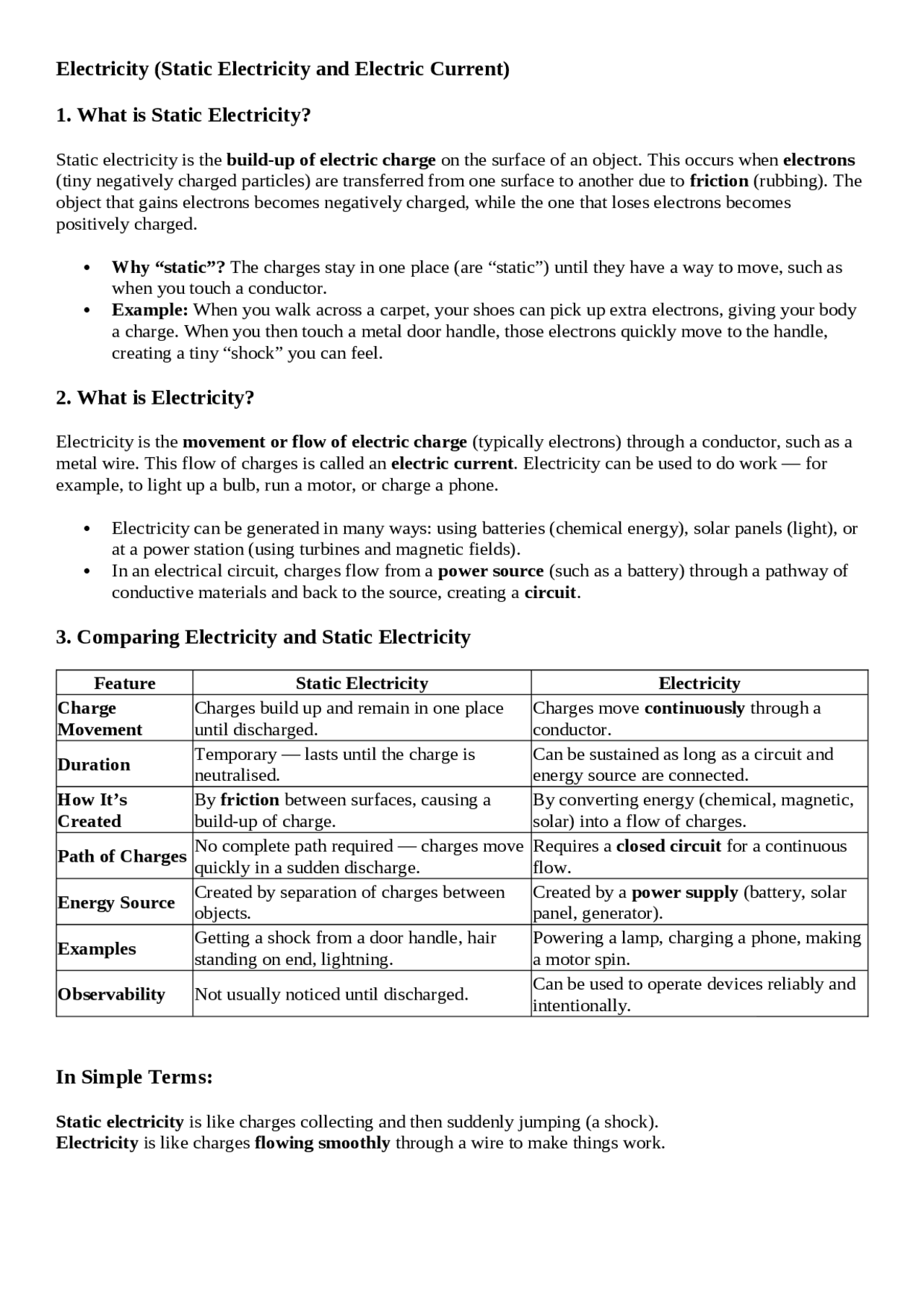

Difference between Static Electricity and Electric current
Typology: Cheat Sheet
1 / 1
This page cannot be seen from the preview
Don't miss anything!

Static electricity is the build-up of electric charge on the surface of an object. This occurs when electrons (tiny negatively charged particles) are transferred from one surface to another due to friction (rubbing). The object that gains electrons becomes negatively charged, while the one that loses electrons becomes positively charged. Why “static”? The charges stay in one place (are “static”) until they have a way to move, such as when you touch a conductor. Example: When you walk across a carpet, your shoes can pick up extra electrons, giving your body a charge. When you then touch a metal door handle, those electrons quickly move to the handle, creating a tiny “shock” you can feel.
Electricity is the movement or flow of electric charge (typically electrons) through a conductor, such as a metal wire. This flow of charges is called an electric current. Electricity can be used to do work — for example, to light up a bulb, run a motor, or charge a phone. Electricity can be generated in many ways: using batteries (chemical energy), solar panels (light), or at a power station (using turbines and magnetic fields). In an electrical circuit, charges flow from a power source (such as a battery) through a pathway of conductive materials and back to the source, creating a circuit.
Feature Static Electricity Electricity Charge Movement Charges build up and remain in one place until discharged. Charges move continuously through a conductor. Duration Temporary — lasts until the charge is neutralised. Can be sustained as long as a circuit and energy source are connected. How It’s Created By friction between surfaces, causing a build-up of charge. By converting energy (chemical, magnetic, solar) into a flow of charges. Path of Charges No complete path required — charges move quickly in a sudden discharge. Requires a closed circuit for a continuous flow. Energy Source Created by separation of charges between objects. Created by a power supply (battery, solar panel, generator). Examples Getting a shock from a door handle, hair standing on end, lightning. Powering a lamp, charging a phone, making a motor spin. Observability Not usually noticed until discharged. Can be used to operate devices reliably and intentionally.
Static electricity is like charges collecting and then suddenly jumping (a shock). Electricity is like charges flowing smoothly through a wire to make things work.
