Review of Static Equilibrium – Suggested Problems

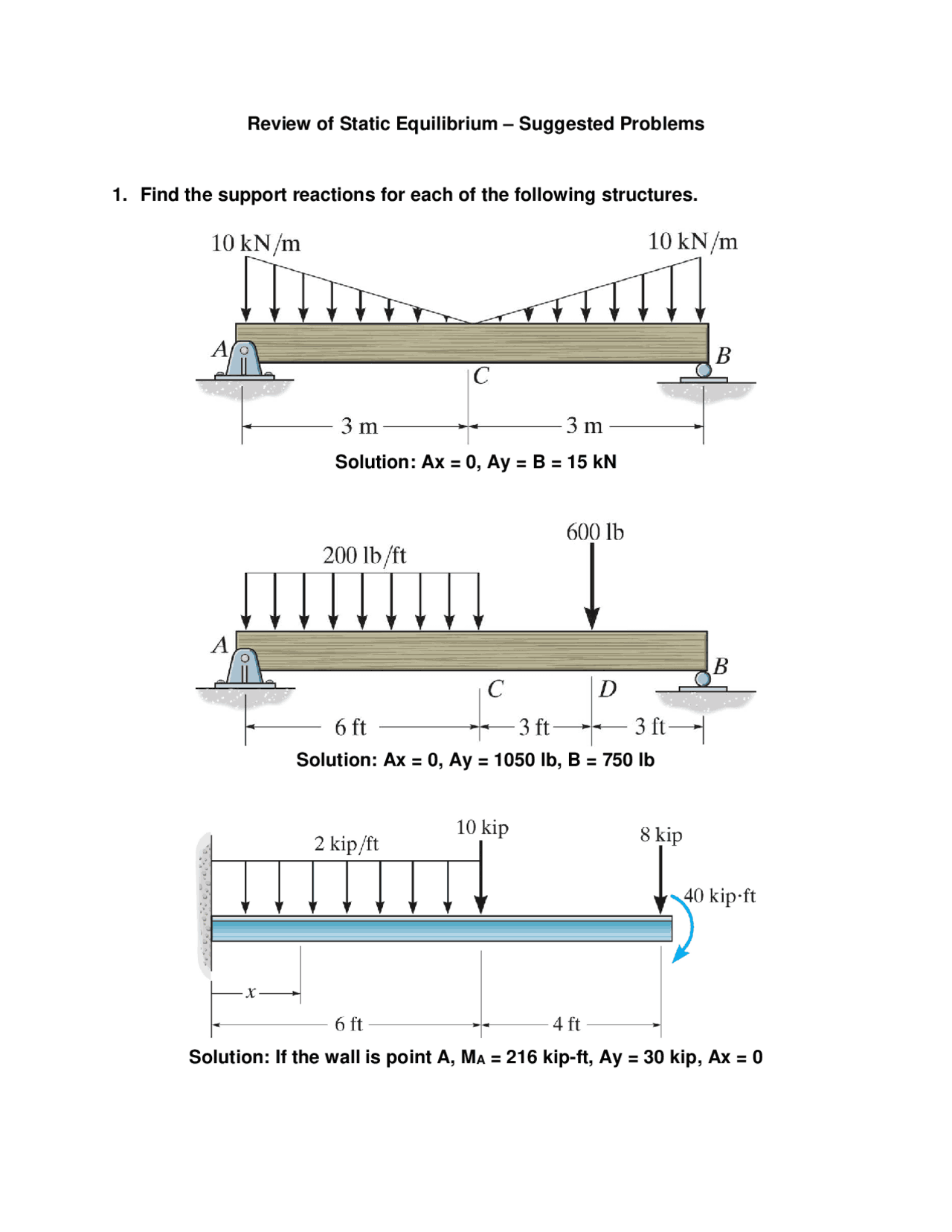

1. Find the support reactions for each of the following structures.
Solution: Ax = 0, Ay = B = 15 kN
Solution: Ax = 0, Ay = 1050 lb, B = 750 lb
Solution: If the wall is point A, MA = 216 kip-ft, Ay = 30 kip, Ax = 0
