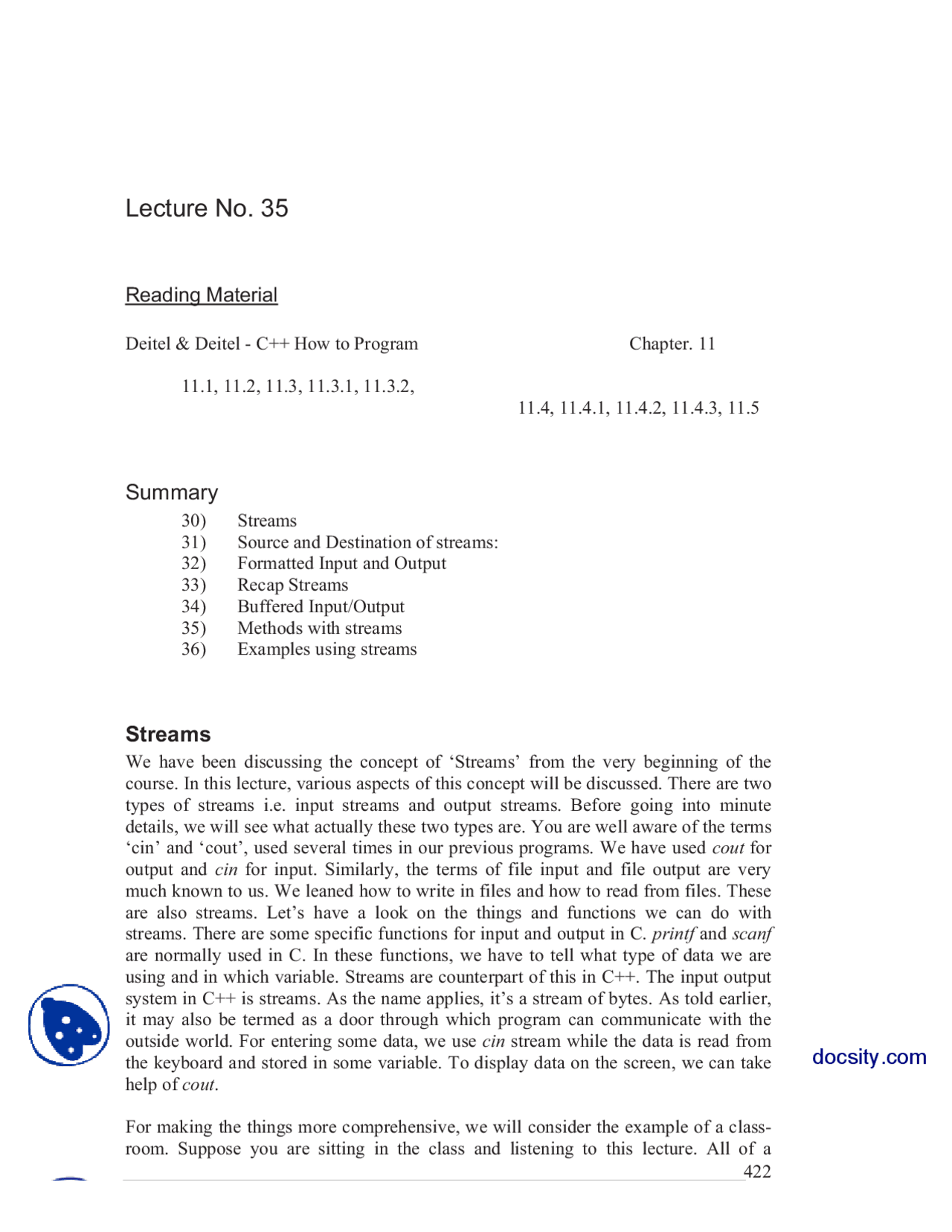

Lecture No. 35
Reading Material
Deitel & Deitel - C++ How to Program Chapter. 11
11.1, 11.2, 11.3, 11.3.1, 11.3.2, 11.4, 11.4.1, 11.4.2, 11.4.3, 11.
Summary
- Streams
- Source and Destination of streams:
- Formatted Input and Output
- Recap Streams
- Buffered Input/Output
- Methods with streams
- Examples using streams
Streams
We have been discussing the concept of ‘Streams’ from the very beginning of the course. In this lecture, various aspects of this concept will be discussed. There are two types of streams i.e. input streams and output streams. Before going into minute details, we will see what actually these two types are. You are well aware of the terms ‘cin’ and ‘cout’, used several times in our previous programs. We have used cout for output and cin for input. Similarly, the terms of file input and file output are very much known to us. We leaned how to write in files and how to read from files. These are also streams. Let’s have a look on the things and functions we can do with streams. There are some specific functions for input and output in C. printf and scanf are normally used in C. In these functions, we have to tell what type of data we are using and in which variable. Streams are counterpart of this in C++. The input output system in C++ is streams. As the name applies, it’s a stream of bytes. As told earlier, it may also be termed as a door through which program can communicate with the outside world. For entering some data, we use cin stream while the data is read from the keyboard and stored in some variable. To display data on the screen, we can take help of cout.
For making the things more comprehensive, we will consider the example of a class- room. Suppose you are sitting in the class and listening to this lecture. All of a
docsity.com
sudden, the students are asked by the instructor to go out of the classroom. How would you do it? You will get up from the seat and walk through the door. But you can see that all of you cannot go through the door simultaneously. You would go through the door one by one. Similarly if you have to come to the classroom, you will enter one by one and sit on the seats. In a way you are forming a sequence of people in this case. Stream is a sequence of bytes. It is an ordered sequence. Let’s compare it with the door example. The person who enters first will go out of the door first. The person who enters behind someone will go out behind that person. Similarly streams are also ordered sequence. The thing that enters first into the stream will go out first. You should think streams as ordered sequence of bytes. Byte is a unit of measure. A byte can store one character, so you can think of an ordered sequence of characters.
As programmers, we communicate with our programs in English through the keyboard. We may be typing the letters, abc or the numbers, 012 on the keyboard. These all are the characters. In the programs, we store these characters in variables of different data types. Sometimes, these may be in some of our objects. On the keyboard, we type the character ‘a’ that is stored in some variable c in our program. How these two are linked? This link is formed in cin stream. Consider cin as a pipe or a door. The character ‘a’ is entered from one side and then a conversion takes place i.e. character is converted into its binary representation, stored in the character variable named c. So there is an implicit conversion happening. The same thing happens, if we have an integer i and press the key 1 from the keyboard. The digit 1 travels as a character but inside it is stored as number. You have to be careful while dealing with this concept. We have talked about the ASCII characters. On the keyboard, we have alphabets, numbers and symbols. When you press the number key from the keyboard, it goes at number inside the computer. In general terms, it is a character. It means that when you enter a key on your keyboard, a character sequence is generated that later goes into the computer. This character sequence has some binary representation. It does not mean a sequence of characters, but a code that goes inside the computer on pressing a key on the keyboard. This code is called as ASCII code. It is the binary representation of a character. Here both the characters ‘A’ and ‘B’ have some binary representation. Similarly ‘0’,’1’,’2’ have some binary representation. It does not mean that the character representation of ‘1’ is also ‘1’. If you are aware of the ASCII table (you have already written a program to display the ASCII table), it will be evident that the binary representation of character ‘1’ is some other value. Similarly all the numbers 1, 2, 3 etc have some ASCII value. So whenever you press any key on the keyboard, its ASCII code goes inside the computer.
Now when we use cin stream to read some number from the keyboard and store it in the integer variable, its binary representation is ignored and the value is stored. So cin is performing this transformation operation. It is taking a character ASCII code and knows that it is supposed to represent some number. It has the ability to convert it into the appropriate number before putting it into the integer variable i. What happen if we use cin to read some value and store it in some integer variable and press some alphabet key instead of numeric keys. Some error will occur. So in the cin stream, an error can be detected.
Let’s us look at the collection of input and output classes. These are objects having functions. This collection of classes and their functions are known as input-output
docsity.com
integers from key-board, divides one number by the other and displays the result. Following will be the code segment.
int i, j ; cin >> i ; cin >> j ; cout << i / j ;
Now we have to see what happens if the user gives a value 0 for j. We don’t want to divide it by zero as even the computer does not know how to do it. When we have zero in j, our program probably will work through an exception or error before coming to a halt. If we trap this error inside the program, it would be much nicer. We can say if j is not zero, it will be good to carry out the division. So error checking and handling is always important. The same thing applies to I/O streams. When we execute input or output operation, we should check whether the operation has been carried out correctly or not. To do this, we can check the state of the stream.
Here is a simple example showing the simple use of streams. /* Avoiding a precedence problem between the stream-insertion operator and the conditional operator. */
#include
int main() { int x,y; cout<< "Enter two integers: "; cin>>x>>y; cout<<x << (x ==y? " is" : " is not") <<" equal to "<< y; return 0; }
The output of the program: Enter two integers: 3 3 3 is equal to 3
Formatted Input and Output
Other things that the streams provide us are a capability of formatted input and output. We have been using cin and cout very simply without any formatting. As the output of a program, we do not want that numbers should be printed in a way that makes it difficult to read and understand. We want to format the output in a way that the numbers are placed correctly at the correct position on the paper. You might have seen the electricity bills or telephone bills printed by the computers. First the empty bills are printed in the printing press containing headings with blank boxes to put in the bill entries. Then the computer prints the entries in these boxes from the system. These entries (data regarding the bill) are printed at correct places on the bill. Sometimes, you see that the entries are properly printed. That is not a computer-fault
docsity.com
but only due to poor paper adjustment in the printer. The printing of these entries is carried out by with the use of formatted output.
The second example is the display of a matrix on the screen. Suppose, we want that the numbers of a column are displayed up and down in a column. Similarly the second column should be displayed and so on. At first, we will format these things.
When we do word processing, we type a paragraph. The lines of the paragraph are left justified but ragged on right hand side. In word processing, we have a choice to justify the paragraph. By doing this, the left and right margins of the paragraph are put in a straight line while adjusting the space between the words. Now look what happens if we want to print a string with cout and want it left or right justified. This is what we call formatting the output. Similarly, we want to print the value of pi which is stored in a variable as 3.1415926. But we want that it should be printed as 3.141 that means up to three decimal places. There should be a method of formatting it. Thus by formatting the output, the presented representation (which we read as human being) can be different from the internal representation. So we can do a lot of formatting with these streams.
Besides, there are member functions with the streams. Let’s look at the member functions of cin. The first one is the get function. We can use it by writing:
cin.get() ;
The notation explains that cin is an object (cin is an object of input stream) and get is a member function of it. This function reads a character. In this case, it reads a single character from key board and returns it as cin is calling it. We have two variants of this get function with cin. One is that cin.get returns a character. W e can write it as under:
c = cin.get() ;
The second method is cin.get(character variable) i.e. one character at a time. It works with characters, not through number or string. It is one character at a time.
The second function of cin is the read function. This function differs from the get function in the way that it returns a buffer instead of a single character. So we can point to a buffer and tell the number of characters to be read. We normally provide a delimiter, a specific character up to which we want to read. Normally we use the new line character as a delimiter and read a single line at a time.
Thus, we have three ways of obtaining input with cin, which is an object of type input stream (istream). If we create an object of type istream , it will also get these functions as it is derived from the same class.
We have seen that there are many methods and operators associated with cin. The same thing applies to cout. cout is the output stream which usually, presents the data from the computer in human readable form. The operator associated with cout is the stream insertion (<<). That means we insert the operator in the stream and the stream displays the output on the screen. So the operator with cout is << and it displays the
docsity.com
to the disc in each iteration, it will be the horrendously wastage of computer time. It means that the disc is electro mechanical device. Similarly in each iteration, the mechanical movement takes time. But if we gather the data and write it to the disc, there will be one mechanical movement. The heads of the disc will move mechanically once to a point and the whole chunk of data will be written on the disc. This is the more efficient way of using the disc. So whenever we have a program that writes the output data to the disc, it will be nice to collect the output data (numbers) and write it on the disc in one write operation instead of writing the numbers one by one. The area where we gather the numbers is known as buffer. The example stated in this case is the buffered output. In this case, the output does not go directly to the disc. We first gather the data in a buffer and then write it on the disc.
Now think about another situation. Suppose we have a program that performs very complex calculations. It means that there is a while loop that performs so heavy calculations that each of the iteration takes, say one minute and then provides the result. Now we want to write that output to a file on the disc and see the iteration number of the loop on the screen. We do not want to write the output to the disc after each iteration. We gather the data in a buffer. In the meantime, we want to see the loop counter on the screen. If we gather this output of counter number in a buffer, it may happen that the buffer gathers the iteration numbers for 250 iterations before displaying it on the screen. Thus, we see on the screen the numbers 1, 2, 3 …..250, when 250 iterations have been performed. There are again 250 numbers gathered at one time. We see numbers 251, 252 ……500, when 500 iterations have been performed. When we start the program, there will be two buffers gathering data. One buffer gathers the data to write to the disc and the other gets the data of iteration numbers to display on the screen. As we said that each iteration takes one minute, meaning that the iteration numbers will not be seen for a long time. Rather, these will be shown after 250 iterations (i.e. 250 minutes). During this period, we do not show any thing on the screen. Here, we are not sure whether the program is executing properly as we do not see any iteration number on the screen. We want to know after every minute that loop has executed once. So after every minute, the loop counter should be displayed on the screen, so that at any time we could see how many iterations have been performed. For this, we need unbufffered output on the screen. Thus, in the same program we require buffered and unbuffered output.
Now these requirements are contradictory with different issues. These are met in our system with the cerr object. cout is a buffered output. We cannot see it as nowadays compilers are very intelligent. If you know UNIX, or command prompt and input output redirection, we can actually see this in operation. Perhaps, you can create an example to understand this. For the moment just try to understand that cout is buffered output. It gathers data and sends it to the screen. On the other hand, cerr is unbuffered output. It will show the data on the screen at the same time when it gets it. So cerr is an output stream, an ostream object but unbuffered. It shows data immediately. So we can use something like the cerr object that will show how many loops have been executed. It will use something like cout to write on the disk to buffer the output. In this case, we are getting efficiency in addition to information. Normally we use cerr object in C++ for this purpose. Besides, we also have clog. It is also known as standard log having detailed information of the log. To collect information of the program, we write it with clog. Normally when we execute our programs- cout, cerr and clog , all are connected to screen. We have ways to direct them at different
docsity.com
destinations. That depends on the operating system. Suppose, we specify the buffer size, normally the operating system or compiler does this for us. A typical size of buffer is 512 bytes. When the information is of 512 byte size, output will take place. But in the program, we may want at some point that whatever is in the buffer, show them. Is there a way of doing that? The normal mechanism is flush. Flush the stream. The flush command forces the data from the buffer to go to its destination which is normally a screen or file and make the buffer empty.
Uptil now, we have been using two things to end the line. One is new line character i.e. “\n”. When we are displaying something on the screen, it makes the next output to start from the next line. The cursor moves to the left margin of the next line on the screen. New line is just a character. The other one was endl. If we write cout << endl; It seems that the same thing happens i.e. the cursor moves to the left margin of the new line. But endl actually does something else. It flushes the output too. As a result, it seems that cout is unbuffered i.e. its output is immediately available on the screen. Depending on the compiler and operating system, you may or may not see the buffered effect. But one thing is clear that while reading the source code, you will know where cout is used and where cerr. Typically, that is also the programming style where the output of cerr is informative and small. It shows that where is the control in the program. The output of cout is more detailed and the actual output of the program. There are benefits of these things in the code. In case of cin , it is alone. For output, we have cout, cerr and clog. In DOS, we have two more output streams i.e. caux (auxiliary input output stream) and cprn (printer output). These are no more relevant now.
Predefined Stream Objects: Object Meaning cin Standard input cout Standard output cerr Standard error with unbuffered output. clog Standard error with buffered output caux Auxiliary (DOS only) cprn Printer(DOS only)
Now let’s take a look at the operators associated with these streams. We have been using the stream insertion operators ‘<<’ with cout. We need to understand that how these operators are implemented. Using cout , we can chained the output. It means that we can write as cout << “The value of the first integer is “ << i; This is the single cout statement. How does that work? What happens is the first part goes to cout. In this case, it is the string “The value of the first integer is”. The data travels in the direction of the arrows. This string is inserted in the stream and displayed on the screen. What about the rest of the statement i.e. << i; this again needs cout on the left side to be executed. It should look like as cout << i; Once, we have defined that this is the behavior expected by us. Then, we understand that this is exactly the way it has been programmed. The stream insertion operator ‘<<’ is overloaded for the output stream and it returns the reference of the output stream. The syntax of stream insertion operator is:
ostream& ostream::operator << (char *text);
docsity.com
stream insertion (<<) to input or output a complex number. We know that a complex number has two parts i.e. real and imaginary. We can write the overloaded function such that if we give two numbers with space between them it could read it. We can also write it as that it could read two numbers (that are real and imaginary parts of a complex number) separated by comma. Thus there may be different ways to write the overloaded operator.
The white space character is very significant. We can show it by a simple example. Suppose we have an array name of 60 characters. We get a name from the user in this array by using cin and then display this string by cout. The code segment for this purpose can be written as:
char name [60] ; cin >> name ; cout << name ;
Now when the user enters the name, suppose it enters ‘naveed malik’ that is a name containing two words with a space between them. When we display this name by using cout , only ‘naveed’ is displayed on the screen. It means that only one word ‘naveed’ was stored in the array. The reason for it that the streams (cin, cout) are sensitive to white space character that is treated as a delimiter. Now where is the second word ‘malik’. It has not got deleted yet. It is in the buffer of the stream. This example will read like the following:
char nam1 [30], name2 [30] ; cin >> name1 >> name2 ;
Thus, we have two character arrays now. We can write ‘naveed malik’ and press enter. The first part before space (naveed) will go to the first array name1 when that array is used with cin. We will write another cin with name2 and the second part (malik) will go to the second array name2. So things don’t disappear. They stay in the buffer till you actually expect them. We have to be careful about that.
Examples using streams A simple example showing the use of getline function.
// A simple example showing the use of getline function. #include <iostream.h>
int main() { const int SIZE = 80; char buffer[SIZE];
cout << " \n Enter a sentence: \n" ; cin.getline(buffer, SIZE);
cout << " The sentence entered is: \n" << buffer << endl; return 0; }
docsity.com
Output of the program. Enter a sentence: this is a test The sentence entered is: this is a test
A simple example showing the use of read and write functions.
// A simple example showing the use of read and write functions. #include <iostream.h>
int main() { const int SIZE = 80; char buffer[SIZE];
cout << " \n Enter a sentence: \n" ; cin.read(buffer, 20);
cout << " The sentence entered was: \n"; cout.write(buffer, cin.gcount()); cout << endl; return 0; }
Output of the program. Enter a sentence: This is a sample program using read and write functions The sentence entered was: This is a sample pro
