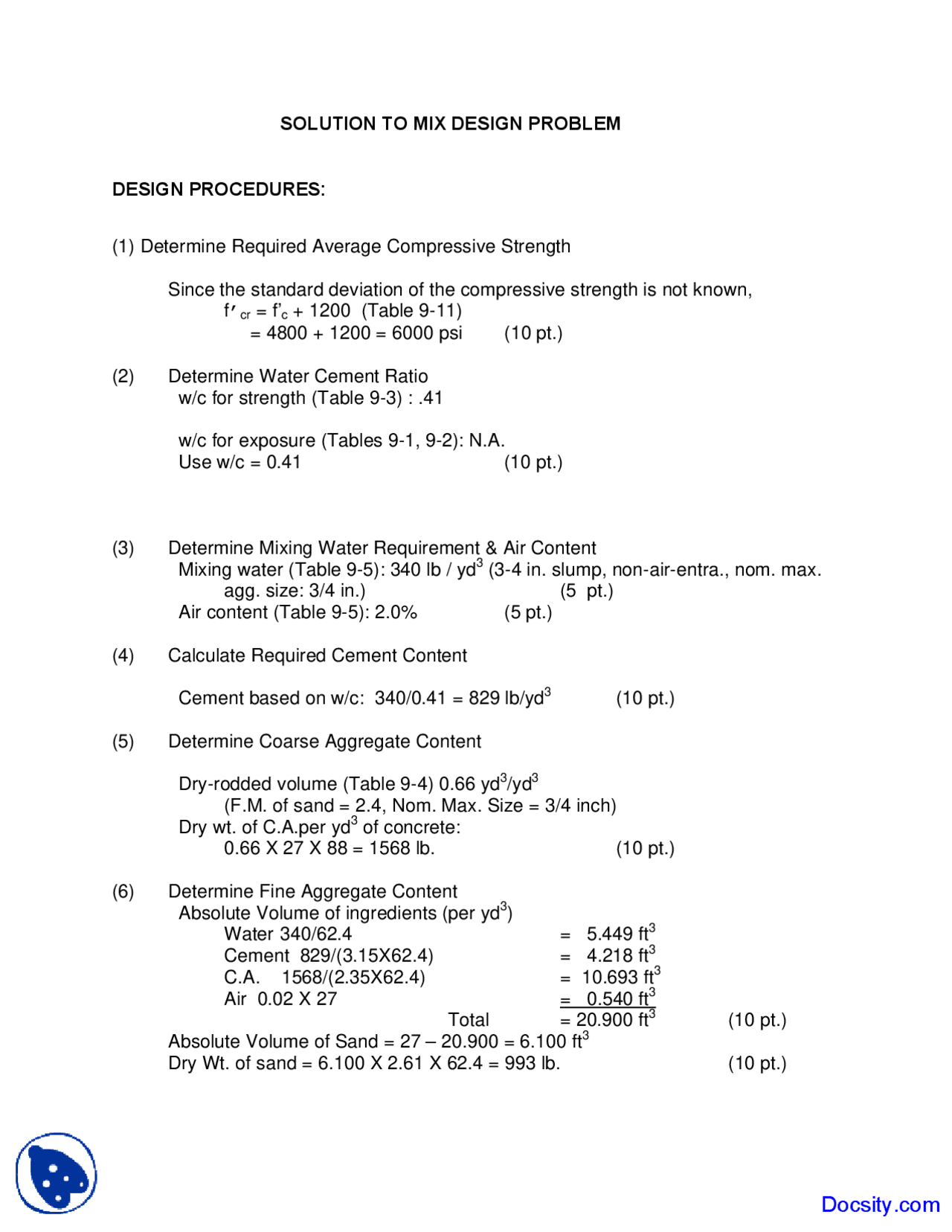

SOLUTION TO MIX DESIGN PROBLEM
DESIGN PROCEDURES:
(1) Determine Required Average Compressive Strength
Since the standard deviation of the compressive strength is not known,
f’cr = f’c + 1200 (Table 9-11)
= 4800 + 1200 = 6000 psi (10 pt.)
(2) Determine Water Cement Ratio
w/c for strength (Table 9-3) : .41
w/c for exposure (Tables 9-1, 9-2): N.A.
Use w/c = 0.41 (10 pt.)
(3) Determine Mixing Water Requirement & Air Content
Mixing water (Table 9-5): 340 lb / yd3 (3-4 in. slump, non-air-entra., nom. max.
agg. size: 3/4 in.) (5 pt.)
Air content (Table 9-5): 2.0% (5 pt.)
(4) Calculate Required Cement Content
Cement based on w/c: 340/0.41 = 829 lb/yd3 (10 pt.)
(5) Determine Coarse Aggregate Content
Dry-rodded volume (Table 9-4) 0.66 yd3/yd3
(F.M. of sand = 2.4, Nom. Max. Size = 3/4 inch)
Dry wt. of C.A.per yd3 of concrete:
0.66 X 27 X 88 = 1568 lb. (10 pt.)
(6) Determine Fine Aggregate Content
Absolute Volume of ingredients (per yd3)
Water 340/62.4 = 5.449 ft3
Cement 829/(3.15X62.4) = 4.218 ft3
C.A. 1568/(2.35X62.4) = 10.693 ft3
Air 0.02 X 27 = 0.540 ft3
Total = 20.900 ft3 (10 pt.)
Absolute Volume of Sand = 27 – 20.900 = 6.100 ft3
Dry Wt. of sand = 6.100 X 2.61 X 62.4 = 993 lb. (10 pt.)
