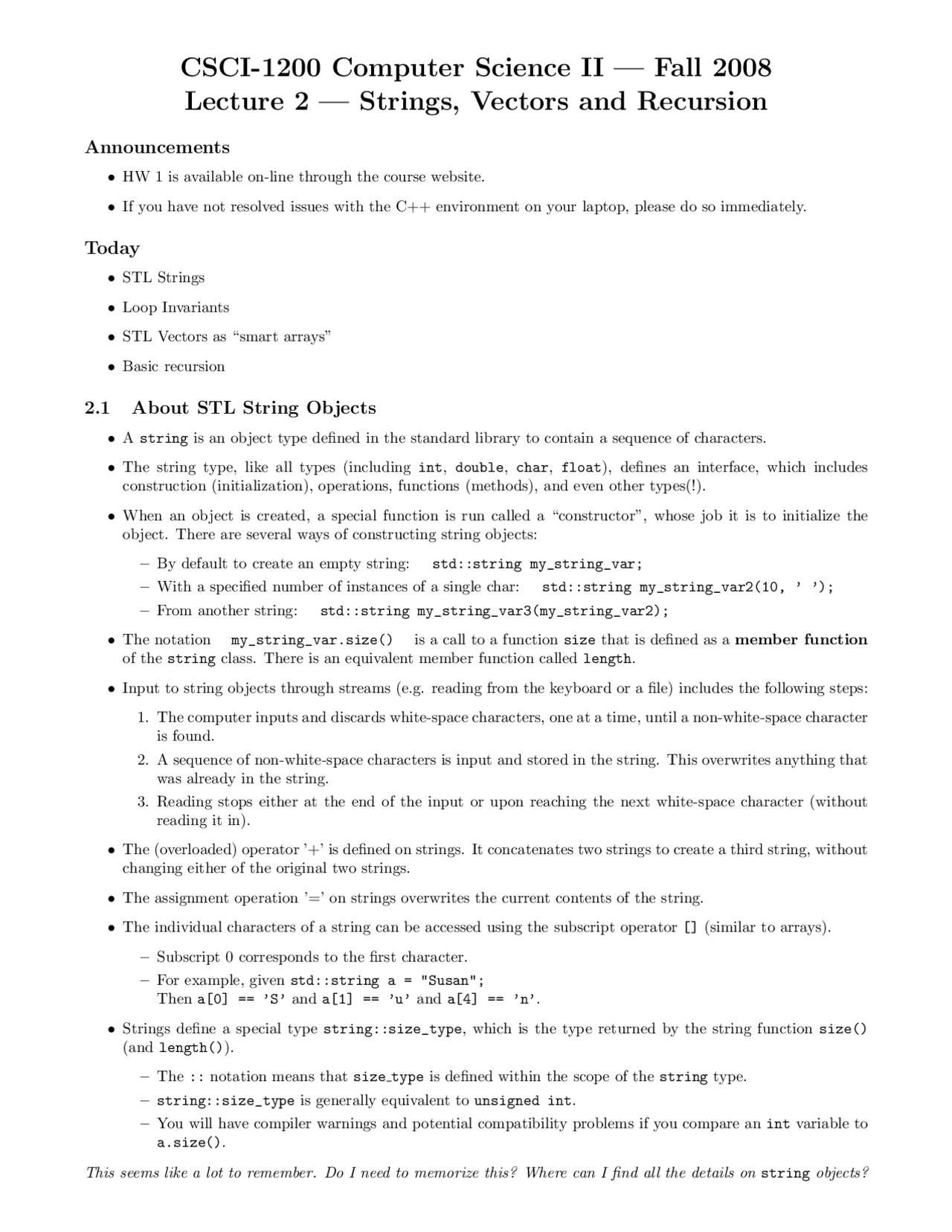

CSCI-1200 Computer Science II — Fall 2008
Lecture 2 — Strings, Vectors and Recursion
Announcements
- HW 1 is available on-line through the course website.
- If you have not resolved issues with the C++ environment on your laptop, please do so immediately.
Today
- STL Strings
- Loop Invariants
- STL Vectors as “smart arrays”
- Basic recursion
2.1 About STL String Objects
- A string is an object type defined in the standard library to contain a sequence of characters.
- The string type, like all types (including int, double, char, float), defines an interface, which includes construction (initialization), operations, functions (methods), and even other types(!).
- When an object is created, a special function is run called a “constructor”, whose job it is to initialize the object. There are several ways of constructing string objects: - By default to create an empty string: std::string my_string_var; - With a specified number of instances of a single char: std::string my_string_var2(10, ’ ’); - From another string: std::string my_string_var3(my_string_var2);
- The notation my_string_var.size() is a call to a function size that is defined as a member function of the string class. There is an equivalent member function called length.
- Input to string objects through streams (e.g. reading from the keyboard or a file) includes the following steps:
- The computer inputs and discards white-space characters, one at a time, until a non-white-space character is found.
- A sequence of non-white-space characters is input and stored in the string. This overwrites anything that was already in the string.
- Reading stops either at the end of the input or upon reaching the next white-space character (without reading it in).
- The (overloaded) operator ’+’ is defined on strings. It concatenates two strings to create a third string, without changing either of the original two strings.
- The assignment operation ’=’ on strings overwrites the current contents of the string.
- The individual characters of a string can be accessed using the subscript operator [] (similar to arrays).
- Subscript 0 corresponds to the first character.
- For example, given std::string a = "Susan"; Then a[0] == ’S’ and a[1] == ’u’ and a[4] == ’n’.
- Strings define a special type string::size_type, which is the type returned by the string function size() (and length()). - The :: notation means that size type is defined within the scope of the string type. - string::size_type is generally equivalent to unsigned int. - You will have compiler warnings and potential compatibility problems if you compare an int variable to a.size().
This seems like a lot to remember. Do I need to memorize this? Where can I find all the details on string objects?
2.2 Exercises
- What will be the values of strings a, b and c at the end of the following code fragment:
std::string a, b, c; std::cin >> a >> b >> c;
for the input:
all-cows eat grass. every good boy deserves fudge!
- Write a C++ code fragment that reads in two strings, outputs the shorter string on one line of output, and then outputs the two strings concatenated together with a space between them on the second line of output.
2.3 C++ vs. Java
- Standard C++ library std::string objects behave like a combination of Java String and StringBuffer objects. If you aren’t sure of how a std::string member function (or operator) will behave, check its semantics or try it on small examples (or both, which is preferable).
- Java objects must be created using new, as in:
String name = new String("Chris");
This is not necessary in C++. The C++ (approximate) equivalent to this example is:
std::string name("Chris");
Note: There is a new operator in C++ and its behavior is somewhat similar to the new operation in Java. We will study it in a couple weeks.
2.4 Example Problem: Writing a Name Along a Diagonal
Let’s write a simple program to read in a name and then write it along a diagonal, framed by asterisks. Here’s how the program should behave:
What is your first name? Bob
We will start by solving a simpler version and then look at two ways to solve the whole problem.
2.5 Exercise: Writing the Name Diagonally
Finish the program below to output the name diagonally, so that the program interaction looks like this:
What is your first name? Sally S a l l y
Hint: You will need to use nested for loops OR a single loop and exploit properties of the string class.
2.8 Aside: Ending a Line of Output
- There are two common ways to end a line of output in a C++ program: std::cout << ’\n’; and std::cout << std::endl; What is the difference?
- C++ streams store their output in an output buffer. This buffer is not immediately written to a file or displayed on your screen. The reason is that the writing process is much slower than the other computations. It is much faster overall when output is buffered and then done “all at once” — in large chunks — when the buffer is full.
- Thus, just outputting the ’\n’ — the end-of-line character — just adds one more character to the buffer.
- Outputting std::endl has two effects:
- Outputting the ’\n’ character, and
- Causing the buffer to be “flushed” — actually output to the file or screen.
- Why should you care?
- When your program crashes, the contents of the output buffer are lost and not actually output. As a result, when looking at your output it often appears that your program crashed much earlier than it actually did. Therefore, using std::endl helps greatly with debugging.
- Using std::endl can slow down a program. Therefore, when a program is fully debugged (and needs to run at a reasonable speed), std::endl should be replaced by ’\n’.
2.9 L-Values and R-Values
- Consider the simple code below. String a becomes "Tim". No big deal, right? Wrong!
string a = "Kim"; string b = "Tom"; a[0] = b[0];
- Let’s look closely at the line: a[0] = b[0]; and think about what happens.
In particular, what is the difference between the use of a[0] on the left hand side of the assignment statement and b[0] on the right hand side?
- Syntactically, they look the same. But,
- The expression b[0] gets the char value, ’T’, from string location 0 in b. This is an r-value.
- The expression a[0] gets a reference to the memory location associated with string location 0 in a. This is an l-value.
- The assignment operator stores the value in the referenced memory location. The difference between an r-value and an l-value will be especially significant when we get to writing our own operators later in the semester
- Has anyone seen the error message: “non-lvalue in assignment”? What’s wrong with this code? std::string foo = "hello"; foo[2] = ’X’; cout << foo; ’X’ = foo[3]; cout << foo;
2.10 Loop Invariants
- Definition: a loop invariant is a logical assertion that is true at the start of each iteration of a loop.
- An invariant can be stated in a comment, but it is not part of the actual code. It helps determine:
- The conditions that may be assumed to be true at the start of each iteration.
- What should happen in each iteration.
- What must be done before the next iteration to restore the invariant.
- Analyzing the code relative to the stated invariant also helps explain the code and think about its correctness.
- The assert function (#include ) can be used to verify loop invariants and help debug programs.
2.11 Ideas for a 2nd Solution: Loop Invariant Practice
- Think about what changes from one line to the next.
- Suppose we had a “blank line” string, containing only the beginning and ending asterisks and the spaces between.
- We could overwrite the appropriate blank character, output the string, and then replace the blank character (and restoring the loop invariant).
2.12 Exercise: Finish the 2nd Solution
#include #include
using std::cin; using std::cout; using std::endl; using std::string;
int main() { cout << "What is your first name? "; string first; cin >> first;
const string star_line(first.size()+4, ’’); const string blanks(first.size()+2, ’ ’); const string empty_line = ’’ + blanks + ’*’; string one_line = empty_line;
cout << ’\n’ << star_line << ’\n’ << empty_line << endl;
cout << empty_line << ’\n’ << star_line << endl;
return 0; }
Be sure to practice adding assertions and/or comments with your assumptions about the loop invariant.
2.13 Thinking About Problem Solving
- We began by working on simplified versions of the problem to get a “feel” for the core issues.
- Then we worked through two different solution approaches:
- Thinking of the output as a two-dimensional grid and using logical operations to figure out what to output at each location.
- Thinking of the output as a series of strings, one string per line, and then thinking about the differences between lines.
- There are often many ways to solve a programming problem. Sometimes you can think of several, while sometimes you struggle to come up with one.
- When you have finished a problem or when you are thinking about programming examples, it is useful to think about the core ideas used. If you can abstract and understand these ideas, you can later apply them to other problems.
2.17 Example: Using Vectors to Compute Standard Deviation
Finish the code below to compute and output the standard deviation of the grades.
// Compute the average and standard deviation of an input set of grades. #include #include #include #include // to access the STL vector class #include // to use standard math library and sqrt
int main(int argc, char* argv[]) {
if (argc != 2) { std::cerr << "Usage: " << argv[0] << " grades-file\n"; return 1; } std::ifstream grades_str(argv[1]); if (!grades_str) { std::cerr << "Can not open the grades file " << argv[1] << "\n"; return 1; }
std::vector scores; // Vector to hold the input scores; initially empty. int x; // Input variable
// Read the scores, appending each to the end of the vector while (grades_str >> x) { scores.push_back(x); }
// Quit with an error message if too few scores. if (scores.size() == 0) { std::cout << "No scores entered. Please try again!" << std::endl; return 1; }
// Compute and output the average value. int sum=0; // Accumulation of the values for (unsigned int i = 0; i < scores.size(); ++ i) { sum += scores[i]; }
double average = double(sum) / scores.size(); std::cout << "The average of " << scores.size() << " grades is " << std::setprecision(3) << average << std::endl;
// Exercise: compute and output the standard deviation.
return 0; }
2.18 Median
- Intuitively, a median value of a sequence is a value that is less than half of the values in the sequence, and greater than half of the values in the sequence.
- More technically, if a 0 , a 1 , a 2 ,... , an− 1 is a sequence of n values AND if the sequence is sorted such that a 0 ≤ a 1 ≤ a 2 ≤ · · · ≤ an− 1 then the median is
a(n−1)/ 2 if n is odd
an/ 2 − 1 + an/ 2 2 if^ n^ is even
- Sorting is therefore the key to finding the median.
2.19 Standard Library Sort Function
- The standard library has a series of algorithms built to apply to container classes.
- The prototypes for these algorithms (actually the functions implementing these algorithms) are in header file algorithm.
- One of the most important of the algorithms is sort.
- It is accessed by providing the beginning and end of the container’s interval to sort.
- As an example, the following code reads, sorts and outputs a vector of doubles
double x; std::vector a; while ( std::cin >> x ) a.push_back(x); std::sort( a.begin(), a.end() ); for ( unsigned int i=0; i<a.size(); ++i ) std::cout << a[i] << ’\n’;
- a.begin() is an iterator referencing the first location in the vector, while a.end() is an iterator referencing one past the last location in the vector. - We will learn much more about iterators in the next few weeks. - Every container has iterators: strings have begin() and end() iterators defined on them.
- The ordering of values by std::sort is least to greatest (technically, non-decreasing). We will see ways to change this.
2.20 Example: Computing the Median
Note the use of functions and parameter passing in this example:
// Compute the median value of an input set of grades.
#include #include #include #include #include #include
void read_scores(std::vector & scores, std::ifstream & grade_str) { int x; // input variable while (grade_str >> x) { scores.push_back(x); } }
2.21 Passing Vectors (and Strings) As Parameters
The following outlines rules for passing vectors as parameters. The same rules apply to passing strings.
- If you are passing a vector as a parameter to a function and you want to make a (permanent) change to the vector, then you should pass it by reference. - This is illustrated by the function read scores in the program median grade. - This is very different from the behavior of arrays as parameters.
- What if you don’t want to make changes to the vector or don’t want these changes to be permanent?
- The answer we’ve learned so far is to pass by value.
- The problem is that the entire vector is copied when this happens! Depending on the size of the vector, this can be a considerable waste of memory.
- The solution is to pass by constant reference: pass it by reference, but make it a constant so that it can not be changed. - This is illustrated by the functions compute avg and std dev and compute median in the program median grade.
- As a general rule, you should not pass a container object, such as a vector or a string, by value because of the cost of copying.
2.22 Initializing a Vector — The Use of Constructors
Here are several different ways to initialize a vector:
- This “constructs” an empty vector of integers. Values must be placed in the vector using push_back.
vector a;
- This constructs a vector of 100 doubles, each entry storing the value 3.14. New entries can be created using push_back, but these will create entries 100, 101, 102, etc.
int n = 100; vector b( 100, 3.14 );
- This constructs a vector of 10,000 ints, but provides no initial values for these integers. Again, new entries can be created for the vector using push_back. These will create entries 10000, 10001, etc.
vector c( n*n );
- This constructs a vector that is an exact copy of vector b.
vector d( b );
- This is a compiler error because no constructor exists to create an int vector from a double vector. These are different types.
vector e( b );
2.23 Exercises
- After the above code constructing the three vectors, what will be output by the following statement?
cout << a.size() << endl << b.size() << endl << c.size() << endl;
- Write code to construct a vector containing 100 doubles, each having the value 55.5.
- Write code to construct a vector containing 1000 doubles, containing the values 0, 1,
5, etc. Write it two ways, one that uses push_back and one that does not use push_back.
2.24 Recursive Definitions of Factorials and Integer Exponentiation
- Factorial is defined for non-negative integers as
n! =
n · (n − 1)! n > 0 1 · n == 0
- Computing integer powers is defined as:
np^ =
n · np−^1 p > 0 1 · p == 0
- These are both examples of recursive definitions.
2.25 Recursive C++ Functions
C++, like other modern programming languages, allows functions to call themselves. This gives a direct method of implementing recursive functions.
- Here’s the implementation of factorial:
int fact(int n) { if (n == 0) { return 1; } else { int result = fact(n-1); return n * result; } }
- And here’s the implementation of exponentiation:
int intpow(int n, int p) { if (p == 0) { return 1; } else { return n * intpow( n, p-1 ); } }
2.26 The Mechanism of Recursive Function Calls
- For each recursive call (or any function call), a program creates an activation record to keep track of:
- Completely separate instances of the parameters and local variables for the newly-called function.
- The location in the calling function code to return to when the newly-called function is complete. (Who asked for this function to be called? Who wants the answer?)
- Which activation record to return to when the function is done. For recursive functions this can be confusing since there are multiple activation records waiting for an answer from the same function.
- This is illustrated in the following diagram of the call fact(4). Each box is an activation record, the solid lines indicate the function calls, and the dashed lines indicate the returns. Inside of each box we list the parameters and local variables and make notes about the computation.
tmp = fact(4)
fact(2) n= result = fact(1) return 2*
fact(1) n= result = fact(0) return 1*
fact(0) n= return 1
fact(3) n= result = fact(2) return 3*
fact(4) n= result = fact(3) return 4* 24 6 2 1 1
- This chain of activation records is stored in a special part of program memory called the stack.
- Exercise: What will this print when called in the following code?
int main() { vector a; a.push_back(3); a.push_back(5); a.push_back(11); a.push_back(17); print_vec(a); }
- Exercise: How can you change the second print vec function as little as possible so that this code prints the contents of the vector in reverse order?
2.31 Binary Search
- Suppose you have a vector v (where T is a placeholder for a specific type), sorted so that:
v[0] <= v[1] <= v[2] <= ...
- Now suppose that you want to find if a particular value x is in the vector somewhere. How can you do this without looking at every value in the vector?
- The solution is a recursive algorithm called binary search, based on the idea of checking the middle item of the search interval within the vector and then looking either in the lower half or the upper half of the vector, depending on the result of the comparison. What is the invariant in this code?
bool binsearch(const vector& v, int low, int high, double x) { if (high == low) return x == v[low]; int mid = (low+high) / 2; if (x <= v[mid]) return binsearch(v, low, mid, x); else return binsearch(v, mid+1, high, x); }
// the driver function bool binsearch(const vector& v, double x) { return binsearch(v, 0, v.size()-1, x); }
2.32 Exercises
- Write a non-recursive version of binary search.
- If we replaced the if-else structure inside the recursive binsearch function (above) with
if ( x < v[mid] ) return binsearch( v, low, mid-1, x ); else return binsearch( v, mid, high, x );
would the function still work correctly?
2.33 Summary
- C++ strings from the standard library hold sequences of characters and have a sophisticated set of operations defined on them.
- Vectors, also from the standard library, can be thought of as smart, dynamically-sized arrays. Vectors should almost always be used instead of arrays, but as we will see vectors are defined internally in terms of arrays.
- Recursion is a way of defining a function and or a structure in terms of simpler instances of itself. While we have seen simple examples of recursion here, ones that are easily replaced by iterative, non-recursive functions, later in the semester when we return to recursion we will see much more sophisticated examples where recursion is not easily removed.
