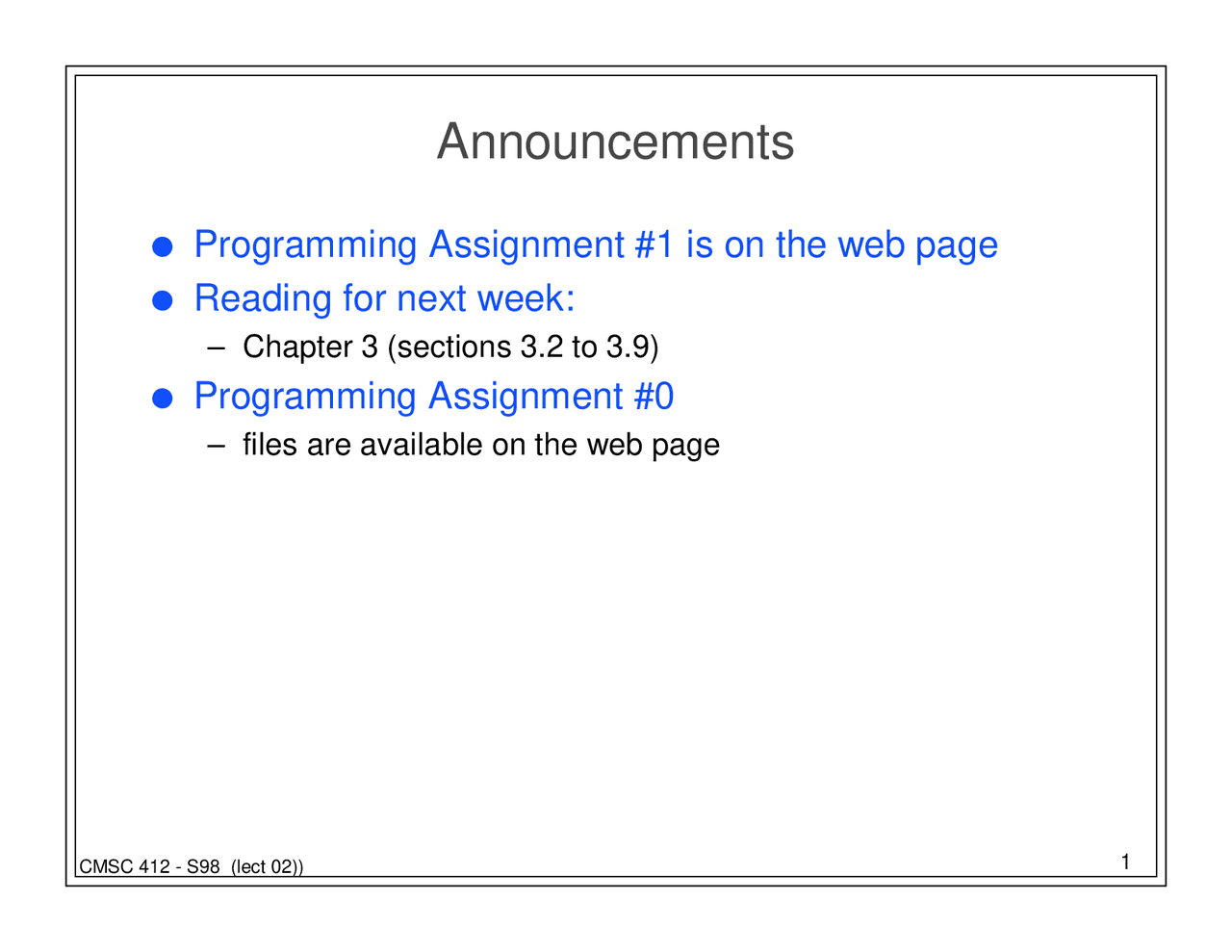

Announcements
lProgramming Assignment #1 is on the web page
lReading for next week:
–Chapter 3 (sections 3.2 to 3.9)
lProgramming Assignment #0
–files are available on the web page
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Study of Complex Programs in Operating Systems | CMSC 412, Study notes of Operating Systems
Material Type: Notes; Professor: Hollingsworth; Class: Operating Systems; Subject: Computer Science; University: University of Maryland; Term: Unknown 1989;
Typology: Study notes
Pre 2010
1 / 11
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Study of Complex Programs in Operating Systems | CMSC 412 and more Study notes Operating Systems in PDF only on Docsity!
Announcements
l Programming Assignment #1 is on the web page
l Reading for next week:
- Chapter 3 (sections 3.2 to 3.9)
l Programming Assignment
- files are available on the web page
Why Study Operating Systems?
l They are large and complex programs
- good software engineering examples
l There is no perfect OS
- too many types of users
- real-time, desktop, server, etc...
- many different models and abstractions are possible
- OS researchers have been termed abstraction merchants
l Many levels of abstraction
- hardware details: where the bits really go and when
- high level concepts: deadlock, synchronization
Computer Systems
l Computers have many different devices
- I/O Devices
- Memory
- volatile storage
- Processor(s)
Processor Memory
Mem. Controller
I/O Bus Controller
Memory Bus I/O Bus
SCSI Adapter Display Adapter SCSI Bus
Disk Drives Tape Drive^ Optical Drive
Network Adapter
Network
I/O Systems
l Many different types of devices
- disks
- networks
- displays
- mouse
- keyboard
- tapes
l Each have a different expectation for performance
- bandwidth
- rate at which data can be moved
- latency
- time from request to first data back
Issues In Busses
l Performance
- increase the data bus width
- have separate address and data busses
- block transfers
- move multiple words in a single request
l Who controls the bus?
- one or more bus masters
- a bus master is a device that can initiate a bus request
- need to arbitrate who is the bus master
- assign priority to different devices
- use a protocol to select the highest priority item
- daisy chained
- central control
Disks
l Several types:
- Hard Disks - rigid surface with magnetic coating
- Floppy disks - flexible surface with magnetic coating
- Optical (read only, write once, multi-write)
l Hard Disk Drives:
- collection of platters
- platters contain concentric rings called tracks
- tracks are divided into fixed sized units called sectors
- a cylinder is a collection of all tracks equal distant from the center of disk
- Current Performance:
- capacity: megabytes to tens of gigabytes
- throughput: sustained < 10 megabytes/sec
- latency: mili-seconds
I/O Interrupts
l Interrupt defined
- indication of an event
- can be caused by hardware devices
- indicates data present or hardware free
- can be caused by software
- system call (or trap)
- CPU stops what it is doing and executes a handler function
- saves state about what was happening
- returns where it left off when the interrupt is done
l Need to know what device interrupted
- could ask each device (slow!)
- instead use an interrupt vector
- array of pointers to functions to handle a specific interrupt
I/O Operations
l Synchronous I/O
- program traps into the OS
- request is made to the device
- processor waits for the device
- request is completed
- processor returns to application process
l Asynchronous I/O
- request is made to the device
- processor records request
- processor continues program
- could be a different one
- request is completed and device interrupts
- processor records that request is done
- program execution continues
