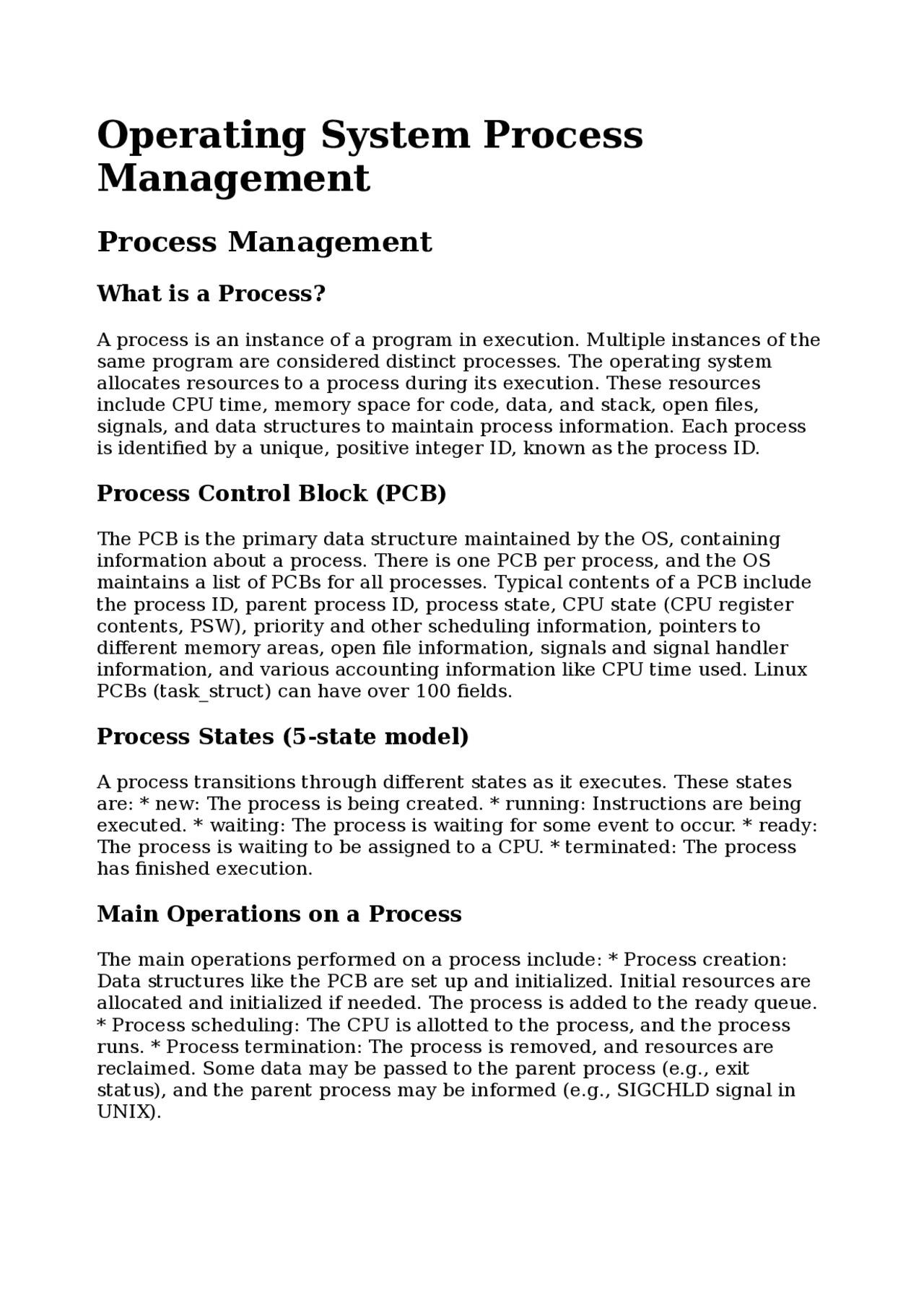

Operating System Process
Management
Process Management
What is a Process?
A process is an instance of a program in execution. Multiple instances of the
same program are considered distinct processes. The operating system
allocates resources to a process during its execution. These resources
include CPU time, memory space for code, data, and stack, open files,
signals, and data structures to maintain process information. Each process
is identified by a unique, positive integer ID, known as the process ID.
Process Control Block (PCB)
The PCB is the primary data structure maintained by the OS, containing
information about a process. There is one PCB per process, and the OS
maintains a list of PCBs for all processes. Typical contents of a PCB include
the process ID, parent process ID, process state, CPU state (CPU register
contents, PSW), priority and other scheduling information, pointers to
different memory areas, open file information, signals and signal handler
information, and various accounting information like CPU time used. Linux
PCBs (task_struct) can have over 100 fields.
Process States (5-state model)
A process transitions through different states as it executes. These states
are: * new: The process is being created. * running: Instructions are being
executed. * waiting: The process is waiting for some event to occur. * ready:
The process is waiting to be assigned to a CPU. * terminated: The process
has finished execution.
Main Operations on a Process
The main operations performed on a process include: * Process creation:
Data structures like the PCB are set up and initialized. Initial resources are
allocated and initialized if needed. The process is added to the ready queue.
* Process scheduling: The CPU is allotted to the process, and the process
runs. * Process termination: The process is removed, and resources are
reclaimed. Some data may be passed to the parent process (e.g., exit
status), and the parent process may be informed (e.g., SIGCHLD signal in
UNIX).
pf3

Partial preview of the text

Download Summary, Process Management in Operating Systems: An Overview and more Summaries Operating Systems in PDF only on Docsity!

Operating System Process

Management

Process Management

What is a Process?

A process is an instance of a program in execution. Multiple instances of the same program are considered distinct processes. The operating system allocates resources to a process during its execution. These resources include CPU time, memory space for code, data, and stack, open files, signals, and data structures to maintain process information. Each process is identified by a unique, positive integer ID, known as the process ID.

Process Control Block (PCB)

The PCB is the primary data structure maintained by the OS, containing information about a process. There is one PCB per process, and the OS maintains a list of PCBs for all processes. Typical contents of a PCB include the process ID, parent process ID, process state, CPU state (CPU register contents, PSW), priority and other scheduling information, pointers to different memory areas, open file information, signals and signal handler information, and various accounting information like CPU time used. Linux PCBs (task_struct) can have over 100 fields.

Process States (5-state model)

A process transitions through different states as it executes. These states are: * new: The process is being created. * running: Instructions are being executed. * waiting: The process is waiting for some event to occur. * ready: The process is waiting to be assigned to a CPU. * terminated: The process has finished execution.

Main Operations on a Process

The main operations performed on a process include: * Process creation: Data structures like the PCB are set up and initialized. Initial resources are allocated and initialized if needed. The process is added to the ready queue.

  • Process scheduling: The CPU is allotted to the process, and the process runs. * Process termination: The process is removed, and resources are reclaimed. Some data may be passed to the parent process (e.g., exit status), and the parent process may be informed (e.g., SIGCHLD signal in UNIX).

Process Creation

A process can create another process by making a system call (e.g., fork()). The process that invokes the call is the parent process, and the new process created is the child process. The new process can, in turn, create other processes, forming a tree of processes. The first process in the system is handcrafted because the OS is not fully running. Resource sharing possibilities include: parent and children share all resources, children share a subset of parent’s resources, or parent and child share no resources. Execution possibilities include: parent and children execute concurrently, or the parent waits until children terminate. Memory address space possibilities include: the address space of the child is a duplicate of the parent, or the child has a new program loaded into it.

Process Termination

A process terminates when it executes its last statement and asks the operating system to terminate it (e.g., exit/abort), or when it encounters a fatal error (e.g., arithmetic exception). The parent may terminate the execution of child processes (e.g., kill) if the child has exceeded allocated resources, the task assigned to the child is no longer required, or the parent is exiting. Some operating systems may not allow a child to continue if its parent terminates.

Process Scheduling

The ready queue is a queue of all processes residing in main memory, ready and waiting to execute (links to PCBs). The scheduler/dispatcher picks up a process from the ready queue according to some algorithm (CPU Scheduling Policy) and assigns it the CPU. The selected process runs until it needs to wait for some event to occur (e.g., a disk read), the CPU scheduling policy dictates that it be stopped, the CPU time allotted to it expires (timesharing systems), or a higher priority process arrives. When it is ready to run again, it goes back to the ready queue. The scheduler is invoked again to select the next process from the ready queue.

Schedulers

The long-term scheduler (or job scheduler) selects which processes should be brought into the ready queue and controls the degree of multiprogramming (number of jobs in memory). It is invoked infrequently (seconds, minutes) and may not be present in an OS (e.g., Linux/Windows). The short-term scheduler (or CPU scheduler) selects which process should be executed next and allocates the CPU. It is invoked very frequently (milliseconds) and must be fast. If all processes do not fit in memory, partially executed jobs can be swapped out to secondary memory and brought back in later. Medium-term scheduling involves copying the process image to a designated area on the disk (swap out) and bringing it back into the ready queue later.
