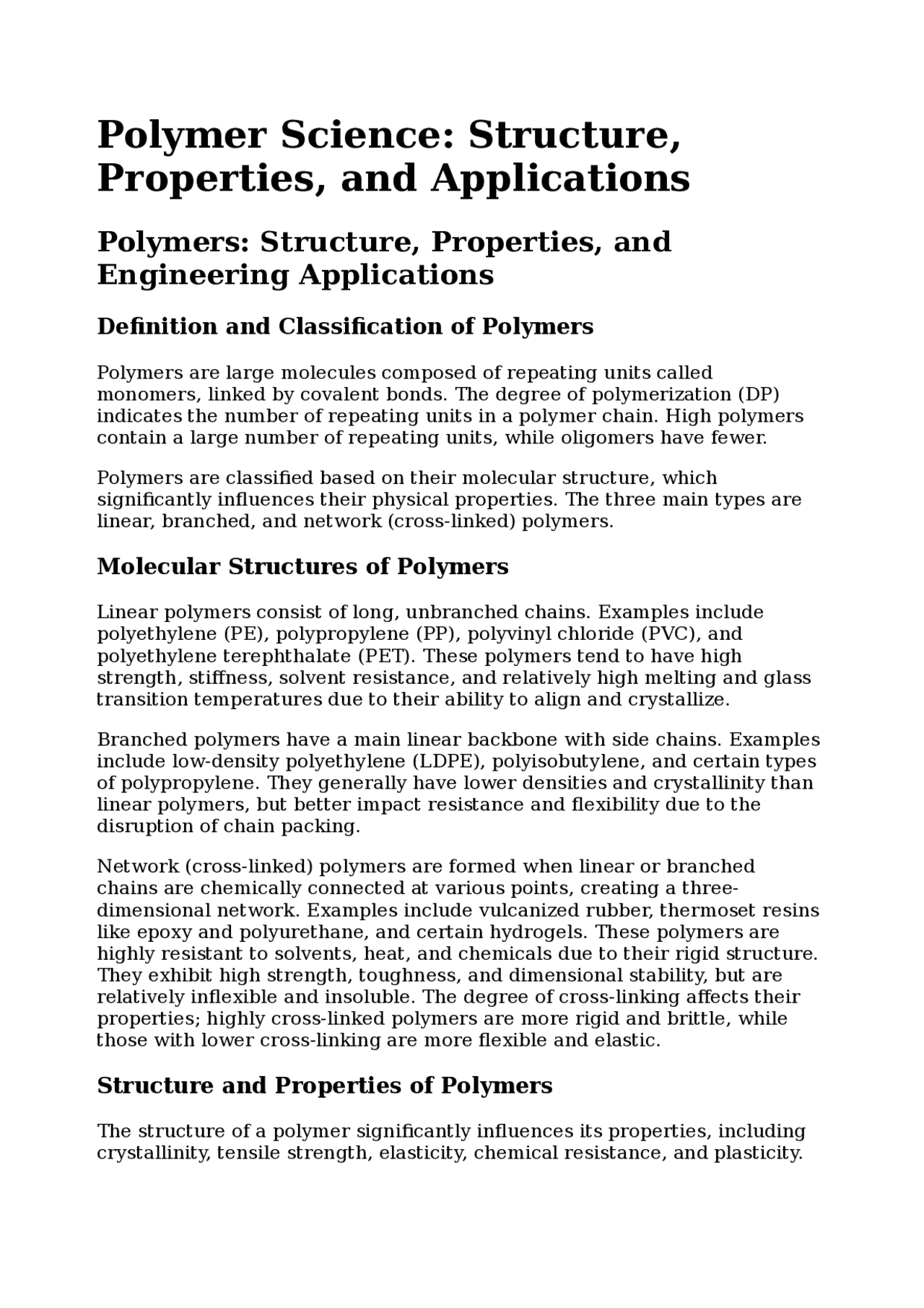

Polymer Science: Structure,
Properties, and Applications
Polymers: Structure, Properties, and
Engineering Applications
Definition and Classification of Polymers
Polymers are large molecules composed of repeating units called monomers, linked by covalent bonds. The degree of polymerization (DP) indicates the number of repeating units in a polymer chain. High polymers contain a large number of repeating units, while oligomers have fewer.
Polymers are classified based on their molecular structure, which significantly influences their physical properties. The three main types are linear, branched, and network (cross-linked) polymers.
Molecular Structures of Polymers
Linear polymers consist of long, unbranched chains. Examples include polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), and polyethylene terephthalate (PET). These polymers tend to have high strength, stiffness, solvent resistance, and relatively high melting and glass transition temperatures due to their ability to align and crystallize.
Branched polymers have a main linear backbone with side chains. Examples include low-density polyethylene (LDPE), polyisobutylene, and certain types of polypropylene. They generally have lower densities and crystallinity than linear polymers, but better impact resistance and flexibility due to the disruption of chain packing.
Network (cross-linked) polymers are formed when linear or branched chains are chemically connected at various points, creating a three- dimensional network. Examples include vulcanized rubber, thermoset resins like epoxy and polyurethane, and certain hydrogels. These polymers are highly resistant to solvents, heat, and chemicals due to their rigid structure. They exhibit high strength, toughness, and dimensional stability, but are relatively inflexible and insoluble. The degree of cross-linking affects their properties; highly cross-linked polymers are more rigid and brittle, while those with lower cross-linking are more flexible and elastic.
Structure and Properties of Polymers
The structure of a polymer significantly influences its properties, including crystallinity, tensile strength, elasticity, chemical resistance, and plasticity.
The strength of a polymer is determined by the magnitude and distribution of attractive forces between the chains. Straight and branched chain polymers are held together by weak intermolecular forces. Strength increases with chain length (molecular weight), attaining mechanical strength when the chain length exceeds 150-200 carbon atoms. Below this, polymers are soft, gummy, and brittle at low temperatures. In cross-linked polymers, monomeric units are held together by covalent forces.
Polyethylene molecules are simple and uniform, allowing for slippage and higher strength compared to polyethylene. Cross-linked polymers restrict movement due to covalent bonds. Linear molecules exhibit greater plastic deformation than branched and cross-linked ones due to weak intermolecular forces. At high pressure and temperature, van der Waals forces weaken. Cross-linked polymers do not exhibit slippage due to strong covalent bonds, but can be destroyed by excessive external force or temperature.
Crystallinity depends on the arrangement of polymer chains. Chains are held together by van der Waals forces, hydrogen bonding, or polar interactions. High crystallinity leads to high tensile strength, impact and wear resistance, density, and fusion temperature. Polymers with long repeating units or low symmetry do not crystallize easily, forming amorphous structures like polystyrene. Amorphous polymers have a sharp softening point, greater strength, and rigidity. Polymers are generally amorphous with some degree of crystallinity.
Chemical resistance depends on the chemical nature of monomers and their arrangement. Polymers with polar groups (e.g., -OH, -COOH) dissolve in polar solvents but resist non-polar solvents. Solubility decreases with increasing molecular weight. Crystalline polymers exhibit higher resistance than less crystalline ones. Greater crystallinity leads to lower solubility. Chemical resistance is important in applications like plastic bottles to prevent drug-polymer interactions.
Elasticity results from the uncoiling and recoiling of molecular chains upon force application.
Glass Transition Temperature (Tg)
Amorphous polymers lack sharp melting points. At low temperatures, they exist as glassy substances. Heating has little effect on thermosetting polymers, which are destroyed at high temperatures.
The glass transition temperature (Tg) depends on chain geometry, flexibility, molecular aggregates, hydrogen bonds, plasticizers, and substrates. Regular chain geometry increases Tg. Bulky groups on the chain increase Tg, but molecular weight above 20,000 has little effect. Crystalline polymers have higher Tg than amorphous polymers. Plasticizers reduce Tg by reducing cohesive forces. Tg indicates flexibility and influences thermal expansion, heat capacity, and electrical and mechanical properties.
each with unique properties and applications, often indicated by a numbering system.
Polymer Types and Properties
Nylon 6,
Nylon 6,6 is synthesized through the polycondensation of adipic acid and hexamethylenediamine at elevated temperatures. This process results in polymer formation and the release of water.
Polyesters
Polyesters are polymers characterized by the presence of the ester functional group in their main chain. Polyethylene terephthalate (PET) is a common type of polyester. Polyesters exhibit high impact resistance, transparency, and heat resistance. They are known for their strength, durability, and resistance to shrinking and stretching, making them suitable for textiles, packaging, and other applications. Each polyester type possesses unique properties tailored for specific uses, from consumer goods to industrial components. PET consists of a terephthalate group and an ethylene group linked by an ether linkage.
Epoxies
Epoxies are reactive prepolymers and polymers containing epoxide groups.
Bisphenol A Epoxy Resins
These resins offer high mechanical strength, good thermal and chemical resistance, and excellent adhesion.
Novolac Epoxy Resins
These resins provide superior chemical resistance, high temperature performance, and excellent mechanical properties. They are used in chemical-resistant coatings, high-performance composites, and applications requiring high thermal stability.
General Properties of Epoxies
Epoxies exhibit high bonding strength to various substrates, including metals, ceramics, glass, and plastics. They offer excellent protective properties, including resistance to corrosion, chemicals, and abrasion. Epoxies also have a high strength-to-weight ratio, durability, and resistance to environmental factors. They provide a clear, glossy finish and the ability to embed objects.
Biodegradable Polymers
Biodegradable polymers are broken down by microorganisms like bacteria, fungi, and algae into harmless byproducts such as water, carbon dioxide, and methane, under aerobic or anaerobic conditions.
Mechanism of Degradation of PLA
The degradation of polylactic acid (PLA) involves physical and chemical processes, primarily hydrolysis, which breaks down polymer chains into smaller, biodegradable molecules.
Water Absorption and Hydrolysis
PLA degradation begins with water absorption. Water molecules penetrate the polymer structure and interact with the ester bonds in the polymer backbone, initiating hydrolysis. This process breaks down the ester bonds (- COO-) and releases oligomers and lactic acid monomers, leading to chain scission and shortening of the polymer chains.
Microbial Degradation (Biodegradation)
After significant chain scission, microorganisms metabolize the smaller oligomers and monomers (primarily lactic acid). Microbes use lactic acid as a carbon source, breaking it down through biochemical processes into carbon dioxide (CO₂), water (H₂O), and microbial biomass. This microbial activity is essential for PLA biodegradation and is more effective in industrial composting facilities with optimized temperature, moisture, and microbial populations.
End Products of Degradation
The final products of PLA degradation are carbon dioxide, water, and microbial biomass. Degradation is slower in natural environments due to lower temperatures, reduced microbial activity, and limited moisture. Industrial composting settings provide optimal conditions for faster degradation, typically within a few months. PLA fibers are used in clothing, upholstery, and non-woven fabrics.
Polyhydroxyalkanoates (PHAs)
Polyhydroxyalkanoates (PHAs) are biodegradable and biocompatible polymers produced by various microorganisms.
Hydrolytic Degradation
Similar to PLA, PHAs are susceptible to hydrolysis, where water breaks the ester bonds in the polymer backbone.
Extrinsically Conducting Polymers (ECPs)
The minimum concentration of conductive filler needed for a polymer to start conducting is known as the percolation threshold.
Blended Conducting Polymers
These polymers are created by combining a conventional polymer with a conducting polymer, either chemically or physically. An example is a composite of polyacetylene and thermoplastic polymers.
Applications
Conducting polymers are increasingly used due to their light weight, ease of processing, and good mechanical properties.
Smart Polymers
Smart polymers, also known as stimuli-responsive or intelligent polymers, undergo reversible changes in their physical or chemical properties in response to external stimuli such as temperature, pH, light, electric field, or solvent composition. Their responsiveness allows for precise control over their behavior, making them versatile for technological advancements.
Temperature Responsive Polymers
Thermosensitive polymers adjust their properties in response to temperature variations. They leverage temperature as a controlled stimulus, triggering the expansion or contraction of their polymer chains. These polymers exhibit distinct temperature thresholds known as the upper critical solution temperature (UCST) and lower critical solution temperature (LCST). LCST polymers dissolve readily at lower temperatures but become insoluble as the temperature rises. UCST polymers dissolve at higher temperatures but lose solubility at lower temperatures.
