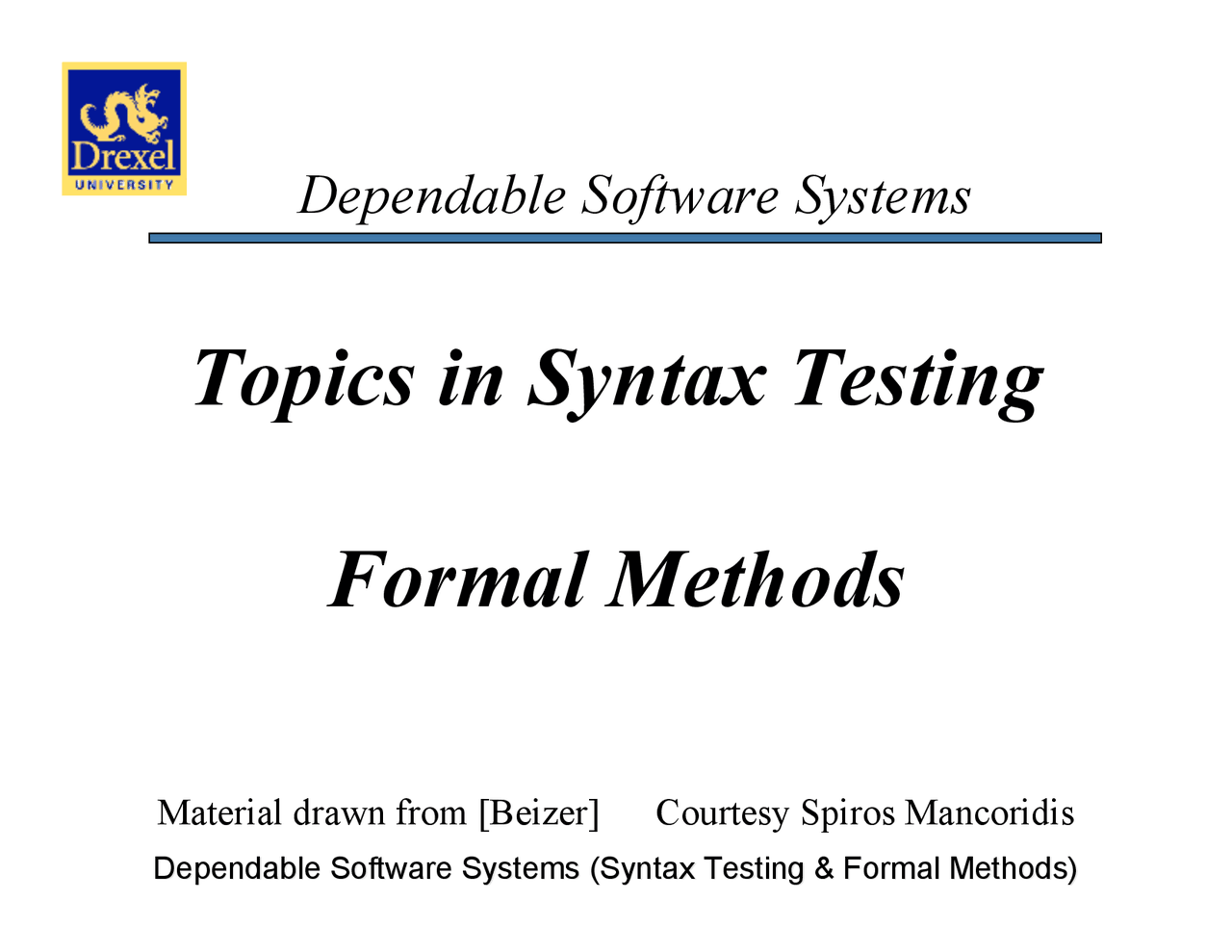

Dependable Software Systems (Syntax Testing & Formal Methods)
Dependable Software Systems (Syntax Testing & Formal Methods)
Dependable Software Systems
Topics in Syntax Testing
Formal Methods
Material drawn from [Beizer] Courtesy Spiros Mancoridis
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31
pf32
pf33
pf34
pf35
pf36
pf37
pf38
pf39
pf3a
pf3b
pf3c
pf3d
pf3e
pf3f

Partial preview of the text

Download Dependable Software Systems: Syntax Testing & Formal Methods and more Exams Computer Science in PDF only on Docsity!

Dependable Software Systems

Topics in Syntax Testing

Formal Methods

Material drawn from [Beizer] Courtesy Spiros Mancoridis

Syntax Testing

  • System inputs must be validated. Internal

and external inputs conform to formats:

  • Textual format of data input from users.
  • File formats.
  • Database schemata.
  • Data formats can be mechanically converted

into many input data validation tests.

  • Such a conversion is easy when the input is

expressed in a formal notation such as BNF

(Backus-Naur Form).

Million Monkey Phenomenon

  • A million monkeys sit at a million

typewriters for a million years and

eventually one of them will type Hamlet!

  • Input validation is the first line of defense

against a hostile world.

Input-Tolerance Testing

  • Good user interface designers design their

systems so that it just doesn’t accept

garbage.

  • Good testers subject systems to the most

creative “garbage” possible.

  • Input-tolerance testing is usually done as

part of system testing and usually by

independent testers.

Automation is Necessary

  • Test execution automation is essential for

syntax testing because this method produces

a large number of tests.

How to Find the Syntax

  • Every input has a syntax.
  • The syntax may be:
    • formally specified
    • undocumented
    • just understood
  • … but it does exist!
  • Testers need a formal specification to test

the syntax and create useful “garbage”.

BNF Example

  • Correct phone numbers:
    • 3469900, 9904567, 3300000
  • Incorrect phone numbers:
    • 0551212, 123, 8, ABCDEFG special_digit ::= 0 | 1 | 2 | 5 other_digit ::= 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 ordinary_digit ::= special_digit | other_digit exchange_part ::= ordinary_digit number_part ::= phone_number ::= exchange_part number_part 2 other _ digit 4 ordinary _ digit

Why BNF?

  • Using a BNF specification is an easy way to

design format-validation test cases.

  • It is also an easy way for designers to

organize their work.

  • You should not begin to design tests until

you are able to distinguish incorrect data

from correct data.

Testing Strategy

  • Create one error at a time, while keeping all

other components of the input string correct.

  • Once a complete set of tests has been

specified for single errors, do the same for

double errors, then triple, errors, ...

  • Focus on one level at a time and keep the

level above and below as correct as you can.

Example: Telephone Number

(Level 1)

  • phone_number ::= exchange_part number_part
    • Empty string.
    • An exchange_part by itself.
    • Two from exchange_part.
    • Two from number_part.
    • One from exchange_part and two from number_part.
    • Two from exchange_part and one from number_part.
    • ...

Example: Telephone Number

(Level 2)

  • Bad number_part :
  • number_part ::= ordinary_digit
    • Not enough from ordinary_digit.
    • Too many from ordinary_digit.
    • ... 4

Example: Telephone Number

(Level 3)

  • ordinary_digit ::= special_digit | other_digit
    • Not a digit - alphabetic.
    • Not a digit - control character.
    • Not a digit - delimiter.
    • ...

Delimiter Errors

  • Delimiters are characters or strings placed

between two fields to denote where one

ends and the other begins.

  • Delimiter Problems:
    • Missing delimiter. e.g., (x+y
    • Wrong delimiter. e.g., (x+y]
    • Not a delimiter. e.g., (x+y 1
    • Poorly matched delimiters. e.g., (x+y))

Sources of Syntax

  • Designer-Tester Cooperation
  • Manuals
  • Help Screens
  • Design Documents
  • Prototypes
  • Programmer Interviews
  • Experimental (hacking)
